S I G N A L L I N G
Rear foglamps on
Front foglamps and rear foglamps on
The warning lamp lights up.
The foglamps operate only with either headlamp dipped beam or headlamp main beam switched on.
Switching off
First action rearwards, rear foglamps off.
Second action rearwards, front and rear foglamps off.Note: the foglamps should be used only in fog or in other conditions of poor visibility.

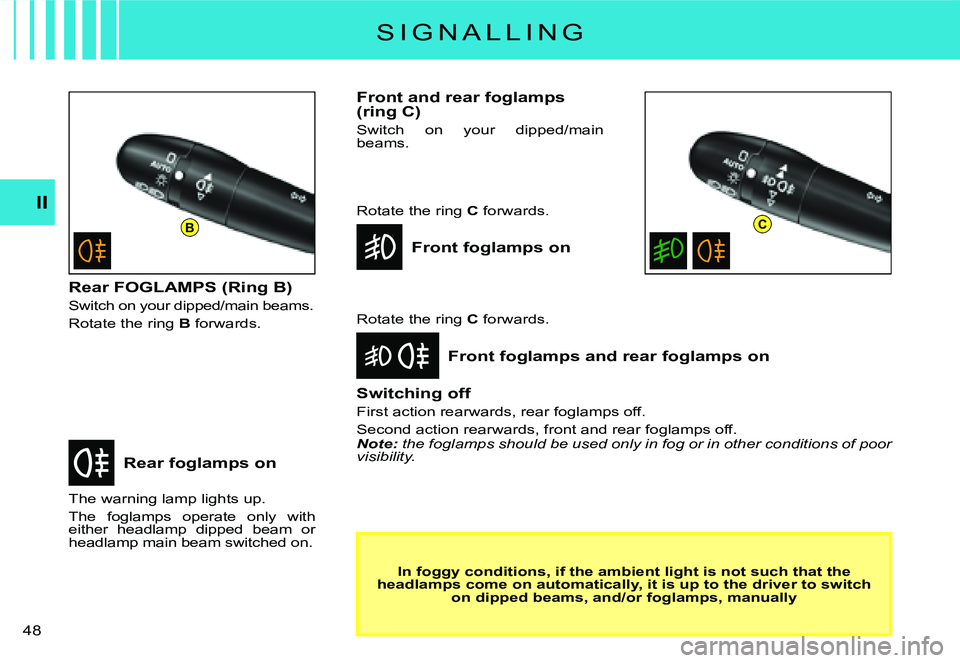

Front and rear foglamps (ring C)
Switch on your dipped/main beams.
In foggy conditions, if the ambient light is not such that th e headlamps come on automatically, it is up to the driver to switch on dipped beams, and/or foglamps, manually
Rear FOGLAMPS (Ring B)
Switch on your dipped/main beams.
Rotate the ring B forwards.
Front foglamps on
Rotate the ring C forwards.
Rotate the ring C forwards.
Page 49 of 191
B
A
5 0
II
W I P E R S
Check that the windscreen and rear wipers can operate freely when f o r e x a m p l e a b i c y c l e - c a r r i e r i s fi t t e d , o r i n f r e e z i n g c o n d i t i o n s .
Remove any accumulation of snow at the base of the windsc reen.
Changing the wiper blades
If you have to replace them, the wiper blades have to be parked in the maintenance position. For this, switch off the ignition and then within one minute move the wiper control stalk. The wipers stand up in a vertical position.
After replacement, switch on the ignition and move the wiper control stalk so that the wipers resume their normal position.
A. Windscreen wash
To operate the windscreen wash, pull the wiper stalk towards you.
The screen wash is accompanied by a timed wipe of the windscreen, the headlamp wash also activates if the dipped beams are on.
B. Rear screen wipe
First notch
Off.
Second notch
Intermittent rear wipe.
Third notch
Timed rear wash/wipe.
Automatic wipe
When the windscreen wipers are operational and reverse gear is engaged.
Activation/deactivation of this func-tion is possible in the menu “Per- s o n a l i s a t i o n / C o n fi g u r a t i o n ” i n t h e “Main menu”.
Deactivation may be necessary when a bicycle-carrier is installed on the tailgate.
Page 50 of 191
II
D A S H B O A R D A D J U S T M E N T S
Seat belt height adjustment
The correct positioning of the seat belt is across the middle of the shoulder. See USER PRECAU-TIONS.
Adjust the height of the seat belt anchorage by holding down the button and the lever.
Headlamps adjustment
You are advised to adjust the aim of the headlamps in accordance with vehicle load.
In the dashboard on the right hand side of the steering column.
0: Unladen weight.
1: Lightly laden.
2: Half laden.
3: Fully laden.
As a metter of safety, these manœuvres should not be performed while the vehicle is moving.

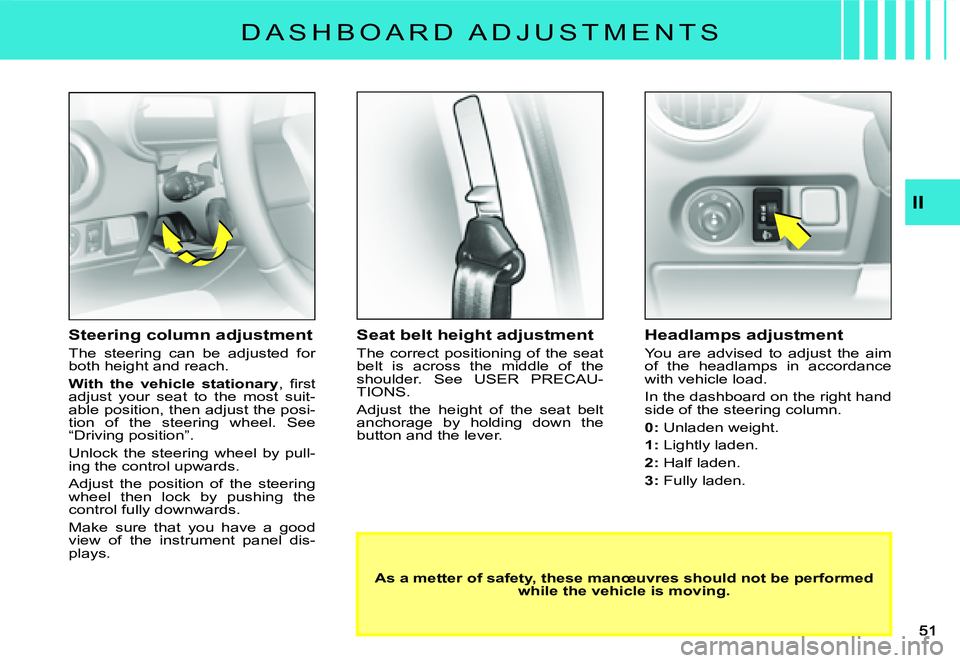

Steering column adjustment
The steering can be adjusted for both height and reach.
With the vehicle stationary , fi r s t adjust your seat to the most suit-able position, then adjust the posi-tion of the steering wheel. See “Driving position”.
Unlock the steering wheel by pull-ing the control upwards.
Adjust the position of the steering wheel then lock by pushing the control fully downwards.
Make sure that you have a good view of the instrument panel dis-plays.
Page 97 of 191
A
B
9 7
IV
L E V E L S
REFER TO THE CHAPTER: USER PRECAUTIONS
A i r fi l t e r
Follow the requirements set out in the Maintenance Guide.
Windscreen/rear screen wash and headlamp w a s h fl u i d
Use CITROËN-approved products wherever possible.
Capacity: See “Capacities”.
Engine coolant
T h e fl u i d l e v e l s h o u l d b e between the marks MIN. and MAX. on the header tank.
E n g i n e h o t , w a i t a t l e a s t 1 5 m i n -utes.
Quality: See “Maintenance Guide”.
Never do anything relating to the cooling system of an engine that is hot.
12V battery
See “Starting with a slave battery”.
Engine oil
Check the engine oil level on horizontal ground with the engine having been s w i t c h e d o f f f o r a t l e a s t 1 0 m i n -utes.
Quality: See “Maintenance Guide”.
Pull out the manual dip-stick.
The level should be between the marks MIN.and MAX. on the gauge.
It must never exceed the maximum.
MAX.
MIN.
B r a k e fl u i d
T h e l e v e l o f fl u i d s h o u l d b e between the marks MIN.and MAX. on the reservoir.
Quality: See “Maintenance Guide”.
If the warning lamp comes on while you are driving, stop imme-diately and contact a CITROËN while you are driving, stop imme-stop imme-
dealer.
C a b i n p a r t i c l e fi l t e r / O d o u r fi l t e r
See “Maintenance Guide”.
If opening the bonnet when the engine is hot, even if it is stopped and the ignition is switched off, remember that the cooling fan may operate at any moment.
Consult “User Precautions ” at the end of this handbook.
Page 112 of 191
1 1 2
T A B L E O F F U S E S
F U S E S U N D E R T H E B O N N E T
Ref.RatingFunction
120 AWater-in-diesel-fuel sensor
215 AHorn
310 AScreen wash
420 AHeadlamp wash
515 AFuel pump
610 APower steering
710 ACoolant level sensor
825 AStarter
910 AECUs (ABS, ESP)
1030 AEngine control actuators (Ignition coil, Electrovalve, Oxygen sensor, Injection) – Canister purge
1140 AAir blower
1230 AWindscreen wiper
1430 AAir pump (petrol version) – Diesel fuel heater
IV
Page 114 of 191
1
23
A
4
1 1 4
V
C H A N G I N G B U L B S
HEADLAMP UNIT1 Sidelamp2 Dipped beam3 Main beam4 Direction indicatorNote: A light misting may appear on the headlamp surface in certain conditions of use.
Dipped beam
Main beam
Tilt the metallic spring holding the fl a p g i v i n g a c c e s s t o t h e l a m p bulbs.
O p e n t h e a c c e s s fl a p .
Disconnect the connector.
Disengage the retaining spring by an forward movement, then an out-ward movement to disengage the two grips.
Take out the bulb.
Bulb: H4
Before touching, disconnect the supply connector A.
