2007 CHRYSLER PACIFICA warning light

location.Do not raise the vehicle until you are sure the
jack is securely engaged. Never jack up the vehicle
using any suspension components.
6. Raise the vehicle by turning the jack screw to the right,
using the swivel wrench. Raise the vehicle only until the
tire just clears the surface and enough clearance is
obtained to install the spare tire. Minimum tire lift
provides maximum stability.
WARNING!
Raising the vehicle higher than necessary can make
the vehicle less stable. It could slip off the jack and
hurt someone near it. Raise the vehicle only enough
to remove the tire.
7. Remove the wheel lug nuts, for vehicles with wheel
covers, remove the cover from the wheel by hand. Do not
pry the wheel cover off. Then pull the wheel off the hub.
8. Install the spare wheel, for vehicles with wheel covers,
align the notch in the wheel cover with the valve stem on
the wheel. Install the cover on the wheel by hand only
and install the wheel lug nuts with the cone shaped end
of the nut toward the wheel. Lightly tighten the lug nuts.
To avoid the risk of forcing the vehicle off the jack, do not
tighten the lug nuts fully until the vehicle has been
lowered.
NOTE:Do not install the wheel cover on the compact
spare.
Do not use a hammer or force to install the wheel covers.
9. Lower the vehicle by turning the jack screw to the left.
10. Finish tightening the lug nuts. Push down on the
wrench while tightening for increased leverage. Alternate
352 WHAT TO DO IN EMERGENCIES

Check the Battery Test Indicator (if equipped). If a light or
bright colored dot is visible in the indicator (if equipped),
DO NOT jump-start the battery.
If the indicator (if equipped) is dark or shows a green dot,
proceed as follows:
1. Wear eye protection and remove any metal jewelry
such as watch bands or bracelets that might make an
inadvertent electrical contact.
2. When boost is provided by a battery in another
vehicle, park that vehicle within booster cable reach and
without letting the vehicles touch. Set the parking brake,
place the automatic transmission in PARK and turn the
ignition switch to the OFF position for both vehicles.
3. Turn off the heater, radio and all unnecessary electrical
loads.4. Connect one end of a jumper cable to the positive
terminal of the discharged battery. Connect the other end
of the same cable to the positive terminal of the booster
battery.
WARNING!
Do not permit vehicles to touch each other as this
could establish a ground connection and personal
injury could result.
5. Connect the other cable, first to the negative terminal
of the booster battery andthen to the engine of the
vehicle with the discharged battery.Make sure you have
a good contact on the engine.
WHAT TO DO IN EMERGENCIES 355
6

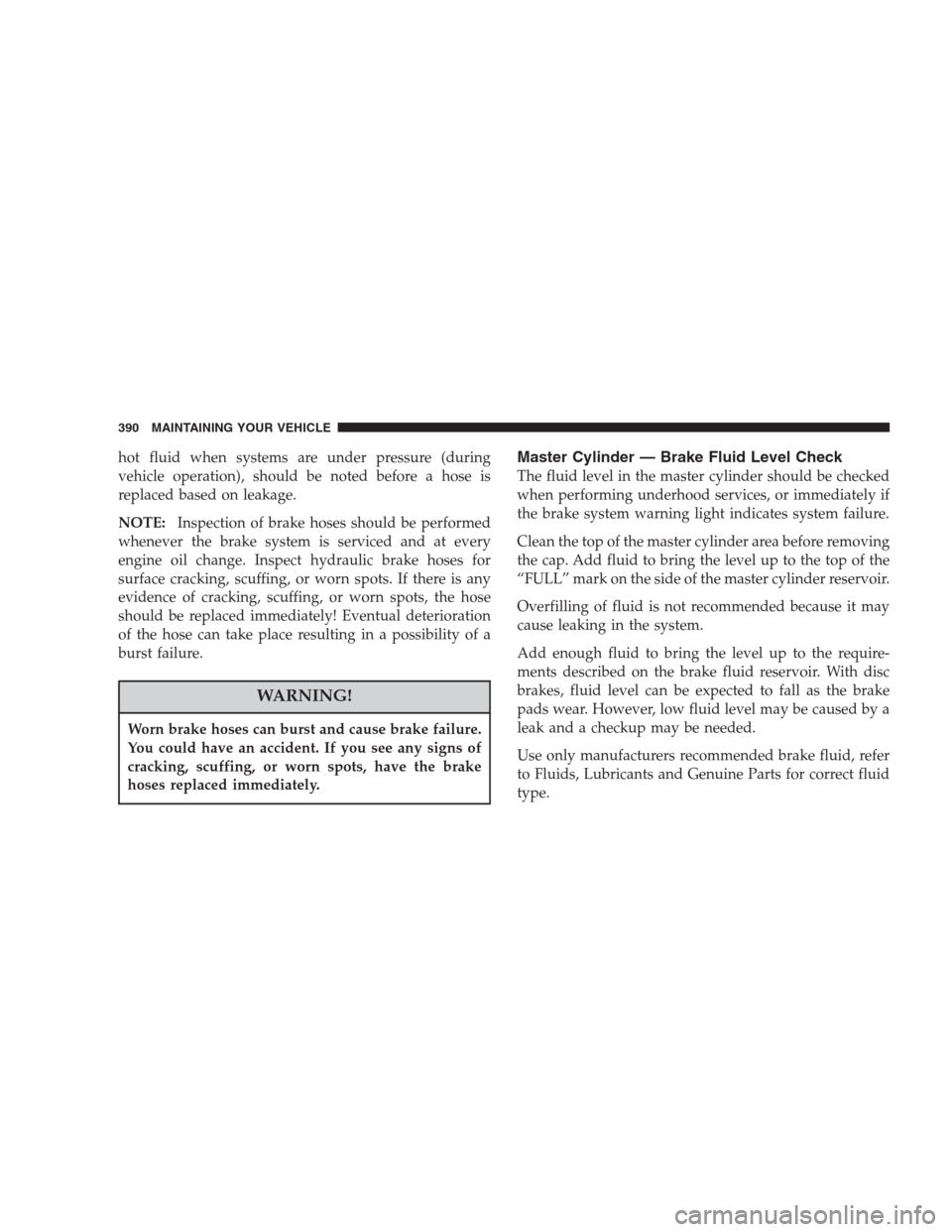

hot fluid when systems are under pressure (during
vehicle operation), should be noted before a hose is
replaced based on leakage.
NOTE:Inspection of brake hoses should be performed
whenever the brake system is serviced and at every
engine oil change. Inspect hydraulic brake hoses for
surface cracking, scuffing, or worn spots. If there is any
evidence of cracking, scuffing, or worn spots, the hose
should be replaced immediately! Eventual deterioration
of the hose can take place resulting in a possibility of a
burst failure.
WARNING!
Worn brake hoses can burst and cause brake failure.
You could have an accident. If you see any signs of
cracking, scuffing, or worn spots, have the brake
hoses replaced immediately.
Master Cylinder — Brake Fluid Level Check
The fluid level in the master cylinder should be checked
when performing underhood services, or immediately if
the brake system warning light indicates system failure.
Clean the top of the master cylinder area before removing
the cap. Add fluid to bring the level up to the top of the
“FULL” mark on the side of the master cylinder reservoir.
Overfilling of fluid is not recommended because it may
cause leaking in the system.
Add enough fluid to bring the level up to the require-
ments described on the brake fluid reservoir. With disc
brakes, fluid level can be expected to fall as the brake
pads wear. However, low fluid level may be caused by a
leak and a checkup may be needed.
Use only manufacturers recommended brake fluid, refer
to Fluids, Lubricants and Genuine Parts for correct fluid
type.
390 MAINTAINING YOUR VEHICLE

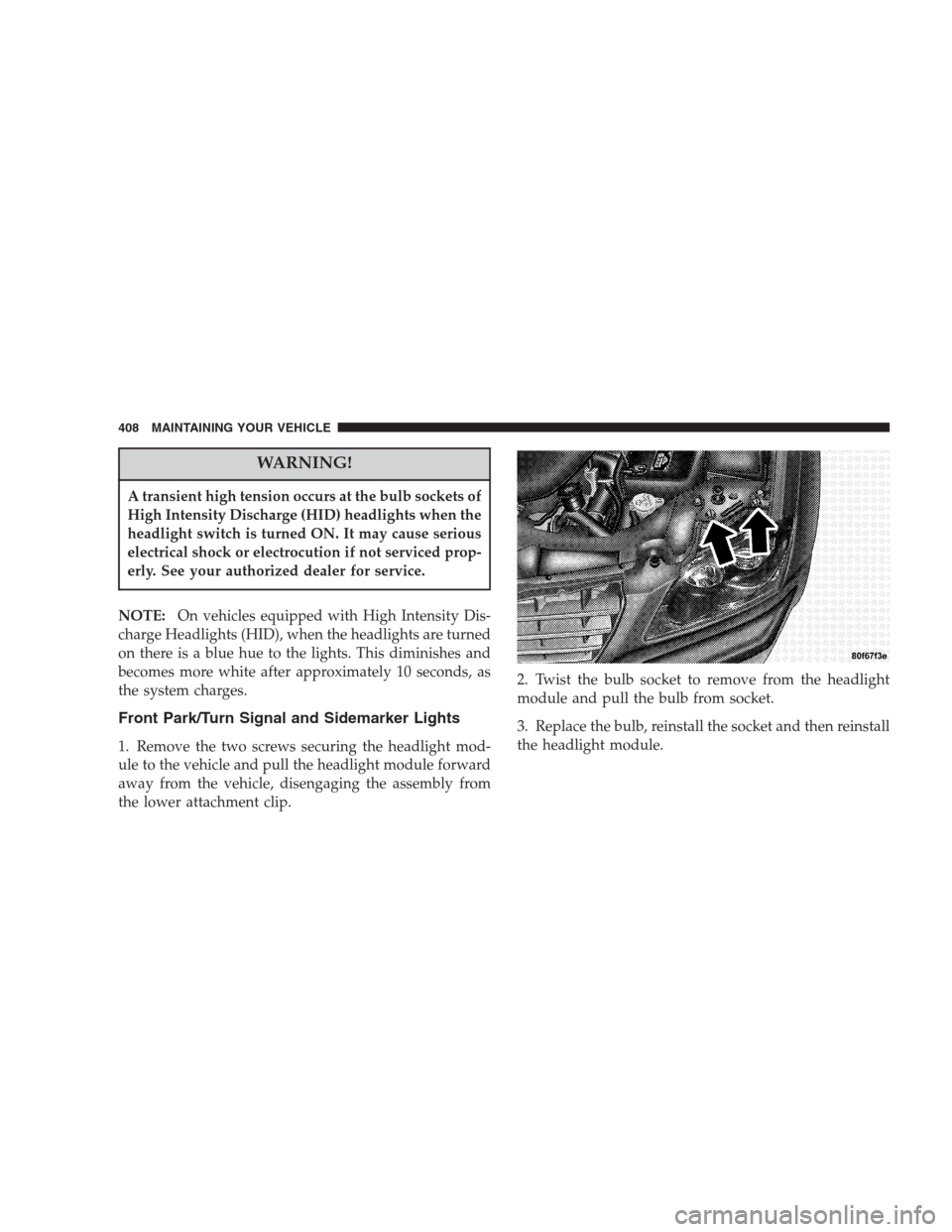

WARNING!
A transient high tension occurs at the bulb sockets of
High Intensity Discharge (HID) headlights when the
headlight switch is turned ON. It may cause serious
electrical shock or electrocution if not serviced prop-
erly. See your authorized dealer for service.
NOTE:On vehicles equipped with High Intensity Dis-
charge Headlights (HID), when the headlights are turned
on there is a blue hue to the lights. This diminishes and
becomes more white after approximately 10 seconds, as
the system charges.
Front Park/Turn Signal and Sidemarker Lights
1. Remove the two screws securing the headlight mod-
ule to the vehicle and pull the headlight module forward
away from the vehicle, disengaging the assembly from
the lower attachment clip.2. Twist the bulb socket to remove from the headlight
module and pull the bulb from socket.
3. Replace the bulb, reinstall the socket and then reinstall
the headlight module.
408 MAINTAINING YOUR VEHICLE

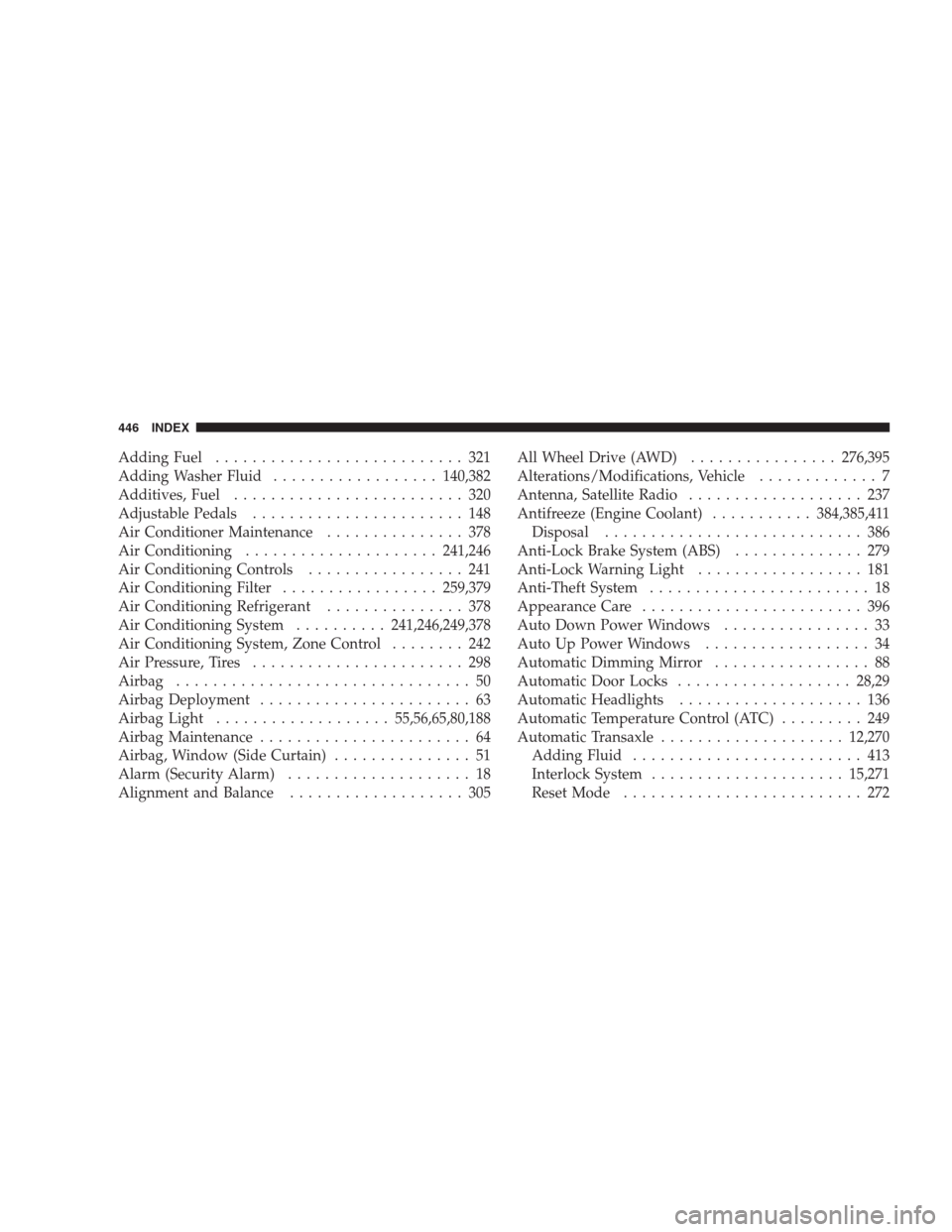

Adding Fuel........................... 321
Adding Washer Fluid..................140,382
Additives, Fuel......................... 320
Adjustable Pedals....................... 148
Air Conditioner Maintenance............... 378
Air Conditioning.....................241,246
Air Conditioning Controls................. 241
Air Conditioning Filter.................259,379
Air Conditioning Refrigerant............... 378
Air Conditioning System..........241,246,249,378
Air Conditioning System, Zone Control........ 242
Air Pressure, Tires....................... 298
Airbag................................ 50
Airbag Deployment....................... 63
Airbag Light...................55,56,65,80,188
Airbag Maintenance....................... 64
Airbag, Window (Side Curtain)............... 51
Alarm (Security Alarm).................... 18
Alignment and Balance................... 305All Wheel Drive (AWD)................276,395
Alterations/Modifications, Vehicle............. 7
Antenna, Satellite Radio................... 237
Antifreeze (Engine Coolant)...........384,385,411
Disposal............................ 386
Anti-Lock Brake System (ABS).............. 279
Anti-Lock Warning Light.................. 181
Anti-Theft System........................ 18
Appearance Care........................ 396
Auto Down Power Windows................ 33
Auto Up Power Windows.................. 34
Automatic Dimming Mirror................. 88
Automatic Door Locks...................28,29
Automatic Headlights.................... 136
Automatic Temperature Control (ATC)......... 249
Automatic Transaxle....................12,270
Adding Fluid......................... 413
Interlock System.....................15,271
Reset Mode.......................... 272
446 INDEX

Selection Of Lubricant................392,413
Shifting............................. 272
Special Additives...................... 394
Automatic Transmission................... 392
Adding Fluid......................... 393
Fluid and Filter Changes................. 394
Fluid Change......................... 394
Fluid Level Check...................... 393
Fluid Type........................... 392
Autostick...........................151,274
Ball Joints............................. 380
Battery............................... 376
Gas Caution.......................... 377
Jump Starting......................... 354
Keyless Transmitter Replacement (RKE)....... 25
Bearings.............................. 396
Belts, Drive............................ 374
Body Mechanism Lubrication............... 381B-Pillar Location........................ 293
Brake, Parking.......................... 276
Brake System........................278,389
Anti-Lock (ABS)....................... 279
Fluid Check.......................390,413
Hoses.............................. 389
Warning Light........................ 182
Brakes.............................278,389
Brake/Transmission Interlock............... 271
Break-In Recommendations, New Vehicle........ 79
Bulb Replacement....................... 406
Bulbs, Light............................ 406
Calibration, Compass..................... 197
Camera, Rear........................... 146
Capacities, Fluid........................ 411
Caps, Filler
Fuel................................ 321
Oil (Engine).......................372,373
INDEX 447
10

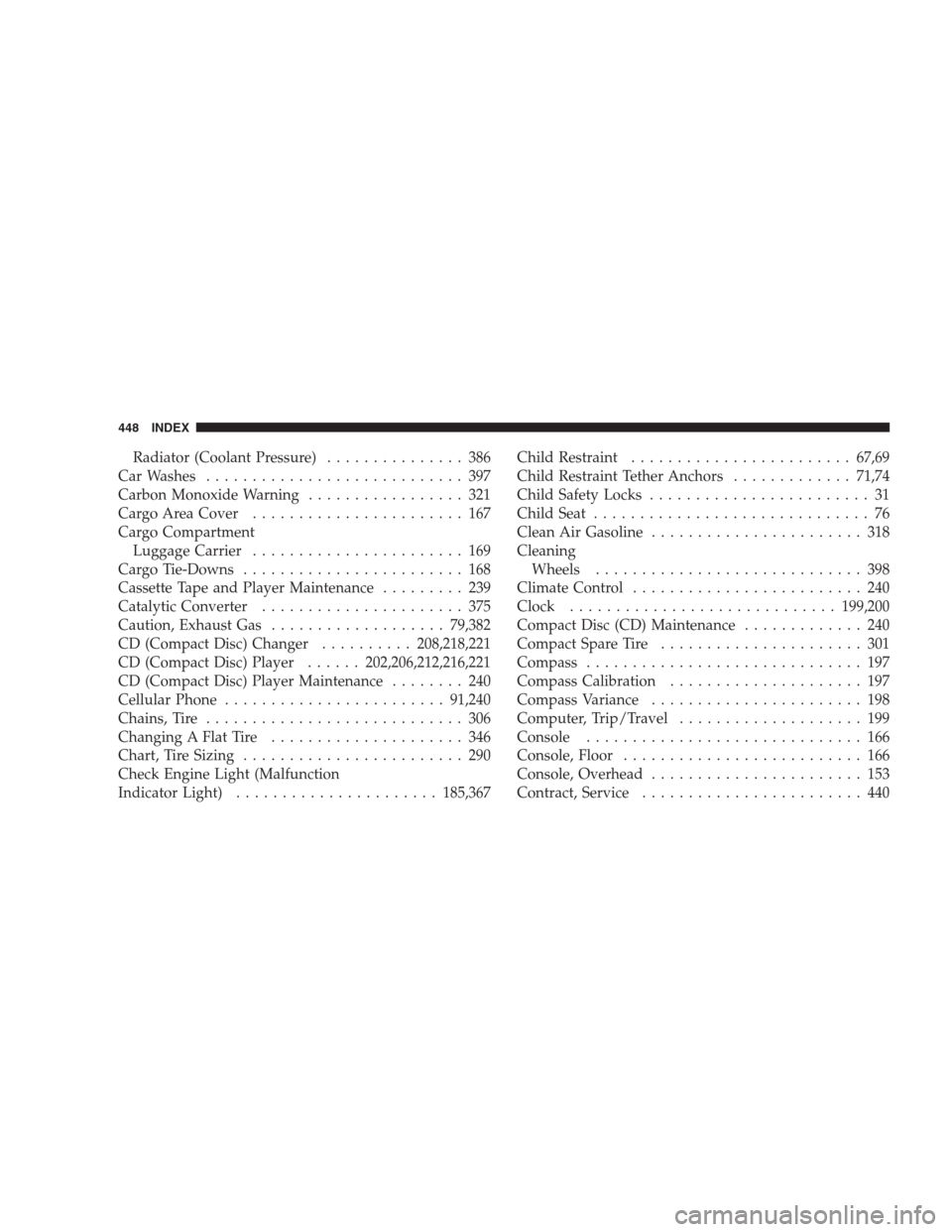

Radiator (Coolant Pressure)............... 386
Car Washes............................ 397
Carbon Monoxide Warning................. 321
Cargo Area Cover....................... 167
Cargo Compartment
Luggage Carrier....................... 169
Cargo Tie-Downs........................ 168
Cassette Tape and Player Maintenance......... 239
Catalytic Converter...................... 375
Caution, Exhaust Gas...................79,382
CD (Compact Disc) Changer..........208,218,221
CD (Compact Disc) Player......202,206,212,216,221
CD (Compact Disc) Player Maintenance........ 240
Cellular Phone........................91,240
Chains, Tire............................ 306
Changing A Flat Tire..................... 346
Chart, Tire Sizing........................ 290
Check Engine Light (Malfunction
Indicator Light)......................185,367Child Restraint........................67,69
Child Restraint Tether Anchors.............71,74
Child Safety Locks........................ 31
Child Seat.............................. 76
Clean Air Gasoline....................... 318
Cleaning
Wheels............................. 398
Climate Control......................... 240
Clock.............................199,200
Compact Disc (CD) Maintenance............. 240
Compact Spare Tire...................... 301
Compass.............................. 197
Compass Calibration..................... 197
Compass Variance....................... 198
Computer, Trip/Travel.................... 199
Console.............................. 166
Console, Floor.......................... 166
Console, Overhead....................... 153
Contract, Service........................ 440
448 INDEX

Exhaust System......................... 382
Extender, Seat Belt........................ 49
Exterior Folding Mirrors................... 89
Filters
Air Cleaner.......................... 374
Air Conditioning....................259,379
Automatic Transaxle.................... 394
Engine Oil........................374,412
Engine Oil Disposal.................... 373
Flashers
Hazard Warning....................... 344
Turn Signal.....................181,408,409
Flexible Fuel Vehicles
Cruising Range........................ 326
Engine Oil........................... 325
Fuel Requirements..................... 324
Maintenance.......................... 326
Replacement Parts..................... 326Starting............................. 325
Flooded Engine Starting................... 268
Floor Console.......................... 166
Fluid Capacities......................... 411
Fluid Leaks............................. 81
Fluid Level Checks
Automatic Transmission................. 393
Brake............................390,413
Power Steering.....................379,413
Fluids................................ 412
Fluids, Lubricants and Genuine Parts.......... 412
Fog Light Service........................ 409
Fog Lights.......................137,186,409
Folding Rear Seat........................ 124
Freeing A Stuck Vehicle................... 356
Fuel................................. 318
Adding............................. 321
Additives............................ 320
Clean Air............................ 318
INDEX 451
10
