2007 CHRYSLER ASPEN jump start

WARNING!
Do not attempt to push or tow your vehicle to get it
started. Vehicles equipped with an automatic trans-
mission cannot be started this way. Unburned fuel
could enter the catalytic converter and once the
engine has started, ignite and damage the converter
and vehicle. If the vehicle has a discharged battery,
booster cables may be used to obtain a start from a
booster battery or the battery in another vehicle. This
type of start can be dangerous if done improperly.
See section 6 of this manual for the proper jump
starting procedures and follow them carefully.
If the engine has been flooded, it may start to run, but not
have enough power to continue running when the key isreleased. If this occurs, continue cranking with the accel-
erator pedal pushed all the way to the floor. Release the
accelerator pedal and the key once the engine is running
smoothly.
If the engine shows no sign of starting after two 15
second periods of cranking with the accelerator pedal
held to the floor, the Normal Starting procedure should
be repeated.
After Starting
The idle speed is automatically controlled on fuel injected
engines and will decrease as the engine warms up.
ENGINE BLOCK HEATER – IF EQUIPPED
The engine block heater warms engine coolant and
permits quicker starts in cold weather. Connect the cord
to a standard 110-115 volt AC electrical outlet with a
grounded, three wire extension cord.
STARTING AND OPERATING 257
5

WHAT TO DO IN EMERGENCIES
CONTENTS
Hazard Warning Flasher..................346
Jacking And Tire Changing................347
▫Jack Location........................347
Jacking Instructions.....................348
▫Removing The Spare Tire................348
▫Tire Changing Procedure................349Jump Starting Procedures.................354
Emergency Tow Hooks — If Equipped........356
Towing A Disabled Vehicle................357
▫Four-Wheel Drive Vehicles...............358
▫Two-Wheel Drive Vehicles...............358
6

To Stow The Flat Or Spare
Turn the wheel so that the valve stem is down. Slide the
wheel retainer through the center of the wheel and
position it properly across the wheel opening.
For convenience in checking the spare tire inflation, stow
with the valve stem toward the rear of the vehicle.
Rotate the winch mechanism until the wheel is drawn
into place against the underside of the vehicle. Continue
to rotate until you feel the winch mechanism slip or click
2 times. It cannot be overtightened. Push against the tire
several times to be sure it is firmly in place.
JUMP STARTING PROCEDURES
WARNING!
•Battery fluid is a corrosive acid solution; do not
allow battery fluid to contact eyes, skin or cloth-
ing. Don’t lean over battery when attaching
clamps or allow the clamps to touch each other. If
acid splashes in eyes or on skin, flush the con-
taminated area immediately with large quantities
of water.
•A battery generates hydrogen gas which is flam-
mable and explosive. Keep flame or spark away
from the vent holes. Do not use a booster battery
or any other booster source with an output that
exceeds 12 volts.
354 WHAT TO DO IN EMERGENCIES

Check the Battery Test Indicator (if equipped). If a light or
bright colored dot is visible in the indicator (if equipped),
DO NOT jump-start the battery.
If the indicator (if equipped) is dark or shows a green dot,
proceed as follows:
1. Wear eye protection and remove all metal jewelry such
as watch bands or bracelets which might make an
unintended electrical contact.
2. Park the booster vehicle within cable reach but with-
out letting the vehicles touch. Set the parking brake, place
the automatic transmission in PARK and turn the ignition
OFF on both vehicles.
3. Turn OFF heater, radio and all unnecessary electrical
loads.4. Connect one end of a jumper cable to the positive
terminal of the booster battery. Connect the other end of
the same cable to the positive terminal of the discharged
battery.
WARNING!
Do not permit vehicles to touch each other as this
could establish a ground connection and personal
injury could result.
5. Connect the other cable, first to the negative terminal
of the booster battery and then to the engine of the
vehicle with the discharged battery. Make sure you have
a good contact on the engine.
WHAT TO DO IN EMERGENCIES 355
6

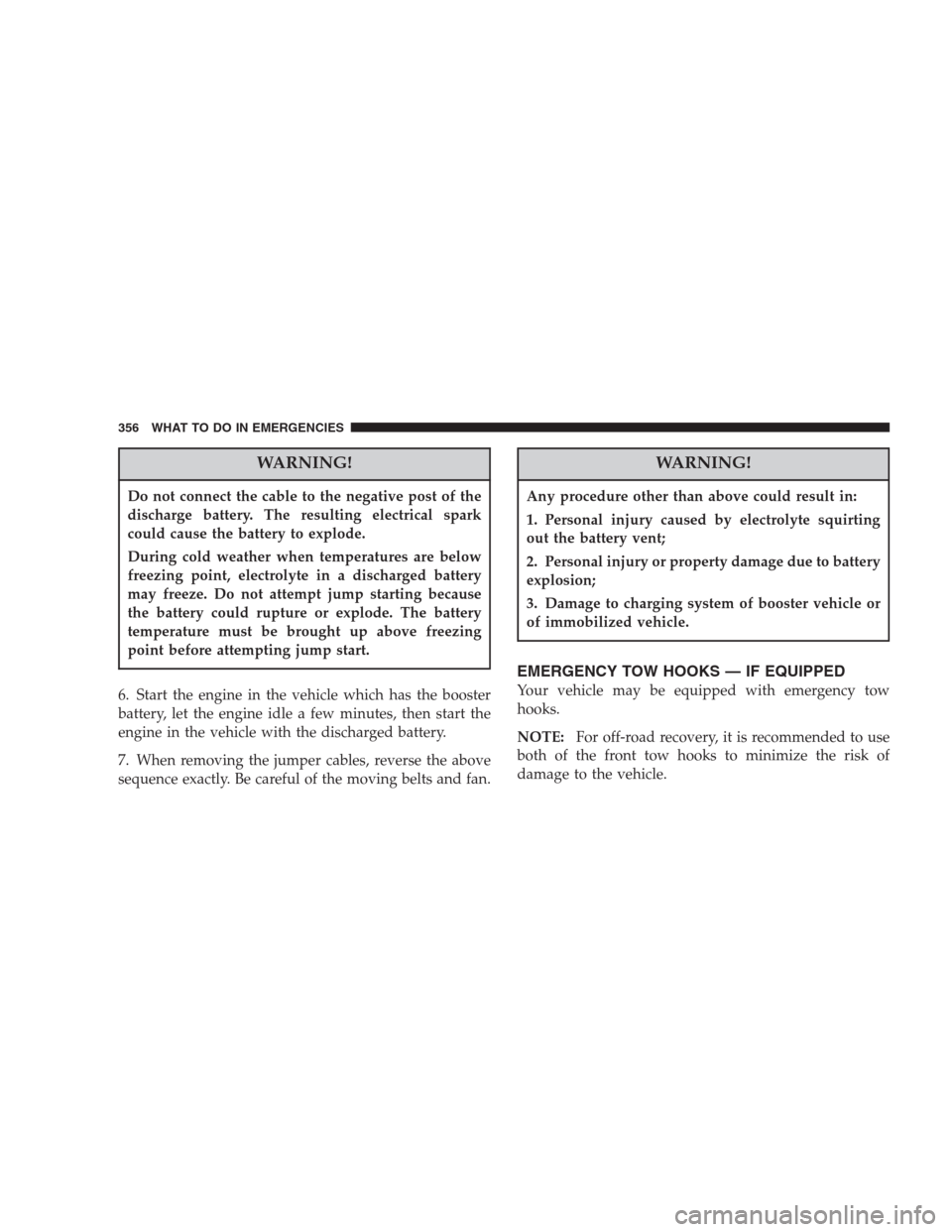

WARNING!
Do not connect the cable to the negative post of the
discharge battery. The resulting electrical spark
could cause the battery to explode.
During cold weather when temperatures are below
freezing point, electrolyte in a discharged battery
may freeze. Do not attempt jump starting because
the battery could rupture or explode. The battery
temperature must be brought up above freezing
point before attempting jump start.
6. Start the engine in the vehicle which has the booster
battery, let the engine idle a few minutes, then start the
engine in the vehicle with the discharged battery.
7. When removing the jumper cables, reverse the above
sequence exactly. Be careful of the moving belts and fan.
WARNING!
Any procedure other than above could result in:
1. Personal injury caused by electrolyte squirting
out the battery vent;
2. Personal injury or property damage due to battery
explosion;
3. Damage to charging system of booster vehicle or
of immobilized vehicle.
EMERGENCY TOW HOOKS — IF EQUIPPED
Your vehicle may be equipped with emergency tow
hooks.
NOTE:For off-road recovery, it is recommended to use
both of the front tow hooks to minimize the risk of
damage to the vehicle.
356 WHAT TO DO IN EMERGENCIES

Emergency, In Case of
Freeing Vehicle When Stuck............... 288
Jacking............................. 349
Tow Hooks.......................... 356
Towing............................. 357
Emission Control System Maintenance......... 418
Emission Related Components.............. 386
Engine
Air Cleaner.......................... 373
Block Heater......................... 257
Break-In Recommendations................ 71
Compartment......................362,363
Coolant (Antifreeze).................... 415
Exhaust Gas Caution................38,72,315
Fails to Start.......................... 256
Flooded, Starting...................... 256
Fuel Requirements..................... 414
Jump Starting......................... 354
Oil ...........................368,414,415Oil Filler Cap...................362,363,370
Oil Selection.......................... 414
Oil Synthetic......................... 371
Starting............................. 255
Temperature Gauge..................... 187
Entry System, Illuminated.................. 19
Equipment Identification Plate.............. 343
Event Data Recorder...................... 60
Exhaust Gas Caution..............38,72,315,380
Exhaust System.......................72,380
Extender, Seat Belt........................ 50
Exterior Lighting........................ 134
Fabric Care............................ 395
Filters
Air Cleaner.......................... 373
Engine Fuel.......................... 373
Engine Oil........................371,415
Engine Oil Disposal.................... 371
454 INDEX

Speedometer........................... 189
Starting............................... 255
Automatic Transmission................. 255
Emergency (Jump Starting)............... 354
Engine Block Heater.................... 257
Engine Fails to Start.................... 256
Remote.............................. 25
Starting Procedures...................... 255
Steering
Column Controls...................... 135
Column Lock.......................... 13
Power...........................277,377
Wheel, Tilt........................... 140
Steering Wheel Mounted Sound System Controls . 230
Storage, Vehicle......................... 406
Stuck, Freeing.......................... 288
Sun Roof.............................. 167
Supplemental Tire Pressure Information........ 306
Synthetic Engine Oil...................... 371System, Navigation...................... 222
System, Remote Starting.................... 25
Tachometer............................ 190
Taillights.............................. 409
Temperature Control, Automatic (ATC)........ 238
Temperature Gauge, Engine Coolant.......... 187
Tether Anchor, Child Restraint............... 65
Theft System Arming...................... 18
Theft System Disarming.................... 18
Tilt Steering Column..................... 140
Tire and Loading Information Placard......293,306
Tire Identification Number (TIN)............. 292
Tire Markings.......................... 288
Tire Safety Information.................... 288
Tires ...............................73,297
Aging (Life of Tires).................... 304
Air Pressure.......................... 297
Alignment........................... 305
464 INDEX
