2007 CHRYSLER 300 LX maintenance

SCHEDULE “B”
Follow Schedule “B” if you usually operate your vehicle
under one or more of the following conditions.
Change the automatic transmission fluid and filter every
60,000 miles (100 000 km) if the vehicle is usually
operated under one or more of the conditions marked
with an
.
•Day or night temperatures are below 32°F (0°C).
•Stop and go driving.
•Extensive engine idling.
•Driving in dusty conditions.
•Short trips of less than 10 miles (16 km).
•More than 50% of your driving is at sustained high
speeds during hot weather, above 90°F (32°C).
•Trailer towing.

•Taxi, police or delivery service (commercial ser-
vices).

•Off-road or desert operation.
NOTE:IfANYof these apply to you, then change your
engine oil every 3,000 miles (5 000 km) or 3 months,
whichever comes first, and follow the maintenance rec-
ommendations in Schedule “B” in this section.
NOTE:IfANYof these apply to you, then flush and
replace the engine coolant every 102,000 miles (170 000
km) or 60 months, whichever comes first, and follow the
maintenance recommendations in Schedule “B” in this
section.
SCHEDULE “B” 389
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S
ProCarManuals.com

Miles 138,000 141,000 144,000 147,000 150,000
(Kilometers) (230 000) (235 000) (240 000) (245 000) (250 000)
Change engine oil and engine oil filter, if not re-
placed at 3 months.XXXXX
Inspect theair cleaner filterand replace if re-
quired.*XXXX
Replace theair cleaner filter.X
Inspect the front and rear brake linings and rotors. X
Change the rear axle fluid. X
Replace the air conditioning filter. X
Rotate the tires. X X X
Change the Transfer Case Fluid - All Wheel Drive
(AWD) only.X
* This maintenance is recommended by the manufacture
to the owner but is not required to maintain the emis-
sions warranty.
‡ This maintenance is not required if previously replaced.Inspection and service should also be performed anytime
a malfunction is observed or suspected. Retain all re-
ceipts.
398 SCHEDULE “B”
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S
ProCarManuals.com

Miles 138,000 144,000 150,000
(Kilometers) (230 000) (240 000) (250 000)
[Months] [138] [144] [150]
Change engine oil and engine oil filter. X X X
Inspect theair cleaner filterand replace if required.* X X
Replace theair cleaner filter.X
Inspect the front and rear brake linings and rotors. X
Replace the air conditioning filter. X
Rotate the tires. X X X
Change the Transfer Case Fluid - All Wheel Drive (AWD) only. X
* This maintenance is recommended by the manufacturer
to the owner but is not required to maintain the emis-
sions warranty.
‡ This maintenance is not required if previously replaced.
Inspection and service should also be performed anytime
a malfunction is observed or suspected. Retain all re-
ceipts.
WARNING!
You can be badly injured working on or around a
motor vehicle. Only do service work for which you
have the knowledge and the right equipment. If you
have any doubt about your ability to perform a
service job, take your vehicle to a competent me-
chanic.
SCHEDULE “A” 403
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S
ProCarManuals.com

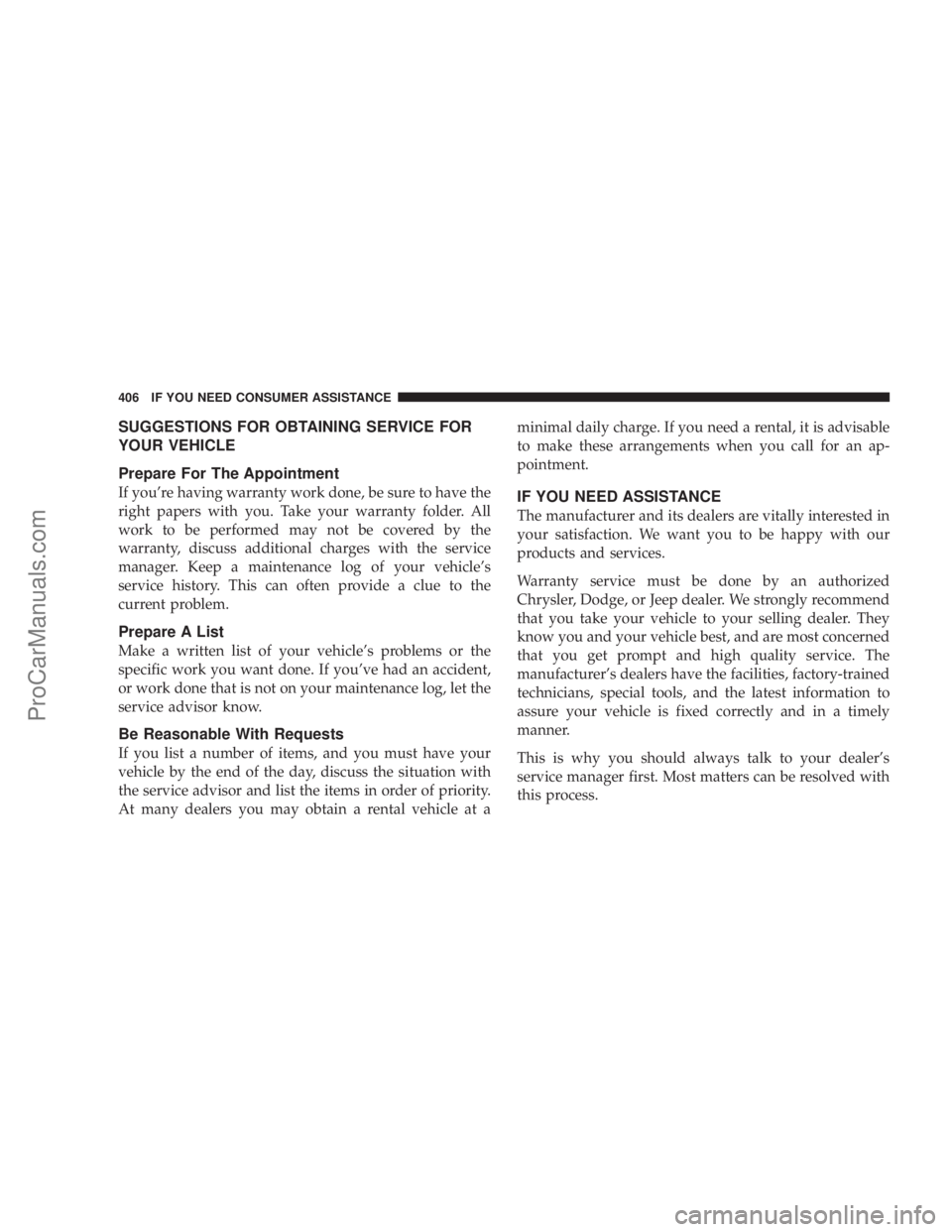

SUGGESTIONS FOR OBTAINING SERVICE FOR
YOUR VEHICLE
Prepare For The Appointment
If you’re having warranty work done, be sure to have the
right papers with you. Take your warranty folder. All
work to be performed may not be covered by the
warranty, discuss additional charges with the service
manager. Keep a maintenance log of your vehicle’s
service history. This can often provide a clue to the
current problem.
Prepare A List
Make a written list of your vehicle’s problems or the
specific work you want done. If you’ve had an accident,
or work done that is not on your maintenance log, let the
service advisor know.
Be Reasonable With Requests
If you list a number of items, and you must have your
vehicle by the end of the day, discuss the situation with
the service advisor and list the items in order of priority.
At many dealers you may obtain a rental vehicle at aminimal daily charge. If you need a rental, it is advisable
to make these arrangements when you call for an ap-
pointment.
IF YOU NEED ASSISTANCE
The manufacturer and its dealers are vitally interested in
your satisfaction. We want you to be happy with our
products and services.
Warranty service must be done by an authorized
Chrysler, Dodge, or Jeep dealer. We strongly recommend
that you take your vehicle to your selling dealer. They
know you and your vehicle best, and are most concerned
that you get prompt and high quality service. The
manufacturer’s dealers have the facilities, factory-trained
technicians, special tools, and the latest information to
assure your vehicle is fixed correctly and in a timely
manner.
This is why you should always talk to your dealer’s
service manager first. Most matters can be resolved with
this process.
406 IF YOU NEED CONSUMER ASSISTANCE
ProCarManuals.com

Corporation vehicles. A complete working knowledge
of the vehicle, system, and/or components is written
in straightforward language with illustrations, dia-
grams, and charts.
•Diagnostic Procedure Manuals.
Filled with diagrams, charts and detailed illustrations,
these practical manuals make it easy for students and
technicians to find and fix problems on computer-
controlled vehicle systems and features. They show
exactly how to find and correct problems the first time,
using step-by-step troubleshooting and driveability
procedures, proven diagnostic tests and a complete list
of all tools and equipment.
•Owner’s Manuals.
These manuals have been prepared with the assistance
of service and engineering specialists to acquaint you
with specific Chrysler group vehicles. Included are
starting, operating, emergency and maintenance pro-
cedures as well as specifications, capabilities and
safety tips.
Call Toll Free at:
•
1–800–890–4038 (U.S.)
•1–800–387–1143 (Canada)
Or
Visit us on the World Wide Web at:
•
www.techauthority.daimlerchrysler.com
•www.daimlerchrysler.ca/manuals
DEPARTMENT OF TRANSPORTATION UNIFORM
TIRE QUALITY GRADES
The following describes the tire grading categories estab-
lished by the National highway Traffic Safety Adminis-
tration. The specific grade rating assigned by the tire’s
manufacturer in each category is shown on the sidewall
of the tires on your car.
All Passenger Car Tires Must Conform to Federal Safety
Requirements in Addition to These Grades.
410 IF YOU NEED CONSUMER ASSISTANCE
ProCarManuals.com

ABS (Anti-Lock Brake System)............. 253
Adaptive Cruise Control (ACC)
(Cruise Control)........................ 121
Adding Engine Coolant (Antifreeze)......... 351
Adding Fuel.......................... 293
Adding Washer Fluid.............. 112,114,347
Adjustable Pedals....................... 117
Air Cleaner, Engine
(Engine Air Cleaner Filter)................ 341
Air Conditioner Maintenance.............. 344
Air Conditioning....................219,221
Air Conditioning Controls................ 219
Air Conditioning Filter................227,345
Air Conditioning, Operating Tips........... 228
Air Conditioning Refrigerant...........344,345
Air Conditioning System...........219,221,344
Air Pressure, Tires...................169,272
Airbag................................ 41
Airbag Deployment....................45,47
Airbag Light....................46,49,60,165
Airbag Maintenance...................... 48
Airbag, Side........................... 46
Airbag, Window (Side Curtain)...........42,46Alarm (Security Alarm).................. 168
Alarm System (Security Alarm)............. 15
Alignment and Balance.................. 278
All Wheel Drive (AWD)...............250,358
Alterations/Modifications, Vehicle............ 7
Antenna, Satellite Radio.................. 214
Antifreeze (Engine Coolant).........350,351,382
Disposal............................ 352
Anti-Lock Brake System (ABS)............. 253
Anti-Lock Warning Light..............164,255
Anti-Theft Security Alarm (Theft Alarm)...... 15
Anti-Theft System...................... 168
Appearance Care....................... 359
Auto Down Power Windows............... 28
Auto Up Power Windows................. 28
Automatic Dimming Mirror................ 68
Automatic Door Locks..................24,25
Automatic Headlights................... 103
Automatic Temperature Control (ATC)....... 221
Automatic Transaxle
Special Additives..................... 357
Automatic Transmission.........240,245,356,357
Adding Fluid.....................
357,384
414 INDEX
ProCarManuals.com

Cassette Tape and Player Maintenance....... 217
Catalytic Converter..................... 341
CD (Compact Disc) Player.............188,195
Cellular Phone.......................... 72
Chains, Tire........................... 279
Changing A Flat Tire.................... 314
Chart, Tire Sizing....................... 264
Check Engine Light
(Malfunction Indicator Light).............. 333
Child Restraint...................50,52,55,56
Child Restraint Tether Anchors...........54,55
Child Safety Locks....................... 25
Clean Air Gasoline...................... 290
Cleaning
Wheels............................. 360
Climate Control........................ 219
Clock.......................186,190,196,207
Compact Disc (CD) Maintenance........... 218
Compact Spare Tire..................... 274
Compass............................. 178
Compass Calibration.................... 178
Compass Variance...................... 179
Computer, Trip/Travel................... 175Console.............................. 153
Console, Floor......................... 153
Console, Overhead...................... 140
Contract, Service....................... 408
Coolant Pressure Cap (Radiator Cap)........ 351
Cooling System........................ 349
Adding Coolant (Antifreeze)............. 351
Coolant Capacity..................... 382
Coolant Level.....................349,352
Disposal of Used Coolant............... 352
Drain, Flush, and Refill................. 350
Inspection........................... 352
Points to Remember................... 352
Pressure Cap........................ 351
Radiator Cap........................ 351
Selection of Coolant (Antifreeze)....350,382,383
Cruise Control (Speed Control).......... 118,121
Cruise Light........................... 163
Cup Holder.....................151,362,363
Customer Assistance.................... 406
Data Recorder, Event..................... 49
Daytime Running Lights................. 106
416 INDEX
ProCarManuals.com

Dealer Service......................... 334
Defroster, Rear Window.................. 229
Defroster, Windshield...............61,220,225
Delay (Intermittent) Wipers............... 110
Diagnostic System, Onboard............... 332
Dimmer Switch, Headlight................ 107
Disposal
Antifreeze (Engine Coolant)............. 352
Door Locks............................ 22
Door Locks, Automatic................... 24
Door Opener, Garage.................... 141
Drive Belts............................ 340
Driving
On Slippery Surfaces.................. 250
DVD Player (Video Entertainment System).... 210
Electric Remote Mirrors................... 70
Electrical Power Outlets.................. 149
Electronic Speed Control (Cruise Control) . . 118,121
Electronic Stability Program (ESP).......... 259
Electronic Throttle Control Warning Light..... 168
Electronic Vehicle Information Center (EVIC) . . 171Emergency, In Case of
Freeing Vehicle When Stuck............. 324
Hazard Warning Flasher................ 312
Jacking............................. 314
Jump Starting........................ 322
Overheating......................... 312
Towing............................. 325
Emission Control System Maintenance....333,386
Engine.........................329,330,331
Air Cleaner.......................... 341
Block Heater......................... 237
Break-In Recommendations............... 58
Checking Oil Level.................335,336
Compartment..................329,330,331
Coolant (Antifreeze)................349,383
Cooling............................ 349
Exhaust Gas Caution................59,292
Fails to Start......................... 235
Flooded, Starting..................... 235
Fuel Requirements.................289,382
Oil ..........................335,382,383
Oil Change Interval................... 337
Oil Filler Cap.....................338,339
INDEX 417
10
ProCarManuals.com
