2007 CHEVROLET OPTRA 5 key

Power Steering Fluid
When to Check Power Steering Fluid
The power steering fluid reservoir is located toward
the front of the engine compartment on the
driver’s side of the vehicle. SeeEngine
Compartment Overview on page 258for reservoir
location.
It is not necessary to regularly check power
steering fluid unless you suspect there is a leak in
the system or you hear an unusual noise.
A fluid loss in this system could indicate a problem.
Have the system inspected and repaired.
How to Check Power Steering Fluid
Turn the key off and let the engine compartment
cool down. Then check the fluid level.The level should be between the MIN (B) and
MAX (A) marks on the reservoir. If the level
is below the MIN (B) mark, add the power steering
fluid to the appropriate level. Replace the cap
and completely tighten it.
What to Use
To determine what kind of fluid to use, see
Part D: Recommended Fluids and Lubricants on
page 382. Always use the proper fluid. Failure
to use the proper fluid can cause leaks and
damage hoses and seals.
279

Fuses Usage
LTR Cigarette Lighter
CLSTR BTSICluster, Brake Transmission Shift
Interlock/Automatic Transaxle Shift
Lock (BTSI) Solenoid
RKE Remote Keyless Entry
BCK/UP Back-up
BLANK Not Used
TCM Transmission Control Module
BLANK Not Used
ENG FUSE
BOX DRLEngine Fuse Box, Daytime Running
Lamps
HAZRD LAMPS Hazard Lamps
A/C CLK Air Conditioning Switch, Clock
HVACHeating, Ventilation and Air
Conditioning
RKE Remote Keyless Entry
RADIO Radio
S/ROOF Sunroof
DLC Data Link Connector
SPARE SpareEngine Compartment Fuse Block
The engine compartment fuse block is located on
the driver’s side of the vehicle, near the battery.
SeeEngine Compartment Overview on page 258
for more information on location. To access the
fuses, press in the top flap to release the cover.
To reinstall the cover, push the cover until it is
secure.
349

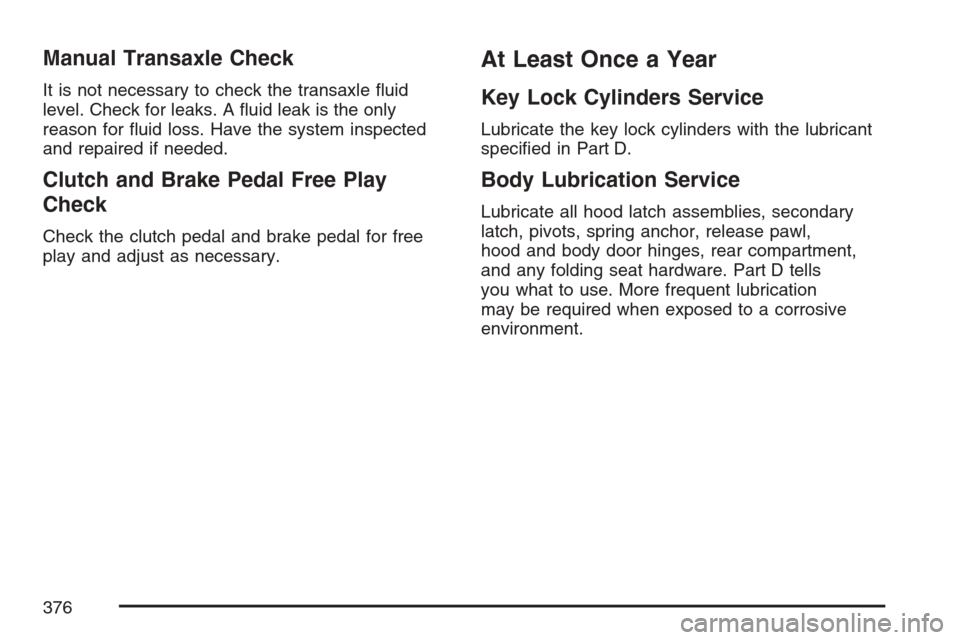

Manual Transaxle Check
It is not necessary to check the transaxle fluid
level. Check for leaks. A fluid leak is the only
reason for fluid loss. Have the system inspected
and repaired if needed.
Clutch and Brake Pedal Free Play
Check
Check the clutch pedal and brake pedal for free
play and adjust as necessary.
At Least Once a Year
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant
specified in Part D.
Body Lubrication Service
Lubricate all hood latch assemblies, secondary
latch, pivots, spring anchor, release pawl,
hood and body door hinges, rear compartment,
and any folding seat hardware. Part D tells
you what to use. More frequent lubrication
may be required when exposed to a corrosive
environment.
376

Automatic Transaxle Shift Lock Control
System Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
1. Before you start, be sure you have enough
room around the vehicle. It should be parked
on a level surface.
2. Firmly apply the parking brake. SeeParking
Brake on page 116if necessary.
Be ready to apply the regular brake
immediately if the vehicle begins to move.
3. With the engine off, turn the ignition to ON,
but do not start the engine. Without applying
the regular brake, try to move the shift
lever out of PARK (P) with normal effort. If the
shift lever moves out of PARK (P), your
vehicle needs service.
Ignition Transaxle Lock Check
While parked, and with the parking brake set, try
to turn the ignition to LOCK in each shift lever
position.
•With an automatic transaxle, the ignition
should turn to LOCK only when the shift lever
is in PARK (P).
•With a manual transaxle, the ignition should
turn to LOCK only when you press the key
release button.
On all vehicles, the ignition key should come out
only in LOCK.
Turn the steering wheel to the left and to the right.
It should only lock when turned to the right.
378

Part D: Recommended Fluids and
Lubricants
Fluids and lubricants identified below by name,
part number, or specification can be obtained from
your dealer.
Usage Fluid/Lubricant
Engine OilEngine oil which meets GM
Standard GM6094M and displays
the American Petroleum Institute
Certified for Gasoline Engines
starburst symbol. GM Goodwrench
®
oil meets all the requirements for
your vehicle. To determine the
proper viscosity for your vehicle’s
engine, seeEngine Oil on page 260.
Engine Coolant50/50 mixture of clean, drinkable
water and use only DEX-COOL
®
Coolant. SeeEngine Coolant on
page 268.
Usage Fluid/Lubricant
Hydraulic Brake
SystemDelco
®Supreme 11 Brake Fluid or
equivalent DOT-3 brake fluid.
Windshield
Washer SolventGM Optikleen
®Washer Solvent.
Power Steering
SystemDEXRON
®-VI Automatic
Transmission Fluid.
Automatic
TransaxleAutomatic Transaxle Fluid ESSO LT
71141 or TOTAL ATF H50235
(GM Part No. in Canada 89021903).
Manual
TransaxleManual Transmission Fluid
(GM Part No. U.S. 89021806,
in Canada 89021807).
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Manual
Transaxle Shift
LinkageChassis Lubricant
(GM Part No. U.S. 12377985,
in Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
382

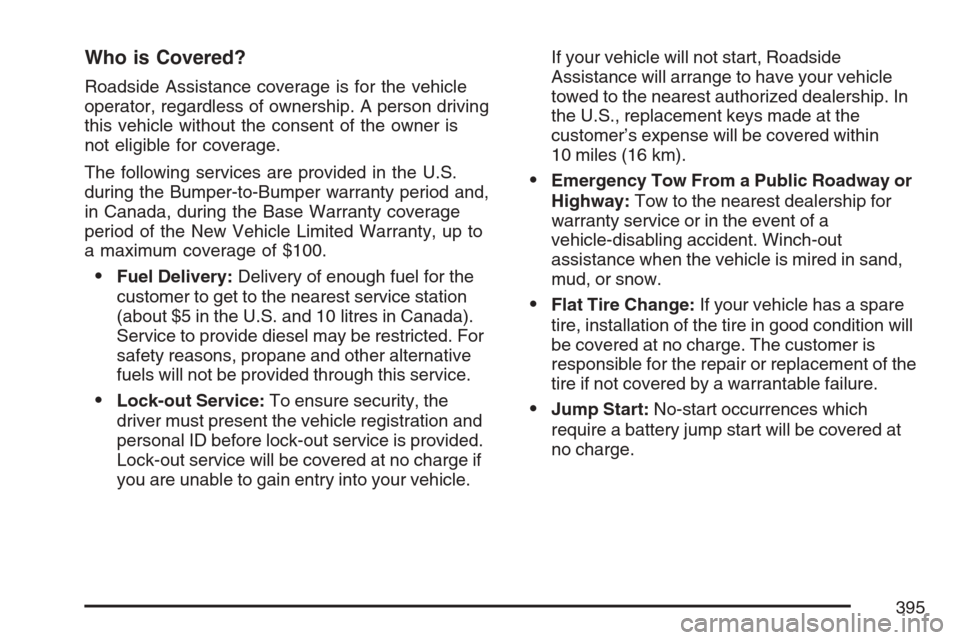

Who is Covered?
Roadside Assistance coverage is for the vehicle
operator, regardless of ownership. A person driving
this vehicle without the consent of the owner is
not eligible for coverage.
The following services are provided in the U.S.
during the Bumper-to-Bumper warranty period and,
in Canada, during the Base Warranty coverage
period of the New Vehicle Limited Warranty, up to
a maximum coverage of $100.
•Fuel Delivery:Delivery of enough fuel for the
customer to get to the nearest service station
(about $5 in the U.S. and 10 litres in Canada).
Service to provide diesel may be restricted. For
safety reasons, propane and other alternative
fuels will not be provided through this service.
•Lock-out Service:To ensure security, the
driver must present the vehicle registration and
personal ID before lock-out service is provided.
Lock-out service will be covered at no charge if
you are unable to gain entry into your vehicle.If your vehicle will not start, Roadside
Assistance will arrange to have your vehicle
towed to the nearest authorized dealership. In
the U.S., replacement keys made at the
customer’s expense will be covered within
10 miles (16 km).
•Emergency Tow From a Public Roadway or
Highway:Tow to the nearest dealership for
warranty service or in the event of a
vehicle-disabling accident. Winch-out
assistance when the vehicle is mired in sand,
mud, or snow.
•Flat Tire Change:If your vehicle has a spare
tire, installation of the tire in good condition will
be covered at no charge. The customer is
responsible for the repair or replacement of the
tire if not covered by a warrantable failure.
•Jump Start:No-start occurrences which
require a battery jump start will be covered at
no charge.
395

Horn............................................................ 140
How to Use This Manual................................ 4
How to Wear Safety Belts Properly............... 23
Hydraulic Clutch.......................................... 266
I
Ignition Positions......................................... 106
Inadvertent Power Battery Saver................. 152
Infants and Young Children, Restraints.......... 41
Inflation - Tire Pressure............................... 311
Inspection
Brake System.......................................... 381
Engine Cooling System............................ 381
Exhaust System....................................... 380
Fuel System............................................ 380
Part C - Periodic Maintenance................. 380
Steering, Suspension and Front Drive
Axle Boot and Seal.............................. 380
Throttle System........................................ 381
Instrument Panel
Overview.................................................. 136
Instrument Panel (I/P)
Brightness................................................ 150
Cluster..................................................... 161
Integrated Windshield Antenna.................... 204
J
Jump Starting.............................................. 285
K
Keyless Entry System................................... 91
Keys............................................................. 89
L
Labeling, Tire Sidewall................................. 304
Lamps
Dome....................................................... 151
Exterior.................................................... 148
Fog .......................................................... 150
Inadvertent Power Battery Saver.............. 152
Map ......................................................... 151
LATCH System
Child Restraints......................................... 51
License Plate Lamps................................... 301
Liftgate.......................................................... 99
Light
Airbag Readiness..................................... 164
Anti-Lock Brake System Warning............. 169
Brake System Warning............................. 168
415

Rearview Mirrors......................................... 123
Reclining Seatbacks...................................... 12
Recreational Vehicle Towing........................ 242
Remote Keyless Entry (RKE) System............ 91
Remote Keyless Entry (RKE) System,
Operation................................................... 92
Removing the Flat Tire and Installing the
Spare Tire................................................ 329
Removing the Spare Tire and Tools............ 326
Replacement Bulbs..................................... 301
Reporting Safety Defects
Canadian Government............................. 405
General Motors........................................ 406
United States Government....................... 405
Restraint System Check
Checking the Restraint Systems................. 84
Replacing Restraint System Parts
After a Crash......................................... 85
Right Front Passenger Position,
Safety Belts............................................... 32
Roadside
Assistance Program................................. 394
Rocking Your Vehicle to Get it Out.............. 236
Roof Rack Provisions.................................. 128
Routing, Engine Drive Belt.......................... 354
Running the Engine While Parked............... 122S
Safety Belt
Pretensioners............................................. 37
Reminder Light........................................ 164
Reminder Tone........................................ 164
Safety Belts
Care of.................................................... 339
Center Rear Passenger Position................ 36
Driver Position........................................... 23
How to Wear Safety Belts Properly............ 23
Questions and Answers About
Safety Belts............................................ 22
Rear Seat Passengers............................... 33
Right Front Passenger Position.................. 32
Safety Belt Extender.................................. 37
Safety Belt Use During Pregnancy............. 32
Safety Belts Are for Everyone.................... 18
Shoulder Belt Height Adjuster.................... 31
Safety Warnings and Symbols......................... 4
Seats
Driver Seat Tilt Adjuster............................. 11
Head Restraints......................................... 15
Manual................................................. 9, 10
Manual Lumbar.......................................... 12
Rear Seat Operation.................................. 16
Reclining Seatbacks................................... 12
419
