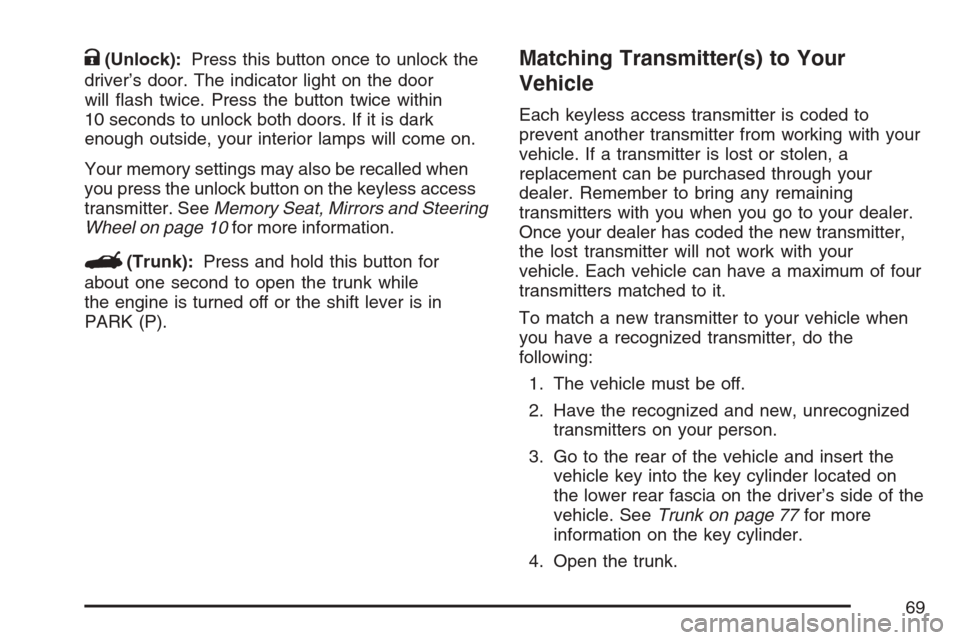

K(Unlock):Press this button once to unlock the
driver’s door. The indicator light on the door
will ash twice. Press the button twice within
10 seconds to unlock both doors. If it is dark
enough outside, your interior lamps will come on.
Your memory settings may also be recalled when
you press the unlock button on the keyless access
transmitter. SeeMemory Seat, Mirrors and Steering
Wheel on page 10for more information.
G(Trunk):Press and hold this button for
about one second to open the trunk while
the engine is turned off or the shift lever is in
PARK (P).
Matching Transmitter(s) to Your
Vehicle
Each keyless access transmitter is coded to
prevent another transmitter from working with your
vehicle. If a transmitter is lost or stolen, a
replacement can be purchased through your
dealer. Remember to bring any remaining
transmitters with you when you go to your dealer.
Once your dealer has coded the new transmitter,
the lost transmitter will not work with your
vehicle. Each vehicle can have a maximum of four
transmitters matched to it.
To match a new transmitter to your vehicle when
you have a recognized transmitter, do the
following:
1. The vehicle must be off.
2. Have the recognized and new, unrecognized
transmitters on your person.
3. Go to the rear of the vehicle and insert the
vehicle key into the key cylinder located on
the lower rear fascia on the driver’s side of the
vehicle. SeeTrunk on page 77for more
information on the key cylinder.
4. Open the trunk.
69

5. Turn the key ve times within ve seconds.
6. The Driver Information Center (DIC) will
display READY FOR FOB #X. X can be
2,3or4.
7. Place the new, unrecognized transmitter in
the glove box transmitter pocket with the
buttons facing to the right.
8. Once the transmitter is programmed, a beep
will sound. The DIC will display READY FOR
#X, where X can be 3 or 4, or MAX #
FOBS LEARNED.
9. Press the Acc. button.The Canadian immobilizer standard requires
Canadian owners to see their GM dealer
for matching new transmitters when a recognized
transmitter is not available. United States
owners are permitted to match a new transmitter
to their vehicle when a recognized transmitter
is not available. The procedure will require
three ten minute cycles to complete the matching
process. Do the following:
1. The vehicle must be off.
2. Place the new, unrecognized transmitter in
the glove box transmitter pocket with the
buttons facing to the right.
70

3. Go to the rear of the vehicle and insert the
vehicle key into the key cylinder located on
the lower rear fascia on the driver’s side of the
vehicle. SeeTrunk on page 77for more
information on the key cylinder.
4. Open the trunk.
5. Turn the key ve times within ve seconds.
6. The DIC message will display OFF-ACC
TO LEARN.
7. Press the Acc. button.
8. The DIC will read WAIT 10 MINUTES and will
count down to zero, one minute at a time.
9. The DIC will display OFF-ACC TO LEARN
again.
10. Press the Acc. button.
11. The DIC will read WAIT 10 MINUTES and will
count down to zero, one minute at a time.
12. The DIC will display OFF-ACC TO LEARN
again.13. Press the Acc. button.
14. The DIC will read WAIT 10 MINUTES and will
count down to zero, one minute at a time.
15. A beep will sound and the DIC will read
READY FOR FOB #1. At this time, all
previously known transmitters have been
erased.
16. Once the transmitter is recognized and
programmed, a beep will sound and the
DIC will display READY FOR FOB #2.
If you have additional transmitters to program,
take transmitter 1 out of the transmitter pocket and
place transmitter 2 in the pocket. This can be
done repeatedly until up to four transmitters have
been programmed. The DIC will then display
MAX # FOBS LEARNED and will exit the
programming mode.
When you are done programming transmitters,
press the Acc. button.
71

Battery Replacement
Under normal use, the battery in your keyless
access transmitter should last about three years.
You can tell the battery is weak if the transmitter
will not work at the normal range in any location. If
you have to get close to your vehicle before the
transmitter works, it is probably time to change the
battery.
A weak battery may also cause the DIC to display
NO FOB DETECTED when you try to start the
vehicle. If this happens, place the transmitter in the
glove box transmitter pocket with the buttons facing
to the right. Then, with the vehicle in PARK (P) or
NEUTRAL (N), press the brake pedal and the
START button. Although this will start the vehicle, it
is recommended that you replace the transmitter
battery as soon as possible. The DIC may display
FOB BATTERY LOW.
Notice:When replacing the battery, use care
not to touch any of the circuitry. Static
from your body transferred to these surfaces
may damage the transmitter.1. Insert a at object with a thin edge into the
slot on the side of the transmitter and
separate the bottom half from the top half.
2. Gently pull the battery out of the transmitter.
3. Put the new battery in the transmitter,
positive (+) side up. Use a battery, type
CR2032, or equivalent.
4. Reassemble the transmitter. Make sure to put
it together so water will not get in.
5. Test the transmitter.
72

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers — especially
children — can easily open the doors
and fall out of a moving vehicle. When
a door is locked it will not open. You
increase the chance of being thrown
out of the vehicle in a crash if the
doors are not locked. So, wear safety
belts properly and lock the doors
whenever you drive.
Young children who get into unlocked
vehicles may be unable to get out. A
child can be overcome by extreme
heat and can suffer permanent injuries
or even death from heat stroke.
Always lock your vehicle whenever
you leave it.
CAUTION: (Continued)
CAUTION: (Continued)

Outsiders can easily enter through an
unlocked door when you slow down
or stop your vehicle. Locking your
doors can help prevent this from
happening.
To lock or unlock your vehicle from the outside,
use the keyless access transmitter and press
the appropriate lock or unlock button. You may
also unlock and open the door passively when you
squeeze the door handle sensor, as long as you
have your transmitter with you. Passive entry
occurs when the door handle sensor is pressed
and the vehicle recognizes your keyless
access transmitter. When the passenger door is
opened rst, the driver’s door will also become
unlocked.
73

From the inside, use the power door lock buttons
located at the top of the door panel near the
window. SeePower Door Locks on page 75for
more information.
To open a door from the inside, press the button in
front of the door handle and push the door open.
If power to the vehicle or the keyless access
transmitter is lost, there are two ways to open
the door.If you are inside the vehicle, use the door release
handle located on the oor next to each seat.
Pull the handle up to unlock and unlatch the door.
74

Lockout Protection
Your vehicle can be programmed to sound the
horn three times and unlock the driver’s door when
both doors are closed and there is a keyless
access transmitter inside the vehicle. When the
driver’s door is opened, a reminder chime will
sound continuously. The vehicle will remain locked
only when at least one transmitter has been
removed from the vehicle and both doors are
closed. SeeDIC Vehicle Personalization on
page 220.
Trunk
{CAUTION:
It can be dangerous to drive with the
trunk lid open because carbon monoxide
(CO) gas can come into your vehicle. You
cannot see or smell CO. It can cause
unconsciousness and even death. If you
must drive with the trunk lid open or if
electrical wiring or other cable
connections must pass through the seal
between the body and the trunk lid:
Make sure all other windows are shut.
Turn the fan on your heating or
cooling system to its highest speed
and select the control setting that will
force outside air into your vehicle. See
Climate Control System.
If you have air outlets on or under
the instrument panel, open them all
the way.
SeeEngine Exhaust on page 102.
77

Trunk Lock Release
{CAUTION:
Moving parts of the powered trunk lid can
be dangerous. You or others could be
injured. Keep yourself and others away
from the trunk lid and its mechanism
while it is closing.
The trunk lock release
button is located to the
left of the steering
wheel on the instrument
panel.Press the button to open the trunk. To use this
feature, your vehicle must be in PARK (P)
or NEUTRAL (N) and the valet lockout switch
must be off.
You can also press the button with the trunk
symbol on the keyless access transmitter to open
the trunk. To disable this feature, see “Valet
Lockout Switch” underTheft-Deterrent Systems on
page 84.
You may passively enter the trunk when you
squeeze the trunk release sensor located on the
rear of the trunk lid under the emblem, as long as
you have your transmitter with you. The vehicle
must be in PARK (P) and the valet lockout switch
must be off. SeeValet Lockout Switch on page 86.
To close the trunk,
press the button on the
underside of the
trunk lid.
