Your vehicle has also been equipped with a TPMS
malfunction indicator to indicate when the
system is not operating properly. The TPMS
malfunction indicator is combined with the low tire
pressure telltale. When the system detects a
malfunction, the telltale will ash for approximately
one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the
malfunction exists.
When the malfunction indicator is illuminated, the
system may not be able to detect or signal low
tire pressure as intended. TPMS malfunctions may
occur for a variety of reasons, including the
installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPMS from
functioning properly. Always check the TPMS
malfunction telltale after replacing one or more
tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow
the TPMS to continue to function properly.Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure,
even if under-ination has not reached the level to
trigger illumination of the TPMS low tire pressure
telltale.
A Tire and Loading Information label, attached to
your vehicle, shows the size of your vehicle’s
original equipment tires and the correct ination
pressure for your vehicle’s tires when they
are cold. SeeLoading Your Vehicle on page 349
for an example of the Tire and Loading
Information label and its location on your vehicle.
Also seeInation - Tire Pressure on page 431.
Your vehicle’s TPMS can warn you about a low tire
pressure condition but it does not replace normal
tire maintenance. SeeTire Inspection and
Rotation on page 438andTires on page 421.
Notice:Your vehicle has a Tire Pressure
Monitor System (TPMS). Use only the
GM-provided tire sealant. Other liquid tire
sealants may damage the tire pressure
sensors.
435

TPMS Sensor Identication Codes
Each TPMS sensor has a unique identication
code. Any time you replace one or more of
the TPMS sensors or rotate your vehicle’s tires,
the identication codes will need to be matched to
the new tire/wheel position. The sensors are
matched to the tire/wheel positions in the following
order: driver side front tire, passenger side front
tire, passenger side rear tire, and driver side
rear tire using a TPMS diagnostic tool. See your
GM dealer for service.
The TPMS sensors may also be matched to each
tire/wheel position by increasing or decreasing
the tire’s air pressure. When increasing the tire’s
pressure, do not exceed the maximum ination
pressure indicated on the tire’s sidewall. If
using this method to match TPMS sensors, the
complete procedure outlined below must be
performed within 15 minutes of the vehicle being
stationary.You will have one minute to match the rst
tire/wheel position, and ve minutes overall, to
match all four tire/wheel positions. If it takes longer
than one minute to match the rst tire and
wheel, or more than ve minutes to match all
four tire/wheel positions, the matching process
stops and you will need to start over.
The TPM matching process is outlined below:
1. Set the parking brake.
2. Press the push-button ignition switch to Acc.
(Off/Accessory).
3. Using the Keyless Access transmitter, lock
and unlock the vehicle’s doors.
4. Press the lock and unlock buttons, at the
same time, on the Keyless Access
transmitter. A single horn chirp will sound,
indicating that the TPMS is ready, and
the sensor matching process can begin.
5. Start with the driver’s side front tire.
436

6. Remove the valve cap from the valve stem.
Activate the TPMS sensor by increasing
or decreasing the tire’s air pressure for
ve seconds, or until a horn chirp sounds. The
horn chirp, which may take up to 30 seconds to
sound, conrms that the sensor identication
code has been matched to this tire position. To
decrease the tire’s air-pressure use the pointed
end of the valve cap, a pencil-style air pressure
gauge, or a key.
7. Proceed to the passenger’s side front tire, and
repeat the procedure in Step 6.
8. Proceed to the passenger’s side rear tire, and
repeat the procedure in Step 6.
9. Proceed to the driver’s side rear tire, and
repeat the procedure in Step 6.
10. After hearing the conrming single horn chirp
for the driver’s side rear tire, a double horn
chirp will sound to signal the tire matching
mode is no longer active. Press the
push-button ignition switch to Acc.11. Set all four tires to the recommended air
pressure level as indicated on the tire and
loading information label.
12. Put the valve caps back on the valve stems.
The spare tire does not have a TPMS sensor.
If you replace one of the road tires with the spare,
the SERVICE TIRE MONITOR message will be
displayed on the DIC screen. This message should
go off once you re-install the road tire containing
the TPM sensor.
Federal Communications Commission
(FCC) and Industry and Science Canada
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.
437

When rotating P235/50R17 size tires or
255/45ZR18 size tires, always use the correct
rotation pattern shown here.
If your vehicle has a compact spare tire, do not
include the compact spare tire in the tire rotation.
After the tires have been rotated, adjust the
front and rear ination pressures as shown on the
Tire and Loading Information label.
Vehicles that have the Tire Pressure Monitor
System (TPMS) will need to have the TPMS
sensors reset after a tire rotation, seeTire
Pressure Monitor System on page 433.Make certain that all wheel nuts are properly
tightened. See “Wheel Nut Torque” under
Capacities and Specications on page 498.
{CAUTION:
Rust or dirt on a wheel, or on the parts to
which it is fastened, can make wheel nuts
become loose after time. The wheel could
come off and cause an accident. When
you change a wheel, remove any rust or
dirt from places where the wheel attaches
to the vehicle. In an emergency, you can
use a cloth or a paper towel to do this;
but be sure to use a scraper or wire brush
later, if needed, to get all the rust or dirt
off. SeeChanging a Flat Tire on page 464.
439

The underhood fuse block is located in the front of
the engine compartment on the passenger’s
side of the vehicle. SeeEngine Compartment
Overview on page 373for more information
on location and removal procedure for the front
compartment underhood sights shields.
To access the fuses, push in the tabs located on
each side of the fuse block cover, then lift the
cover off.
Fuses Usage
BLOWER Blower Motor
R REAR Passenger’s Side Rear Fuse Block
I/P OUTLET Front Accessory Power Outlet
CCP Climate Control, Headlamp Leveling
PRE 02/CAMOxygen Sensor, Variable Intake (V6),
Purge Solenoid (V6), Camshaft
Phasers (V6)
R REAR Passenger’s Side Rear Fuse Block
WPR SW Wiper/Washer Switch
FOG LAMP Fog Lamps
OUTLET Rear Accessory Power Outlet
EVEN COILSEven Ignition Coils, Even Fuel
Injectors
Fuses Usage
L REAR Driver’s Side Rear Fuse Block
WPR MOD Wiper Module
POST 02 Oxygen Sensor
COMP CLTCH Air Conditioner Compressor Clutch
STARTER Starter Solenoid
ABS Anti-lock Brake Pump
L REAR Driver’s Side Rear Fuse Block
RAIN SSRRain Sensor, Headlamp Washer,
Tire Pressure Monitor
CCP Climate Control
SMT BM-OPT IntelliBeam™ Relay (If Equipped)
EXT LIGHTSLow Beam Relay, High Beam Relay,
Park Lamp Relay
VOLT CHECK Instrument Panel Module
ECM/TCMEngine Control Module (ECM),
Transmission Control Module (TCM),
Easy Key Module, Instrument Panel
Cluster
SPARE Spare
SPARE Spare
LT PARKDriver’s Side Park Lamp, Driver’s
Side Taillamp
489

Fuses Usage
LIC/DIMMINGLicense Plate, Instrument
Panel Dimming
IPM/ALDLInstrument Panel Module Assembly
Line Data Link Connector
HUDHeads-Up Display, Column Lock
Module, Steering Column Switch
V8 ECMV8 Engine Control Module (ECM),
Evap. Solenoid, Vacuum Bypass
ABS Anti-lock Brake Controller
STR RLY Starter Relay
WASH
NOZ/AQSHeated Washer Nozzles, Air
Quality Sensor
ODD COILSOdd Ignition Coils, Odd
Fuel Injectors
TCM IPCTransmission Control Module (TCM),
Instrument Panel, Engine Control
SPARE Spare
MAF Mass Air Flow Sensor (V6)
HIGH FAN Cooling Fan - High Speed
LOW FAN Cooling Fan - Low Speed
RT PARKPassenger’s Side Park Lamp,
Right TaillampFuses Usage
HORN Horn
LT HI BEAM Driver’s Side Headlamp High-Beam
LT LOW BEAM Driver’s Side Headlamp Low-Beam
RT LOW BEAMPassenger’s Side Headlamp
Low-Beam
RT HI BEAM Right Headlamp High-Beam
HFV6 ECMHigh Feature V6 Engine Control
Module (ECM), Mass Air Flow
Sensor (MAF) (V8)
Relays Usage
HDLP WASH
RELAY
JUMPER -OPTHeadlamp Washer
STARTER
RELAY MINIStarter
SPARE Spare
FOG LAMP
RELAY MICROFog Lamps
CMP CLU
RELAY MICROAir Conditioning Compressor
Clutch
490

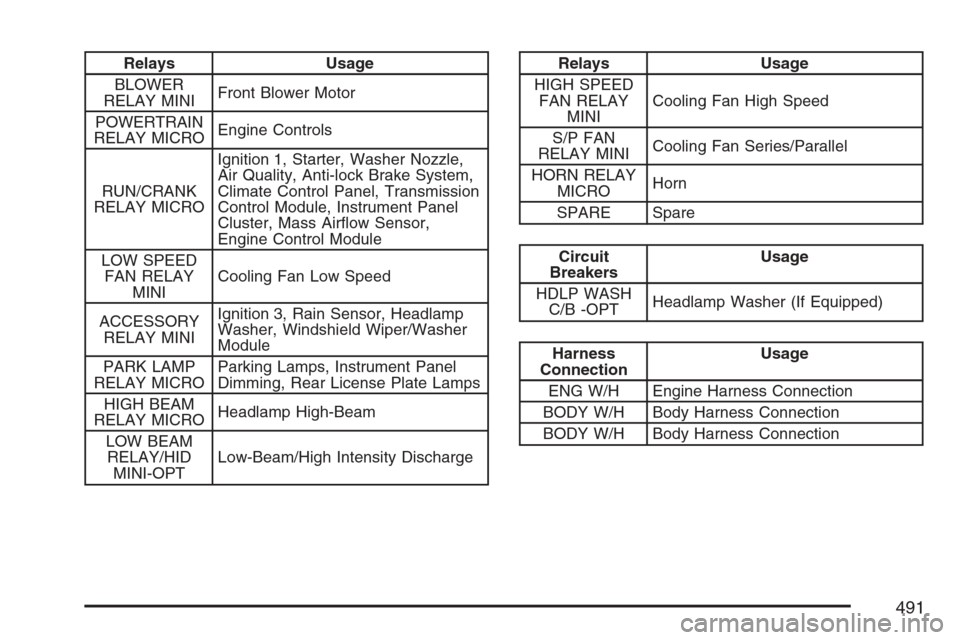

Relays Usage
BLOWER
RELAY MINIFront Blower Motor
POWERTRAIN
RELAY MICROEngine Controls
RUN/CRANK
RELAY MICROIgnition 1, Starter, Washer Nozzle,
Air Quality, Anti-lock Brake System,
Climate Control Panel, Transmission
Control Module, Instrument Panel
Cluster, Mass Airow Sensor,
Engine Control Module
LOW SPEED
FAN RELAY
MINICooling Fan Low Speed
ACCESSORY
RELAY MINIIgnition 3, Rain Sensor, Headlamp
Washer, Windshield Wiper/Washer
Module
PARK LAMP
RELAY MICROParking Lamps, Instrument Panel
Dimming, Rear License Plate Lamps
HIGH BEAM
RELAY MICROHeadlamp High-Beam
LOW BEAM
RELAY/HID
MINI-OPTLow-Beam/High Intensity DischargeRelays Usage
HIGH SPEED
FAN RELAY
MINICooling Fan High Speed
S/P FAN
RELAY MINICooling Fan Series/Parallel
HORN RELAY
MICROHorn
SPARE Spare
Circuit
BreakersUsage
HDLP WASH
C/B -OPTHeadlamp Washer (If Equipped)
Harness
ConnectionUsage
ENG W/H Engine Harness Connection
BODY W/H Body Harness Connection
BODY W/H Body Harness Connection
491

Driver’s Side
Your vehicle may not have all the fuses listed below.
Fuses Usage
AMP Amplier
INTERCOOLER
PUMP (OPT)Intercooler Pump (Option)
THEFT/
SHIFTERTheft Sensors, Auto Shifter, Power
Sounder
MR-RTD
MOD (OPT)Magnetic Ride Control Module
(Option)
REAR DR MOD Rear Door Modules
ELC SOL
(OPT)Automatic Level Control, Exhaust
Solenoid (Option)
DRIVER DR
MODDriver Door Module, Front Door
SubWoofers (Option)
TV/VICS Infotainment (Export Only)Fuses Usage
REAR HTD
SEATSRear Heated Seats
SPARE Spare
SPARE Spare
IGN3Front Passenger Heated Seat, Auto
Shifter, Occupant Protection
RR SHLF
SPEAKERRear Shelf Speaker (Option)
DPM Memory Seat, Lumbar
TRUNK DR
VALETTrunk Release, Valet Lockout
Switch
REVERSE
LAMPReverse Lamps, Rear Parking Aid,
Inside Rearview Mirror
