Anti-Lock Brake System
Warning Light
With the Anti-Lock
Brake System (ABS),
this light will come
on when your engine is
started and may stay
on for several seconds.
That is normal.
If the ABS warning light comes on and stays on,
there may be a problem with the antilock portion of
the brake system. If the brake system warning
light is not on, you still have brakes, but you do not
have antilock brakes. SeeBrake System Warning
Light on page 248for more information.
If the light stays on, press the ignition Acc. button.
If the light comes on when you are driving, stop
as soon as possible and turn the ignition off.
Then start the engine again to reset the system.
If the light still stays on, or comes on again
while you are driving, your vehicle needs service.
If the regular brake system warning light is not
on, you still have brakes, but you do not have
anti-lock brakes. If the regular brake systemwarning light is also on, you do not have anti-lock
brakes and there is a problem with your regular
brakes. SeeBrake System Warning Light on
page 248for more information.
The ABS warning light should come on briey
when you turn the ignition on. If the light does not
come on then, have it xed so it will be ready
to warn you if there is a problem.
Low Tire Pressure Warning Light
This light will come on
briey as you start the
engine, for vehicles
equipped with the
Tire Pressure
Monitor System.
This light will also come on when one or more of
your tires are signicantly underinated.
249

A CHECK TIRE PRESSURE DIC message will
accompany the light. Stop and check your tires as
soon as it is safe to do so. If underinated,
inate to the proper pressure. See Tires for more
information. This light will ash for approximately
60 seconds and then turn on solid if a problem
is detected with the Tire Pressure Monitor system.
SeeTire Pressure Monitor System on page 433,
Tires on page 421andDIC Warnings and
Messages on page 264for more information.
Traction Control System (TCS)
Warning Light
If the Traction
Control (TC) warning
light comes on and
stays on, there may be
a problem with the
traction control system.The TC warning light will come on briey when
you turn the engine on. If it does not come on then,
have it xed so it will be ready to warn you if
there is a problem.
The light will also come on if you turn the traction
control system off using the TC on/off button
located on the console.
If the TC warning light stays on or comes on while
you are driving, pull off the road as soon as
possible and stop carefully. Turn your engine off
and then restart it. If the light still stays on or
comes back on again while you are driving, your
vehicle needs service. Have the traction control
system inspected as soon as possible. See
Traction Control System (TCS) on page 323and
StabiliTrak®System on page 326for more
information.
Also seeCompetitive Driving Mode (STS-V) on
page 325for more information.
250

This light should come on briey, as a check to
show you it is working, as you start the engine. If
the light does not come on, have it repaired.
This light will also come on during a malfunction in
one of two ways:
Light Flashing— A misre condition has
been detected. A misre increases vehicle
emissions and may damage the emission
control system on your vehicle. Diagnosis and
service may be required.
Light On Steady— An emission control
system malfunction has been detected on your
vehicle. Diagnosis and service may be
required.
If the Light Is Flashing
The following may prevent more serious damage
to your vehicle:
Reducing vehicle speed
Avoiding hard accelerations
Avoiding steep uphill grades
If the light stops ashing and remains on steady,
see “If the Light Is On Steady” following.If the light continues to ash, when it is safe to do
so, stop the vehicle. Find a safe place to park
your vehicle. Turn the engine off, wait at
least 10 seconds and restart the engine. If the
light remains on steady, see “If the Light Is
On Steady” following. If the light is still ashing,
follow the previous steps, and see your dealer for
service as soon as possible.
If the Light Is On Steady
You also may be able to correct the emission
system malfunction by considering the following:
Did you recently put fuel into your vehicle?
If so, reinstall the fuel cap, making sure to fully
install the cap. SeeFilling the Tank on page 368.
The diagnostic system can determine if the
fuel cap has been left off or improperly installed.
A loose or missing fuel cap will allow fuel to
evaporate into the atmosphere. A few driving trips
with the cap properly installed should turn the
light off.
253

AVG MPH (AVG km/h)
This display shows the average speed of the
vehicle in miles per hour (mph) or kilometers per
hour (km/h). This average is calculated based on
the various vehicle speeds recorded since the last
reset of this display. To reset AVG MPH, press the
reset button. The display will return to zero.
TIMER OFF
This display can be used like a stopwatch. You can
record the time it takes to travel from one point to
another. To access the timer, press the information
button until 00:00:00 TIMER OFF displays. To turn
on the timer, press the reset button until TIMER ON
displays. The timer will then start. To turn off the
timer, press the reset button again until TIMER OFF
displays. The timer will stop and display the end
timing value. To reset the timer, press and hold the
reset button after the timer has been stopped. The
display will return to zero.
BATTERY VOLTS
This display shows the current battery voltage.
If the voltage is in the normal range, the value will
display. For example, the display may read
13.2 BATTERY VOLTS. If the voltage is low, the
display will have LOW after it. If the voltage is high,the display will have HIGH after it. Your vehicle’s
charging system regulates voltage based on
the state of the battery. The battery voltage may
uctuate when viewing this information on the DIC.
This is normal. SeeCharging System Light on
page 247for more information.
If there is a problem with the battery charging
system, the DIC may display a message. SeeDIC
Warnings and Messages on page 264and
Electric Power Management on page 221for
more information.
Tire Pressure
If your vehicle has a Tire Pressure Monitor (TPM)
system, this display shows the air pressure of
each road tire in either pounds per square
inch (psi) or kilopascals (kPa). If the tire pressure
is normal, the value will display. If the tire
pressure is low, LOW will appear on the display
with the value. If the tire pressure is high,
HIGH will appear on the display with the value.
Press the information button to scroll through the
following displays:
LF TIRE:This display shows the air pressure in
the driver’s side front tire.
RF TIRE:This display shows the air pressure in
the passenger’s side front tire.
262

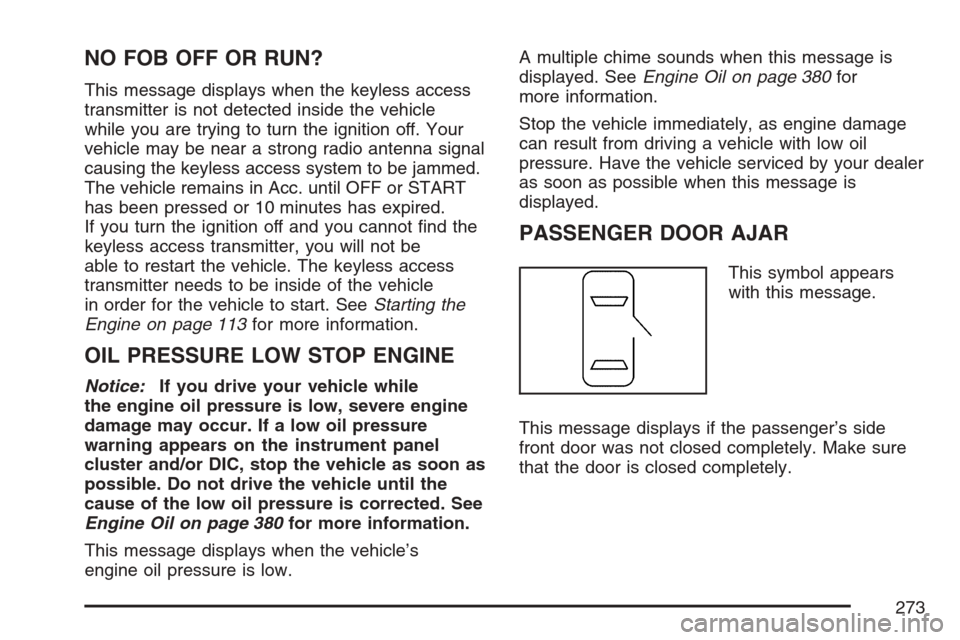

NO FOB OFF OR RUN?
This message displays when the keyless access
transmitter is not detected inside the vehicle
while you are trying to turn the ignition off. Your
vehicle may be near a strong radio antenna signal
causing the keyless access system to be jammed.
The vehicle remains in Acc. until OFF or START
has been pressed or 10 minutes has expired.
If you turn the ignition off and you cannot nd the
keyless access transmitter, you will not be
able to restart the vehicle. The keyless access
transmitter needs to be inside of the vehicle
in order for the vehicle to start. SeeStarting the
Engine on page 113for more information.
OIL PRESSURE LOW STOP ENGINE
Notice:If you drive your vehicle while
the engine oil pressure is low, severe engine
damage may occur. If a low oil pressure
warning appears on the instrument panel
cluster and/or DIC, stop the vehicle as soon as
possible. Do not drive the vehicle until the
cause of the low oil pressure is corrected. See
Engine Oil on page 380for more information.
This message displays when the vehicle’s
engine oil pressure is low.A multiple chime sounds when this message is
displayed. SeeEngine Oil on page 380for
more information.
Stop the vehicle immediately, as engine damage
can result from driving a vehicle with low oil
pressure. Have the vehicle serviced by your dealer
as soon as possible when this message is
displayed.
PASSENGER DOOR AJAR
This symbol appears
with this message.
This message displays if the passenger’s side
front door was not closed completely. Make sure
that the door is closed completely.
273

SERVICE TIRE MONITOR
If your vehicle has a Tire Pressure Monitor (TPM)
system, this message displays if a part on the
system is not working properly. If you drive your
vehicle while any of the four sensors are
missing or inoperable, the warning comes on in
about 20 minutes. A sensor would be missing, for
example, if you put different wheels on your
vehicle without transferring the sensors. If the
warning comes on and stays on, there may be a
problem with the TPM. See your dealer.
SERVICE THEFT SYSTEM
This message displays when there is a problem
with the hood open and closed switches. The
switches may need to be replaced. When
this message is displayed, the theft-deterrent
system will still be protecting the interior of
the vehicle, however, the hood area will not be
protected at this time. Also, the remote start
function will not work when this message appears.
See your dealer for service.
SERVICE TRANSMISSION
This message displays when there is a problem
with the transmission of your vehicle. Have
your vehicle serviced by your dealer.
SERVICE VEHICLE SOON
This message displays when a non-emissions
related malfunction occurs. Have your vehicle
serviced by your dealer as soon as possible.
SPEED LIMITED TO XXX
This message displays when your vehicle speed is
limited to XXX, mph in English mode and km/h
in Metric mode, because the vehicle detects
a problem in the suspension system. Have your
vehicle serviced by your dealer.
STABILITY SYS (System) ACTIVE
This message displays any time the StabiliTrak®
System is actively assisting you with directional
control of the vehicle. Slippery road conditions may
exist when this message is displayed, so adjust
your driving accordingly. This message may
stay on for a few seconds after StabiliTrak
®stops
assisting you with directional control of the
vehicle. SeeStabiliTrak
®System on page 326for
more information.
276

Radio Message
THEFTLOCK:This message is displayed when
the THEFTLOCK®system has been activated.
Take the vehicle to the dealer for service.
Radio Messages for XM™ Only
SeeXM Radio Messages on page 303later in this
section for further detail.
Using the Single CD Player
Insert a CD partway into the slot, label side up.
The player pulls it in. If the ignition and the
radio are on, the CD begins playing. A CD can be
loaded with the radio off, but it does not start
playing until the radio is on.
If the ignition or radio is turned off with a CD in
the player, it stays in the player. While the ignition
or radio is turned on, the CD starts to play
where it stopped, if it was the last selected
audio source.When the CD is inserted, CD displays. As each
new track starts to play, the track number displays.
The CD player can play the smaller 3 inch
(8 cm) single CDs with an adapter ring. Full-size
CDs and the smaller CDs are loaded in the
same manner.
If playing a CD-R, the sound quality can be
reduced due to CD-R quality, the method of
recording, the quality of the music that has been
recorded, and the way the CD-R has been
handled. There can be an increase in skipping,
difficulty in nding tracks, and/or difficulty in loading
and ejecting. If these problems occur, check the
bottom surface of the CD. If the surface of the CD
is damaged, such as cracked, broken, or
scratched, the CD will not play properly. If the
surface of the CD is soiled, seeCare of Your CDs
on page 313for more information.
If there is no apparent damage, try a known
good CD.
291

Order of Play
Tracks are played in the following order:
Play begins from the rst track in the rst
playlist and continues sequentially through
all tracks in each playlist. When the last track
of the last playlist has played, play continues
from the rst track of the rst playlist.
If the CD does not contain any playlists, then
play begins from the rst track under the root
directory. When all tracks from the root
directory have played, play continues from
les according to their numerical listing. After
playing the last track from the last folder,
play begins again at the rst track of the rst
folder or root directory.
When play enters a new folder, the display does
not automatically show the new folder name.
The new track name displays.
File System and Naming
The song name that is displayed is the song name
that is contained in the ID3 tag. If the song
name is not present in the ID3 tag, then the radio
displays the le name without the extension
(such as .mp3) as the track name.Track names longer than 32 characters or
4 pages are shortened. Parts of words on the
last page of text and the extension of the lename
does not display.
Preprogrammed Playlists
Preprogrammed playlists that were created using
WinAmp™, MusicMatch™, or Real Jukebox™
software can be accessed, however, they cannot
be edited using the radio. These playlists are
treated as special folders containing compressed
audio song les.
Playing an MP3
Insert a CD partway into the slot, label side up.
The player pulls it in, and LOADING CD appears
on the display. The CD should begin playing
and the CD symbol appears on the display. If the
ignition and the radio are on, the CD begins
playing. A CD can be loaded with the radio off,
but it does not start playing until the radio is on.
If the ignition or radio is turned off while a CD is
in the player, it stays in the player. When the
ignition or radio is turned on, the CD starts to play
where it stopped, if it was the last selected
audio source.
299
