2007 CADILLAC SRX CD player

Passenger Airbag Status Indicator............. 202
Charging System Light.............................. 204
Brake System Warning Light..................... 204
Anti-Lock Brake System Warning Light...... 205
Traction Control System (TCS) Warning
Light...................................................... 206
Engine Coolant Temperature Warning
Light...................................................... 206
Engine Coolant Temperature Gage............ 207
Tire Pressure Light.................................... 207
Malfunction Indicator Lamp........................ 208
Oil Pressure Light..................................... 211
Security Light............................................ 212
Fog Lamp Light......................................... 212
Lights On Reminder.................................. 212
Cruise Control Light.................................. 212
Highbeam On Light................................... 213
Tow/Haul Mode Light................................ 213
Fuel Gage................................................. 213
Driver Information Center (DIC).................. 214
DIC Controls and Displays........................ 215
DIC Warnings and Messages.................... 220
DIC Vehicle Customization........................ 231Audio System(s)......................................... 240
Setting the Time (Radio with Single
CD Player)............................................. 242
Setting the Time (Radio with Six-Disc
CD Player)............................................. 244
Radio with CD........................................... 246
Using an MP3........................................... 257
XM Radio Messages................................. 264
Navigation/Radio System........................... 266
Rear Seat Entertainment System............... 266
Rear Seat Audio (RSA)............................. 266
Theft-Deterrent Feature............................. 268
Audio Steering Wheel Controls.................. 269
Radio Reception........................................ 270
Care of Your CDs..................................... 271
Care of the CD Player.............................. 271
Diversity Antenna System.......................... 272
XM™ Satellite Radio Antenna System....... 272
Section 3 Instrument Panel
162

{CAUTION:
This system provides you with a far greater
access to audio stations and song listings.
Giving extended attention to entertainment
tasks while driving can cause a crash and
you or others can be injured or killed.
Always keep your eyes on the road and
your mind on the drive — avoid engaging
in extended searching while driving.
Keeping your mind on the drive is important for
safe driving. Here are some ways in which you can
help avoid distraction while driving.
While your vehicle is parked:
Familiarize yourself with all of its controls.
Familiarize yourself with its operation.
Set up your audio system by presetting your
favorite radio stations, setting the tone, and
adjusting the speakers. Then, when driving
conditions permit, you can tune to your favorite
radio stations using the presets and steering
wheel controls if the vehicle has them.
Notice:Before adding any sound equipment
to your vehicle, such as an audio system,
CD player, CB radio, mobile telephone,
or two-way radio, make sure that it can be
added by checking with your dealer. Also,
check federal rules covering mobile radio and
telephone units. If sound equipment can be
added, it is very important to do it properly.
Added sound equipment can interfere with the
operation of your vehicle’s engine, radio, or
other systems, and even damage them.
Your vehicle’s systems can interfere with the
operation of sound equipment that has
been added.
Your vehicle has a feature called Retained
Accessory Power (RAP). With RAP, the audio
system can be played even after the ignition
is turned off. SeeRetained Accessory Power
(RAP) on page 118for more information.
241

Setting the Time (Radio with Single
CD Player)
Enabling/Disabling the Digital Radio Clock
Your vehicle has an analog clock as well as
the digital radio clock. At the time of new vehicle
delivery, the digital radio clock display should
be disabled. If you decide to use the digital radio
clock as well as the analog clock, you can
change the setting to enable the radio clock
display.
Turn the radio clock display on or off by following
these steps:
1. Turn the radio on.
2. Press the clock button until the clock and date
setting menus appear.
3. Press the pushbutton located under the
forward arrow label until the menu for
default clock and date settings appear.4. Press the pushbutton located under the
currently displayed status of either ON or OFF.
The ON display indicates the radio clock
display is disabled and the OFF display
indicates the radio clock display is enabled.
Press this pushbutton to toggle the radio clock
display on or off.
If the radio clock display is turned on, the
screen displays Radio Clock ON for
10 seconds, then returns to the original clock
display menu.
If the radio clock display is turned off, the
screen displays Radio Clock OFF for
10 seconds. The menus for clock and date
settings are removed, and ON displays
as a current status indicating that the clock
display can be turned on, if desired.
The radio clock and analog clock are not
synchronized. Occasionally you might need to set
the digital radio clock using the procedure
below to synchronize both clocks.
242

Setting the Time and Date on the Digital
Radio Clock
If your vehicle has a radio with a single CD player,
it has a clock button for setting the time and
date. To set the time and date, do the following:
1. Turn the radio on.
2. Press the clock button and HR, MIN, MM, DD,
YYYY (hour, minute, month, day, and year)
displays.
3. Press the pushbutton located under each one
of the labels that you want to change. Every
time the pushbutton is pressed again, the time
or the date if selected, increases by one.
Another way to increase the time or date, is
to press the right SEEK arrow or the FWD
(forward) button.
4. To decrease the time or date, press the left
SEEK arrow or the REV (reverse) button.
You can also turn the tune knob, located on
the upper right side of the radio faceplate,
to adjust the selected setting.
Changing the Time and Date Default
Setting
To change the time and date default setting, do
the following:
1. Change the time default setting from 12 hour
to 24 hour or the date default setting from
month/day/year to day/month/year, by
pressing the clock button.
2. Once the clock and date settings display
along with the forward arrow, press the
pushbutton located under the forward arrow
until the time 12H and 24H, and the date
MM/DD/YYYY (month, day, and year)
and DD/MM/YYYY (day, month, and year)
displays.
3. Press the pushbutton located under the
desired option, then press the clock button
again to apply the selected default, or let the
screen time out.
243

Setting the Time (Radio with
Six-Disc CD Player)
Enabling/Disabling the Digital Radio Clock
Your vehicle has an analog clock as well as
the digital radio clock. At the time of new vehicle
delivery, the digital radio clock display should
be disabled. If you decide to use the digital radio
clock as well as the analog clock, you can
change the setting to enable the radio clock
display.
Turn the radio clock display on or off by following
these steps:
1. Turn the radio on.
2. Press the MENU button until the clock label
display appears.
3. Press the pushbutton located under the clock
label until the clock and date settings appear.
4. Press the pushbutton located under the
forward arrow label until the menu for
default clock and date settings appear.5. Press the pushbutton located under the
currently displayed status of either ON or OFF.
The ON display indicates the radio clock
display is disabled and the OFF display
indicates the radio clock display is enabled.
Press this pushbutton to toggle the radio clock
display on or off.
If the radio clock display is turned on, the
screen displays Radio Clock ON for
10 seconds, then returns to the original clock
display menu.
If the radio clock display is turned off, the
screen displays Radio Clock OFF for
10 seconds. The menus for clock and date
settings are removed, and ON displays
as a current status indicating that the clock
display can be turned on, if desired.
The radio clock and analog clock are not
synchronized. Occasionally you might need to set
the digital radio clock using the procedure
below to synchronize both clocks.
244

Setting the Time and Date on the Digital
Radio Clock
If your vehicle has a radio with a six-disc CD
player, it has a MENU button for setting the time
and date. To set the time and date, do the
following:
1. Turn the radio on.
2. Press the MENU button until the clock option
is displayed.
3. Press the pushbutton located under the clock
label and the HR, MIN, MM, DD, YYYY (hour,
minute, month, day, and year) displays.
4. Press the pushbutton located under each one
of the labels that you want to change. Every
time the pushbutton is pressed again, the time
or the date if selected, increases by one.
Another way to increase the time or date, is
to press the right SEEK arrow or the FWD
(forward) button.
5. To decrease the time or date, press the left
SEEK arrow or the REV (reverse) button.
You can also turn the tune knob, located on
the upper right side of the radio faceplate,
to adjust the selected setting.
Changing the Time and Date Default
Setting
To change the time and date default setting, do
the following:
1. Change the time default setting from 12 hour
to 24 hour or the date default setting from
month/day/year to day/month/year, by
pressing the MENU button.
2. Once the clock symbol displays, press the
pushbutton located under that symbol until
the time and date settings display along with a
forward arrow.
3. Press the pushbutton located under the
forward arrow until the time 12H and 24H, and
the date MM/DD/YYYY (month, day, and
year) and DD/MM/YYYY (day, month,
and year) displays.
4. Press the pushbutton located under the
desired option, then press the MENU
button again to apply the selected default, or
let the screen time out.
245

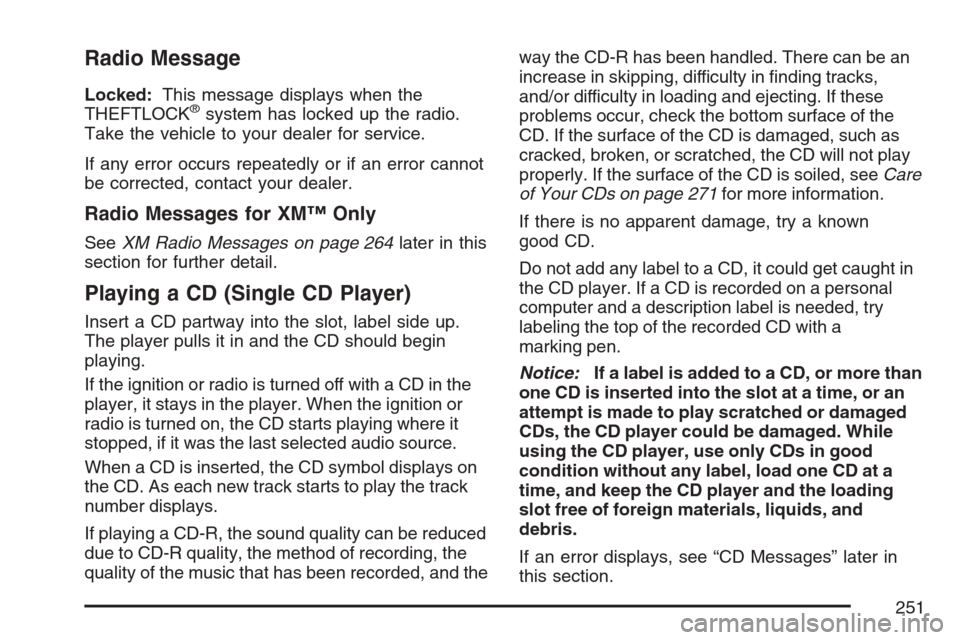

Radio Message
Locked:This message displays when the
THEFTLOCK®system has locked up the radio.
Take the vehicle to your dealer for service.
If any error occurs repeatedly or if an error cannot
be corrected, contact your dealer.
Radio Messages for XM™ Only
SeeXM Radio Messages on page 264later in this
section for further detail.
Playing a CD (Single CD Player)
Insert a CD partway into the slot, label side up.
The player pulls it in and the CD should begin
playing.
If the ignition or radio is turned off with a CD in the
player, it stays in the player. When the ignition or
radio is turned on, the CD starts playing where it
stopped, if it was the last selected audio source.
When a CD is inserted, the CD symbol displays on
the CD. As each new track starts to play the track
number displays.
If playing a CD-R, the sound quality can be reduced
due to CD-R quality, the method of recording, the
quality of the music that has been recorded, and theway the CD-R has been handled. There can be an
increase in skipping, difficulty in nding tracks,
and/or difficulty in loading and ejecting. If these
problems occur, check the bottom surface of the
CD. If the surface of the CD is damaged, such as
cracked, broken, or scratched, the CD will not play
properly. If the surface of the CD is soiled, seeCare
of Your CDs on page 271for more information.
If there is no apparent damage, try a known
good CD.
Do not add any label to a CD, it could get caught in
the CD player. If a CD is recorded on a personal
computer and a description label is needed, try
labeling the top of the recorded CD with a
marking pen.
Notice:If a label is added to a CD, or more than
one CD is inserted into the slot at a time, or an
attempt is made to play scratched or damaged
CDs, the CD player could be damaged. While
using the CD player, use only CDs in good
condition without any label, load one CD at a
time, and keep the CD player and the loading
slot free of foreign materials, liquids, and
debris.
If an error displays, see “CD Messages” later in
this section.
251

Z(Eject):Press the CD eject button to
eject the CD. If the CD is not removed, after
several seconds, the CD automatically pulls back
into the player.
a(Tune):Turn this knob to select tracks on the
CD currently playing.
©SEEK¨:Press the left SEEK arrow to
go to the start of the current track, if more than
ten seconds have played. Press the right
SEEK arrow to go to the next track. If either SEEK
arrow is held or pressed multiple times, the
player continues moving backward or forward
through the CD.
sREV (Reverse):Press and hold this button
to reverse playback quickly within a track. Sound is
heard at a reduced volume. Release this button
to resume playing the track. The elapsed time
of the track displays.
\FWD (Fast Forward):Press and hold this
button to advance playback quickly within a track.
Sound is heard at a reduced volume. Release
this button to resume playing the track. The
elapsed time of the track displays.RDM (Random):With the random setting, CD
tracks can be listened to in random, rather
than sequential order. This feature is not available
in playlist mode. To use random, do the following:
1. To play tracks from the CD you are listening
to in random order, press the pushbutton
positioned under the RDM label. The random
icon displays.
2. Press the same pushbutton again to turn off
random play. The random icon disappears
from the display.
4(Information):Press this button to switch the
display between the track number, elapsed time of
the track, and the time. When the ignition is off,
press this button to display the time (if the
clock display is enabled).
BAND:Press this button to listen to the radio
when a CD is playing. The CD remains inside the
radio for future listening.
252
