2007 CADILLAC ESCALADE EXT odometer

Instrument Panel Overview........................ 192
Hazard Warning Flashers.......................... 194
Other Warning Devices............................. 194
Horn.......................................................... 194
Tilt Wheel.................................................. 195
Heated Steering Wheel............................. 195
Turn Signal/Multifunction Lever.................. 196
Turn and Lane-Change Signals................. 196
Headlamp High/Low-Beam Changer.......... 197
Flash-to-Pass............................................ 198
Windshield Wipers..................................... 198
Rainsense™ II Wipers............................... 199
Windshield Washer.................................... 200
Cruise Control........................................... 201
Exterior Lamps.......................................... 204
Headlamps on Reminder........................... 209
Daytime Running Lamps (DRL)................. 209
Automatic Headlamp System..................... 210
Fog Lamps................................................ 211
Exterior Cargo Lamps................................ 211
Instrument Panel Brightness...................... 211
Dome Lamps............................................. 212
Dome Lamp Override................................ 212
Entry/Exit Lighting...................................... 212
Reading Lamps......................................... 212Battery Run-Down Protection..................... 212
Ultrasonic Rear Parking Assist (URPA)...... 213
Accessory Power Outlet(s)........................ 217
Ashtray(s) and Cigarette Lighter................ 218
Analog Clock............................................. 218
Climate Controls......................................... 219
Dual Automatic Climate Control System.... 219
Outlet Adjustment...................................... 224
Warning Lights, Gages, and Indicators..... 225
Instrument Panel Cluster........................... 226
Speedometer and Odometer...................... 227
Trip Odometer........................................... 227
Tachometer............................................... 227
Safety Belt Reminder Light........................ 228
Passenger Safety Belt
Reminder Light...................................... 228
Airbag Readiness Light............................. 229
Passenger Airbag Status Indicator............. 230
Charging System Light.............................. 232
Brake System Warning Light..................... 232
Anti-Lock Brake System
Warning Light........................................ 234
StabiliTrak
®Indicator Light......................... 235
Engine Coolant Temperature Gage............ 235
Section 3 Instrument Panel
189

Speedometer and Odometer
The speedometer lets you see your vehicle’s speed
in both miles per hour (mph) and kilometers
per hour (km/h).
The odometer works together with the Driver
Information Center (DIC). The odometer mileage
can be checked without the vehicle running by
pressing the Trip/Fuel button on the instrument
panel cluster. See “Odometer” underDIC Operation
and Displays on page 243for more information.
If your vehicle ever needs a new odometer
installed, the new one will be set to the correct
mileage total of the old odometer.
Trip Odometer
The trip odometer can tell you how far your
vehicle has been driven since you last set the
trip odometer to zero.
For more information see “Trip Odometer” under
DIC Operation and Displays on page 243.
Tachometer
Your tachometer displays the engine speed in
revolutions per minute (rpm).
227

DIC Buttons
The buttons are
the trip/fuel,
vehicle information,
customization,
and set/reset buttons.
The button functions
are detailed in the
following pages.
3(Trip/Fuel):Press this button to display
the odometer, trip odometer, fuel range, average
economy, fuel used, timer, and transmission
temperature.
T(Vehicle Information):Press this button to
display the oil life, units, tire pressure readings
for vehicles with a Tire Pressure Monitor (TPM)
system, Tire Pressure Monitor (TPM) system
programming for vehicles with a TPM system, and
remote keyless entry transmitter programming.
U(Customization):Press this button to
customize the feature settings on your vehicle.
SeeDIC Vehicle Customization on page 257
for more information.
V(Set/Reset):Press this button to set or reset
certain functions and to turn off or acknowledge
messages on the DIC.
Trip/Fuel Menu Items
3
(Trip/Fuel):Press this button to scroll
through the following menu items:
Odometer
Press the trip/fuel button until ODOMETER
displays. This display shows the distance the
vehicle has been driven in either miles (mi)
or kilometers (km).
To switch between English and metric
measurements, see “Units” later in this section.
Trip Odometer
Press the trip/fuel button until TRIP displays. This
display shows the current distance traveled in
either miles (mi) or kilometers (km) since the last
reset for the trip odometer.
244

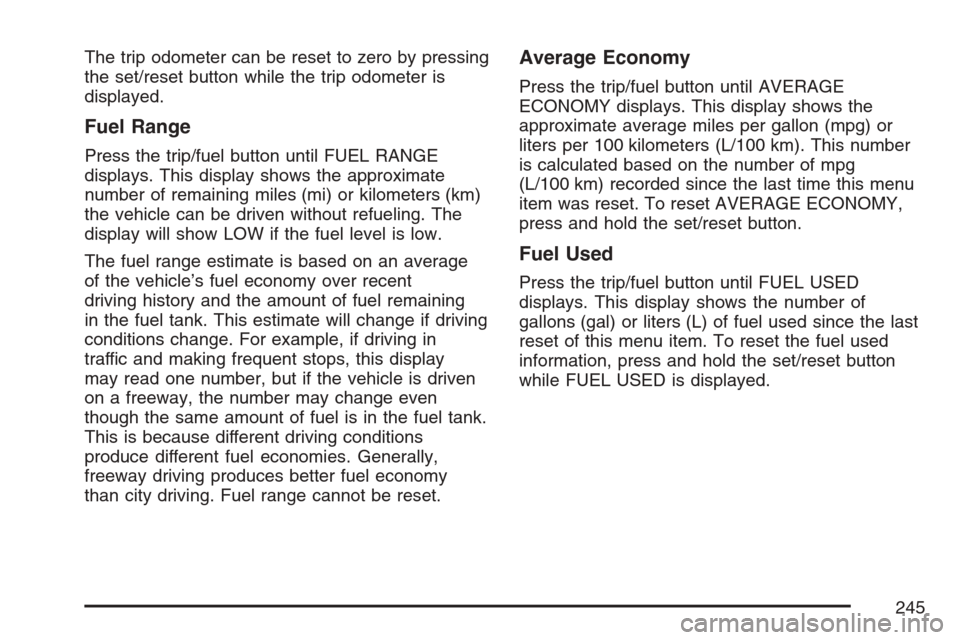

The trip odometer can be reset to zero by pressing
the set/reset button while the trip odometer is
displayed.
Fuel Range
Press the trip/fuel button until FUEL RANGE
displays. This display shows the approximate
number of remaining miles (mi) or kilometers (km)
the vehicle can be driven without refueling. The
display will show LOW if the fuel level is low.
The fuel range estimate is based on an average
of the vehicle’s fuel economy over recent
driving history and the amount of fuel remaining
in the fuel tank. This estimate will change if driving
conditions change. For example, if driving in
traffic and making frequent stops, this display
may read one number, but if the vehicle is driven
on a freeway, the number may change even
though the same amount of fuel is in the fuel tank.
This is because different driving conditions
produce different fuel economies. Generally,
freeway driving produces better fuel economy
than city driving. Fuel range cannot be reset.
Average Economy
Press the trip/fuel button until AVERAGE
ECONOMY displays. This display shows the
approximate average miles per gallon (mpg) or
liters per 100 kilometers (L/100 km). This number
is calculated based on the number of mpg
(L/100 km) recorded since the last time this menu
item was reset. To reset AVERAGE ECONOMY,
press and hold the set/reset button.
Fuel Used
Press the trip/fuel button until FUEL USED
displays. This display shows the number of
gallons (gal) or liters (L) of fuel used since the last
reset of this menu item. To reset the fuel used
information, press and hold the set/reset button
while FUEL USED is displayed.
245

Each new wheel should have the same
load-carrying capacity, diameter, width, offset and
be mounted the same way as the one it
replaces.
If you need to replace any of your wheels, wheel
bolts, or wheel nuts, replace them only with
new GM original equipment parts. This way, you
will be sure to have the right wheel, wheel
bolts, and wheel nuts for your vehicle.
{CAUTION:
Using the wrong replacement wheels,
wheel bolts, or wheel nuts on your vehicle
can be dangerous. It could affect the
braking and handling of your vehicle,
make your tires lose air and make you
lose control. You could have a collision in
which you or others could be injured.
Always use the correct wheel, wheel bolts,
and wheel nuts for replacement.Notice:The wrong wheel can also cause
problems with bearing life, brake cooling,
speedometer or odometer calibration,
headlamp aim, bumper height, vehicle ground
clearance, and tire or tire chain clearance
to the body and chassis.
SeeChanging a Flat Tire on page 477for more
information.
Used Replacement Wheels
{CAUTION:
Putting a used wheel on your vehicle is
dangerous. You cannot know how it has
been used or how far it has been driven. It
could fail suddenly and cause a crash. If
you have to replace a wheel, use a new
GM original equipment wheel.
475

Maintenance Record
After the scheduled services are performed, record the date, odometer reading, who performed the
service, and the type of services performed in the boxes provided. SeeMaintenance Requirements on
page 520. Any additional information fromOwner Checks and Services on page 529can be added on the
following record pages. You should retain all maintenance receipts.
Maintenance Record
DateOdometer
ReadingServiced ByMaintenanceIor
MaintenanceIIServices Performed
537

Maintenance Record (cont’d)
DateOdometer
ReadingServiced ByMaintenanceIor
MaintenanceIIServices Performed
538

Maintenance Record (cont’d)
DateOdometer
ReadingServiced ByMaintenanceIor
MaintenanceIIServices Performed
539
