2007 CADILLAC DTS PROFESSIONAL sensor

Accordingly, when the low tire pressure telltale
illuminates, you should stop and check your tires
as soon as possible, and inate them to the
proper pressure. Driving on a signicantly
under-inated tire causes the tire to overheat and
can lead to tire failure. Under-ination also
reduces fuel efficiency and tire tread life, and may
affect the vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute
for proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure,
even if under-ination has not reached the level
to trigger illumination of the TPMS low tire
pressure telltale.
Your vehicle has also been equipped with a TPMS
malfunction indicator to indicate when the
system is not operating properly. The TPMS
malfunction indicator is combined with the low tire
pressure telltale. When the system detects a
malfunction, the telltale will ash for approximately
one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the
malfunction exists.When the malfunction indicator is illuminated, the
system may not be able to detect or signal low
tire pressure as intended. TPMS malfunctions may
occur for a variety of reasons, including the
installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPMS from
functioning properly. Always check the TPMS
malfunction telltale after replacing one or more
tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow
the TPMS to continue to function properly.
A Tire and Loading Information Label, attached to
your vehicle, shows the size of your vehicle’s
original tires and the correct ination pressure for
your vehicle’s tires when they are cold. See
Loading Your Vehicle on page 333, for the location
of the Tire and Loading Information label. Also
seeInation - Tire Pressure on page 411.
Your vehicle’s TPMS can alert you about a low
tire pressure condition but it does not replace
normal tire maintenance. SeeTire Inspection and
Rotation on page 418andTires on page 402.
Notice:Do not use a tire sealant if your vehicle
has Tire Pressure Monitors. The liquid sealant
can damage the tire pressure monitor sensors.
415

Resetting the TPMS Sensor
Identication Codes
Each TPMS sensor has a unique identication
code. Any time you replace one or more of
the TPMS sensors, rotate the vehicle’s tires, or
install a full-size spare that has a TPMS sensor,
the sensor’s identication codes will need to
be matched to the new tire/wheel position. Each
tire/wheel position is matched to the TPMS sensor
using a TPMS diagnostic tool. See your GM
dealer for service.
The TPMS sensors may also be matched to each
tire/wheel position by increasing or decreasing
the tire’s air pressure. When increasing the tire’s
air pressure, do not exceed the maximum tire
pressure indicated on the tire’s sidewall.
You will have two minutes to match the rst
tire/wheel position, and ve minutes overall, to
match all four tire/wheel positions. If it takes longer
than two minutes, to match the rst tire and
wheel, or more than ve minutes to match all
four tire and wheel positions the matching process
stops and you will need to start over.The TPMS matching process is outlined below:
1. Set the parking brake.
2. Turn the ignition switch to RUN with the
engine off.
3. Press the Driver Information Center (DIC)
vehicle information button until the PRESS
VTO RELEARN TIRE POSITIONS displays.
4. Press the set/reset button to allow the system
to learn the tire positions. The horn will sound
twice to indicate that the TPMS is ready,
and then the message TIRE LEARNING
ACTIVE will display. The sensor matching
process can begin.
5. Start with the driver’s side front tire.
6. Remove the valve cap from the valve stem.
Activate the TPMS sensor by increasing or
decreasing the tire’s air pressure for
ve seconds, or until a horn chirp sounds. The
horn chirp, which may take up to 30 seconds,
conrms that the sensor identication code has
been matched to this tire position. To decrease
the tire’s air-pressure use the pointed end of
the valve cap, a pencil-style air pressure gage
or a key.
416

7. Proceed to the passenger’s side front tire, and
repeat the procedure in Step 6.
8. Proceed to the passenger’s side rear tire, and
repeat the procedure in Step 6.
9. Proceed to the driver’s side rear tire, and
repeat the procedure in Step 6.
10. After hearing the conrming horn chirp for the
driver’s side rear tire, the tire learning process
ends. Turn the ignition switch to OFF.
11. Set all four tires to the recommended air
pressure level as indicated on the Tire
and Loading Information label.
12. Put the valve caps back on the valve stems.
The compact spare tire does not have a TPMS
sensor. If you replace one of the road tires with the
compact spare, the SERVICE TIRE MONITOR
SYSTEM message will be displayed on the DIC
screen. This message should go off once you
re-install the road tire containing the TPMS sensor.Federal Communications
Commission (FCC) and Industry
and Science Canada
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
Changes or modications to this system by other
than an authorized service facility could void
authorization to use this equipment.
417

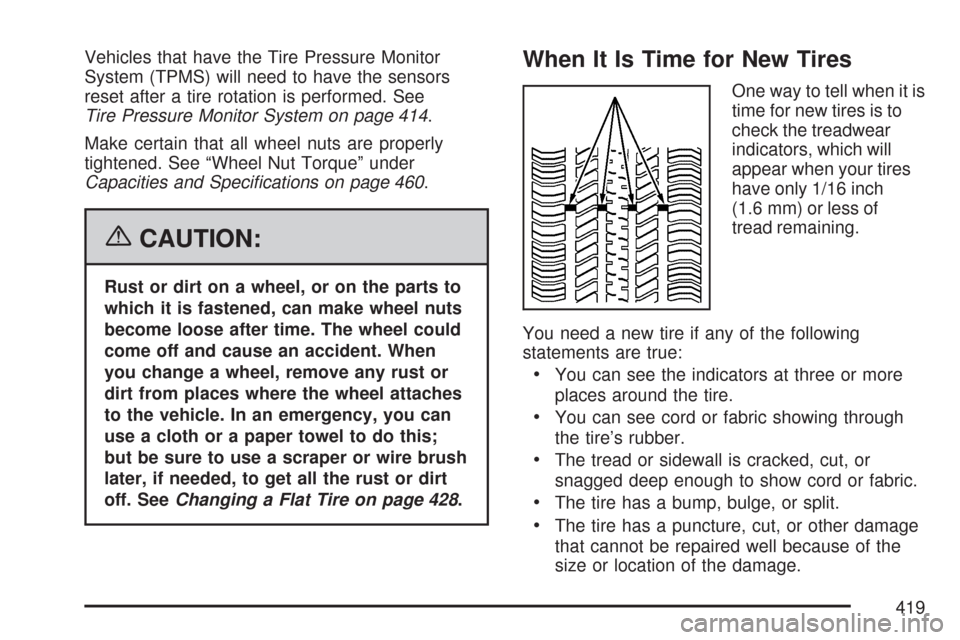

Vehicles that have the Tire Pressure Monitor
System (TPMS) will need to have the sensors
reset after a tire rotation is performed. See
Tire Pressure Monitor System on page 414.
Make certain that all wheel nuts are properly
tightened. See “Wheel Nut Torque” under
Capacities and Specications on page 460.
{CAUTION:
Rust or dirt on a wheel, or on the parts to
which it is fastened, can make wheel nuts
become loose after time. The wheel could
come off and cause an accident. When
you change a wheel, remove any rust or
dirt from places where the wheel attaches
to the vehicle. In an emergency, you can
use a cloth or a paper towel to do this;
but be sure to use a scraper or wire brush
later, if needed, to get all the rust or dirt
off. SeeChanging a Flat Tire on page 428.
When It Is Time for New Tires
One way to tell when it is
time for new tires is to
check the treadwear
indicators, which will
appear when your tires
have only 1/16 inch
(1.6 mm) or less of
tread remaining.
You need a new tire if any of the following
statements are true:
You can see the indicators at three or more
places around the tire.
You can see cord or fabric showing through
the tire’s rubber.
The tread or sidewall is cracked, cut, or
snagged deep enough to show cord or fabric.
The tire has a bump, bulge, or split.
The tire has a puncture, cut, or other damage
that cannot be repaired well because of the
size or location of the damage.
419

Fuses Usage
F10Passenger’s Side High-Beam
Headlamp
F11 Driver’s Side High-Beam Headlamp
F12 Windshield Washer Pump
F13 Spare
F14Climate Controls, Instrument Panel
Cluster
F15 Spare
F16 Fog Lamps
F17 Horn
F18 Windshield Wiper
F19 Driver’s Side Corner Lamp
F20 Passenger’s Side Corner Lamp
F21 Oxygen Sensor
F22 Powertrain
F23 Engine Control Module (ECM), Crank
F24 Injector Coil
F25 Injector Coil
F26 Air Conditioning
F27 Air Solenoid
F28Engine Control Module, Transaxle
Control Module (ECM/TCM)
F29 Spare
F30 SpareFuses Usage
F31 Spare
F32 Spare
J-Case Fuse Usage
JC1 Heated Windshield Washer
JC2 Cooling Fan 1
JC3 Spare
JC4 Crank
JC5 Cooling Fan 2
JC6 Anti-lock Brake System 2
JC7 Anti-lock Brake System 1
JC8 Air Pump
Relays Usage
R1 Cooling Fan 1
R2 Cooling Fan
R3 Crank
R4 Powertrain
R5 Spare
R6 Run/Crank
R7 Cooling Fan 2
R8 Windshield Wiper
R9 Air Pump
454

Fuses Usage
F9 Door Unlatch - Limo (Option)
F10 Switch Dimmer
F11 Fuel Pump
F12 Body Control Module Logic
F13 Airbag
F14 Auxiliary Power Outlets
F15 Driver’s Side Turn Signal
F16 Passenger Side Rear Turn Signal
F17 Not Used
F18Center High-Mounted Stoplamp,
Back-up Lamps
F19 Rear Door Locks
F20 Stoplamp - Export (Option)
F21 Radio, S-Band
F22 OnStar
®(Option)
F23Auxiliary Power Outlet, Cigarette
Lighter, Console
F24 Driver Door Module
F25 Passenger Door Module
F26 Trunk Release (Option)
F27 Heated/Cooled Seats (Option)
F28Engine Control Module, Transaxle
Control Module (ECM/TCM)
Fuses Usage
F29 Regulated Voltage Control Sense
F30 Not Used
F31 Instrument Panel Harness Module
F32 Rear Heated Seats (Option)
F33 Not Used
F34 Steering Wheel Illumination
F35 Body Harness Module
F36Memory Seat Module Logic, Right
Front Massage (Option)
F37 Object Detection Sensor (Option)
F38 Sunroof
F40 Shifter Solenoid (Option)
F41Retained Accessory Power,
Miscellaneous
F42 Driver’s Side Park Lamp
F43 Passenger’s Side Park Lamp
F44 Heated Steering Wheel (Option)
F45 Rear Climate Control (Option)
F46 Not Used
F47 Heated/Cooled Seats, Ignition 3
F48 Ignition Switch
F49 Not Used
458
