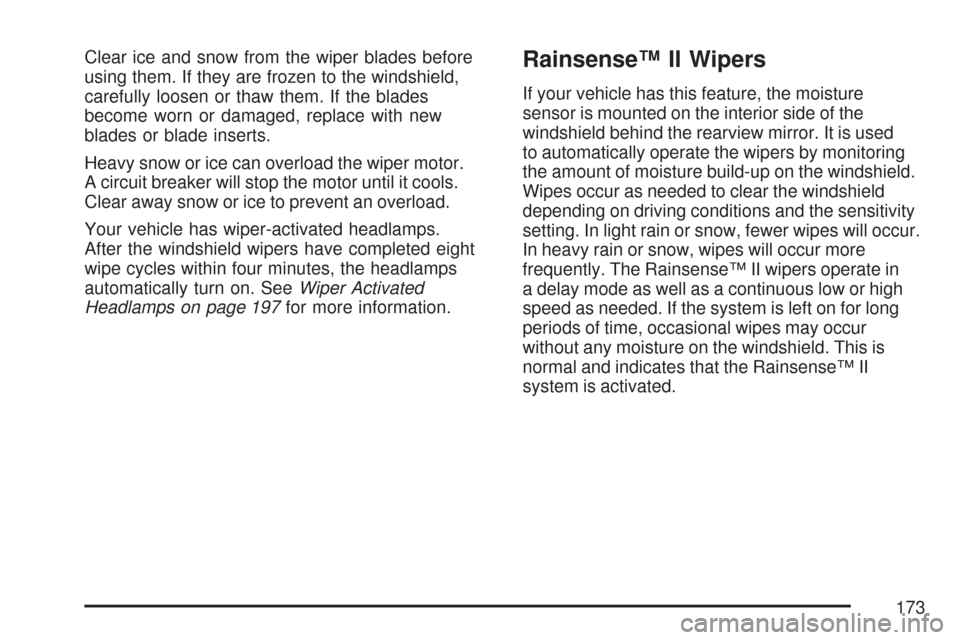

Clear ice and snow from the wiper blades before
using them. If they are frozen to the windshield,
carefully loosen or thaw them. If the blades
become worn or damaged, replace with new
blades or blade inserts.
Heavy snow or ice can overload the wiper motor.
A circuit breaker will stop the motor until it cools.
Clear away snow or ice to prevent an overload.
Your vehicle has wiper-activated headlamps.
After the windshield wipers have completed eight
wipe cycles within four minutes, the headlamps
automatically turn on. SeeWiper Activated
Headlamps on page 197for more information.Rainsense™ II Wipers
If your vehicle has this feature, the moisture
sensor is mounted on the interior side of the
windshield behind the rearview mirror. It is used
to automatically operate the wipers by monitoring
the amount of moisture build-up on the windshield.
Wipes occur as needed to clear the windshield
depending on driving conditions and the sensitivity
setting. In light rain or snow, fewer wipes will occur.
In heavy rain or snow, wipes will occur more
frequently. The Rainsense™ II wipers operate in
a delay mode as well as a continuous low or high
speed as needed. If the system is left on for long
periods of time, occasional wipes may occur
without any moisture on the windshield. This is
normal and indicates that the Rainsense™ II
system is activated.
173

The Rainsense™ II system can be activated by
turning the wiper band to one of the ve sensitivity
levels indicated on the wiper stalk. The position
closest to off is the lowest sensitivity setting, level
one. This allows more rain or snow to collect on the
windshield between wipes. Turning the wiper band
away from you to higher sensitivity levels increases
the sensitivity of the system and frequency of
wipes. The highest sensitivity setting, level ve is
closest to low. A single wipe will occur each time
you turn the wiper stalk to a higher sensitivity level
to indicate that the sensitivity level has been
increased.
Notice:Going through an automatic car wash
with the wipers on can damage them. Turn
the wipers off when going through an
automatic car wash.The mist and wash cycles operate as normal and
are not affected by the Rainsense™ II function.
The Rainsense™ II system can be overridden at
any time by manually turning the wiper band to low
or high speed.
When Rainsense™ II is active, the headlamps
will turn on automatically. The headlamps will
turn off again once the wipers turn off if it is light
enough outside. If it is dark, they will remain
on. SeeWiper Activated Headlamps on page 197
for more information.
Notice:Do not place stickers or other items
on the exterior glass surface directly in front of
the moisture sensor. Doing this could cause
the moisture sensor to malfunction.
174

Exterior Lamps
The exterior lamps
control is located on
the instrument panel to
the left of the steering
wheel.
It controls the following systems:
Headlamps
Taillamps
Parking Lamps
License Plate Lamps
Instrument Panel Lights
Fog Lamps
The exterior lamps control has four positions:
O(Off):This position turns off the exterior lamps
except for Daytime Running Lamps (DRL).AUTO (Automatic):This position automatically
turns on the headlamps at normal brightness,
together with the following:
Parking Lamps
Instrument Panel Lights
IntelliBeam™
;(Parking Lamps):This position turns on the
parking lamps together with the following:
Instrument Panel Lights
License Plate Lamps
Taillamps
Side Marker Lamps
The parking brake indicator light comes on and
stays on while the parking lamps are on with the
engine off and the ignition in ACCESSORY or RUN.
2(Headlamps):This position turns on the
headlamps together with the previously listed
lamps. A warning chime sounds if you open the
driver’s door when the ignition switch is off and the
headlamps are on.
-(Fog Lamps):Press the exterior lamps control
to turn on the fog lamps. SeeFog Lamps on
page 198.
193

IntelliBeam™ Intelligent High-Beam
Headlamp Control System
If your vehicle has this feature, be sure to read
this entire section before using it.
IntelliBeam™ is an enhancement to your vehicle’s
headlamp system. Using a digital light sensor
on your rearview mirror, this system turns
the vehicle’s high-beam headlamps on and
off according to surrounding traffic conditions.
The IntelliBeam™ system turns the high-beam
headlamps on when it is dark enough, there is no
other traffic present, and the IntelliBeam system
is enabled.
Turning On and Enabling IntelliBeam™
Press and release the IntelliBeam™ button on
the inside rear view mirror. The IntelliBeam™
indicator on the mirror turns on to indicate
the system is on. Once the system has been
turned on, it remains on each time the vehicle
is started, but the IntelliBeam system must
be enabled.To enable the IntelliBeam™ system, turn the
exterior lamp control to AUTO, with the turn
signal/multifunction lever in its neutral position.
The High-Beam On Light appears on the
instrument panel cluster when the high-beams
are on. SeeHighbeam On Light on page 238.
Driving with IntelliBeam™
IntelliBeam™ only activates the high-beams when
driving over 20 mph (32 km/h).
The high-beam headlamps remain on, under the
automatic control of IntelliBeam™, until any of
the following situations occur:
The system detects an approaching vehicle’s
headlamps.
The system detects a preceding vehicle’s
taillamps.
The outside light is bright enough that
high-beam headlamps are not required.
The vehicle’s speed drops below
15 mph (24 km/h).
194

The headlamp stalk is moved forward to the
high-beam position or the ash-to-pass feature
is used. SeeHeadlamp High/Low-Beam
Changer on page 167andFlash-to-Pass
on page 172.
When either of these conditions occur, the
IntelliBeam™ feature is disabled and the
IntelliBeam™ light in the mirror turns off until
the high-beam stalk is returned to the neutral
position.
If IntelliBeam™ was using low-beams prior
to this action, the IntelliBeam™ feature is
temporarily disabled until the stalk is returned
to the neutral position.
The exterior lamp control is turned to any
setting except AUTO.
When this occurs, IntelliBeam™ is disabled
until the control is turned back to the AUTO
position.
The IntelliBeam™ system is turned off at the
inside rearview mirror.IntelliBeam™ might not turn off the high-beams if
the system cannot detect other vehicle’s lamps
because of any of the following:
The other vehicle’s lamp(s) are missing,
damaged, obstructed from view, or otherwise
undetected.
The other vehicle’s lamp(s) are covered with
dirt, snow, and/or road spray.
The other vehicle’s lamp(s) cannot be detected
due to dense exhaust, smoke, fog, snow, road
spray, mist, or other airborne obstructions.
Your vehicle’s windshield is dirty, cracked, or
obstructed by something that blocks the view
of the IntelliBeam™ light sensor.
Your vehicle’s windshield is covered with ice,
dirt, haze, or other obstructions.
Your vehicle is loaded such that the front
end of the vehicle points upward, causing the
IntelliBeam™ sensor to aim high and not detect
headlamps and taillamps.
You are driving on winding or hilly roads.
You might need to manually disable or cancel the
high-beam headlamps by turning the low-beam
headlamps on, if any of the above conditions exist.
195

Wiper Activated Headlamps
This feature activates the headlamps and parking
lamps after the windshield wipers are turned
on and have completed eight wipe cycles within
four minutes.
When the ignition is turned to OFF, the
wiper-activated headlamps immediately turn off.
The wiper-activated headlamps also turn off if the
windshield wipers are turned off.
Headlamps on Reminder
A warning chime will sound if the exterior lamp
control is left on in either the headlamp or parking
lamp position and the driver’s door is opened
with the ignition off.
Daytime Running Lamps (DRL)
Daytime Running Lamps (DRL) can make it easier
for others to see the front of your vehicle during
the day. DRL can be helpful in many different
driving conditions, but they can be especially
helpful in the short periods after dawn and before
sunset. Fully functional daytime running lamps
are required on all vehicles rst sold in Canada.
The DRL system will make the turn signal lamps
come on when the following conditions are met:
It is still daylight and the ignition is on.
The exterior lamp control is in the off position.
The transaxle is not in PARK (P)
(United States only).
The light sensor is covered or not detecting
light. See “Sensors” underDual Climate Control
System on page 210.
When DRL are on, no other exterior lamps such as
the parking lamps, taillamps, etc. will be on when
the DRL are being used. Your instrument panel will
not be lit up either.
197

When automatic lighting is on and it is dark enough
outside, the turn signal lamps will turn off and
normal low-beam headlamp operation will occur.
When automatic lighting is on and it is bright
enough outside, the regular lamps will go off, and
the DRL will take over. If you start your vehicle
in a dark garage, the automatic headlamp system
will come on immediately. Once you leave the
garage, it will take approximately one minute for
the automatic headlamp system to change to DRL
if there is light outside. During that delay, your
instrument panel cluster may not be as bright as
usual. Make sure your instrument panel brightness
knob is in the full bright position. SeeInstrument
Panel Brightness on page 199.
Turning on automatic lighting or the headlamps
will deactivate the DRL. If the parking lamps or the
fog lamps were turned on instead, the DRL will
still deactivate.
To idle your vehicle with the DRL off at night,
turn off automatic lighting and shift the transaxle
into PARK (P). Placing your vehicle in PARK (P)
disables the DRL. The DRL will stay off until you
shift out of PARK (P).To drive your vehicle with the DRL off, turn off
automatic lighting and manually turn on the parking
lamps or fog lamps (if equipped).
As with any vehicle, you should turn on the
regular headlamp system when you need it.
Fog Lamps
Use the fog lamps for better vision in foggy or
misty conditions.
-(Fog Lamps):The fog lamps button is
located on the exterior lamps control. The exterior
lamps control is located on the instrument panel
to the left of the steering column.
The ignition must be on for the fog lamps to work.
Press the exterior lamps button to turn the
fog lamps on or off. A light will come on in the
instrument panel cluster when the fog lamps
are in use.
When the headlamps are changed to high-beam,
the fog lamps will turn off. The fog lamps come
back on again when the high-beam headlamps
are turned off.
Some localities have laws that require the
headlamps to be on along with the fog lamps.
198

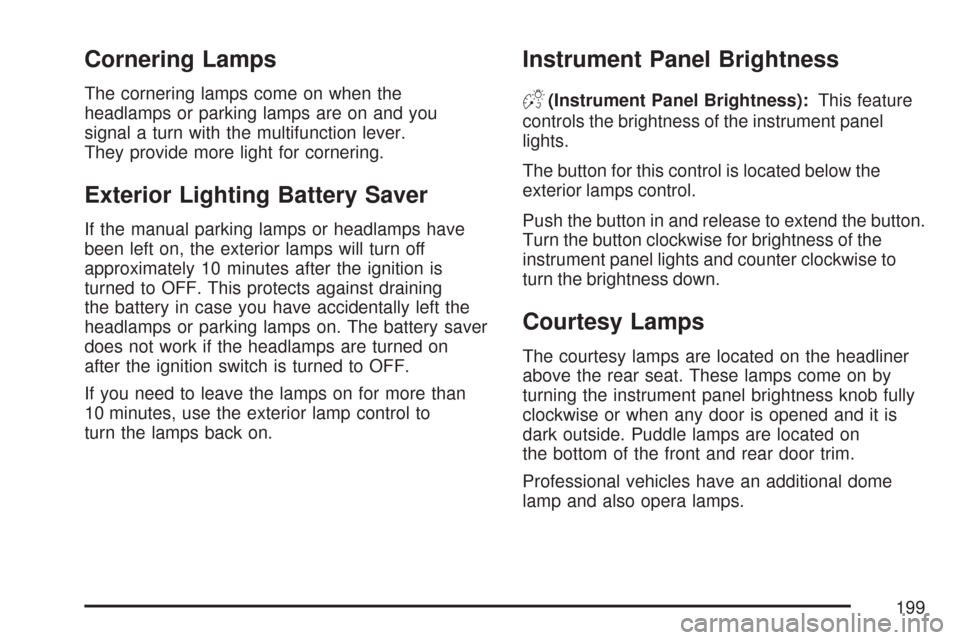

Cornering Lamps
The cornering lamps come on when the
headlamps or parking lamps are on and you
signal a turn with the multifunction lever.
They provide more light for cornering.
Exterior Lighting Battery Saver
If the manual parking lamps or headlamps have
been left on, the exterior lamps will turn off
approximately 10 minutes after the ignition is
turned to OFF. This protects against draining
the battery in case you have accidentally left the
headlamps or parking lamps on. The battery saver
does not work if the headlamps are turned on
after the ignition switch is turned to OFF.
If you need to leave the lamps on for more than
10 minutes, use the exterior lamp control to
turn the lamps back on.
Instrument Panel Brightness
D(Instrument Panel Brightness):This feature
controls the brightness of the instrument panel
lights.
The button for this control is located below the
exterior lamps control.
Push the button in and release to extend the button.
Turn the button clockwise for brightness of the
instrument panel lights and counter clockwise to
turn the brightness down.
Courtesy Lamps
The courtesy lamps are located on the headliner
above the rear seat. These lamps come on by
turning the instrument panel brightness knob fully
clockwise or when any door is opened and it is
dark outside. Puddle lamps are located on
the bottom of the front and rear door trim.
Professional vehicles have an additional dome
lamp and also opera lamps.
199
