Brakes
Brake Fluid
Your brake master
cylinder reservoir is
lled with DOT-3 brake
uid. SeeEngine
Compartment Overview
on page 342for the
location of the reservoir.
There are only two reasons why the brake uid
level in the reservoir might go down. The rst
is that the brake uid goes down to an acceptable
level during normal brake lining wear. When
new linings are put in, the uid level goes back
up. The other reason is that uid is leaking out of
the brake system. If it is, you should have your
brake system xed, since a leak means that
sooner or later your brakes will not work well, or
will not work at all.So, it is not a good idea to top off your brake uid.
Adding brake uid will not correct a leak. If you add
uid when your linings are worn, then you will have
too much uid when you get new brake linings. You
should add or remove brake uid, as necessary,
only when work is done on the brake hydraulic
system.
{CAUTION:
If your vehicle has too much brake uid, it
can spill on the engine. The uid will burn if
the engine is hot enough. You or others
could be burned, and your vehicle could be
damaged. Add brake uid only when work
is done on the brake hydraulic system.
If the ignition is in ON and the brake uid is low, the
“Check Brake Fluid” message will be displayed in
the DIC. See “Check Brake Fluid Message” under
DIC Warnings and Messages on page 232.
When your brake uid falls to a low level, your
brake warning light will come on. SeeBrake
System Warning Light on page 205.
371

{CAUTION:
Using a match near a battery can cause
battery gas to explode. People have been
hurt doing this, and some have been
blinded. Use a ashlight if you need more
light.
Be sure the battery has enough water.
You do not need to add water to the
battery installed in your new vehicle. But
if a battery has ller caps, be sure the
right amount of uid is there. If it is low,
add water to take care of that rst. If you
do not, explosive gas could be present.
Battery uid contains acid that can burn
you. Do not get it on you. If you
accidentally get it in your eyes or on your
skin, ush the place with water and get
medical help immediately.
{CAUTION:
Fans or other moving engine parts can
injure you badly. Keep your hands away
from moving parts once the engine is
running.
5. Check that the jumper cables do not have
loose or missing insulation. If they do, you
could get a shock. The vehicles could
be damaged too.
Before you connect the cables, here are some
basic things you should know. Positive (+)
will go to positive (+) or to a remote
positive (+) terminal if the vehicle has one.
Negative (−) will go to a heavy, unpainted
metal engine part or to a remote negative (−)
terminal if the vehicle has one.
Do not connect positive (+) to negative (−)or
you will get a short that would damage
the battery and maybe other parts too. And do
not connect the negative (−) cable to the
negative (−) terminal on the dead battery
because this can cause sparks.
379

Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected for
wear or cracking. SeeOwner Checks and Services
on page 469.
It is a good idea to clean or replace the wiper
blade assembly on a regular basis or when worn.
For proper windshield wiper blade length and
type, seeNormal Maintenance Replacement Parts
on page 475.
To replace the wiper blade assembly, do the
following:
1. Turn the ignition to ON with the engine off.
2. Turn on the windshield wipers and turn them
off again when the wipers are in the out-wipe
position. The driver’s side blade will be
straight up and down on the windshield.3. Pull the windshield wiper assembly away from
the windshield.
4. Lift the wiper blade assembly up so it is in
a T-shaped position. You should be able to
see a tab.
390

Fuses Usage
WASH NOZDriver’s and Passenger’s Side
Heated Washer Nozzles
PRE O2/CAMDriver’s & Passenger’s Side Oxygen
Sensors, CAM Phaser, Canister
Purge
TCM/IPCTransmission Control Module,
Engine Control Module, Instrument
Panel Cluster
SPARE Not Used
IGN MOD/MAF Mass Airow Sensor
ELEC PRNDL Electronic PRNDL (Export)
SPARE Not Used
SPARE Not Used
IGN SWIgnition Switch (Power to IGN-3 and
CRANK)
VOLT CHECK DIM (Dash Integration Module)
ECM/TCMTCM (Transmission Control Module),
ECM (Engine Control Module), IPC
(Instrument Panel Cluster),
PASS-Key
®III+ Module
WPR MOD Windshield Wiper Module Assembly
ODD INJ/COILOdd Ignition Coils, Fuel Injectors,
Odd Injection Coils
COMP CLUTCH Compressor Clutch
Fuses Usage
WPR SW Windshield Wiper/Washer Switch
FOG LAMP Fog Lamps
OUTLETCenter Console Accessory Power
Outlet
POST 02Driver’s and Passenger’s Side
Oxygen Sensors, LRPDB (Pusher
Cooling Fan Relay)
I/P OUTLETInstrument Panel Accessory Power
Outlet
CCP Climate Control
EVEN INJ/COIL Even Injection Coils
SPARE Not Used
SPARE Not Used
SPARE Not Used
SPARE Not Used
Circuit
BreakersUsage
HDLP WASH
C/B-OPTHeadlamp Washer Motor
Misc. Usage
FUSE PULLER Fuse Puller
450

ApplicationCapacities
English Metric
Transmission (Pan Removal and Replacement)
Automatic 7.4 qt 7.0 L
6-Speed Manual – CTS 1.9 qt 1.8 L
6-Speed Manual – CTS-V 3.7 qt 3.5 L
Wheel Nut Torque 100 lb ft
(140Y
)
All capacities are approximate. When adding, be sure to ll to the approximate level, as recommended in this
manual. Recheck uid level after lling.
Engine Specications
Engine VIN Code Transmission Spark Plug Gap
2.8L HFV6 T Automatic Manual 0.043 inches (1.1 mm)
3.6L HFV6 7Automatic
Manual0.043 inches (1.1 mm)
6.0L V8 U Manual 0.040 inches (1.02 mm)
CTS-V Engine Data
Engine Horsepower Torque Displacement Compression Ratio
6.0L V8 (LS2)400 hp (298 kW)@
6000 rpm395 ft lb (536 Nm)@
4400 rpm6.0 L 10.9:1
458

Maintenance Schedule................................ 460
Introduction............................................... 460
Maintenance Requirements........................ 460
Your Vehicle and the Environment............ 460
Using the Maintenance Schedule............... 461
Scheduled Maintenance............................. 462
Additional Required Services..................... 465
Maintenance Footnotes.............................. 467
Owner Checks and Services..................... 469At Each Fuel Fill....................................... 469
At Least Once a Month............................. 470
At Least Once a Year............................... 470
Recommended Fluids and Lubricants........ 473
Normal Maintenance
Replacement Parts................................. 475
Engine Drive Belt Routing......................... 476
Maintenance Record.................................. 477
Section 6 Maintenance Schedule
459

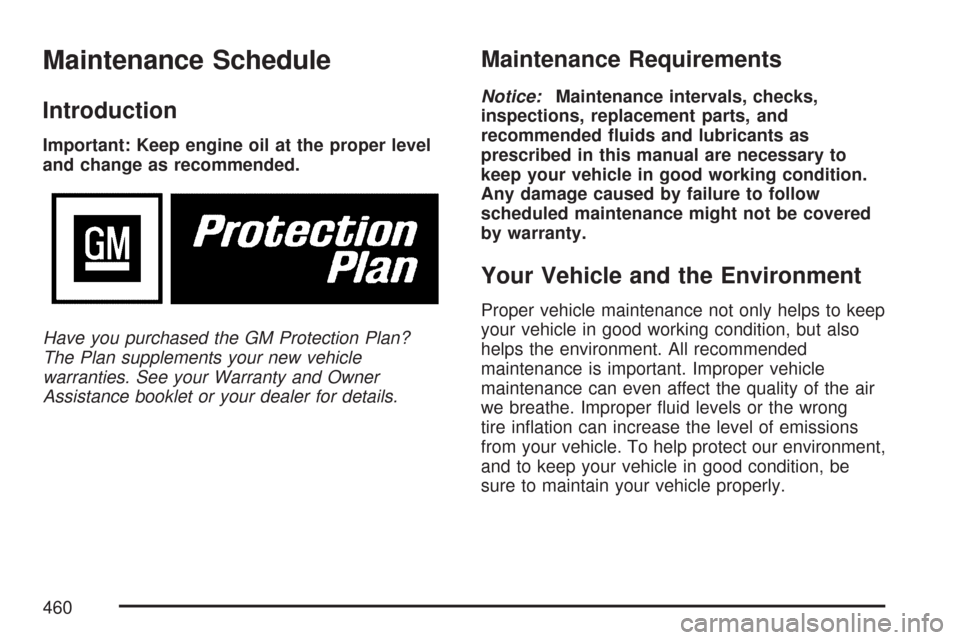

Maintenance Schedule
Introduction
Important: Keep engine oil at the proper level
and change as recommended.
Have you purchased the GM Protection Plan?
The Plan supplements your new vehicle
warranties. See your Warranty and Owner
Assistance booklet or your dealer for details.
Maintenance Requirements
Notice:Maintenance intervals, checks,
inspections, replacement parts, and
recommended uids and lubricants as
prescribed in this manual are necessary to
keep your vehicle in good working condition.
Any damage caused by failure to follow
scheduled maintenance might not be covered
by warranty.
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep
your vehicle in good working condition, but also
helps the environment. All recommended
maintenance is important. Improper vehicle
maintenance can even affect the quality of the air
we breathe. Improper uid levels or the wrong
tire ination can increase the level of emissions
from your vehicle. To help protect our environment,
and to keep your vehicle in good condition, be
sure to maintain your vehicle properly.
460

When you go to your GM Goodwrench®dealer for
your service needs, you will know that GM-trained
and supported service technicians will perform
the work using genuine GM parts.
If you want to purchase service information,
seeService Publications Ordering Information
on page 501.
Owner Checks and Services on page 469tells you
what should be checked, when to check it, and
what you can easily do to help keep your vehicle in
good condition.
The proper replacement parts, uids, and
lubricants to use are listed inRecommended
Fluids and Lubricants on page 473andNormal
Maintenance Replacement Parts on page 475.
When your vehicle is serviced, make sure these
are used. All parts should be replaced and all
necessary repairs done before you or anyone else
drives the vehicle. We recommend the use of
genuine GM parts.Scheduled Maintenance
When the Change Engine Oil message in the
Driver Information Center (DIC) comes on,
it means that service is required for your vehicle.
Have your vehicle serviced as soon as possible
within the next 600 miles (1 000 km). It is possible
that, if you are driving under the best conditions,
the engine oil life system may not indicate
that vehicle service is necessary for over a year.
However, your engine oil and lter must be
changed at least once a year and at this time the
system must be reset. Your GM Goodwrench
®
dealer has GM-trained service technicians who will
perform this work using genuine GM parts and
reset the system.
If the engine oil life system is ever reset
accidentally, you must service your vehicle within
3,000 miles (5 000 km) since your last service.
Remember to reset the oil life system whenever
the oil is changed. SeeEngine Oil Life System on
page 349for information on the Engine Oil Life
System and resetting the system.
462
