2007 CADILLAC CTS traction control

Rocking Your Vehicle to Get It Out
First, turn the steering wheel left and right.
That will clear the area around the front wheels.
You should turn the traction control system
off. SeeTraction Control System (TCS) (CTS) on
page 293orTraction Control System (TCS)
(CTS-V) on page 295. Then shift back and forth
between REVERSE (R) and a forward gear,
or with a manual transmission, between FIRST (1)
or SECOND (2) and REVERSE (R), spinning
the wheels as little as possible. Release the
accelerator pedal while you shift, and press lightly
on the accelerator pedal when the transmission
is in gear. By slowly spinning the wheels in
the forward and reverse directions, you will cause
a rocking motion that may free your vehicle.
If that does not get your vehicle out after a few
tries, it may need to be towed out. If your vehicle
does need to be towed out, seeTowing Your
Vehicle on page 326.
Loading Your Vehicle
It is very important to know how much weight your
vehicle can carry. This weight is called the
vehicle capacity weight and includes the weight of
all occupants, cargo, and all nonfactory-installed
options. Two labels on your vehicle show how
much weight it may properly carry, the Tire and
Loading Information label, and the Certication
label.
{CAUTION:
Do not load your vehicle any heavier than
the Gross Vehicle Weight Rating (GVWR),
or either the maximum front or rear Gross
Axle Weight Rating (GAWR). If you do,
parts on your vehicle can break, and it
can change the way your vehicle handles.
These could cause you to lose control
and crash. Also, overloading can shorten
the life of your vehicle.
321

Service
Your dealer knows your vehicle best and wants
you to be happy with it. We hope you will go
to your dealer for all your service needs. You will
get genuine GM parts and GM-trained and
supported service people.
We hope you will want to keep your GM vehicle
all GM. Genuine GM parts have one of these
marks:
Accessories and Modications
When you add non-GM accessories to your vehicle
they can affect your vehicle’s performance and
safety, including such things as, airbags, braking,
stability, ride and handling, emissions systems,
aerodynamics, durability, and electronic systems
like anti-lock brakes, traction control and
stability control. Some of these accessories may
even cause malfunction or damage not covered by
warranty.
GM Accessories are designed to complement and
function with other systems on your vehicle.
Your GM dealer/retailer can accessorize your
vehicle using genuine GM Accessories. When you
go to your GM dealer/retailer and ask for GM
Accessories, you will know that GM-trained and
supported service technicians will perform the work
using genuine GM Accessories.
332

When It Is Time for New Tires
One way to tell when it
is time for new tires is
to check the treadwear
indicators, which will
appear when your tires
have only 1/16 inch
(1.6 mm) or less of tread
remaining.
You need a new tire if any of the following
statements are true:
You can see the indicators at three or more
places around the tire.
You can see cord or fabric showing through the
tire’s rubber.
The tread or sidewall is cracked, cut, or
snagged deep enough to show cord or fabric.
The tire has a bump, bulge, or split.
The tire has a puncture, cut, or other damage
that cannot be repaired well because of the size
or location of the damage.
Buying New Tires
GM has developed and matched specic tires for
your vehicle. The original equipment tires installed
on your vehicle, when it was new, were designed to
meet General Motors Tire Performance Criteria
Specication (TPC Spec) system rating. If you need
replacement tires, GM strongly recommends that
you get tires with the same TPC Spec rating. This
way, your vehicle will continue to have tires that are
designed to give the same performance and vehicle
safety, during normal use, as the original tires.
GM’s exclusive TPC Spec system considers over a
dozen critical specications that impact the overall
performance of your vehicle, including brake
system performance, ride and handling, traction
control, and tire pressure monitoring performance.
GM’s TPC Spec number is molded onto the tire’s
sidewall by the tire manufacturer. If the tires have
an all-season tread design, the TPC Spec number
will be followed by a MS for mud and snow. See
Tire Sidewall Labeling on page 394for additional
information.
The 18-inch performance tires, size
245/45R18 96V, used on some vehicles,
meet the General Motors Tire Performance
Criteria Specication (TPC Spec) rating but the
411

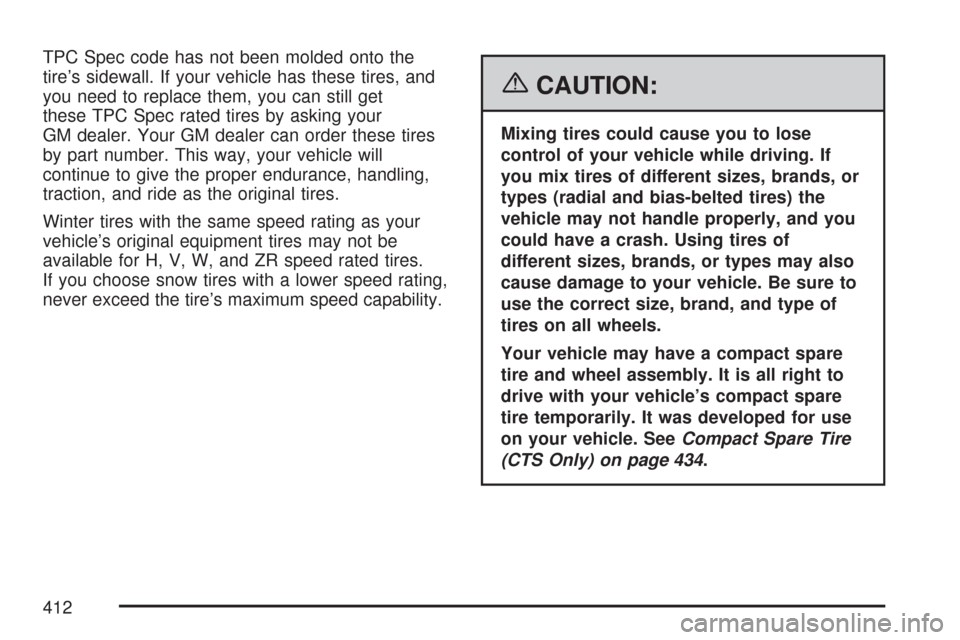

TPC Spec code has not been molded onto the
tire’s sidewall. If your vehicle has these tires, and
you need to replace them, you can still get
these TPC Spec rated tires by asking your
GM dealer. Your GM dealer can order these tires
by part number. This way, your vehicle will
continue to give the proper endurance, handling,
traction, and ride as the original tires.
Winter tires with the same speed rating as your
vehicle’s original equipment tires may not be
available for H, V, W, and ZR speed rated tires.
If you choose snow tires with a lower speed rating,
never exceed the tire’s maximum speed capability.
{CAUTION:
Mixing tires could cause you to lose
control of your vehicle while driving. If
you mix tires of different sizes, brands, or
types (radial and bias-belted tires) the
vehicle may not handle properly, and you
could have a crash. Using tires of
different sizes, brands, or types may also
cause damage to your vehicle. Be sure to
use the correct size, brand, and type of
tires on all wheels.
Your vehicle may have a compact spare
tire and wheel assembly. It is all right to
drive with your vehicle’s compact spare
tire temporarily. It was developed for use
on your vehicle. SeeCompact Spare Tire
(CTS Only) on page 434.
412

Different Size Tires and Wheels
If you add wheels or tires that are a different size
than your original equipment wheels and tires,
this may affect the way your vehicle performs,
including its braking, ride and handling
characteristics, stability, and resistance to rollover.
Additionally, if your vehicle has electronic
systems such as, anti-lock brakes, traction control,
and electronic stability control, the performance
of these systems can be affected.
{CAUTION:
If you add different sized wheels, your
vehicle may not provide an acceptable
level of performance and safety if tires not
recommended for those wheels are
selected. You may increase the chance
that you will crash and suffer serious
injury. Only use GM specic wheel and
tire systems developed for your vehicle,
and have them properly installed by a GM
certied technician.SeeBuying New Tires on page 411and
Accessories and Modications on page 332for
additional information.
Uniform Tire Quality Grading
Quality grades can be found where applicable on
the tire sidewall between tread shoulder and
maximum section width. For example:
Treadwear 200 Traction AA Temperature A
The following information relates to the system
developed by the United States National Highway
Traffic Safety Administration (NHTSA), which
grades tires by treadwear, traction, and
temperature performance. This applies only to
vehicles sold in the United States. The grades are
molded on the sidewalls of most passenger car
tires. The Uniform Tire Quality Grading (UTQG)
system does not apply to deep tread, winter-type
snow tires, space-saver, or temporary use
spare tires, tires with nominal rim diameters of
10 to 12 inches (25 to 30 cm), or to some
limited-production tires.
414

While the tires available on General Motors
passenger cars and light trucks may vary with
respect to these grades, they must also conform
to federal safety requirements and additional
General Motors Tire Performance Criteria (TPC)
standards.
Treadwear
The treadwear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specied
government test course. For example, a tire
graded 150 would wear one and a half (1.5) times
as well on the government course as a tire
graded 100. The relative performance of tires
depends upon the actual conditions of their use,
however, and may depart signicantly from
the norm due to variations in driving habits, service
practices, and differences in road characteristics
and climate.
Traction – AA, A, B, C
The traction grades, from highest to lowest, are AA,
A, B, and C. Those grades represent the tire’s
ability to stop on wet pavement as measured under
controlled conditions on specied government test
surfaces of asphalt and concrete. A tire marked C
may have poor traction performance.
Warning:The traction grade assigned to this tire
is based on straight-ahead braking traction
tests, and does not include acceleration, cornering,
hydroplaning, or peak traction characteristics.
415

Tire Chains
{CAUTION:
Do not use tire chains. There is not
enough clearance. Tire chains used on a
vehicle without the proper amount of
clearance can cause damage to the
brakes, suspension, or other vehicle
parts. The area damaged by the tire
chains could cause you to lose control of
your vehicle and you or others may be
injured in a crash. Use another type of
traction device only if its manufacturer
recommends it for use on your vehicle
and tire size combination and road
conditions. Follow that manufacturer’s
instructions. To help avoid damage to
your vehicle, drive slowly, re-adjust or
remove the device if it is contacting your
vehicle, and do not spin your wheels.
If you do nd traction devices that will t,
install them on the rear tires.
Lifting Your Vehicle (CTS-V)
{CAUTION:
Lifting a vehicle can cause an injury.
The vehicle can slip off the jack and roll
over you or other people. You and they
could be badly injured. Find a level place
to lift your vehicle. To help prevent the
vehicle from moving:
1. Place the shift lever in REVERSE (R)
and rmly apply the parking brake.
2. Turn off the engine.
To be even more certain the vehicle will
not move, you can put blocks in front of
and behind the wheels. Also seeParking
Your Vehicle (Manual Transmission) on
page 132andParking Brake on page 128
for additional information.
418

J
Jump Starting.............................................. 376
K
Keyless Entry System................................... 96
Keys............................................................. 95
L
Labeling, Tire Sidewall................................. 394
Lamps
Exterior Lighting Battery Saver................. 183
Reading................................................... 185
LATCH System
Child Restraints......................................... 55
Lifting Your Vehicle, Tires............................ 418
Light
Airbag Readiness..................................... 201
Anti-Lock Brake System Warning............. 206
Brake System Warning............................. 205
Charging System..................................... 204
Cruise Control.......................................... 214
Engine Coolant Temperature Warning....... 207
Fog Lamp................................................ 213
Highbeam On.......................................... 214Light (cont.)
Lights On Reminder................................. 213
Malfunction Indicator................................ 209
Oil Pressure............................................. 212
Passenger Airbag Status Indicator............ 202
Safety Belt Reminder............................... 201
Security................................................... 213
Sport Mode.............................................. 213
TCS Warning Light.................................. 206
Tire Pressure........................................... 208
Traction Control System (TCS)
Warning................................................ 206
Lighting
Entry........................................................ 184
Parade Dimming...................................... 185
Limited-Slip Rear Axle................................. 297
Loading Your Vehicle................................... 321
Lockout Protection....................................... 104
Locks
Central Door Unlocking System................ 101
Delayed Locking...................................... 102
Door........................................................ 100
Lockout Protection................................... 104
Power Door............................................. 101
Programmable Automatic Door Locks....... 102
Rear Door Security Locks........................ 103
510
