2007 BUICK RANDEZVOUS rear view mirror

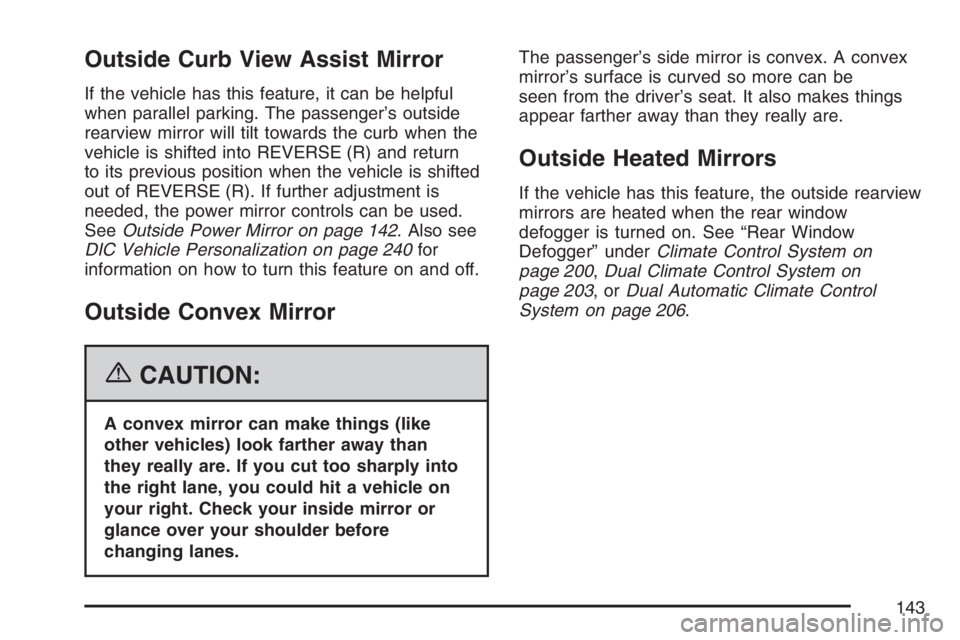

Outside Curb View Assist Mirror
If the vehicle has this feature, it can be helpful
when parallel parking. The passenger’s outside
rearview mirror will tilt towards the curb when the
vehicle is shifted into REVERSE (R) and return
to its previous position when the vehicle is shifted
out of REVERSE (R). If further adjustment is
needed, the power mirror controls can be used.
SeeOutside Power Mirror on page 142. Also see
DIC Vehicle Personalization on page 240for
information on how to turn this feature on and off.
Outside Convex Mirror
{CAUTION:
A convex mirror can make things (like
other vehicles) look farther away than
they really are. If you cut too sharply into
the right lane, you could hit a vehicle on
your right. Check your inside mirror or
glance over your shoulder before
changing lanes.The passenger’s side mirror is convex. A convex
mirror’s surface is curved so more can be
seen from the driver’s seat. It also makes things
appear farther away than they really are.
Outside Heated Mirrors
If the vehicle has this feature, the outside rearview
mirrors are heated when the rear window
defogger is turned on. See “Rear Window
Defogger” underClimate Control System on
page 200,Dual Climate Control System on
page 203,orDual Automatic Climate Control
System on page 206.
143

Perimeter Lighting
If your vehicle has perimeter lighting, it will turn on
the headlamps and parking lamps for 25 seconds
when the following conditions are met:
The ignition is turned to OFF.
The exterior lamp control is in the AUTO
position.
UNLOCK is pressed on the remote keyless
entry transmitter.
It is dark enough outside.
After 25 seconds, the headlamps and parking
lamps will turn off.
The lamps will turn off before the 25 seconds if
you do one of the following:
Turn the ignition to ON.
Turn the exterior lamp control out of the
AUTO position.
If your vehicle has the Driver Information Center
(DIC), you can program this feature on or off. See
“Lock Feedback” underDIC Vehicle
Personalization on page 240.
Front Reading Lamps
There are two reading lamps located on the
rearview mirror.
To turn either reading lamp on or off, press the
button located next to each lamp. These lamps will
come on each time you open the doors, if the
interior lamp control is in the ON or DOOR
position.
Rear Reading Lamps
There are two reading lamps with coat hooks
above the rear doors.
To turn on or off either reading lamp, press the
lens of the lamp.
191

Rear Window Defogger
The rear window defogger uses a warming grid to
remove fog from the rear window.
window defogger on or off. An indicator light in the
button will come on to let you know that the
rear window defogger is activated.
The rear window defogger will turn off
approximately 10 minutes after the button is
pressed. If turned on again, the defogger will only
run for approximately ve minutes before
turning off. The defogger can also be turned off by
pressing the button again or by turning off the
engine.
If your vehicle has heated outside rearview
mirrors, the mirrors will heat to help clear fog or
frost from the surface of the mirror when the
rear window defog button is pressed.
Notice:Do not use anything sharp on the
inside of the rear window. If you do, you could
cut or damage the warming grid, and the repairs
would not be covered by your warranty. Do not
attach a temporary vehicle license, tape, a decal
or anything similar to the defogger grid.
Outlet Adjustment
Use the louvers located on the air outlets to
change the direction of the airow.
Operation Tips

Clear away any ice, snow, or leaves from the
air inlets at the base of the vehicle that may
block the ow of air into your vehicle.
Do not use any non-GM approved hood
deectors that could adversely affect the
performance of the system.
Keep the path under the front seats clear of
objects to help circulate the air inside of
your vehicle more effectively.
210

Passenger Airbag Status Indicator
Your vehicle has the passenger sensing system.
Your rearview mirror has a passenger airbag
status indicator.
When the ignition key is turned to ON or START,
the passenger airbag status indicator will light
ON and OFF, or the symbol for on and off,
for several seconds as a system check. Then,
after several more seconds, the status indicatorwill light either ON or OFF, or either the on or off
symbol to let you know the status of the right
front passenger’s frontal airbag.
If the word ON or the on symbol is lit on the
passenger airbag status indicator, it means that
the right front passenger’s frontal airbag is enabled
(may inate).
{CAUTION:
If the on indicator comes on when you have
a rear-facing child restraint installed in the
right front passenger’s seat, it means that
the passenger sensing system has not
turned off the passenger’s frontal airbag.
A child in a rear-facing child restraint can
be seriously injured or killed if the right
front passenger’s airbag inates. This is
because the back of the rear-facing child
restraint would be very close to the
inating airbag. Do not use a rear-facing
child restraint in the right front passenger’s
seat if the airbag is turned on.United States
Canada
217

EXIT:The position recalled will be the previously
programmed exit position.
To determine the mode to which your vehicle is
programmed or to program your vehicle to a
different mode, do the following:
1. Follow the instructions for “Entering
Programming Mode” listed previously.
2. Follow the instructions for programming SEAT
RECALL to ON listed previously.
3. Press the MODE button until RECALL
POSITION appears on the DIC.
4. Press the SET button until the arrow is before
MEMORY or EXIT.
The mode you selected is now set. You can either
exit programming mode by following the
instructions later in this section or program the
next feature available on your vehicle.Tilt Mirror
The tilt mirror feature can be programmed to one
of the following modes:
ON:The passenger’s side outside rearview mirror
will tilt down towards the curb when the vehicle
is shifted to REVERSE (R) and returns to its
previous position when the vehicle is shifted out of
REVERSE (R).
OFF:The mirror will not tilt.
To determine the mode to which your vehicle is
programmed or to program your vehicle to a
different mode, do the following:
1. Follow the instructions for “Entering
Programming Mode” listed previously.
2. Press the MODE button until TILT MIRROR
appears on the DIC.
3. Press the SET button until the arrow is before
ON or OFF.
The mode you selected is now set. You can exit
programming mode by following the instructions
next in this section.
249

If you have the Anti-Lock Brake System (ABS),
remember: It helps avoid only the braking skid. If
you do not have ABS, then in a braking skid,
where the wheels are no longer rolling, release
enough pressure on the brakes to get the wheels
rolling again. This restores steering control.
Push the brake pedal down steadily when you
have to stop suddenly. As long as the wheels are
rolling, you will have steering control.
Driving at Night
Night driving is more dangerous than day driving.
One reason is that some drivers are likely to
be impaired — by alcohol or drugs, with night
vision problems, or by fatigue.
Here are some tips on night driving.
Drive defensively.
Do not drink and drive.
Adjust the inside rearview mirror to reduce the
glare from headlamps behind you.
Since you cannot see as well, you may need
to slow down and keep more space between
you and other vehicles.
Slow down, especially on higher speed roads.
Your vehicle’s headlamps can light up only so
much road ahead.
In remote areas, watch for animals.
If you are tired, pull off the road in a safe
place and rest.
No one can see as well at night as in the daytime.
But as we get older these differences increase.
A 50-year-old driver may require at least twice as
much light to see the same thing at night as a
20-year-old.
What you do in the daytime can also affect your
night vision. For example, if you spend the
day in bright sunshine you are wise to wear
sunglasses. Your eyes will have less trouble
adjusting to night. But if you are driving, do not
wear sunglasses at night. They may cut down on
glare from headlamps, but they also make a
lot of things invisible.
317

M
Maintenance Schedule
Additional Required Services.................... 478
At Each Fuel Fill...................................... 481
At Least Once a Month............................ 481
At Least Once a Year.............................. 482
Introduction.............................................. 472
Maintenance Footnotes............................ 479
Maintenance Record................................ 488
Maintenance Requirements...................... 472
Normal Maintenance
Replacement Parts............................... 486
Owner Checks and Services.................... 480
Recommended Fluids and Lubricants....... 485
Scheduled Maintenance........................... 475
Using....................................................... 473
Your Vehicle and the Environment............ 473
Malfunction Indicator Light........................... 222
Manual Lumbar Controls............................... 10
Manual Seats.................................................. 9
Memory Seat and Mirrors.............................. 11
Message
Center..................................................... 225
Change Engine Oil................................... 230
Charging System Indicator....................... 228
Check Gas Cap....................................... 231Message (cont.)
Door Ajar Warning................................... 230
Engine Coolant Temperature Warning....... 227
Highbeam Out Warning............................ 235
Low Brake Fluid Warning......................... 232
Low Fuel Warning.................................... 232
Low Oil Pressure..................................... 229
Low Washer Fluid Warning...................... 231
Park Lamp Warning................................. 234
PASS-Key
®III Security............................. 231
Program Mode......................................... 233
Rear Hatch Ajar Warning......................... 230
Reduced Engine Power............................ 228
Remote Keyless Entry Transmitter Battery
Low Warning........................................ 234
Service Traction System Warning............. 226
Service Vehicle Soon............................... 233
Traction Active......................................... 227
Mirrors
Manual Rearview Mirror........................... 142
Outside Convex Mirror............................. 143
Outside Curb View Assist Mirror............... 143
Outside Heated Mirrors............................ 143
Outside Power Mirror............................... 142
MyGMLink.com............................................ 495
521

Power
Accessory Outlet(s).................................. 199
Door Locks.............................................. 115
Electrical System..................................... 462
Reduced Engine Message....................... 228
Retained Accessory (RAP)....................... 129
Seat.......................................................... 10
Steering Fluid.......................................... 387
Windows.................................................. 121
Pretensioners, Safety Belt............................. 56
Program Mode Message............................. 233
Programmable Automatic Door Locks.......... 116
Q
Questions and Answers About Safety Belts ... 34
R
Radiator Pressure Cap................................ 378
Radios........................................................ 250
Care of Your CD and DVD Player............ 298
Care of Your CDs and DVDs................... 298
Navigation/Radio System, see
Navigation Manual................................ 277
Radio with CD......................................... 252Radios (cont.)
Radio with Six-Disc CD............................ 262
Rear Seat Audio...................................... 293
Setting the Time...................................... 252
Theft-Deterrent......................................... 296
Understanding Reception......................... 297
Rear Door Security Locks........................... 116
Rear Hatch Ajar Warning Message.............. 230
Rear Outside Passenger Positions,
Safety Belts............................................... 47
Rear Reading Lamps.................................. 191
Rear Safety Belt Comfort Guides.................. 53
Rear Seat Audio (RSA)............................... 293
Rear Seat Entertainment System................. 277
Rear Seat Operation..................................... 15
Rear Storage Area...................................... 160
Rear Windshield Washer/Wiper.................... 180
Rearview Mirrors......................................... 142
Reclining Seatbacks...................................... 13
Recommended Fluids and Lubricants.......... 485
Recreational Vehicle Towing........................ 338
Reduced Engine Power Message ................ 228
Remote Keyless Entry System.................... 110
Remote Keyless Entry System,
Operation................................................. 111
523
