2007 BUICK LACROSSE height

Front Seats..................................................... 9
Power Seats................................................. 9
Power Lumbar............................................. 10
Heated Seats.............................................. 10
Reclining Seatbacks.................................... 11
Head Restraints.......................................... 13
Center Seat................................................ 14
Rear Seats.................................................... 14
Split Folding Rear Seat............................... 14
Safety Belts.................................................. 16
Safety Belts: They Are for Everyone........... 16
Questions and Answers About
Safety Belts............................................. 20
How to Wear Safety Belts Properly............. 21
Driver Position............................................. 22
Shoulder Belt Height Adjustment................. 29
Safety Belt Use During Pregnancy.............. 30
Right Front Passenger Position................... 30Center Front Passenger Position................. 31
Rear Seat Passengers................................ 32
Rear Safety Belt Comfort Guides................ 35
Safety Belt Pretensioners............................ 38
Safety Belt Extender................................... 38
Child Restraints............................................ 39
Older Children............................................. 39
Infants and Young Children......................... 42
Child Restraint Systems.............................. 45
Where to Put the Restraint.......................... 50
Lower Anchors and Tethers for
Children (LATCH).................................... 51
Securing a Child Restraint in a
Rear Seat Position................................... 58
Securing a Child Restraint in the
Center Front Seat Position....................... 61
Securing a Child Restraint in the
Right Front Seat Position......................... 61
Section 1 Seats and Restraint Systems
7

Head Restraints
Adjust the head restraint so that the top of the
restraint is at the same height as the top of
the occupant’s head. This position reduces the
chance of a neck injury in a crash.Pull the head restraint
up to raise it.
To lower the head restraint, press the button,
located on the top of the seatback, and push the
head restraint down.
13

Driver Position
Lap-Shoulder Belt
The driver has a lap-shoulder belt. Here is how to
wear it properly.
1. Close and lock the door.
2. Adjust the seat so you can sit up straight.
To see how, see “Seats” in the Index.
3. Pick up the latch plate and pull the belt across
you. Do not let it get twisted.The lap-shoulder belt may lock if you pull the
belt across you very quickly. If this happens,
let the belt go back slightly to unlock it.
Then pull the belt across you more slowly.
4. Push the latch plate into the buckle until it
clicks.
Pull up on the latch plate to make sure it is
secure. If the belt is not long enough,
seeSafety Belt Extender on page 38.
Make sure the release button on the buckle is
positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.
5. Move the shoulder belt height adjuster to the
height that is right for you. Improper shoulder
belt height adjustment could reduce the
effectiveness of the safety belt in a crash. See
Shoulder Belt Height Adjustment on page 29.
22

To unlatch the belt, push the button on the buckle.
The belt should go back out of the way.
Before you close the door, be sure the belt is out
of the way. If you slam the door on it, you can
damage both the belt and your vehicle.
Shoulder Belt Height Adjustment
Before you begin to drive, move the shoulder belt
height adjuster to the height that is right for you.
Adjust the height so that the shoulder portion of the
belt is centered on your shoulder. The belt should
be away from your face and neck, but not falling off
your shoulder. Incorrect positioning of the shoulder
belt can reduce the effectiveness of the safety belt.
To move it down, press
down on the release
lever (A) and move the
height adjuster to the
desired position. You
can move the height
adjuster up just by
pressing up on the
shoulder belt guide.
After you move the height adjuster to where you
want it, try to move it down without squeezing
the release lever to make sure it has locked into
position.
29

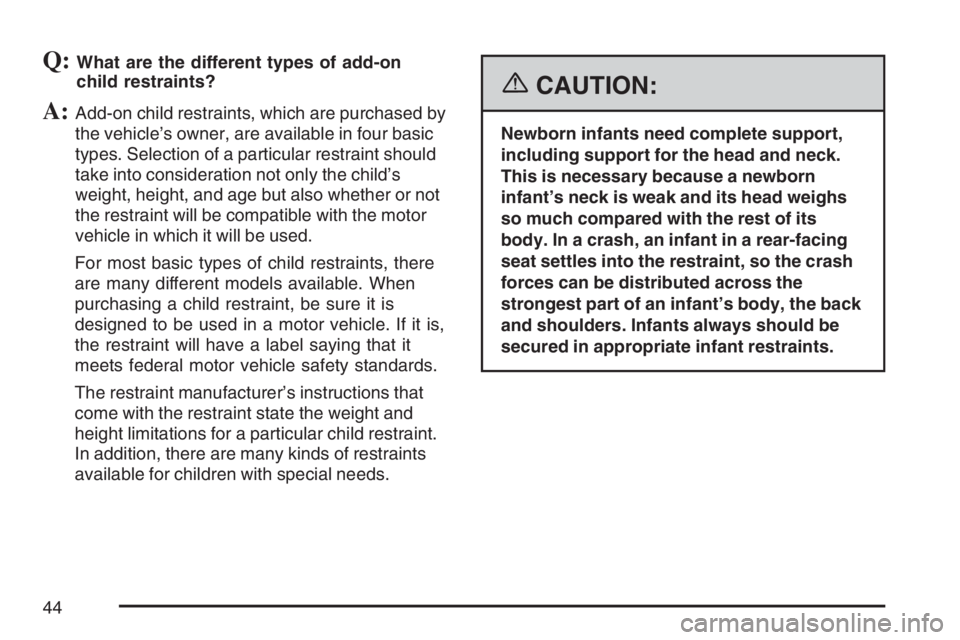

Q:What are the different types of add-on
child restraints?
A:Add-on child restraints, which are purchased by
the vehicle’s owner, are available in four basic
types. Selection of a particular restraint should
take into consideration not only the child’s
weight, height, and age but also whether or not
the restraint will be compatible with the motor
vehicle in which it will be used.
For most basic types of child restraints, there
are many different models available. When
purchasing a child restraint, be sure it is
designed to be used in a motor vehicle. If it is,
the restraint will have a label saying that it
meets federal motor vehicle safety standards.
The restraint manufacturer’s instructions that
come with the restraint state the weight and
height limitations for a particular child restraint.
In addition, there are many kinds of restraints
available for children with special needs.
{CAUTION:
Newborn infants need complete support,
including support for the head and neck.
This is necessary because a newborn
infant’s neck is weak and its head weighs
so much compared with the rest of its
body. In a crash, an infant in a rear-facing
seat settles into the restraint, so the crash
forces can be distributed across the
strongest part of an infant’s body, the back
and shoulders. Infants always should be
secured in appropriate infant restraints.
44

Adding Equipment to Your
Airbag-Equipped Vehicle
Q:Is there anything I might add to the front
or sides of the vehicle that could keep the
airbags from working properly?
A:Yes. If you add things that change your
vehicle’s frame, bumper system, height, front
end or side sheet metal, they may keep the
airbag system from working properly. Also, the
airbag system may not work properly if you
relocate any of the airbag sensors. If you have
any questions about this, you should contact
Customer Assistance before you modify your
vehicle. The phone numbers and addresses for
Customer Assistance are in Step Two of the
Customer Satisfaction Procedure in this
manual. SeeCustomer Satisfaction
Procedure on page 478.
Q:Because I have a disability, I have to get
my vehicle modied. How can I nd out
whether this will affect my airbag system?
A:Changing or moving any parts of the front
seats, safety belts, the airbag sensing and
diagnostic module, steering wheel, instrument
panel, ceiling headliner, ceiling and pillar
garnish trim, roof-mounted airbag modules,
or airbag wiring can affect the operation of the
airbag system. If you have questions, call
Customer Assistance. The phone numbers
and addresses for Customer Assistance are in
Step Two of the Customer Satisfaction
Procedure in this manual. SeeCustomer
Satisfaction Procedure on page 478.
81

{CAUTION:
The brake wear warning sound means that
soon the brakes will not work well. That
could lead to an accident. When you hear
the brake wear warning sound, have your
vehicle serviced.
Notice:Continuing to drive with worn-out
brake pads could result in costly brake repair.
Some driving conditions or climates may cause
a brake squeal when the brakes are rst applied or
lightly applied. This does not mean something is
wrong with your brakes.
Properly torqued wheel nuts are necessary to help
prevent brake pulsation. When tires are rotated,
inspect brake pads for wear and evenly tighten
wheel nuts in the proper sequence to GM torque
specications.
Brake linings should always be replaced as
complete axle sets.
Brake Pedal Travel
See your dealer if the brake pedal does not return
to normal height, or if there is a rapid increase in
pedal travel. This could be a sign of brake trouble.
Brake Adjustment
Every time you apply the brakes, with or without
the vehicle moving, your brakes adjust for wear.
Replacing Brake System Parts
The braking system on a vehicle is complex. Its
many parts have to be of top quality and work
well together if the vehicle is to have really good
braking. Your vehicle was designed and tested
with top-quality GM brake parts. When you replace
parts of your braking system — for example, when
your brake linings wear down and you need new
ones put in — be sure you get new approved
GM replacement parts. If you do not, your brakes
may no longer work properly. For example, if
someone puts in brake linings that are wrong for
your vehicle, the balance between your front
and rear brakes can change — for the worse.
The braking performance you have come to expect
can change in many other ways if someone puts
in the wrong replacement brake parts.
383

4. At the wall measure from the ground
upward (A) to the recorded distance
from Step 3 and mark it.
Notice:Do not cover a headlamp to improve
beam cut-off when aiming. Covering a
headlamp may cause excessive heat build-up
which may cause damage to the headlamp.
5. Draw or tape a horizontal line (B) on the wall
the width of the vehicle at the height of the
mark in Step 4.6. Turn on the low-beam headlamps and place a
piece of cardboard or equivalent in front of the
headlamp not being adjusted. Do not place
directly on the headlamp. This allows only the
beam of light from the headlamp being
adjusted to be seen on the at surface.
7. Locate the vertical headlamp aiming screws,
which are under the hood near each headlamp
assembly.
The adjustment screw can be turned with a
6 mm male hex.
8. Turn the vertical aiming screw until the
headlamp beam is aimed to the horizontal tape
line. Turn it clockwise or counterclockwise to
raise or lower the angle of the beam.
393
