2007 BMW Z4 COUPE 3.0SI windshield wipers

At a glance
Controls
Driving tips
Mobility Reference
11
8Instrument cluster12
10Buttons
* on the steering wheel
11Ignition lock4012Horn: the entire surface
14Releasing the hood91
15Opening the luggage compartment lid/
tailgate21 7
Turn signal indicators44
High beams, headlamp flasher60
Roadside parking lamps
*60
Computer
*50
9Windshield wipers45
Rain sensor
*45
Volume
>Press: to accept and end a
telephone call; to start dialing
for selected telephone num-
bers
>Press longer: activate and
deactivate voice entry
*
Fast forward/rewind
>Radio
Press: next station stored
Press longer: station search
>CD
Press: jump to next track
Press longer: fast forward/
rewind
>Telephone
Scan register of names
Display/hide telephone book. Dis-
play the entries one after another
with the forward/backward buttons
13
Cruise control*46

Reference
At a glance
Controls
Driving tips
Mobility
45
Washer/wiper system/
Rain sensor*
0Wipers retracted
1Intermittent or rain sensor mode
2Normal wiper speed
3Fast wiper speed
4Brief wipe
5Selecting speed for intermittent mode or
setting sensitivity of the rain sensor
Intermittent mode
Not in vehicles with a rain sensor.
Rotary dial 5 is used to set the wipe interval to
one of four levels.
In addition, the wipe interval is varied automati-
cally depending on road speed.
Rain sensor*
On vehicles with a rain sensor, the wipe interval
is automatically controlled according to rain
intensity. The sensor is mounted on the wind-
shield, directly in front of the interior rearview
mirror.
Deactivate the rain sensor before enter-
ing an automatic car wash. Failure to do
so could result in damage caused by undesired
wiper activation.<
Activating
With the ignition key in position 1 or higher,
move the lever to position 1.
In any case, the wipers will move once across
the windshield.
You can leave the lever continuously in
position1. Then, as long as the ignition key is in position 1 or higher, you only need to activate
the rain sensor.
To do so:
>Turn rotary dial 5 briefly or
>Clean the windshield, refer to Cleaning
windshield and headlamps* below
Adjusting sensitivity
Turn the rotary wheel 5.
Deactivating
Flip the lever to position 0.
Normal wiper speed
When the vehicle is stopped the wipers auto-
matically switch to intermittent wipe, except in
vehicles with a rain sensor.
Fast wiper speed
When the vehicle is stopped the wipers operate
at normal wiping speed, except in vehicles with
a rain sensor.
Cleaning windshield and headlamps*
0Wipers retracted
1Cleaning windshield and headlamps
*
Do not use the washers if there is any
danger that the fluid will freeze on the
windshield, otherwise vision could be
obscured. Antifreeze should therefore be
added to the fluid, refer to Washer fluid on
page46.
Do not operate washing mechanisms when the
washer fluid reservoir is empty, otherwise you
will damage the washer pump.<

Driving
46
Cleaning windshield
The system sprays washer fluid against the
windshield and activates the wipers for a brief
period.
The windshield washer nozzles are automati-
cally heated
* when the engine is running or the
ignition is on.
Cleaning headlamps*
When the vehicle lighting system is switched
on, the headlamps are cleaned at regular and
appropriate intervals.
Washer fluid
Washer fluid antifreeze is flammable. For
this reason, keep it away from sources of
flame and store it only in its original container.
Store it so that it is inaccessible to children.
Comply with the instructions on the con-
tainer.<
Washer fluid reservoir
Fill with water and, if required, with antifreeze
according to its manufacturer's recommenda-
tions.
Mix the water and antifreeze before filling
the washer fluid reservoir to make sure
the correct concentration is maintained.<
Capacity
Approx. 5.3 US quarts/5 liters.
Cruise control*
The concept
Cruise control is available at speeds of at least
approx. 20 mph/30 km/h. The car stores and
maintains the speed that you specify with the
lever on the steering column.
Do not use cruise control if conditions are
unfavorable for driving at a constant
speed, e.g. due to winding roads, dense traffic,
or poor road conditions such as snow, rain, ice,
loose surface, etc. Otherwise, you could lose
control of the vehicle and cause an accident.<
One lever for all functions
1Storing and maintaining speed or accelerat-
ing
2Storing and maintaining speed or deceler-
ating
3To recall the stored speed
4Deactivating cruise control
To maintain current speed
Tap the lever, arrow 1, or pull it briefly, arrow 2.
The car's current speed is stored and main-
tained. If, on downhill grades, the engine brak-
ing effect is not sufficient, the controlled speed
can be exceeded. Speed can drop on uphill
grades if the engine output is insufficient.
To increase speed
Tap the lever repeatedly, arrow 1, until the
desired speed is reached.
Every time you tap the lever, the speed
increases by approx. 1 mph/1 km/h.

Reference
At a glance
Controls
Driving tips
Mobility

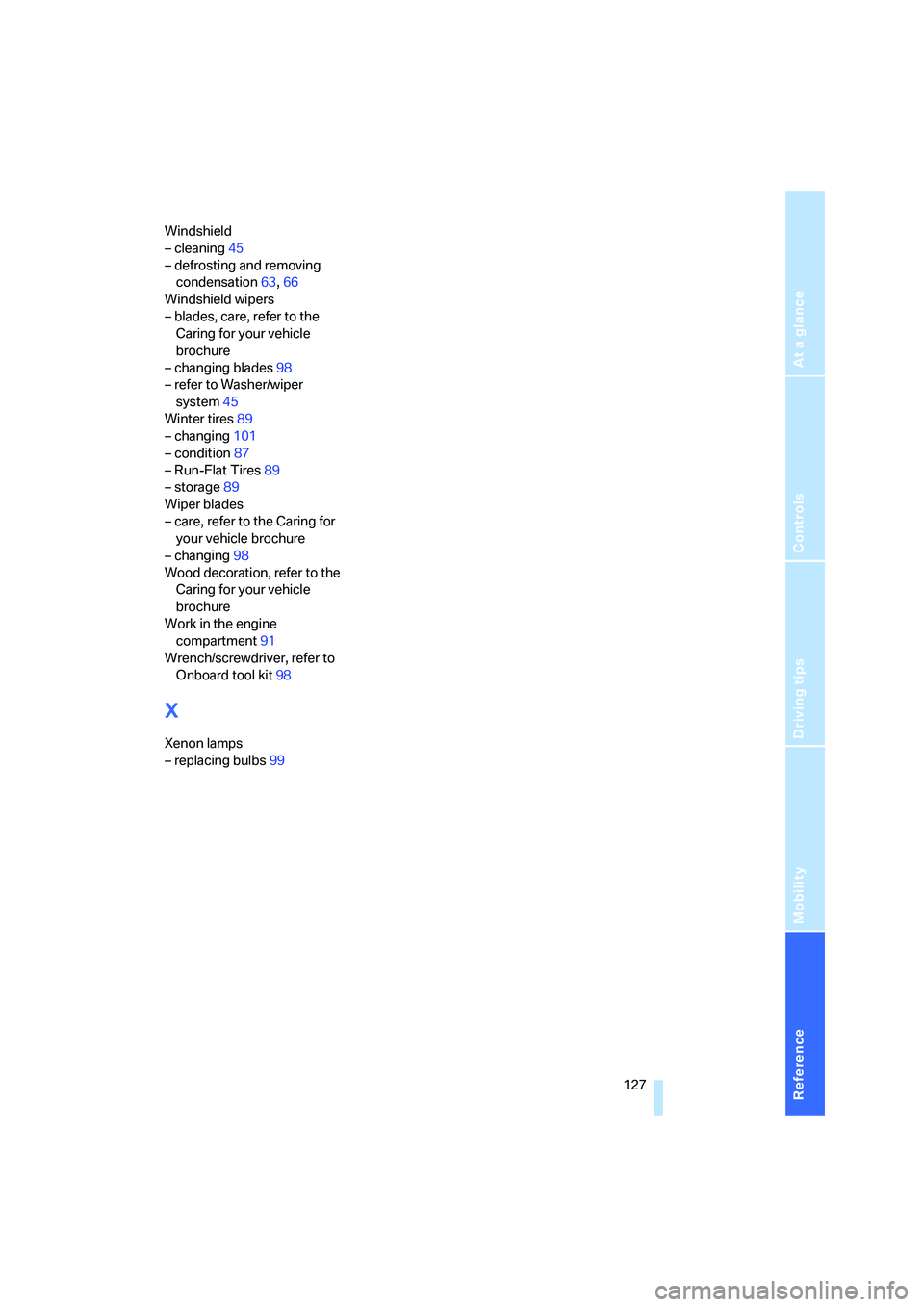

127
Windshield
– cleaning45
– defrosting and removing
condensation63,66
Windshield wipers
– blades, care, refer to the
Caring for your vehicle
brochure
– changing blades98
– refer to Washer/wiper
system45
Winter tires89
– changing101
– condition87
– Run-Flat Tires89
– storage89
Wiper blades
– care, refer to the Caring for
your vehicle brochure
– changing98
Wood decoration, refer to the
Caring for your vehicle
brochure
Work in the engine
compartment91
Wrench/screwdriver, refer to
Onboard tool kit98
X
Xenon lamps
– replacing bulbs99
