2007 BMW X3 3.0SI service indicator

At a glance
Controls
Driving tips
Mobility Reference
11
Instrument cluster
1Speedometer
2Indicator and warning lamps12
3Tachometer45
Indicator and warning lamps12
4Coolant temperature gauge46
5Fuel gauge45
6Button for
>Displaying the time46
>Service Interval Display46
>Checking oil level99
7Selector lever and program displays for
automatic transmission
*398Button for
>Resetting trip odometer45
>Setting time46
9Display for
>Trip odometer/odometer45
>Time46
>Service Interval46
>Computer47
>Checking oil level99

Cockpit
12
Indicator and warning lamps
Technology that monitors itself
Indicator and warning lamps that are identified
with
+ are checked for proper function each
time you turn the ignition key. They each light
up once for different periods of time.
When a malfunction occurs in a monitored sys-
tem, the corresponding lamp will either fail to go
o u t w h e n t h e e n g i n e i s s t a r t e d , o r i t w i l l c o m e o n
again during normal driving. Detailed informa-
tion is provided on the specified pages.
Battery charge current
+111
Headlamp flasher40
High beams59
Engine oil
+99
Driving stability control systems/
ABS Antilock Brake System
+50
ABS Antilock Brake System/chassis
control system for Canadian models
Brake system
+
With handbrake released52, 101
With handbrake engaged38
With other warning lamps52
Brake warning lamp for Canadian
models
Brake pads
+82
Please fasten safety belt
+31
Airbags
+56
Front fog lamps59
Automatic transmission +39
Turn signals40
DSC Dynamic Stability Control/
xDrive
+ 50, 51
Dynamic Traction Control DTC
+51
Service Engine Soon
+103
Service Engine Soon warning lamp for
Canadian models.
Check Gas Cap
* +88
Engine electronics
+37
Topping off washer fluid42
Coolant low101
Flat Tire Monitor
* +53
Tire Pressure Monitor
* +54
Lamp defective58
Cruise control43
With ignition key in position 2, this
warning lamp indicates that a door
or the liftgate is open.

Technology for comfort, convenience and safety
56

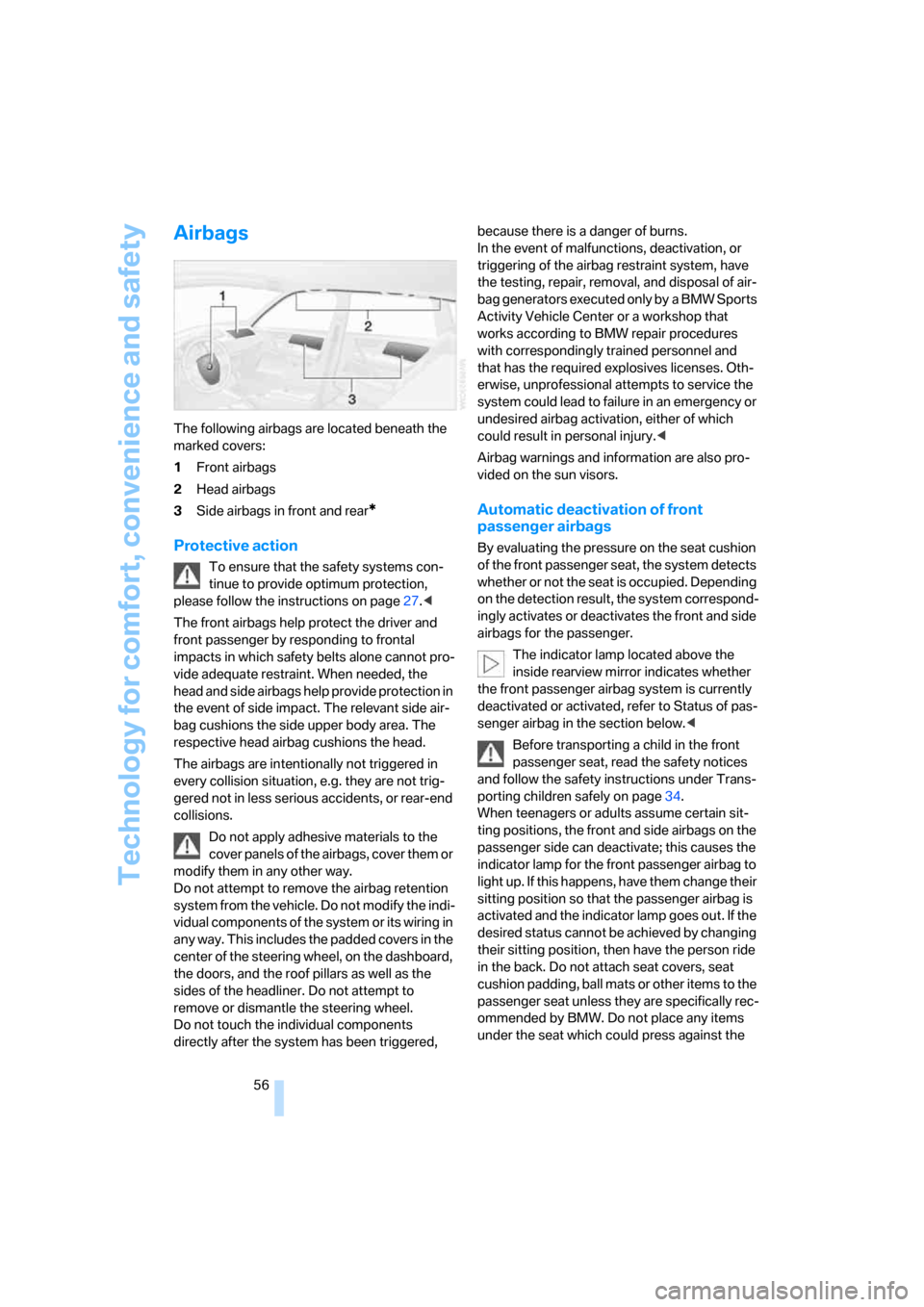

Airbags
The following airbags are located beneath the
marked covers:
1Front airbags
2Head airbags
3Side airbags in front and rear
*
Protective action
To ensure that the safety systems con-
tinue to provide optimum protection,
please follow the instructions on page27.<
The front airbags help protect the driver and
front passenger by responding to frontal
impacts in which safety belts alone cannot pro-
vide adequate restraint. When needed, the
head and side airbags help provide protection in
the event of side impact. The relevant side air-
bag cushions the side upper body area. The
respective head airbag cushions the head.
The airbags are intentionally not triggered in
every collision situation, e.g. they are not trig-
gered not in less serious accidents, or rear-end
collisions.
Do not apply adhesive materials to the
cover panels of the airbags, cover them or
modify them in any other way.
Do not attempt to remove the airbag retention
system from the vehicle. Do not modify the indi-
vidual components of the system or its wiring in
any way. This includes the padded covers in the
center of the steering wheel, on the dashboard,
the doors, and the roof pillars as well as the
sides of the headliner. Do not attempt to
remove or dismantle the steering wheel.
Do not touch the individual components
directly after the system has been triggered, because there is a danger of burns.
In the event of malfunctions, deactivation, or
triggering of the airbag restraint system, have
the testing, repair, removal, and disposal of air-
bag generators executed only by a BMW Sports
Activity Vehicle Center or a workshop that
works according to BMW repair procedures
with correspondingly trained personnel and
that has the required explosives licenses. Oth-
erwise, unprofessional attempts to service the
system could lead to failure in an emergency or
undesired airbag activation, either of which
could result in personal injury.<
Airbag warnings and information are also pro-
vided on the sun visors.
Automatic deactivation of front
passenger airbags
By evaluating the pressure on the seat cushion
of the front passenger seat, the system detects
whether or not the seat is occupied. Depending
on the detection result, the system correspond-
ingly activates or deactivates the front and side
airbags for the passenger.
The indicator lamp located above the
inside rearview mirror indicates whether
the front passenger airbag system is currently
deactivated or activated, refer to Status of pas-
senger airbag in the section below.<
Before transporting a child in the front
passenger seat, read the safety notices
and follow the safety instructions under Trans-
porting children safely on page34.
When teenagers or adults assume certain sit-
ting positions, the front and side airbags on the
passenger side can deactivate; this causes the
indicator lamp for the front passenger airbag to
light up. If this happens, have them change their
sitting position so that the passenger airbag is
activated and the indicator lamp goes out. If the
desired status cannot be achieved by changing
their sitting position, then have the person ride
in the back. Do not attach seat covers, seat
cushion padding, ball mats or other items to the
passenger seat unless they are specifically rec-
ommended by BMW. Do not place any items
under the seat which could press against the

Reference
At a glance
Controls
Driving tips
Mobility
103
Emissions values
The warning lamp lights up. Exhaust
values are deteriorating. Have the vehi-
cle checked as soon as possible.
Under certain conditions, the indicator will flash.
This indicates a serious rate of engine misfire.
When this occurs, you should reduce speed
and consult the nearest BMW Sports Activity
Vehicle Center as soon as possible. Severe
engine misfire even for only a short period of
time can seriously damage emission control
components, especially the catalytic converter.
Display of the previously described mal-
function on Canadian models.
When the fuel filler cap is not properly
tightened, the OBD system can detect
the vapor leak and the indicator lamp will light
up. If the filler cap is subsequently tightened,
the indicator lamp should go out within a few
days.<
Event data recorders
Your vehicle may be equipped with one or more
sensing and diagnostic modules or a recording
device capable of recording or transmitting cer-
tain vehicle data or information. In addition, if
you have a Subscription Service Agreement for
the BMW Assist system, certain vehicle infor-
mation may be transmitted or recorded in order
to provide such services.
Care
You can find useful information on caring for
your BMW in the Caring for your vehicle bro-
chure.

Reference
At a glance
Controls
Driving tips
Mobility
125
Bar, towing116
Battery111
– charging111
– disposal111
– indicator lamp12
– jump starting114
– power failure111
– remote control18
– warning lamp111
Belts, refer to Safety belts31
Beverage holder, refer to Cup
holders70
Blower, refer to
– Air volume62
– Air volume, adjusting
manually65
BMW homepage4
BMW maintenance
system102
Bottle holder, refer to Cup
holders70
Brake assistant50
– warning lamp52
Brake fluid101
– level101
– warning lamp101
Brake force display55
Brake lamps107
– indicator lamp, defective
bulb12,58
– replacing bulbs107
– two-stage55
Brake pads82
– breaking-in80
– warning lamp82
Brake pedal, refer to Safe
braking81
Brake rotors
– brake system80
– breaking-in80
Brakes81,101
– ABS50,81
– brake fluid101
– brake pads82
– breaking-in80
– handbrake38
– indicator/warning lamp12Brake system101
– brake fluid101
– brake pads82
– breaking-in80
– disk brakes82
– warning lamp101
Brake wear warning
– refer to Brake pads82
– warning lamp101
Breakdown service, refer to
Receiving assistance113
Breaking-in80
Bulb replacement, refer to
Lamps and bulbs104
Buttons on steering wheel13
C
California law
– Event Data Recorders103
– Proposition 65 Warning5
Calling, refer to telephone
Owner's Manual
Can holder, refer to Cup
holders70
Capacities123
Capacity, Cargo area122
Car care, refer to Caring for
your vehicle brochure
Car care products, refer to
Caring for your vehicle
brochure
Care, refer to Caring for your
vehicle brochure
Cargo, securing83
Cargo area22,74
– capacity122
– cover75
– emergency release, refer to
Opening manually22
– enlarging74
– floor cover76
– foldable rear backrest74
– hatch, refer to Liftgate22
– lashing eyes76
– opening from outside22
– opening with remote
control20
– power socket72Cargo loading82
– load83
– securing cargo83
– stowing cargo83
– vehicle82
Caring for artificial leather,
refer to Caring for your
vehicle brochure
Caring for carpet, refer to
Caring for your vehicle
brochure
Caring for leather, refer to
Caring for your vehicle
brochure
Caring for plastic, refer to
Caring for your vehicle
brochure
Caring for vehicle finish, refer
to Caring for your vehicle
brochure
Car keys, refer to Key set18
Car phone, refer to separate
Owner's Manual
Car phone preparation73
Car radio, refer to Owner's
Manual for Radio/Onboard
Computer
Car wash81
– refer to Caring for your
vehicle brochure
Cassette operation, refer to
Owner's Manual for Radio/
Onboard Computer
CD operation, refer to Owner's
Manual for Radio/Onboard
Computer
Cellphone, refer to separate
operating instructions
Central locking system19
– interior21
Changes, technical, refer to
For your own safety5
Changing a wheel108
Changing gears
– automatic transmission with
Steptronic40
– manual transmission39
Changing wheels94

Reference
At a glance
Controls
Driving tips
Mobility
127
Door lock21
Doors
– locking and unlocking from
inside21
– manual operation21
– unlocking and locking,
confirmation signals19,21
DOT Quality Grades93
Draft-free ventilation63,66
Driving lamps, refer to Parking
lamps/low beams58
Driving notes80
Driving on poor roads84
Driving stability control
systems50
Driving through water84
Driving tips, refer to Driving
instructions80
Drying air, refer to Switching
cooling function on/
off62,65
DSC Dynamic Stability
Control50
– indicator lamp51
DTC Dynamic Traction
Control51
– indicator lamps51
DVD changer, refer to Owner's
Manual for Radio/Onboard
Computer
Dynamic Stability Control
DSC50
– indicator lamp51
Dynamic Traction Control
DTC51
– indicator lamps51
E
Electrical malfunctions
– automatic transmission
malfunction40
– door lock21
– driver's door21
– fuel filler door88
– liftgate22
– panorama glass sunroof25
Electronic brake-force
distribution50Electronic Stability Program,
refer to DSC Dynamic
Stability Control50
Emergency call113
Emergency operation, refer to
Manual operation
– doors21
– driver's door21
– fuel filler door88
– liftgate22
– panorama glass sunroof25
Emergency Service, refer to
Receiving assistance113
Engine
– breaking-in80
– data120
– indicator lamps37
– overheated, refer to Coolant
thermometer46
– speed45
– starting37
– switching off38
Engine compartment98
Engine coolant101
Engine coolant
temperature46
Engine oil99
– additives, refer to Approved
engine oils100
– approved engine oils100
– electronic oil level control99
– indicator/warning lamp99
– possible displays99
– required oil grades100
– specifications, also refer to
Approved engine oils100
Engine oil grades100
Engine oil level, indicator/
warning lamp99
Engine oil pressure99
– indicator/warning lamp99
Engine output, refer to Engine
data120
Equipment package, refer to
Service and Warranty
Information Booklet for
US models, Warranty and
Service Guide Booklet for
Canadian modelsESP Electronic Stability
Program, refer to DSC
Dynamic Stability
Control50
Exhaust system81
Exterior mirrors
32
– automatically dimming33
External audio device72
Eye, tow starting and
towing115
F
Failure of electrical
accessories112
False alarms, refer to Avoiding
unintentional alarms26
Fastening safety belts, refer to
Safety belts31
Filter, refer to
– Microfilter63
– Microfilter/activated
charcoal filter66
First-aid kit114
Flat tire108
– compact wheel109
– Flat Tire Monitor53
– refer to Tire inflation
pressure90
– refer to Wheel changes108
– Tire Pressure Monitor54
Flat Tire Monitor53
– indicator lamp53
– initializing system53
– snow chains96
– system limits53
– warning errors53
Flooding, refer to Driving
through water81
Floor cover76
Fog lamps, indicator lamp59
Folding rear seat back74
Four wheel drive, refer to
xDrive51
Front airbags56
Front fog lamps59
– replacing bulbs107

Reference
At a glance
Controls
Driving tips
Mobility
129
Indicator and warning lamps,
overview12
Individual settings, refer to
Vehicle Memory,
Key Memory18
Inflation pressure, refer to Tire
inflation pressure90
Inflation pressure monitoring,
refer to
– Flat Tire Monitor53
– Tire Pressure Monitor54
Initializing, refer to Power
failure23,24
INSPECTION46
Instrument cluster11
Instrument lighting60
Instrument panel, refer to
Cockpit10
Integrated universal remote
control67
Interior lamps60
– remote control20
Interior motion sensor26
– switching off20,26
Interior rearview mirror33
– automatic dimming
feature33
– compass68
Interlock37
Intermittent mode of the
wipers41
Interval indicator, Service46
J
Jacking points110
– vehicle jack110
Jump starting114
K
Key Memory18
Keys18
– key-specific settings, refer
to Vehicle Memory, Key
Memory18
Kick-down40
L
Labeling, tires93
Lamps and bulbs104
Lashing eyes, refer to
Securing load83
LATCH child restraint fixing
system35
LEDs light-emitting
diodes105
Length, refer to
Dimensions121
License plate lamp, replacing
bulbs108
Liftgate22
– closing22
– emergency operation22
– manually opening22
– opening from outside22
– remote control20
Liftgate lamp, replacing
bulbs108
Lifting handle, compact
wheel109
Light-alloy wheels, care, refer
to Caring for your vehicle
brochure
Light-emitting diodes
LEDs105
Lighter72
Lighter socket72
Lighting of instruments60
Lights, refer to Parking lamps/
low beams58
Light switch58
Load
– determining load limit82
– refer to Cargo loading82
Lock buttons, doors, refer to
Locking21
Locking
– from inside21
– with the remote control19
Low beams58
– automatic58
– indicator lamp, defective
bulb58
– replacing bulbs105Lower back support, refer to
Lumbar support29
Lug bolts110
– torque110
Luggage compartment22
– capacity122
– cover, refer to Cargo area
cover75
– floor cover76
– increasing volume74
– opening/closing, refer to
Liftgate22
– opening from outside22
– opening with remote
control20
– refer to Cargo area
74
Luggage compartment lid
– emergency operation, refer
to Opening manually22
– opening with remote control,
refer to Unlocking liftgate20
– refer to Liftgate22
Luggage compartment net,
refer to Partition net75
Luggage rack, refer to Roof-
mounted luggage rack84
Lug wrench109
Lumbar support29
M
Maintenance102
– refer to Service Interval
Display46
Maintenance system102
Malfunctions
– automatic transmission40
– door lock21
– fuel filler door88
– liftgate22
– panorama glass sunroof25
Manual air distribution62,65
Manual operation
– door lock21
– driver's door21
– fuel filler door88
– liftgate22
– panorama glass sunroof25

Reference
At a glance
Controls
Driving tips
Mobility
131
Precious wood, refer to Caring
for your vehicle brochure
Pressure, tires90
Pressure monitoring,
tires53,54
Programming settings, refer
to Vehicle Memory, Key
Memory18
Puncture, Flat Tire Monitor53
R
Radiator, refer to Coolant101
Radio, refer to Owner's
Manual for Radio/Onboard
Computer
Radio-control key, refer to
Master key with remote
control18
Radio navigation, refer to
separate Owner's Manual
Rain sensor41
Range, setting units47
Reading lamps
– front60
– rear60
Rear armrest, refer to Armrest,
rear71
Rear backrests, folding74
Rear lamps, refer to Tail
lamps107
Rear lamps and reflector, refer
to Tail lamps107
Rear parcel shelf, refer to
Cargo area cover75
Rear seat back, folding74
Rearview mirrors, exterior32
Rear window defroster
– air conditioner62
– automatic climate control66
Rear window safety switch23
Rear window wiper42
– wiper blade
replacement104
Rechargeable flashlight71
Recirculated-air mode
– air conditioner62
– automatic climate control66Refueling88
Remaining distance, refer to
Cruising range48
Remaining distance until
service46
Remote control19
– garage-door opener67
– liftgate20
– malfunction20
Removing condensation,
windows
– air conditioner62
– automatic climate control65
Replacement fuses112
Replacing bulbs, refer to
Lamps and bulbs104
Replacing tires
– new wheels and tires94
– wheel changes108
Replacing windshield
wipers104
Reporting an accident, refer to
Initiating an emergency
call113
Reporting safety defects7
Required oil grades, refer to
Approved engine oils100
Reserve indicator lamp, refer
to Fuel gauge45
Restraint systems
– for children34
– refer to Safety belts31
Reverse gear
– automatic transmission with
Steptronic40
– manual transmission39
Roadside Assistance, refer to
Receiving assistance113
Roadside parking lamps59
Roller cover for cargo area,
refer to Cargo area cover75
Roof load capacity, refer to
Weights122
Roof-mounted luggage
rack84
Rope, refer to Tow starting
and towing115Rotating coin holder, refer to
Storage compartments71
Run-flat indicator, refer to Flat
Tire Monitor53
S
Safety belts31
– safe sitting position27
– warning lamp31
Safety belt tensioners, refer to
Safety belts31
Safety defects7
Safety feature, window23
Safety systems, refer to
– ABS Antilock Brake
System50
– Airbags56
– DSC Dynamic Stability
Control50
– xDrive51
Screw thread for tow
fitting115
Seat heating30
Seat memory, refer to Seat
and mirror memory30
Seats
– adjusting electrically28
– adjusting sports seat29
– heating30
– memory, refer to Seat and
mirror memory30
– sitting safely27
– storing the setting30
Securing, vehicle, with the
remote control19
Securing cargo, refer to Cargo
loading82
Selector lever
– automatic transmission39
– automatic transmission with
Steptronic39
Selector lever interlock, refer
to Shiftlock39
Selector-lever positions,
automatic transmission39
Service, refer to Receiving
assistance113
