2007 BMW MOTORRAD G650 XMOTO service

Motorcycle data/dealership detailsMotorcycle dataModel
Vehicle identification number
Colour code
Date of first registration
Registration number
Dealership detailsPerson to contact in Service department
Ms/Mr
Phone number
Dealership address/phone number (com-
pany stamp)

BMW Motorrad front-wheel
stand ......................... 79
Fuses ........................ 81
Bulbs . ........................ 82
Jump starting . . . ............. 90
Battery . . . . . . ................. 91
Number-plate carrier . . . ...... 95
9 Care . . . . . . ................ 97
Care products . . . ............. 98
Washing motorcycle . . . . ...... 98
Cleaning easily damaged
components . ................. 98
Paint care . . . ................. 99
Protective wax coating . .... 100
Laying up motorcycle . . .... 100
Restoring motorcycle to
use......................... 100
10 Technical data . . . . . . . 101
Troubleshooting chart . . .... 102
Threaded fasteners . . . . .... 103
Engine . . . . . . ............... 105
Fuel . . ...................... 106
Engine oil . . . ............... 106
Clutch ...................... 107
Transmission ............... 107 Rear-wheel drive
........... 108
Running gear ............... 108
Brakes . . . . . . ............... 109
Wheels and tyres ........... 109
Electrics . . . . . ............... 110
Frame ...................... 112
Dimensions . ............... 112
Weights . . . . . ............... 113
Riding specifications . . . .... 113
11 Service . . . . . . . . . . . . . . . . 115
BMW Motorrad service . .... 116
BMW Motorrad service
quality ...................... 116
BMW Motorrad Service
Card: on-the-spot break-
down assistance ........... 116
BMW Motorrad service net-
work . . ...................... 117
Maintenance work . . . . . . .... 117
Confirmation of mainten-
ance work . . . ............... 118
Confirmation of service . .... 123

10 Screwdriver, smallReplacing turn indicator bulbsOn-board toolkit service
kitYour authorised BMW Motor-
rad dealer can provide the on-
board toolkit service kit that you
will need if you are considering
undertaking more extensive work.
You will find information on un-
dertaking work of this nature in
the Repair Manual on the CD or
DVD also obtainable from your
authorised BMW Motorrad deal-
er. 1 Extending tool holder
Adapters to accommodate all
tools
Removing and installing spark
plugs
2 1/4" bits Star-head
Plain-tip
Adapter, 1/4" hex to 1/4"square
2x hexagon socket wrench in-
sert
Allen keys, 3 mm, 4 mm and
6mm 3 Ring spanner, w/f 26
Removing and installing wheels
4 Electric torch LED bulb
5 3x socket Adjusting chain tension
6 Adapter Adapter for 1/4" bits
9x12 mm and 3/8" swivel ad-
apters
Engine oilChecking engine oil level
The engine can seize if the
oil level is low, and this can
lead to accidents.
Always make sure that the oil
level is correct.
The oil level varies with the
temperature of the oil. The
higher the temperature, the high-
er the level of oil in the sump.
861zMaintenance

Protective wax coatingBMW Motorrad recommends
applying only BMW car wax or
products containing carnauba
wax or synthetic wax.
It is time to rewax the paint-
work when water "puddles" on
the surface, instead of forming
beads.Laying up motorcycleClean the motorcycle.
Remove the battery.
Spray the brake and clutch
lever pivots, the side stand
pivots and the centre stand
pivots (if the motorcycle is fit-
ted with a centre stand) with a
suitable lubricant.
Coat bright metal and chrome-
plated parts with an acid-free
grease (e.g. Vaseline).
Stand the motorcycle in a dry
room in such a way that there
is no load on either wheel.Before laying the vehicle
up out of use, have the en-
gine oil and the oil filter element
changed by a specialist work-
shop, preferably an authorised
BMW Motorrad dealer. Com-
bine work for laying up/restoring
to use with a BMW service or
inspection.
Restoring motorcycle
to useRemove the protective wax
coating.
Clean the motorcycle.
Install a charged battery.
Before starting: work through
the checklist.
9100zCare

Service
Service
BMW Motorrad service . ........... 116
BMW Motorrad service quality ..... 116
BMW Motorrad Service Card: on-
the-spot breakdown assistance .... 116
BMW Motorrad service network . . . 117
Maintenance work . . ............... 117
Confirmation of maintenance
work ............................... 118
Confirmation of service . . .......... 123
11115zService

BMW Motorrad serviceAdvanced technology requires
specially adapted methods of
maintenance and repair.If maintenance and re-
pair work is performed in-
expertly, it could result in con-
sequential damage and thus con-
stitute a safety risk.
BMW Motorrad recommends you
to have all the associated work
on your motorcycle carried out
by a specialist workshop, prefer-
ably an authorised BMW Motor-
rad dealer.
Your authorised BMW Motorrad
dealer can provide information on
BMW services and the work un-
dertaken as part of each service.
Have all maintenance and repair
work carried out confirmed in the
"Service" chapter in this manual.
Authorised BMW Motorrad deal-
ers are supplied with the latest
technical information and have the necessary technical know-
how. BMW Motorrad recom-
mends that you contact your au-
thorised BMW Motorrad dealer
if you have questions regarding
your motorcycle.
BMW Motorrad service
qualityAlong with its reputation for en-
gineering quality and high reliab-
ility, BMW Motorrad is a byword
for excellent quality of service.
To ensure that your BMW is al-
ways in optimum condition, BMW
Motorrad recommends that you
have the maintenance work re-
quired for your motorcycle car-
ried out regularly, preferably by
your authorised BMW Motor-
rad dealer. For generous treat-
ment of claims submitted after
the warranty period has expired,
evidence of regular maintenance
is essential.
Certain signs of wear, moreover,
may otherwise not be noticed
until it is too late to put them
right at moderate cost. Your au-
thorised BMW Motorrad dealer's
mechanics know every detail of
your motorcycle and can take re-
medial action if necessary before
minor faults develop into serious
problems. By having the neces-
sary repairs done properly and
in good time, you save time and
money in the long run.
BMW Motorrad Service
Card: on-the-spot
breakdown assistanceIn the event of a breakdown, the
BMW Motorrad Service Card is-
sued with each new BMW mo-
torcycle enables you to access
an extensive range of services
such as breakdown assistance,
motorcycle transportation etc.
(details can differ from country to
country). In the event of a break-
11116zService

down, contact BMW Motorrad's
Mobile Service. The specialists
will provide the necessary advice
and assistance.
You will find important country-
specific contact addresses and
the after-sales service organisa-
tion phone numbers in the "Ser-
vice Kontakt / Service Contact"
brochures, along with informa-
tion on Mobile Service and the
dealership network.BMW Motorrad service
networkBMW Motorrad has an extens-
ive after-sales service network in
place to look after you and your
motorcycle in more than 100
countries. In Germany alone, you
have the best possible access
to approximately 200 authorised
BMW Motorrad dealers.
All information concerning the in-
ternational dealership network
can be found in the brochure"Service Contact Europe" or
"Service Contact Africa, Amer-
ica, Asia, Australia, Oceania".
Maintenance workBMW Pre-delivery CheckYour authorised BMW Motorrad
dealer conducts the BMW pre-
delivery check before handing
over the motorcycle to you.BMW Running-in CheckThe BMW running-in check has
to be performed when the mo-
torcycle has covered between
500 km and 1,200 kmBMW ServiceThe BMW Service is carried out
once a year; the extent of servi-
cing can vary, depending on the
age of the motorcycle and the
distance it has covered. Your au-
thorised BMW Motorrad dealer
confirms that the service work
has been carried out and enters
the date when the next service
will be due.
Riders who cover long distances
in a year might have to bring in
their motorcycles for service be-
fore the next scheduled date. It
is to allow for these cases that
a maximum odometer reading is
entered as well in the confirma-
tion of service. Servicing has to
be brought forward if this odo-
meter reading is reached before
the next scheduled date for the
service.
11117zService

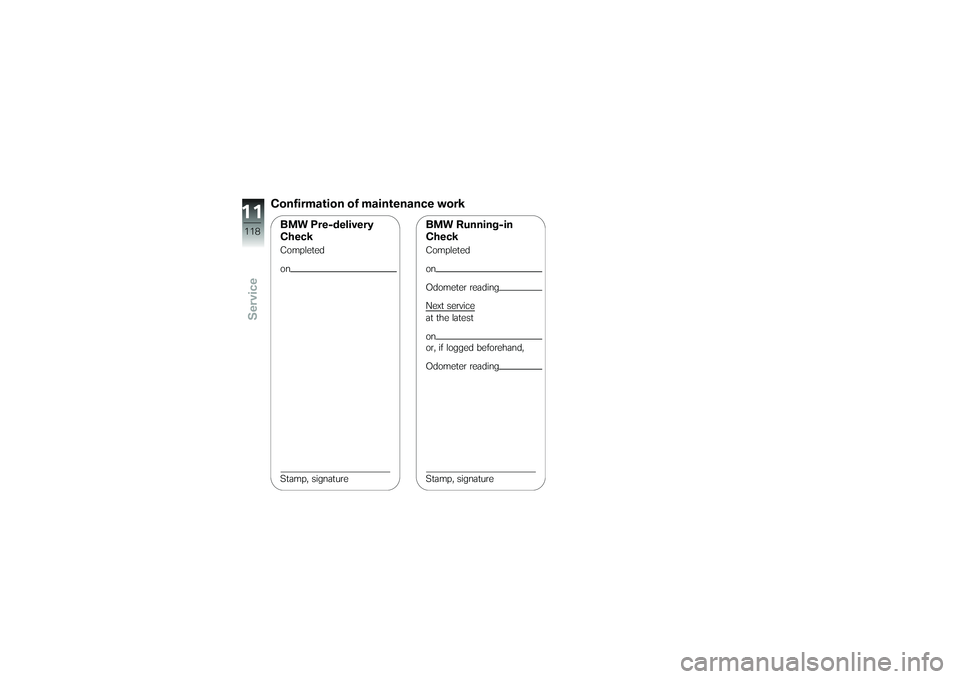

Confirmation of maintenance workBMW Pre-delivery
CheckCompleted
on
Stamp, signature
BMW Running-in
CheckCompleted
on
Odometer reading
Next service
at the latest
on
or, if logged beforehand,
Odometer reading
Stamp, signature
11118zService
