2007 BMW MOTORRAD G650 XMOTO technical data

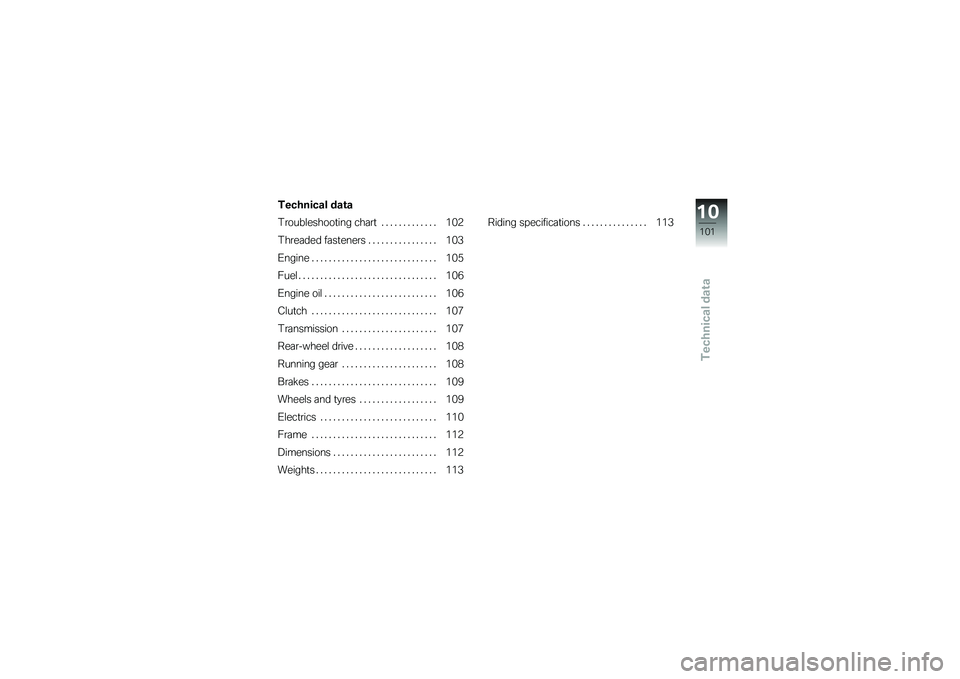

Technical data
Technical data
Troubleshooting chart . . ........... 102
Threaded fasteners . ............... 103
Engine . . . .......................... 105
Fuel . ............................... 106
Engine oil .......................... 106
Clutch . . . .......................... 107
Transmission . ..................... 107
Rear-wheel drive ................... 108
Running gear . ..................... 108
Brakes . . . .......................... 109
Wheels and tyres . . . ............... 109
Electrics . .......................... 110
Frame . . . .......................... 112
Dimensions . . . ..................... 112
Weights . . .......................... 113 Riding specifications
............... 113
10101zTechnical data

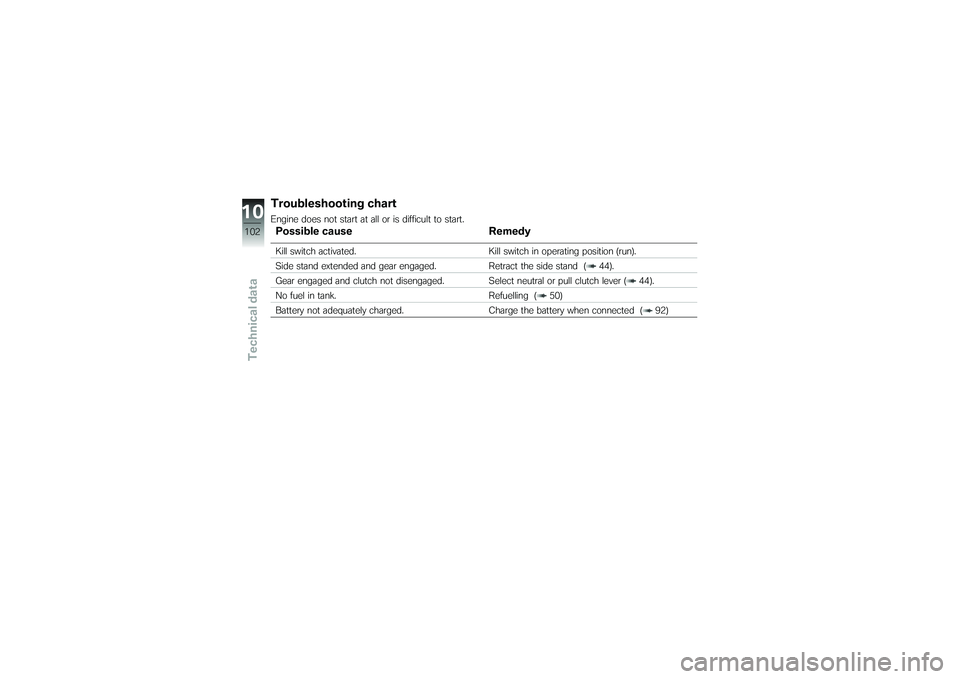

Troubleshooting chartEngine does not start at all or is difficult to start.Possible causeRemedyKill switch activated. Kill switch in operating position (run).
Side stand extended and gear engaged. Retract the side stand ( 44).
Gear engaged and clutch not disengaged. Select neutral or pull clutch lever ( 44).
No fuel in tank. Refuelling ( 50)
Battery not adequately charged. Charge the battery when connected ( 92)
10102zTechnical data

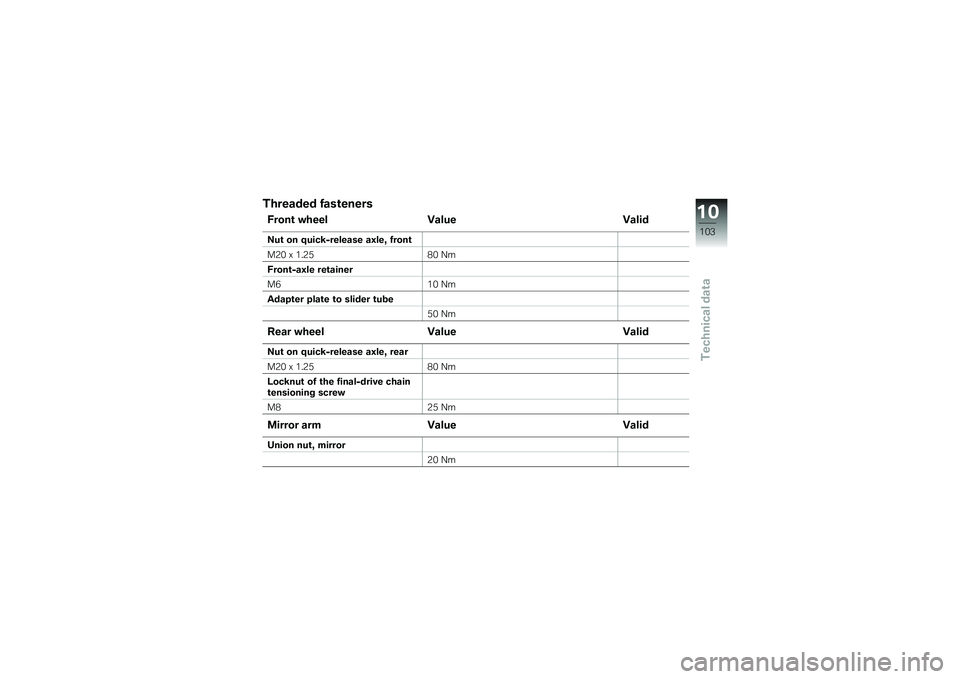

Threaded fastenersFront wheelValue ValidNut on quick-release axle, front
M20 x 1.25 80 Nm
Front-axle retainer
M6 10 Nm
Adapter plate to slider tube
50 NmRear wheelValue ValidNut on quick-release axle, rear
M20 x 1.25 80 Nm
Locknut of the final-drive chain
tensioning screw
M825 NmMirror armValue ValidUnion nut, mirror
20 Nm
10103zTechnical data

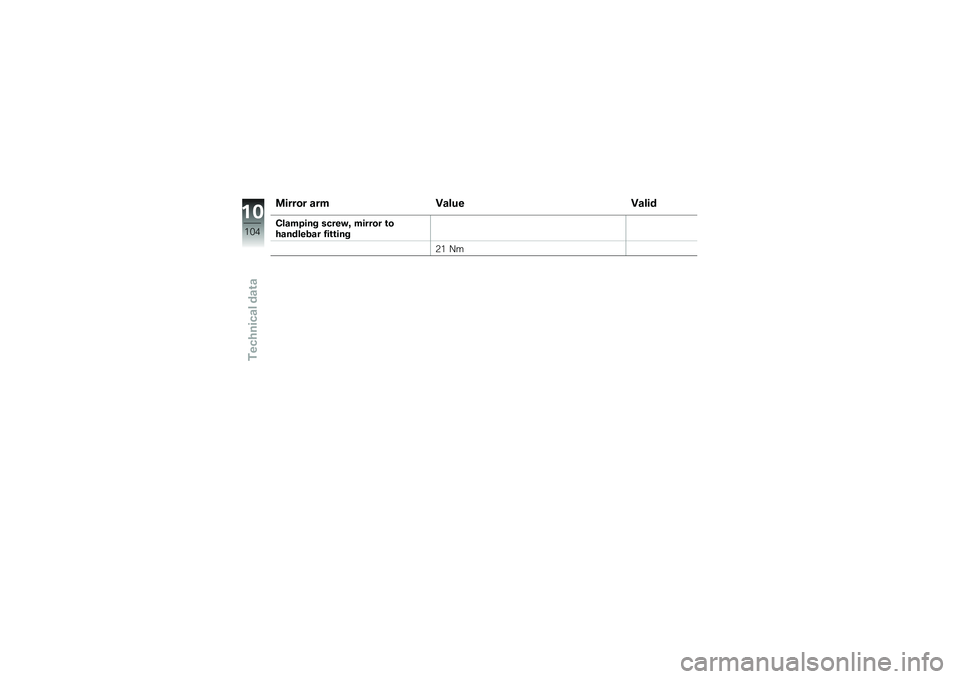

Mirror armValue ValidClamping screw, mirror to
handlebar fitting
21 Nm
10104zTechnical data

EngineEngine designSingle-cylinder four-stroke, double overhead cam-
shafts driven by roller chain, 4 valves operated by
bucket tappets, balancing shaft, liquid-cooled cyl-
inder and cylinder head, integral water pump, 5-
speed gearbox and dry sump lubrication.
Displacement 652 cm
3
Cylinder bore100 mm
Piston stroke 83 mm
Compression ratio 11.5:1
Nominal output 39 kW, - at engine speed: 7000 min
-1
Torque60 Nm, - at engine speed: 5250 min
-1
Maximum engine speed max 7500 min
-1
Idle speed1480 min
-1
10105zTechnical data

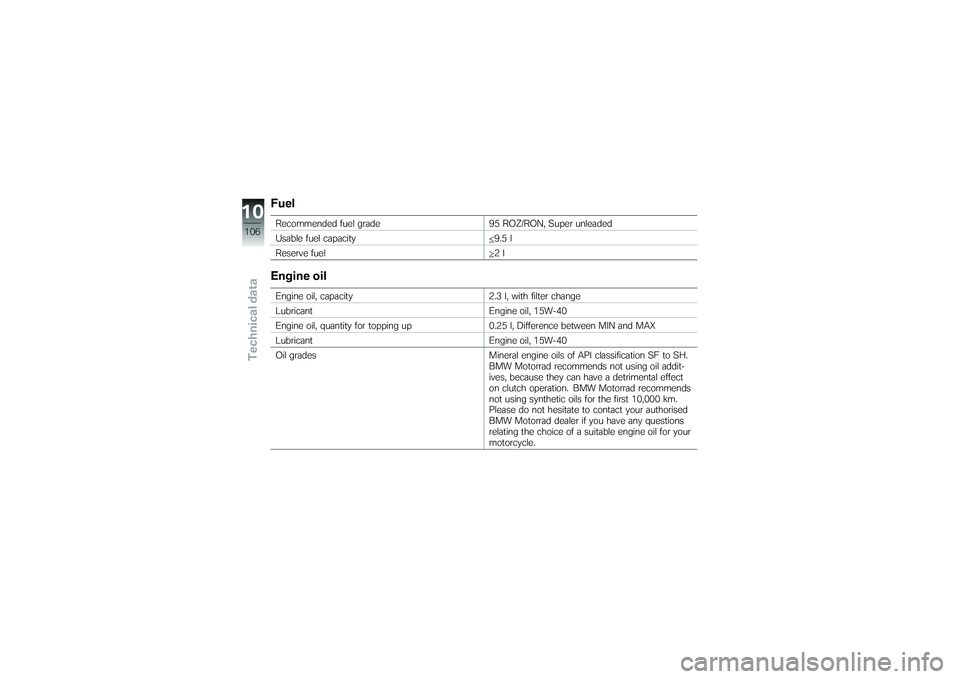

FuelRecommended fuel grade95 ROZ/RON, Super unleaded
Usable fuel capacity 9.5 l
Reserve fuel 2 lEngine oilEngine oil, capacity2.3 l, with filter change
Lubricant Engine oil, 15W-40
Engine oil, quantity for topping up 0.25 l, Difference between MIN and MAX
Lubricant Engine oil, 15W-40
Oil grades Mineral engine oils of API classification SF to SH.
BMW Motorrad recommends not using oil addit-
ives, because they can have a detrimental effect
on clutch operation. BMW Motorrad recommends
not using synthetic oils for the first 10,000 km.
Please do not hesitate to contact your authorised
BMW Motorrad dealer if you have any questions
relating the choice of a suitable engine oil for your
motorcycle.
10106zTechnical data

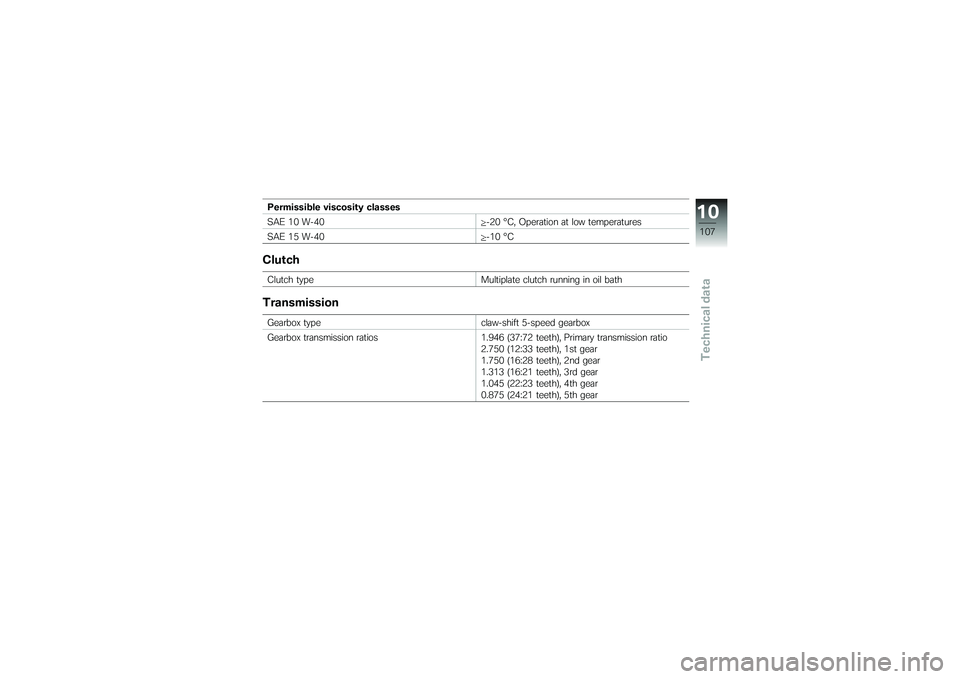

Permissible viscosity classes
SAE 10 W-40-20 °C, Operation at low temperatures
SAE 15 W-40 -10 °CClutchClutch typeMultiplate clutch running in oil bathTransmissionGearbox typeclaw-shift 5-speed gearbox
Gearbox transmission ratios 1.946 (37:72 teeth), Primary transmission ratio
2.750 (12:33 teeth), 1st gear
1.750 (16:28 teeth), 2nd gear
1.313 (16:21 teeth), 3rd gear
1.045 (22:23 teeth), 4th gear
0.875 (24:21 teeth), 5th gear
10107zTechnical data

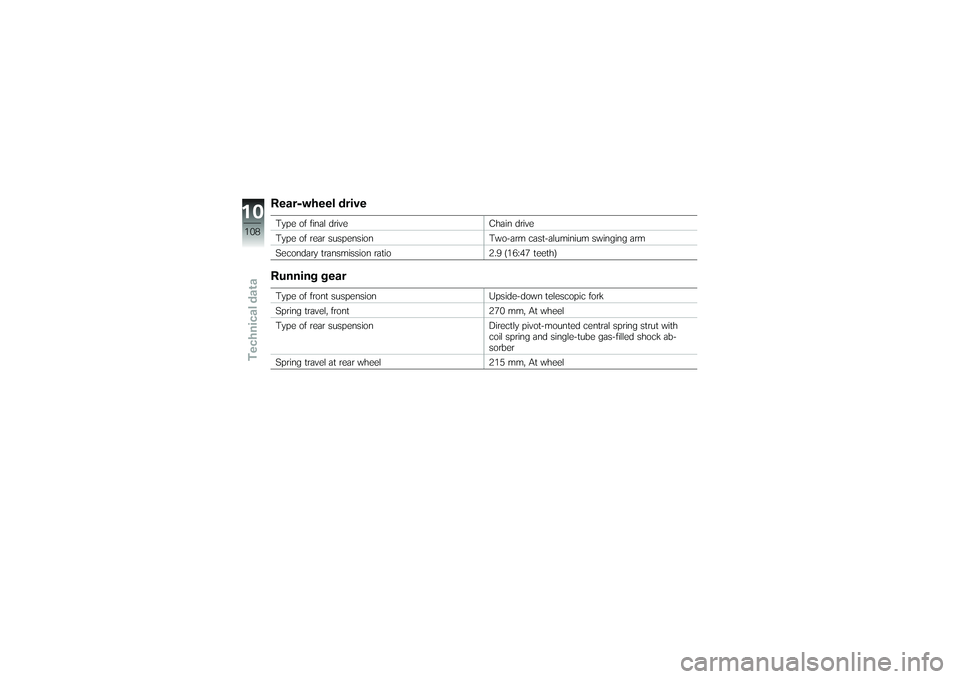

Rear-wheel driveType of final driveChain drive
Type of rear suspension Two-arm cast-aluminium swinging arm
Secondary transmission ratio 2.9 (16:47 teeth)Running gearType of front suspension Upside-down telescopic fork
Spring travel, front 270 mm, At wheel
Type of rear suspension Directly pivot-mounted central spring strut with
coil spring and single-tube gas-filled shock ab-
sorber
Spring travel at rear wheel 215 mm, At wheel
