2007 BMW 650I COUPE sport mode

7Reference
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Service and warranty

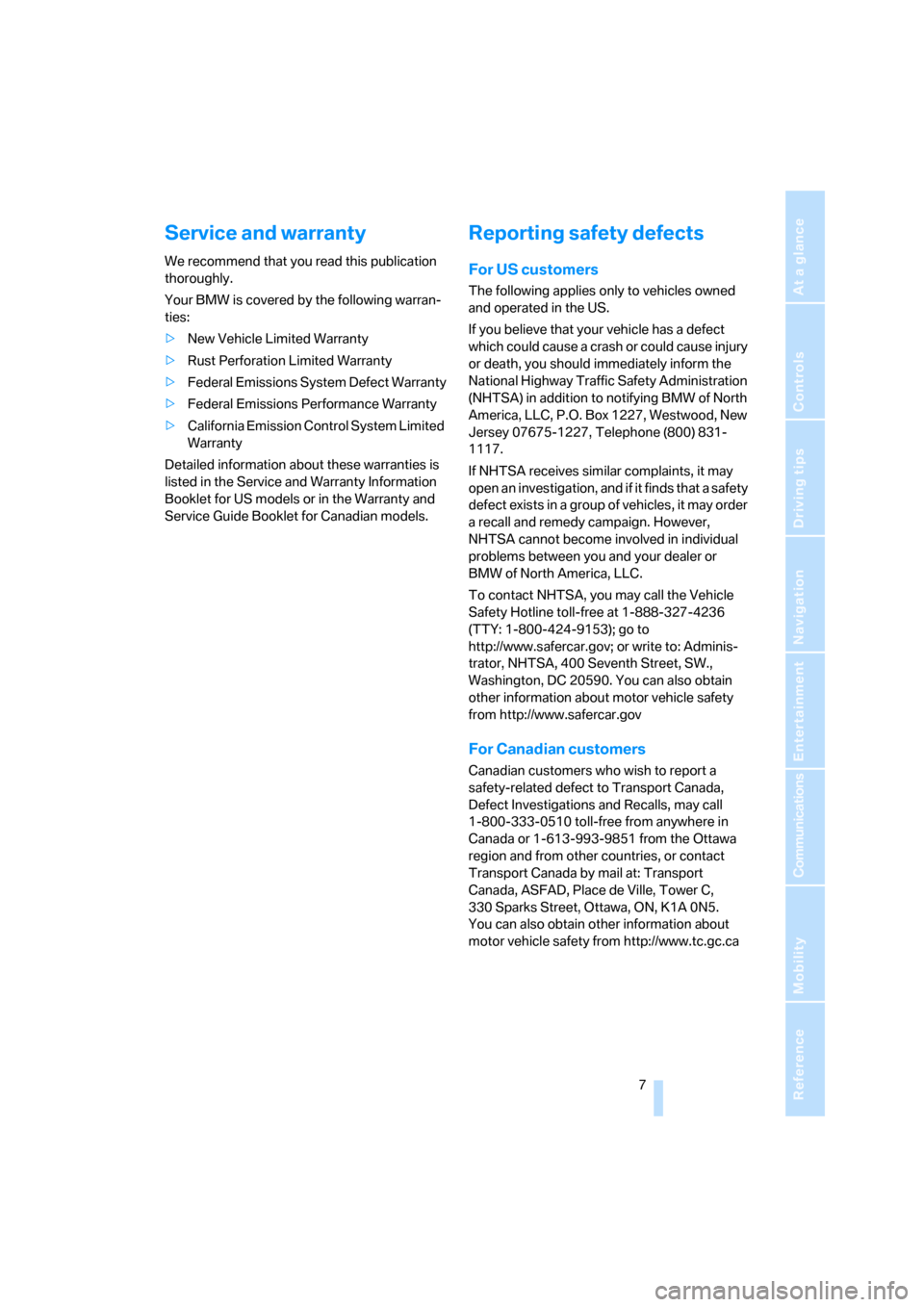

We recommend that you read this publication
thoroughly.
Your BMW is covered by the following warran-
ties:
>New Vehicle Limited Warranty
>Rust Perforation Limited Warranty
>Federal Emissions System Defect Warranty
>Federal Emissions Performance Warranty
>California Emission Control System Limited
Warranty
Detailed information about these warranties is
listed in the Service and Warranty Information
Booklet for US models or in the Warranty and
Service Guide Booklet for Canadian models.
Reporting safety defects
For US customers
The following applies only to vehicles owned
and operated in the US.
If you believe that your vehicle has a defect
which could cause a crash or could cause injury
or death, you should immediately inform the
National Highway Traffic Safety Administration
(NHTSA) in addition to notifying BMW of North
America, LLC, P.O. Box 1227, Westwood, New
Jersey 07675-1227, Telephone (800) 831-
1117.
If NHTSA receives similar complaints, it may
open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may order
a recall and remedy campaign. However,
NHTSA cannot become involved in individual
problems between you and your dealer or
BMW of North America, LLC.
To contact NHTSA, you may call the Vehicle
Safety Hotline toll-free at 1-888-327-4236
(TTY: 1-800-424-9153); go to
http://www.safercar.gov; or write to: Adminis-
trator, NHTSA, 400 Seventh Street, SW.,
Washington, DC 20590. You can also obtain
other information about motor vehicle safety
from http://www.safercar.gov
For Canadian customers
Canadian customers who wish to report a
safety-related defect to Transport Canada,
Defect Investigations and Recalls, may call
1-800-333-0510 toll-free from anywhere in
Canada or 1-613-993-9851 from the Ottawa
region and from other countries, or contact
Transport Canada by mail at: Transport
Canada, ASFAD, Place de Ville, Tower C,
330 Sparks Street, Ottawa, ON, K1A 0N5.
You can also obtain other information about
motor vehicle safety from http://www.tc.gc.ca

Controls
61Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility
Automatic transmission*
1.Move selector lever into position P with
vehicle stopped.
2.Press the Start/Stop button.
3.Firmly apply the handbrake.
4.Remove the remote control from the igni-
tion lock, refer to page59.
Handbrake
The handbrake is primarily intended to prevent
the vehicle from rolling while parked; it brakes
the rear wheels.
Indicator lamp
The indicator lamp lights up, and a sig-
nal also sounds when starting off. The
handbrake is applied.
Indicator lamp for Canadian models.
Applying
The lever locks in position automatically.
Releasing
Pull slightly upwards, press the button and
lower the lever.
If exceptional circumstances should
make it necessary to apply the handbrake
while the vehicle is in motion, do not pull it too
firmly. In doing so, continuously press the but-
ton of the handbrake lever. Otherwise, too firm
an application of the handbrake can lock up the
rear wheels and cause the rear of the vehicle to
swerve. ing action, occasionally engage the hand-
brake lightly when the vehicle is slowly coming
to a stop if the traffic conditions are suitable.
The brake lamps do not light up when the hand-
brake is applied.<
Manual transmission
When shifting into 5th/6th gear, press the
gearshift lever toward the right, otherwise
an inadvertent shift into 3rd or 4th gear could
lead to engine damage.<
Reverse gear
Select only when the vehicle is stationary.
Press the gearshift lever to the left, overcoming
a slight resistance.
SMG Sequential Manual
Transmission*
The concept
The SMG Sequential Manual Transmission is
an automated manual transmission in which an
electrohydraulic system handles the clutching
and gear changes.
The SMG is operated with the selector lever
and two shift paddles on the steering wheel.
It offers the following functions:
>Choice of manual or automatic mode:
Sequential mode or Drive mode
>Choice of two drive programs: Normal or
Sport, refer to Dynamic Driving Control
page64

Driving
64

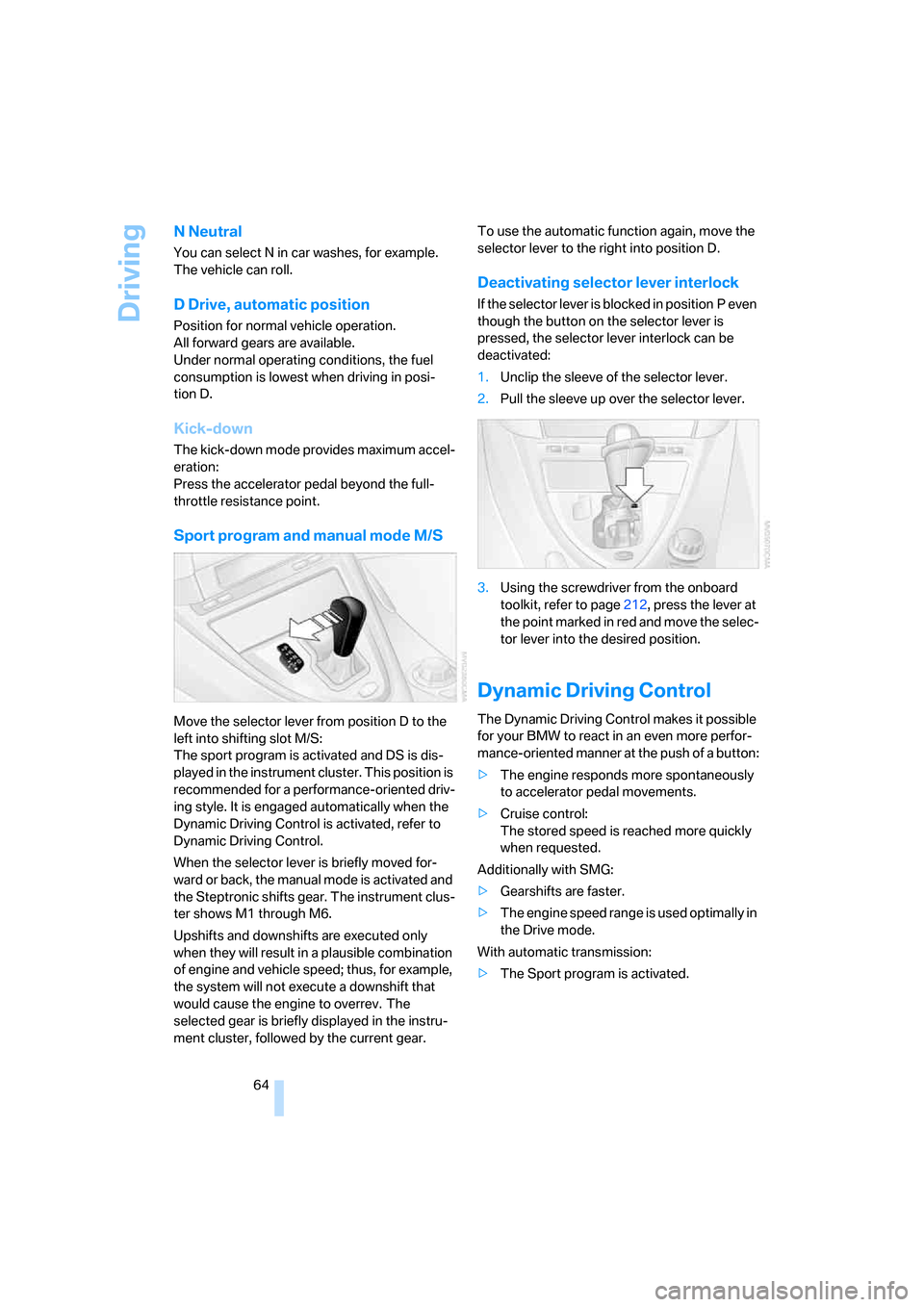

N Neutral
You can select N in car washes, for example.
The vehicle can roll.
D Drive, automatic position
Position for normal vehicle operation.
All forward gears are available.
Under normal operating conditions, the fuel
consumption is lowest when driving in posi-
tion D.
Kick-down
The kick-down mode provides maximum accel-
eration:
Press the accelerator pedal beyond the full-
throttle resistance point.
Sport program and manual mode M/S
Move the selector lever from position D to the
left into shifting slot M/S:
The sport program is activated and DS is dis-
played in the instrument cluster. This position is
recommended for a performance-oriented driv-
ing style. It is engaged automatically when the
Dynamic Driving Control is activated, refer to
Dynamic Driving Control.
When the selector lever is briefly moved for-
ward or back, the manual mode is activated and
the Steptronic shifts gear. The instrument clus-
ter shows M1 through M6.
Upshifts and downshifts are executed only
when they will result in a plausible combination
of engine and vehicle speed; thus, for example,
the system will not execute a downshift that
would cause the engine to overrev. The
selected gear is briefly displayed in the instru-
ment cluster, followed by the current gear.To use the automatic function again, move the
selector lever to the right into position D.
Deactivating selector lever interlock
If the selector lever is blocked in position P even
though the button on the selector lever is
pressed, the selector lever interlock can be
deactivated:
1.Unclip the sleeve of the selector lever.
2.Pull the sleeve up over the selector lever.
3.Using the screwdriver from the onboard
toolkit, refer to page212, press the lever at
the point marked in red and move the selec-
tor lever into the desired position.
Dynamic Driving Control
The Dynamic Driving Control makes it possible
for your BMW to react in an even more perfor-
mance-oriented manner at the push of a button:
>The engine responds more spontaneously
to accelerator pedal movements.
>Cruise control:
The stored speed is reached more quickly
when requested.
Additionally with SMG:
>Gearshifts are faster.
>The engine speed range is used optimally in
the Drive mode.
With automatic transmission:
>The Sport program is activated.

Mobility
221Reference
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment

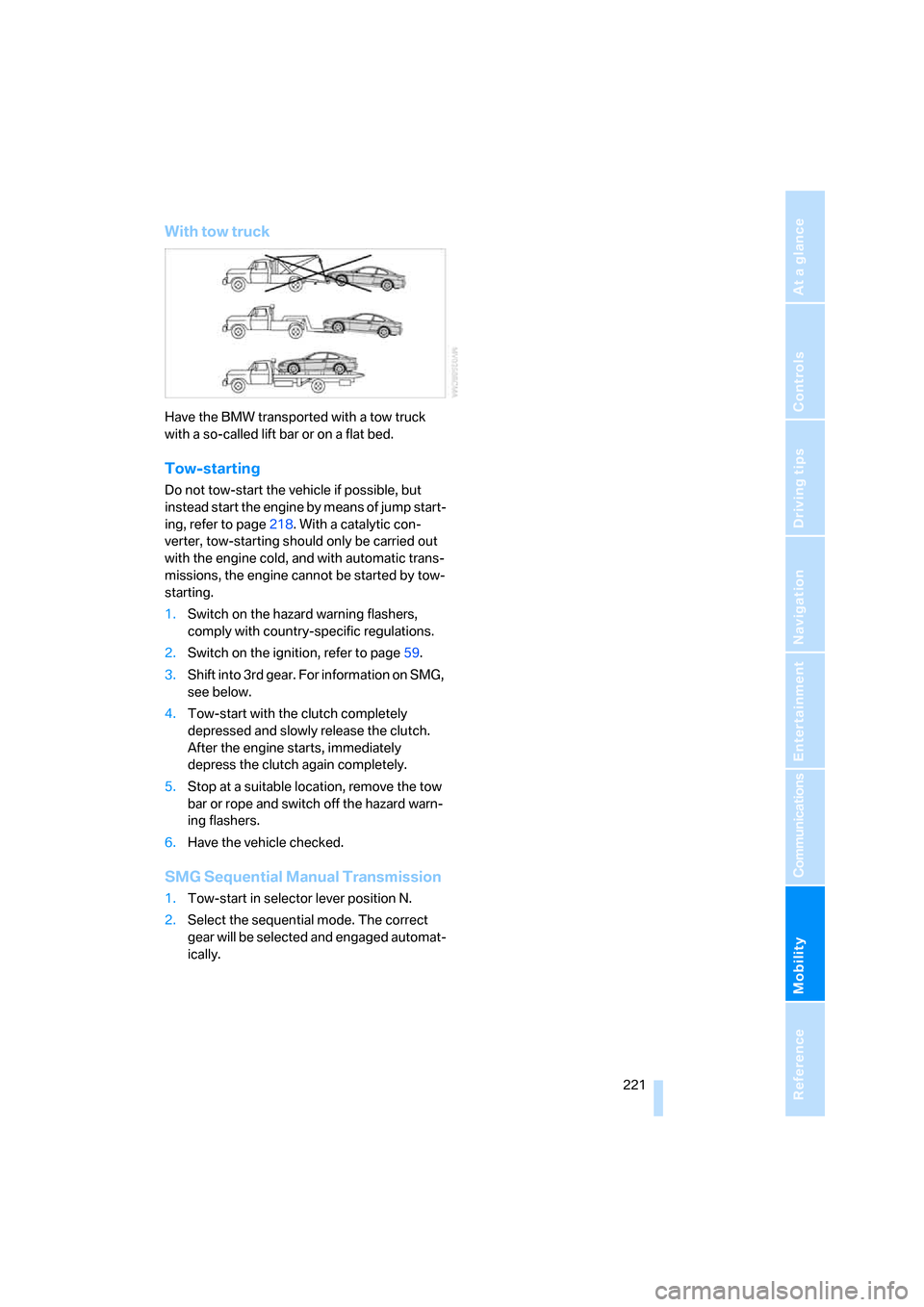

With tow truck
Have the BMW transported with a tow truck
with a so-called lift bar or on a flat bed.
Tow-starting
Do not tow-start the vehicle if possible, but
instead start the engine by means of jump start-
ing, refer to page218. With a catalytic con-
verter, tow-starting should only be carried out
with the engine cold, and with automatic trans-
missions, the engine cannot be started by tow-
starting.
1.Switch on the hazard warning flashers,
comply with country-specific regulations.
2.Switch on the ignition, refer to page59.
3.Shift into 3rd gear. For information on SMG,
see below.
4.Tow-start with the clutch completely
depressed and slowly release the clutch.
After the engine starts, immediately
depress the clutch again completely.
5.Stop at a suitable location, remove the tow
bar or rope and switch off the hazard warn-
ing flashers.
6.Have the vehicle checked.
SMG Sequential Manual Transmission
1.Tow-start in selector lever position N.
2.Select the sequential mode. The correct
gear will be selected and engaged automat-
ically.

Reference 235
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
CD changer165
– controls152
– fast forward/reverse168
– installation location168
– random sequence168
– repeating a track167
– sampling a track167
– selecting a CD165
– selecting a track166
– switching on/off152
– tone control153
– volume153
CD player165
– controls152
– fast forward/reverse168
– random sequence168
– repeating a track167
– sampling a track167
– selecting a track166
– switching on/off152
– tone control153
– volume153
Center armrest, adjusting
height114
Center console14
"Central locking"30
Central locking
– from inside32
– from outside30
Central locking system30
– comfort access37
– hotel function33
Changes, technical, refer to
For your own safety6
Changing a wheel215
Changing language on
Control Display85
Changing scale for navigation
system display142
Changing units of measure on
Control Display85
Changing wheels204
CHECK button81
Check Control80
"Check Control
messages"81
Check Gas Cap198
Checking air pressure, refer to
Tire inflation pressure200Child-restraint fixing system
LATCH58
Child restraint systems57
Child seats, refer to
Transporting children
safely57
Chrome parts, refer to Caring
for your vehicle brochure
Cigarette lighter
116
Cigarette lighter socket, refer
to Connecting electrical
devices116
Cleaning, refer to Caring for
your vehicle brochure
"Climate"107
Clock75
– 12h/24h mode84
– hour signal84
– setting time and date83
Closing
– from inside32
– from outside30
Closing fuel filler cap198
Clothes hooks, Coupe115
Cockpit10
Cold start, refer to Starting
engine60
Comfort access37
– observe in car wash38
– replacing battery, remote
control38
Comfort closing
– windows, with comfort
access with Coupe37
– with comfort access37
Comfort operation
– convertible top31,32
– glass sunroof31,32
– windows31,32
"Communication"180,190
Compact disc
– refer to CD changer165
– refer to CD player165
Compartment for remote
control, refer to Ignition
lock59
Compartments, refer to
Storage compartments114
Compressed audio files165Computer76
– displays on Control
Display77
– hour signal84
"Concert hall", refer to Tone
control155
"Concierge"192
Condensation, refer to When
vehicle is parked122
Condition Based Service
CBS210
"Confirmation"31
Confirmation signals for
locking and unlocking31
Connecting car vacuum
cleaner, refer to Connecting
electrical devices116
Consumption display, refer to
Average fuel
consumption
76
Consumption statistics, refer
to Average fuel
consumption76
"Continue guidance to
destination?"141
"Contrast" with BMW Night
Vision101
Control Center, refer to
iDrive16
Control Display, refer to
iDrive16
– setting brightness84
– switching off/on21
Controller, refer to iDrive16
Controls, refer to Cockpit10
Convertible
– convertible program for
automatic climate
control107
– opening and closing
windows39
– rollover protection
system96
– top42
– wind deflector46
– window and convertible top
operation with comfort
access37

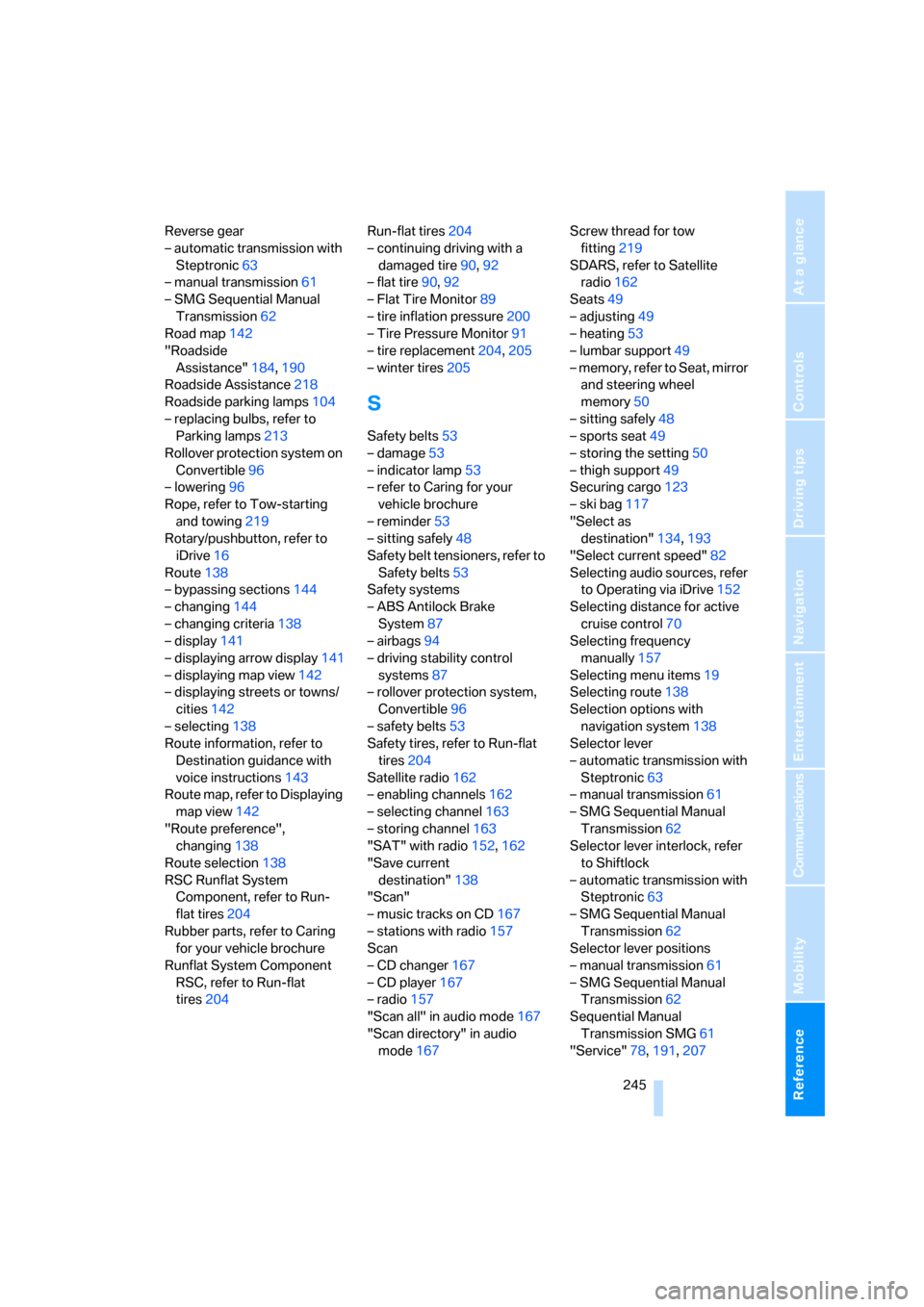

Reference 245
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Reverse gear
– automatic transmission with
Steptronic63
– manual transmission61
– SMG Sequential Manual
Transmission62
Road map142
"Roadside
Assistance"184,190
Roadside Assistance218
Roadside parking lamps104
– replacing bulbs, refer to
Parking lamps213
Rollover protection system on
Convertible96
– lowering96
Rope, refer to Tow-starting
and towing219
Rotary/pushbutton, refer to
iDrive16
Route138
– bypassing sections144
– changing144
– changing criteria138
– display141
– displaying arrow display141
– displaying map view142
– displaying streets or towns/
cities142
– selecting138
Route information, refer to
Destination guidance with
voice instructions143
Route map, refer to Displaying
map view142
"Route preference",
changing138
Route selection138
RSC Runflat System
Component, refer to Run-
flat tires204
Rubber parts, refer to Caring
for your vehicle brochure
Runflat System Component
RSC, refer to Run-flat
tires204Run-flat tires204
– continuing driving with a
damaged tire90,92
– flat tire90,92
– Flat Tire Monitor89
– tire inflation pressure200
– Tire Pressure Monitor91
– tire replacement204,205
– winter tires205
S
Safety belts53
– damage53
– indicator lamp53
– refer to Caring for your
vehicle brochure
– reminder53
– sitting safely48
Safety belt tensioners, refer to
Safety belts53
Safety systems
– ABS Antilock Brake
System87
– airbags94
– driving stability control
systems87
– rollover protection system,
Convertible96
– safety belts53
Safety tires, refer to Run-flat
tires204
Satellite radio162
– enabling channels162
– selecting channel163
– storing channel163
"SAT" with radio152,162
"Save current
destination"138
"Scan"
– music tracks on CD167
– stations with radio157
Scan
– CD changer167
– CD player167
– radio157
"Scan all" in audio mode167
"Scan directory" in audio
mode167Screw thread for tow
fitting219
SDARS, refer to Satellite
radio162
Seats49
– adjusting49
– heating53
– lumbar support49
– memory, refer to Seat, mirror
and steering wheel
memory50
– sitting safely48
– sports seat49
– storing the setting50
– thigh support49
Securing cargo123
– ski bag117
"Select as
destination"134,193
"Select current speed"82
Selecting audio sources, refer
to Operating via iDrive152
Selecting distance for active
cruise control70
Selecting frequency
manually157
Selecting menu items19
Selecting route138
Selection options with
navigation system138
Selector lever
– automatic transmission with
Steptronic63
– manual transmission61
– SMG Sequential Manual
Transmission62
Selector lever interlock, refer
to Shiftlock
– automatic transmission with
Steptronic63
– SMG Sequential Manual
Transmission62
Selector lever positions
– manual transmission61
– SMG Sequential Manual
Transmission62
Sequential Manual
Transmission SMG61
"Service"78,191,207

Everything from A to Z

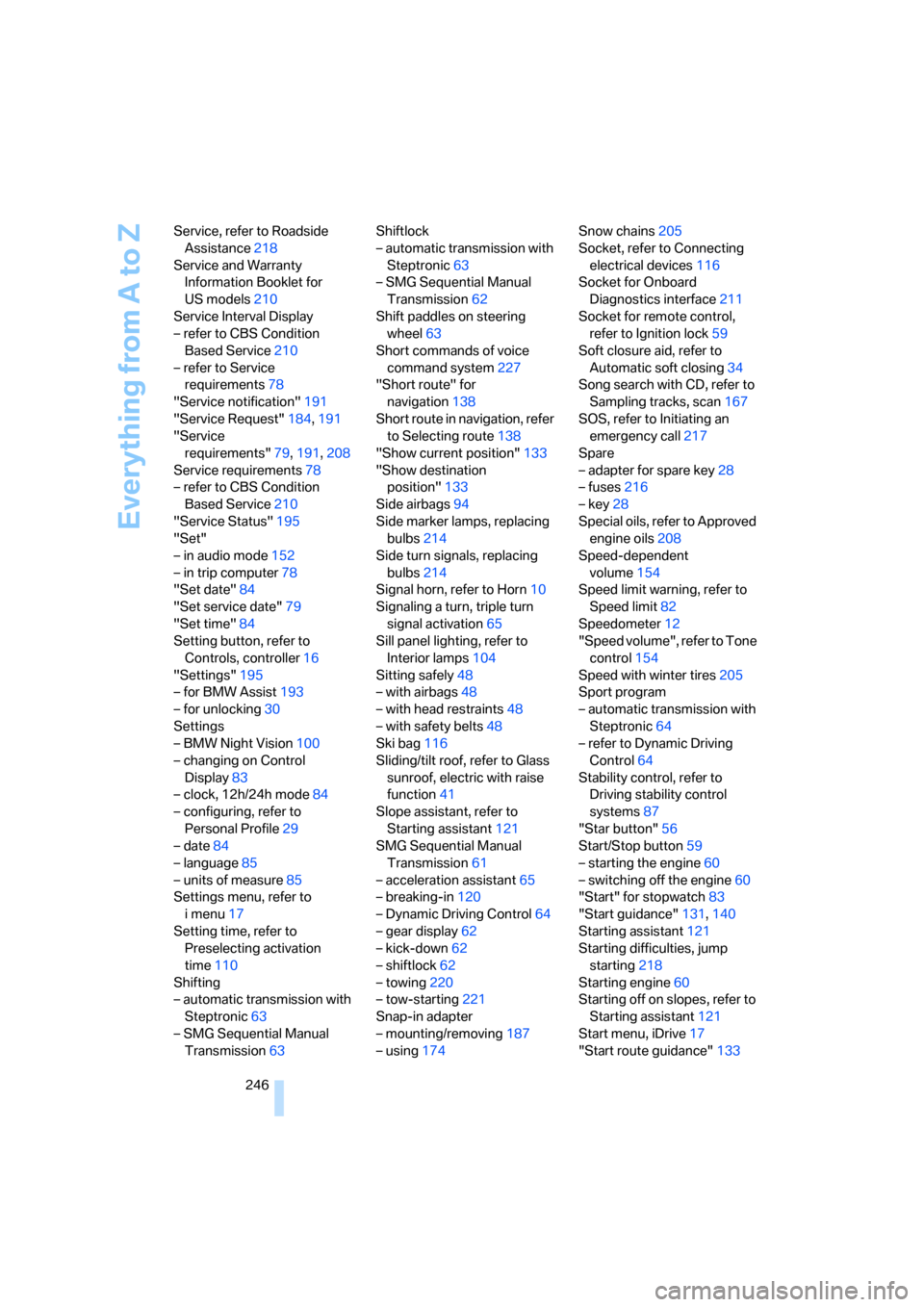

246 Service, refer to Roadside
Assistance218
Service and Warranty
Information Booklet for
US models210
Service Interval Display
– refer to CBS Condition
Based Service210
– refer to Service
requirements78
"Service notification"191
"Service Request"184,191
"Service
requirements"79,191,208
Service requirements78
– refer to CBS Condition
Based Service210
"Service Status"195
"Set"
– in audio mode152
– in trip computer78
"Set date"84
"Set service date"79
"Set time"84
Setting button, refer to
Controls, controller16
"Settings"195
– for BMW Assist193
– for unlocking30
Settings
– BMW Night Vision100
– changing on Control
Display83
– clock, 12h/24h mode84
– configuring, refer to
Personal Profile29
– date84
– language85
– units of measure85
Settings menu, refer to
imenu17
Setting time, refer to
Preselecting activation
time110
Shifting
– automatic transmission with
Steptronic63
– SMG Sequential Manual
Transmission63Shiftlock
– automatic transmission with
Steptronic63
– SMG Sequential Manual
Transmission62
Shift paddles on steering
wheel63
Short commands of voice
command system227
"Short route" for
navigation
138
Short route in navigation, refer
to Selecting route138
"Show current position"133
"Show destination
position"133
Side airbags94
Side marker lamps, replacing
bulbs214
Side turn signals, replacing
bulbs214
Signal horn, refer to Horn10
Signaling a turn, triple turn
signal activation65
Sill panel lighting, refer to
Interior lamps104
Sitting safely48
– with airbags48
– with head restraints48
– with safety belts48
Ski bag116
Sliding/tilt roof, refer to Glass
sunroof, electric with raise
function41
Slope assistant, refer to
Starting assistant121
SMG Sequential Manual
Transmission61
– acceleration assistant65
– breaking-in120
– Dynamic Driving Control64
– gear display62
– kick-down62
– shiftlock62
– towing220
– tow-starting221
Snap-in adapter
– mounting/removing187
– using174Snow chains205
Socket, refer to Connecting
electrical devices116
Socket for Onboard
Diagnostics interface211
Socket for remote control,
refer to Ignition lock59
Soft closure aid, refer to
Automatic soft closing34
Song search with CD, refer to
Sampling tracks, scan167
SOS, refer to Initiating an
emergency call217
Spare
– adapter for spare key28
– fuses216
– key28
Special oils, refer to Approved
engine oils208
Speed-dependent
volume154
Speed limit warning, refer to
Speed limit82
Speedometer
12
"Speed volume", refer to Tone
control154
Speed with winter tires205
Sport program
– automatic transmission with
Steptronic64
– refer to Dynamic Driving
Control64
Stability control, refer to
Driving stability control
systems87
"Star button"56
Start/Stop button59
– starting the engine60
– switching off the engine60
"Start" for stopwatch83
"Start guidance"131,140
Starting assistant121
Starting difficulties, jump
starting218
Starting engine60
Starting off on slopes, refer to
Starting assistant121
Start menu, iDrive17
"Start route guidance"133

Reference 247
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
"Start service"190
"Start Service" for BMW
Assist192
"State / Province" for
destination entry129
"State inspection"79
Station, refer to Radio156
"Status"79
Status information on Control
Display20
Status of this Owner's Manual
at time of printing5
Steering wheel
– adjustment55
– automatic adjustment, refer
to Easy entry/exit55
– automatic adjustment, refer
to Steering wheel
memory50
– buttons on steering
wheel11
– heating55
– lock, refer to Ignition lock59
– memory50
– programmable buttons55
– shift paddles63
"Steering wheel buttons"55
Steering-wheel shift buttons,
refer to Shift paddles63
Steering with variable ratio,
refer to Active steering94
Steptronic, refer to Automatic
transmission with
Steptronic63
– sport program and manual
mode64
"Stop" for stopwatch83
"Stopwatch"83
Stopwatch83
Storage compartments114
"Store in address book" for
navigation system136
"Store" on the radio158,164
Storing current position136
Storing radio stations158
Storing sitting position, refer
to Seat, mirror and steering
wheel memory50Storing tires205
"Street" for destination
entry130
Summer tires, refer to Wheels
and tires200
"Surround Settings", refer to
Tone control154
SW, waveband156
Switches, refer to Cockpit10
Switching on
– audio152
– CD changer152
– CD player
152
– radio152
Swiveling headlamps, refer to
Adaptive Head Light103
Symbols4
– indicator and warning
lamps13
– navigation system147
– status information20
– traffic information with
navigation system144
T
Tachometer75
Tail lamps214
– replacing bulbs214
Tank capacity
– also refer to Capacities226
– fuel tank capacity198
Target cursor for
navigation133
Technical alterations, refer to
For your own safety6
Technical data224
Telematics, refer to
BMW Assist189
Telephone
– installation location, refer to
Center armrest114
– refer to Mobile phone174
– refer to separate operating
instructions
"Telephone list"56
TeleService191Temperature
– adjusting in upper body
region108
– adjusting with automatic
climate control107
– changing units of
measure85
– refer to Coolant
temperature75
Temperature display
– changing units of
measure85
– outside temperature75
– outside temperature
warning75
Temperature gauge, engine
oil76
Tempomat, refer to Cruise
control67
"Terminate services"194
"Text language"85
"Theater", refer to Tone
control155
The individual vehicle5
Tie-down points, refer to
Securing cargo123
Tilt alarm sensor36
– switching off36
Tilting down passenger-side
exterior mirror54
"Time"84
"Time / Date"83
"Time format"84
Timer, refer to Preselecting
activation time110
"Timer 1" for parked-car
ventilation110
"Timer 2" for parked-car
ventilation110
Tire inflation pressure200
Tire pressure loss90,
92
Tire Pressure Monitor
TPM91
Tire Quality Grading202
Tire replacement, new wheels
and tires204
