2007 BMW 650I CONVERTIBLE fuel pressure

Controls
85Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility
iDrive, for explanation of principle, refer to
page16.
1.Press the button.
This opens the start menu.
2.Press the controller to open the menu.
3.Select "Settings" and press the controller.
4.Select "Display settings" and press the
controller.
5.Change to upper field if necessary. Turn the
controller until "Brightness" is selected and
press the controller.
6.If necessary, move the controller to the right
to select "Display".
7.Turn the controller until the desired setting
is selected.
The setting is stored for the remote control cur-
rently in use.
Units of measure
You can change the units of measure for fuel
consumption, distances, temperature and
pressure.
iDrive, for explanation of principle, refer to
page16.
1.Press the button.
This opens the start menu.
2.Press the controller to open the menu.
3.Select "Settings" and press the controller.
4.Select "Language / Units" and press the
controller.
5.Change to upper field if necessary. Turn the
controller until "Units" is selected and press
the controller.6.Select the menu item to be set.
7.Press the controller.
8.Select the desired unit of measure and
press the controller.
The settings are stored for the remote control
currently in use.
Language on Control Display
iDrive, for explanation of principle, refer to
page16.
1.Press the button.
This opens the start menu.
2.Press the controller to open the menu.
3.Select "Settings" and press the controller.
4.Select "Language / Units" and press the
controller.
5.Change to upper field if necessary. Turn the
controller until "Languages" is selected and
press the controller.
6.Select "Text language" and press the con-
troller. You can select a different language
for the text displays.
7.Select the desired language and press the
controller.
The setting is stored for the remote control cur-
rently in use.

Controls
93Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility

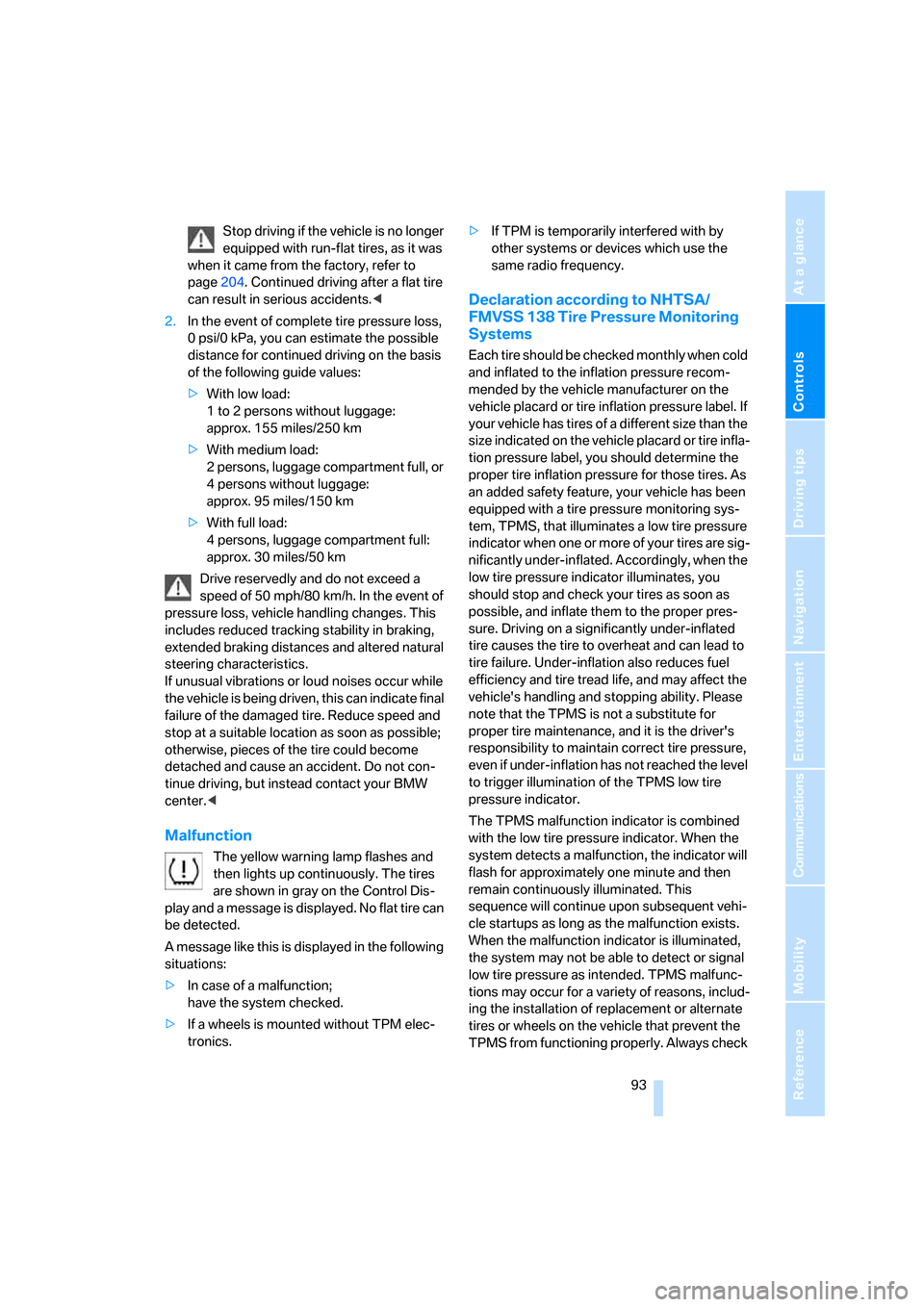

Stop driving if the vehicle is no longer
equipped with run-flat tires, as it was
when it came from the factory, refer to
page204. Continued driving after a flat tire
can result in serious accidents.<
2.In the event of complete tire pressure loss,
0 psi/0 kPa, you can estimate the possible
distance for continued driving on the basis
of the following guide values:
>With low load:
1 to 2 persons without luggage:
approx. 155 miles/250 km
>With medium load:
2 persons, luggage compartment full, or
4 persons without luggage:
approx. 95 miles/150 km
>With full load:
4 persons, luggage compartment full:
approx. 30 miles/50 km
Drive reservedly and do not exceed a
speed of 50 mph/80 km/h. In the event of
pressure loss, vehicle handling changes. This
includes reduced tracking stability in braking,
extended braking distances and altered natural
steering characteristics.
If unusual vibrations or loud noises occur while
the vehicle is being driven, this can indicate final
failure of the damaged tire. Reduce speed and
stop at a suitable location as soon as possible;
otherwise, pieces of the tire could become
detached and cause an accident. Do not con-
tinue driving, but instead contact your BMW
center.<
Malfunction
The yellow warning lamp flashes and
then lights up continuously. The tires
are shown in gray on the Control Dis-
play and a message is displayed. No flat tire can
be detected.
A message like this is displayed in the following
situations:
>In case of a malfunction;
have the system checked.
>If a wheels is mounted without TPM elec-
tronics.>If TPM is temporarily interfered with by
other systems or devices which use the
same radio frequency.
Declaration according to NHTSA/
FMVSS 138 Tire Pressure Monitoring
Systems
Each tire should be checked monthly when cold
and inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure label. If
your vehicle has tires of a different size than the
size indicated on the vehicle placard or tire infla-
tion pressure label, you should determine the
proper tire inflation pressure for those tires. As
an added safety feature, your vehicle has been
equipped with a tire pressure monitoring sys-
tem, TPMS, that illuminates a low tire pressure
indicator when o ne or m ore of your tires a re sig-
nificantly under-inflated. Accordingly, when the
low tire pressure indicator illuminates, you
should stop and check your tires as soon as
possible, and inflate them to the proper pres-
sure. Driving on a significantly under-inflated
tire causes the tire to overheat and can lead to
tire failure. Under-inflation also reduces fuel
efficiency and tire tread life, and may affect the
vehicle's handling and stopping ability. Please
note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver's
responsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire
pressure indicator.
The TPMS malfunction indicator is combined
with the low tire pressure indicator. When the
system detects a malfunction, the indicator will
flash for approximately one minute and then
remain continuously illuminated. This
sequence will continue upon subsequent vehi-
cle startups as long as the malfunction exists.
When the malfunction indicator is illuminated,
the system may not be able to detect or signal
low tire pressure as intended. TPMS malfunc-
tions may occur for a variety of reasons, includ-
ing the installation of replacement or alternate
tires or wheels on the vehicle that prevent the
TPMS from functioning properly. Always check

Mobility
205Reference
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment

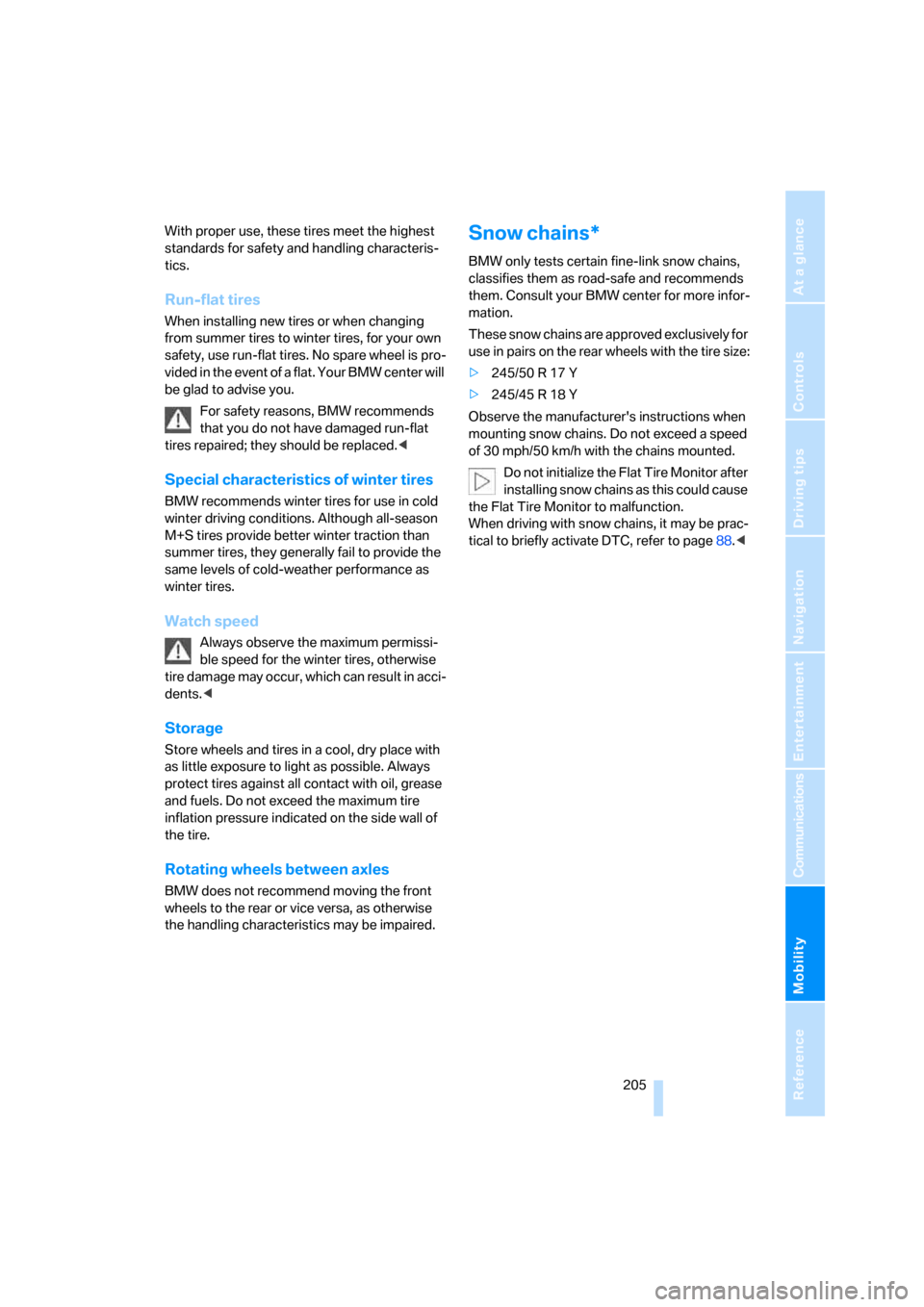

With proper use, these tires meet the highest
standards for safety and handling characteris-
tics.
Run-flat tires
When installing new tires or when changing
from summer tires to winter tires, for your own
safety, use run-flat tires. No spare wheel is pro-
vided in the event of a flat. Your BMW center will
be glad to advise you.
For safety reasons, BMW recommends
that you do not have damaged run-flat
tires repaired; they should be replaced.<
Special characteristics of winter tires
BMW recommends winter tires for use in cold
winter driving conditions. Although all-season
M+S tires provide better winter traction than
summer tires, they generally fail to provide the
same levels of cold-weather performance as
winter tires.
Watch speed
Always observe the maximum permissi-
ble speed for the winter tires, otherwise
tire damage may occur, which can result in acci-
dents.<
Storage
Store wheels and tires in a cool, dry place with
as little exposure to light as possible. Always
protect tires against all contact with oil, grease
and fuels. Do not exceed the maximum tire
inflation pressure indicated on the side wall of
the tire.
Rotating wheels between axles
BMW does not recommend moving the front
wheels to the rear or vice versa, as otherwise
the handling characteristics may be impaired.
Snow chains*
BMW only tests certain fine-link snow chains,
classifies them as road-safe and recommends
them. Consult your BMW center for more infor-
mation.
These snow chains are approved exclusively for
use in pairs on the rear wheels with the tire size:
>245/50 R 17 Y
>245/45 R 18 Y
Observe the manufacturer's instructions when
mounting snow chains. Do not exceed a speed
of 30 mph/50 km/h with the chains mounted.
Do not initialize the Flat Tire Monitor after
installing snow chains as this could cause
the Flat Tire Monitor to malfunction.
When driving with snow chains, it may be prac-
tical to briefly activate DTC, refer to page88.<

Reference 235
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
CD changer165
– controls152
– fast forward/reverse168
– installation location168
– random sequence168
– repeating a track167
– sampling a track167
– selecting a CD165
– selecting a track166
– switching on/off152
– tone control153
– volume153
CD player165
– controls152
– fast forward/reverse168
– random sequence168
– repeating a track167
– sampling a track167
– selecting a track166
– switching on/off152
– tone control153
– volume153
Center armrest, adjusting
height114
Center console14
"Central locking"30
Central locking
– from inside32
– from outside30
Central locking system30
– comfort access37
– hotel function33
Changes, technical, refer to
For your own safety6
Changing a wheel215
Changing language on
Control Display85
Changing scale for navigation
system display142
Changing units of measure on
Control Display85
Changing wheels204
CHECK button81
Check Control80
"Check Control
messages"81
Check Gas Cap198
Checking air pressure, refer to
Tire inflation pressure200Child-restraint fixing system
LATCH58
Child restraint systems57
Child seats, refer to
Transporting children
safely57
Chrome parts, refer to Caring
for your vehicle brochure
Cigarette lighter
116
Cigarette lighter socket, refer
to Connecting electrical
devices116
Cleaning, refer to Caring for
your vehicle brochure
"Climate"107
Clock75
– 12h/24h mode84
– hour signal84
– setting time and date83
Closing
– from inside32
– from outside30
Closing fuel filler cap198
Clothes hooks, Coupe115
Cockpit10
Cold start, refer to Starting
engine60
Comfort access37
– observe in car wash38
– replacing battery, remote
control38
Comfort closing
– windows, with comfort
access with Coupe37
– with comfort access37
Comfort operation
– convertible top31,32
– glass sunroof31,32
– windows31,32
"Communication"180,190
Compact disc
– refer to CD changer165
– refer to CD player165
Compartment for remote
control, refer to Ignition
lock59
Compartments, refer to
Storage compartments114
Compressed audio files165Computer76
– displays on Control
Display77
– hour signal84
"Concert hall", refer to Tone
control155
"Concierge"192
Condensation, refer to When
vehicle is parked122
Condition Based Service
CBS210
"Confirmation"31
Confirmation signals for
locking and unlocking31
Connecting car vacuum
cleaner, refer to Connecting
electrical devices116
Consumption display, refer to
Average fuel
consumption
76
Consumption statistics, refer
to Average fuel
consumption76
"Continue guidance to
destination?"141
"Contrast" with BMW Night
Vision101
Control Center, refer to
iDrive16
Control Display, refer to
iDrive16
– setting brightness84
– switching off/on21
Controller, refer to iDrive16
Controls, refer to Cockpit10
Convertible
– convertible program for
automatic climate
control107
– opening and closing
windows39
– rollover protection
system96
– top42
– wind deflector46
– window and convertible top
operation with comfort
access37

Everything from A to Z
238 "Engine oil level"208
Engine overheating, refer to
Coolant temperature75
Engine starting, refer to
Starting engine60
"Enter address"128,136
Entering address128,131
Entering intersection,
navigation130
Entering rear52
Entering town/city for
navigation129
Entering town/city of
destination name129
Entering zip code for
navigation129
"Entertainment"152
Entertainment sound output
on/off153
Entry map for destination133
Equalizer, refer to Tone
control155
"Equalizer", tone control155
"ESN"162
ESP Electronic Stability
Program, refer to DSC
Dynamic Stability
Control88
Event data recorders211
Exhaust system, refer to Hot
exhaust system120
Exterior mirrors54
– adjusting54
– automatic dimming
feature54
– automatic heating54
– folding in and out54
– tilting down passenger-side
mirror54
External audio device114
Eye for tow-starting and
towing, refer to Tow
fitting219
Eyes for lashing, refer to
Securing cargo123
F
"Fader", refer to Tone
control154
Fader, refer to Tone
control154
Failure messages, refer to
Check Control80
False alarm
– refer to Avoiding
unintentional alarms36
– refer to Switching off
alarm36
Fastening safety belts, refer to
Safety belts53
Fastest route for
navigation138
Fast forward
– CD changer168
– CD player168
"Fast route" for
navigation138
"Favorites", calling up with
radio159
Filler neck for washer fluid67
Filter, refer to Microfilter/
activated-charcoal filter110
Fine wood, refer to Caring for
your vehicle brochure
First aid, refer to First-aid
kit218
First-aid kit218
Flashing, when locking and
unlocking, refer to Setting
confirmation signals31
Flashlight, refer to
Rechargeable flashlight113
Flat tire
– Flat Tire Monitor89
– refer to Run-flat tires204
– run-flat tires90,92,204
– Tire Pressure Monitor91
– warning lamp90,92
Flat Tire Monitor89
– false alarms90
– initializing system90
– limits of system90
– snow chains205
– warning lamp90Floor mats, refer to Caring for
your vehicle brochure
Floor mats/carpets, refer to
Caring for your vehicle
brochure
Fluid reservoir, refer to Filler
neck for washer fluid67
"FM", reception
range152,156
FM, waveband156
Fog lamps104
– indicator lamp13,104
Folding into raised position
convertible top
compartment floor,
Convertible35
Footbrake, refer to Braking
safely121
Footwell lighting, refer to
Interior lamps104
For specified oil grades, refer
to Approved engine oils208
For your own safety6
Freeway, refer to Route
criteria138
Front airbags94
Front passenger airbags
– deactivating95
– deactivating, refer to
Exception for front
passenger seat57
"FTM"90
FTM, refer to Flat Tire
Monitor89
Fuel
– average consumption76
– display76
– fuel specifications199
– high-quality brands199
– quality199
– specifications199
– tank contents, refer to
Capacities226
Fuel display, refer to Fuel
gauge76
Fuel filler door198
– releasing in the event of
electrical malfunction198
Fuel gauge76

Everything from A to Z
244 Power windows, refer to
Windows39
"Presets" on the
radio156,163
Presetting parked car
ventilation activation
times110
Pressure, tires200
Pressure monitoring of tires,
refer to TPM Tire Pressure
Monitor91
"Profile"195
Programmable buttons on
steering wheel55
Protective function, refer to
Pinch protection system
– glass sunroof41
– windows40
R
Radiator fluid, refer to
Coolant209
Radio
– Autostore157
– controls152
– High Definition Radio160
– sampling stations157
– satellite radio162
– selecting frequency
manually157
– selecting
waveband152,156
– station search157
– station selection156
– station with best
reception157
– storing stations158
– switching on/off152
– tone control153
– volume153
– Weather Band, refer to
Weather news flashes160
Radio key, refer to Keys/
remote control28
Radio position, refer to Radio
readiness59Radio readiness59
– switched off59
– switched on59
– with comfort access38
Radio stations, storing158
Rain sensor, windshield wiper
system66
"Random", random play
sequence168
"Random all" in audio
mode168
"Random directory" in audio
mode168
Random play sequence
– CD changer168
– CD player168
"RDS"159
Reading lamps105
Rear lamps, refer to Tail
lamps214
Rearview mirrors, refer to
Mirrors54
Rear window
– heating108
– opening and closing40
"Received calls"182
Reception
– quality159
– radio stations159
– regional station157
Reception quality of mobile
phone, refer to Status
information20
Rechargeable flashlight113
Recirculated-air mode, refer
to AUC Automatic
recirculated-air control109
Recirculation of air, refer to
AUC Automatic
recirculated-air control109
Reclining seat, refer to
Seats49
Recording times, refer to
Stopwatch83
"Redial" for mobile phone182
Redialing with mobile
phone187
Reflectors, refer to Tail
lamps214Refueling198
Releasing, hood206
Releasing the locks, refer to
Unlocking37
"Relock door if not
opened"33
Remaining distance, refer to
Cruising range76
Remaining distance to
destination, refer to
Computer77
Remote control28
– battery replacement38
– comfort access37
– garage-door opener112
– luggage compartment lid31
– malfunction31,38
Removing condensation from
windows108
"Repeat directory" in audio
mode168
"Repeat" in audio mode168
"Repeat track" in audio
mode168
Replacement fuses216
Replacement remote control,
refer to New remote
controls28
Replacing bulbs, refer to
Lamps and bulbs212
Replacing tires, changing a
wheel215
Reporting safety defects7
Required fuel199
Reserve warning, refer to Fuel
gauge76
"Reset"90,92
– stopwatch83
– tone settings155
Reset, refer to Resetting tone
settings155
Residual heat109
Restraint systems
– for children57
– refer to Safety belts53
Retreaded tires
204
Reverse, fast
– CD changer168
– CD player168

Reference 247
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
"Start service"190
"Start Service" for BMW
Assist192
"State / Province" for
destination entry129
"State inspection"79
Station, refer to Radio156
"Status"79
Status information on Control
Display20
Status of this Owner's Manual
at time of printing5
Steering wheel
– adjustment55
– automatic adjustment, refer
to Easy entry/exit55
– automatic adjustment, refer
to Steering wheel
memory50
– buttons on steering
wheel11
– heating55
– lock, refer to Ignition lock59
– memory50
– programmable buttons55
– shift paddles63
"Steering wheel buttons"55
Steering-wheel shift buttons,
refer to Shift paddles63
Steering with variable ratio,
refer to Active steering94
Steptronic, refer to Automatic
transmission with
Steptronic63
– sport program and manual
mode64
"Stop" for stopwatch83
"Stopwatch"83
Stopwatch83
Storage compartments114
"Store in address book" for
navigation system136
"Store" on the radio158,164
Storing current position136
Storing radio stations158
Storing sitting position, refer
to Seat, mirror and steering
wheel memory50Storing tires205
"Street" for destination
entry130
Summer tires, refer to Wheels
and tires200
"Surround Settings", refer to
Tone control154
SW, waveband156
Switches, refer to Cockpit10
Switching on
– audio152
– CD changer152
– CD player
152
– radio152
Swiveling headlamps, refer to
Adaptive Head Light103
Symbols4
– indicator and warning
lamps13
– navigation system147
– status information20
– traffic information with
navigation system144
T
Tachometer75
Tail lamps214
– replacing bulbs214
Tank capacity
– also refer to Capacities226
– fuel tank capacity198
Target cursor for
navigation133
Technical alterations, refer to
For your own safety6
Technical data224
Telematics, refer to
BMW Assist189
Telephone
– installation location, refer to
Center armrest114
– refer to Mobile phone174
– refer to separate operating
instructions
"Telephone list"56
TeleService191Temperature
– adjusting in upper body
region108
– adjusting with automatic
climate control107
– changing units of
measure85
– refer to Coolant
temperature75
Temperature display
– changing units of
measure85
– outside temperature75
– outside temperature
warning75
Temperature gauge, engine
oil76
Tempomat, refer to Cruise
control67
"Terminate services"194
"Text language"85
"Theater", refer to Tone
control155
The individual vehicle5
Tie-down points, refer to
Securing cargo123
Tilt alarm sensor36
– switching off36
Tilting down passenger-side
exterior mirror54
"Time"84
"Time / Date"83
"Time format"84
Timer, refer to Preselecting
activation time110
"Timer 1" for parked-car
ventilation110
"Timer 2" for parked-car
ventilation110
Tire inflation pressure200
Tire pressure loss90,
92
Tire Pressure Monitor
TPM91
Tire Quality Grading202
Tire replacement, new wheels
and tires204

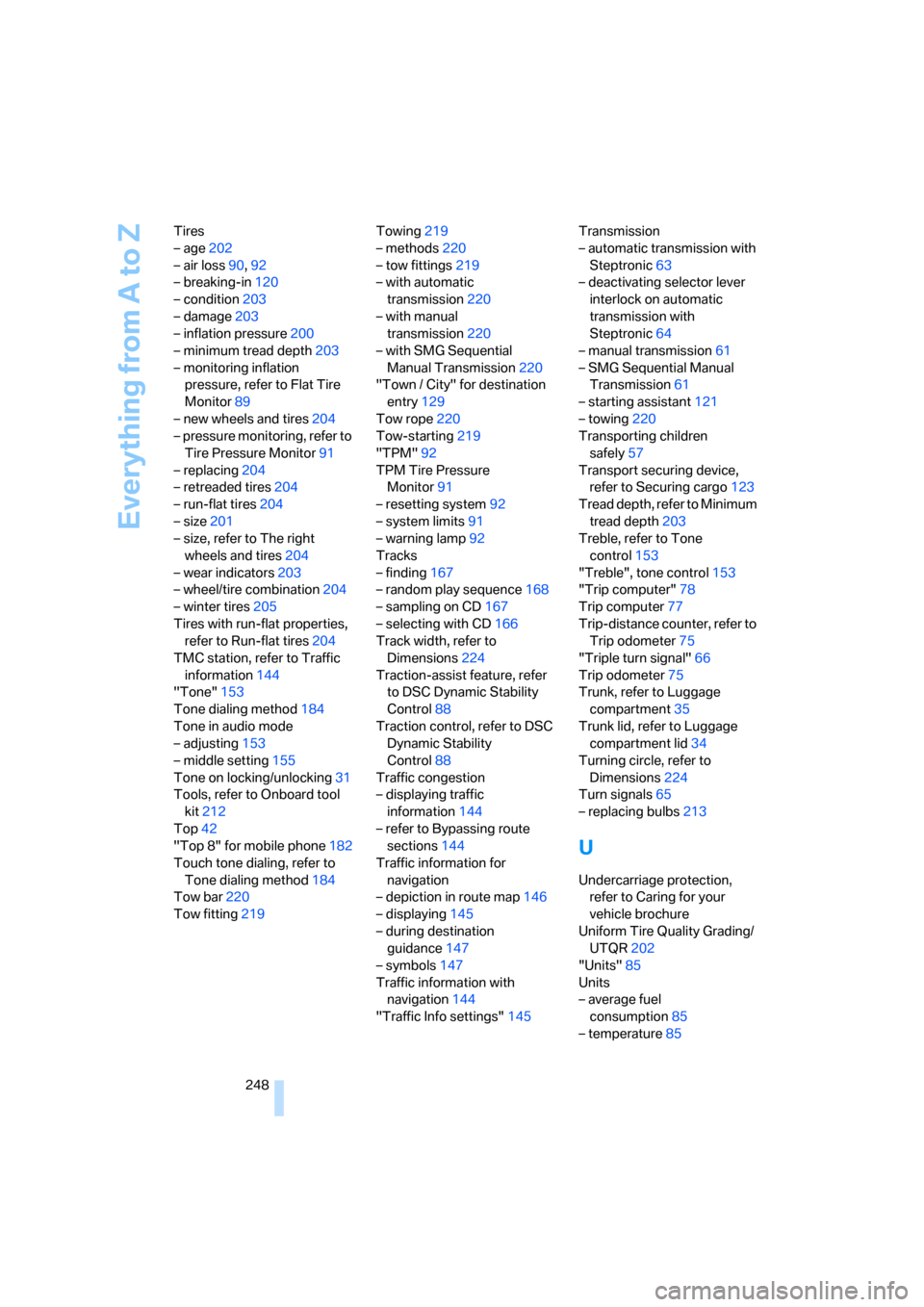

Everything from A to Z
248 Tires
– age202
– air loss90,92
– breaking-in120
– condition203
– damage203
– inflation pressure200
– minimum tread depth203
– monitoring inflation
pressure, refer to Flat Tire
Monitor89
– new wheels and tires204
– pressure monitoring, refer to
Tire Pressure Monitor91
– replacing204
– retreaded tires204
– run-flat tires204
– size201
– size, refer to The right
wheels and tires204
– wear indicators203
– wheel/tire combination204
– winter tires205
Tires with run-flat properties,
refer to Run-flat tires204
TMC station, refer to Traffic
information144
"Tone"153
Tone dialing method184
Tone in audio mode
– adjusting153
– middle setting155
Tone on locking/unlocking31
Tools, refer to Onboard tool
kit212
Top42
"Top 8" for mobile phone182
Touch tone dialing, refer to
Tone dialing method184
Tow bar220
Tow fitting219Towing219
– methods220
– tow fittings219
– with automatic
transmission220
– with manual
transmission220
– with SMG Sequential
Manual Transmission220
"Town / City" for destination
entry129
Tow rope220
Tow-starting219
"TPM"92
TPM Tire Pressure
Monitor
91
– resetting system92
– system limits91
– warning lamp92
Tracks
– finding167
– random play sequence168
– sampling on CD167
– selecting with CD166
Track width, refer to
Dimensions224
Traction-assist feature, refer
to DSC Dynamic Stability
Control88
Traction control, refer to DSC
Dynamic Stability
Control88
Traffic congestion
– displaying traffic
information144
– refer to Bypassing route
sections144
Traffic information for
navigation
– depiction in route map146
– displaying145
– during destination
guidance147
– symbols147
Traffic information with
navigation144
"Traffic Info settings"145Transmission
– automatic transmission with
Steptronic63
– deactivating selector lever
interlock on automatic
transmission with
Steptronic64
– manual transmission61
– SMG Sequential Manual
Transmission61
– starting assistant121
– towing220
Transporting children
safely57
Transport securing device,
refer to Securing cargo123
Tread depth, refer to Minimum
tread depth203
Treble, refer to Tone
control153
"Treble", tone control153
"Trip computer"78
Trip computer77
Trip-distance counter, refer to
Trip odometer75
"Triple turn signal"66
Trip odometer75
Trunk, refer to Luggage
compartment35
Trunk lid, refer to Luggage
compartment lid34
Turning circle, refer to
Dimensions224
Turn signals
65
– replacing bulbs213
U
Undercarriage protection,
refer to Caring for your
vehicle brochure
Uniform Tire Quality Grading/
UTQR202
"Units"85
Units
– average fuel
consumption85
– temperature85
