At a glance
17Reference
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Menu overview
Communication
>Telephone*
>BMW Assist* or TeleService*
Navigation or onboard information
>Navigation system*
>Onboard information, e.g. for displaying
the average fuel consumption
Entertainment
>Radio
>CD player and CD changer
*
>AUX-In connection
>USB/audio interface
*
Climate
>Vent settings
>Automatic programs
>Seat heater distribution
*
>Parked car operation*
menu
>Switching off Control Display
>Tone and display settings
>Settings for your vehicle, e.g. for the central
locking system
>Display of maintenance intervals and dead-
lines for legally mandated inspections
>Settings for telephone
Operating principle
From radio readiness, refer to page60, the fol-
lowing message is shown on the Control Dis-
play:
To hide the message:
Press the controller.
This displays the start menu.
The message is automatically hidden after
approx. 10 seconds.
Start menu
You can call up all the functions of iDrive using
five menu items.
Opening start menu
Press the button.
To open the start menu from the menu:
Press the button twice.

iDrive
18
Opening menu items of start menu
With the start menu you can open the menu
items Communication, Navigation, Entertain-
ment and Climate by moving the controller to
the left, right, front or rear.
You can open the menu by pressing the con-
troller.
Comfort opening of menu items
Comfort opening offers you:
>Opening of a menu item of the start menu in
the last display shown
>Direct changing between Communication,
Navigation, Entertainment and Climate
without pressing the button
For this purpose, move the controller in the cor-
responding direction and hold it for longer than
approx. 2 seconds.
Displays in menu
1Each menu is divided into fields.
The respective active field is highlighted.
2A symbol indicates the last selected menu
item of the start menu:
1Menu items are usually grouped in horizon-
tal or vertical lists.
2In these lists, arrows indicate the possibility
of accessing other menu items that are not
currently visible.
3Settings are displayed graphically or
numerically.
Communication
Navigation or onboard information
Entertainment
Climate
menu

Climate
112 16Air grill for interior temperature sensor –
please keep clear and unobstructed
The current setting for air distribution is dis-
played on the Control Display.
A congenial climate
The AUTO program offers the optimum air dis-
tribution and air volume for virtually all condi-
tions, refer to AUTO program below. Now you
only need to select an interior temperature
pleasant to you.
The following sections contain more detailed
information on the available setting options.
Most settings are stored for the remote control
currently in use, also refer to Personal Profile
settings on page29.
AUTO program
The AUTO program handles the
adjustment of air volume and air
distribution to the windshield and
side windows, in the direction of
the upper body and in the footwell.
It also adapts your instructions for the tempera-
ture to outside influences throughout the year.
The cooling is switched on automatically with
the AUTO program. At the same time, a con-
densation sensor controls the program in such
a way that window condensation is prevented
as much as possible.
Intensity of AUTO program
You can adjust the intensity of the AUTO pro-
gram by repeatedly pressing the AUTO button.
The respective current setting is briefly dis-
played when the button on the Control Display
is pressed.
You can also adjust the intensity of the AUTO
program via iDrive.
iDrive, for explanation of principle, refer to
page16.
1.Press the button.
This opens the start menu.
2.Move the controller to the left to open "Cli-
mate".3.Select "Automatic programs" and press the
controller.
4.Select the desired intensity and press the
controller.
The marked intensity of the automatic
program is switched on.
Temperature
Set the desired temperature indi-
vidually on the driver's and front
passenger side.
The automatic climate control
adjusts this temperature as quickly as possible
at any time of year, if necessary with the maxi-
mum cooling or heating capacity, and then
keeps it constant.
When changing between different tem-
perature settings in rapid succession, the
automatic climate control does not have suffi-
cient time to adjust the set temperature.<
In the highest setting you activate the maximum
heating output, regardless of the outside tem-
perature.
Adjusting temperature in upper body
region
1.Press the button to display the current set-
ting on the Control Display.
2.Select the field by moving the controller and
turning the controller to adjust the temper-
ature.

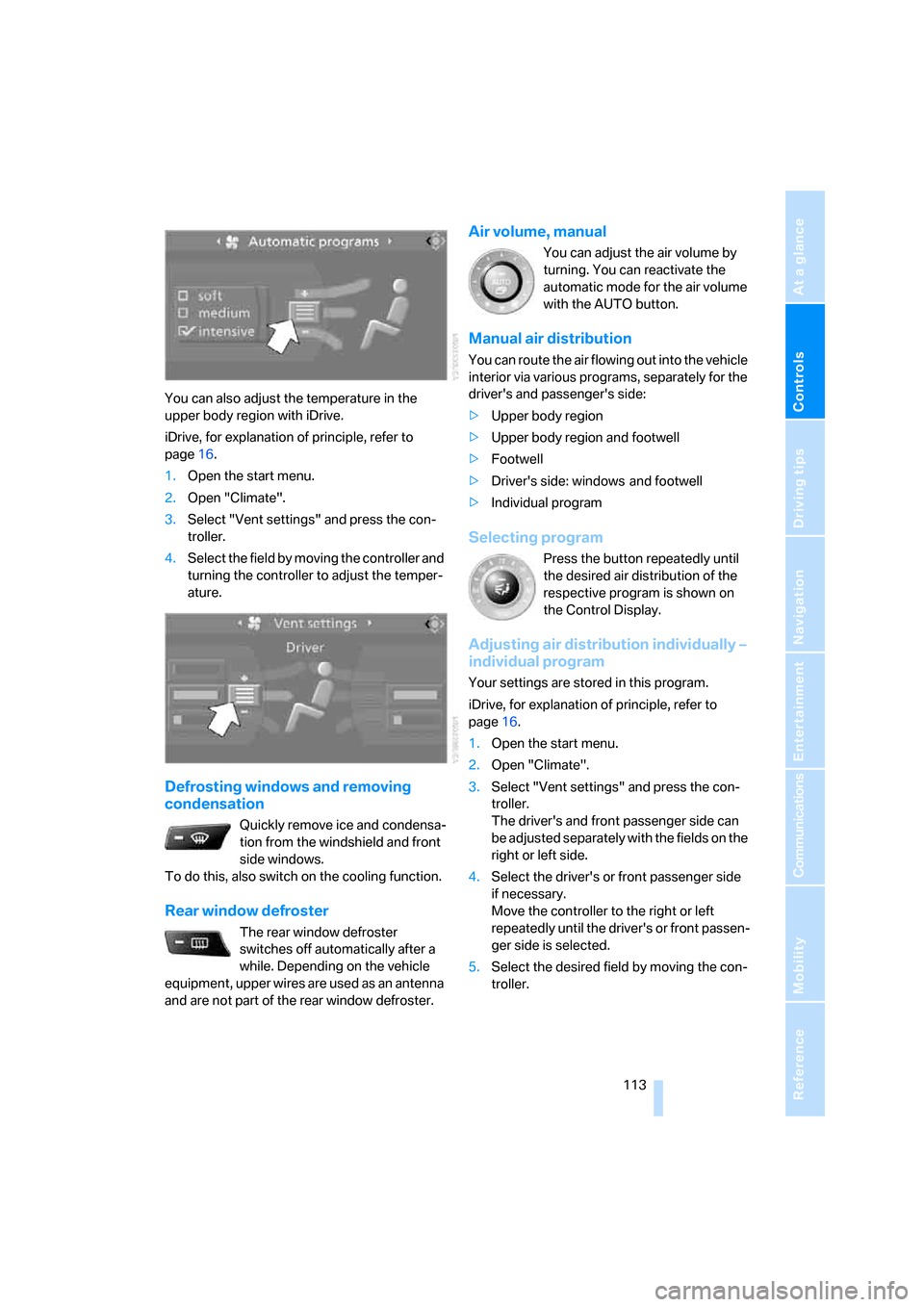

Controls
113Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility
You can also adjust the temperature in the
upper body region with iDrive.
iDrive, for explanation of principle, refer to
page16.
1.Open the start menu.
2.Open "Climate".
3.Select "Vent settings" and press the con-
troller.
4.Select the field by moving the controller and
turning the controller to adjust the temper-
ature.
Defrosting windows and removing
condensation
Quickly remove ice and condensa-
tion from the windshield and front
side windows.
To do this, also switch on the cooling function.
Rear window defroster
The rear window defroster
switches off automatically after a
while. Depending on the vehicle
equipment, upper wires are used as an antenna
and are not part of the rear window defroster.
Air volume, manual
You can adjust the air volume by
turning. You can reactivate the
automatic mode for the air volume
with the AUTO button.
Manual air distribution
You can route the air flowing out into the vehicle
interior via various programs, separately for the
driver's and passenger's side:
>Upper body region
>Upper body region and footwell
>Footwell
>Driver's side: windows and footwell
>Individual program
Selecting program
Press the button repeatedly until
the desired air distribution of the
respective program is shown on
the Control Display.
Adjusting air distribution individually –
individual program
Your settings are stored in this program.
iDrive, for explanation of principle, refer to
page16.
1.Open the start menu.
2.Open "Climate".
3.Select "Vent settings" and press the con-
troller.
The driver's and front passenger side can
be adjusted separately with the fields on the
right or left side.
4.Select the driver's or front passenger side
if necessary.
Move the controller to the right or left
repeatedly until the driver's or front passen-
ger side is selected.
5.Select the desired field by moving the con-
troller.

Climate
114 6.Turn the controller to adjust the air distribu-
tion.
Driver's side:
1Air directed toward the windshield and side
windows
2Air for the upper body
3Air to footwell
Front passenger side:
4Air for the upper body
5Air to footwell
Pressing the AUTO button cancels the
manual air distribution settings.<
The automatic mode for the air volume remains
effective with manual air distribution.
Switching cooling function on and off
The cooling function cools and
dehumidifies the incoming air
before also reheating it as
required, according to the temperature setting.
Depending on the weather, the windshield may
fog over briefly when the engine is started.
The cooling function is switched on automati-
cally with the AUTO program. The passenger
compartment can only be cooled with the
engine running.
Maximum cooling
Maximally cooled air is obtained as
quickly as possible at an outside
temperature above approx. 327/06 and with
the engine running.
The automatic climate control changes over to
the lowest temperature and switches into the
recirculated-air mode. The maximum air vol-ume only flows out of the vents for the upper
body. Therefore, open these vents for maxi-
mum cooling.
AUC Automatic recirculated-air
control/recirculated-air mode
You can respond to pollutants or
unpleasant odors in the immediate
environment by suspending the
supply of outside air. The system then recircu-
lates the air currently within the vehicle. During
AUC operation, a sensor detects pollutants in
the outside air and controls the shut-off auto-
matically.
By pressing the button repeatedly, you can
request three operating modes:
>LED off: outside air flows in continuously.
>Right LED on, AUC mode: the system
detects pollutants in the outside air and
shuts off the supply as needed.
>Left LED on, recirculated-air mode: the
supply of outside air is permanently shut off.
Should the windows fog up in the recircu-
lated-air mode, press the AUTO button or
switch off the recirculated-air mode and
increase the air volume if necessary.
The recirculated-air mode should not be used
over an extended period of time, as the air qual-
ity inside the vehicle deteriorates continu-
ously.<
Residual heat
The heat stored in the engine is
used to heat the passenger com-
partment, e.g. while stopped at a
school to pick up a child.
1.Switch off the engine.
2.Turn to the right, see arrow.
The function can be switched on when the fol-
lowing conditions are met:
>up to 15 minutes after switching off the
engine
>with engine at operating temperature
>with sufficient battery voltage

Short commands of voice command system
260
Climate
menu
FunctionCommand
To adjust temperature distribution for front seat
heating51{Seat heater distribution}
To open "Vent settings"113{Vent settings}
To open "Automatic programs"112{Automatic programs}
To open "Parked car ventilation"116{Parked car operation}
To open "Automatic ventilation"116{Automatic ventilation}
To display activation times116{Activation time}
FunctionCommand
To open the menu{Settings menu}
"Display off"21{Display off}
To open "Info sources"{Info sources}
To open "Settings"{Settings}
To open "Door locks"30, 33{Door locks}
To open "Steering wheel buttons"54{Steering wheel buttons}
To open "Lighting"66{Lighting}
To open "Service requirements"80, 209{Service requirements}
To open "Service"80, 209{Service}
To open "BMW Service settings" settings211{BMW service settings}
To display "Check Control messages"83{Check Control messages}
To open "Head-Up Display"101{Head-up display}
To set brightness of Control Display87{Brightness}
To open "Units"87{Units}
To open "Languages"87, 140{Language}
To open "Time"85{Time}
To open "Date"86{Date}
To open "PDC"89{PDC}
To open "FTM"94{FTM}
To open "TPM"
96{TPM}
To display "Bluetooth"196{Bluetooth}
To open "HDC"92{HDC}
Activating BMW Night Vision104{Night Vision on}
Deactivating BMW Night Vision104{Night Vision off}
Displaying settings for BMW Night Vision104{Night Vision settings}

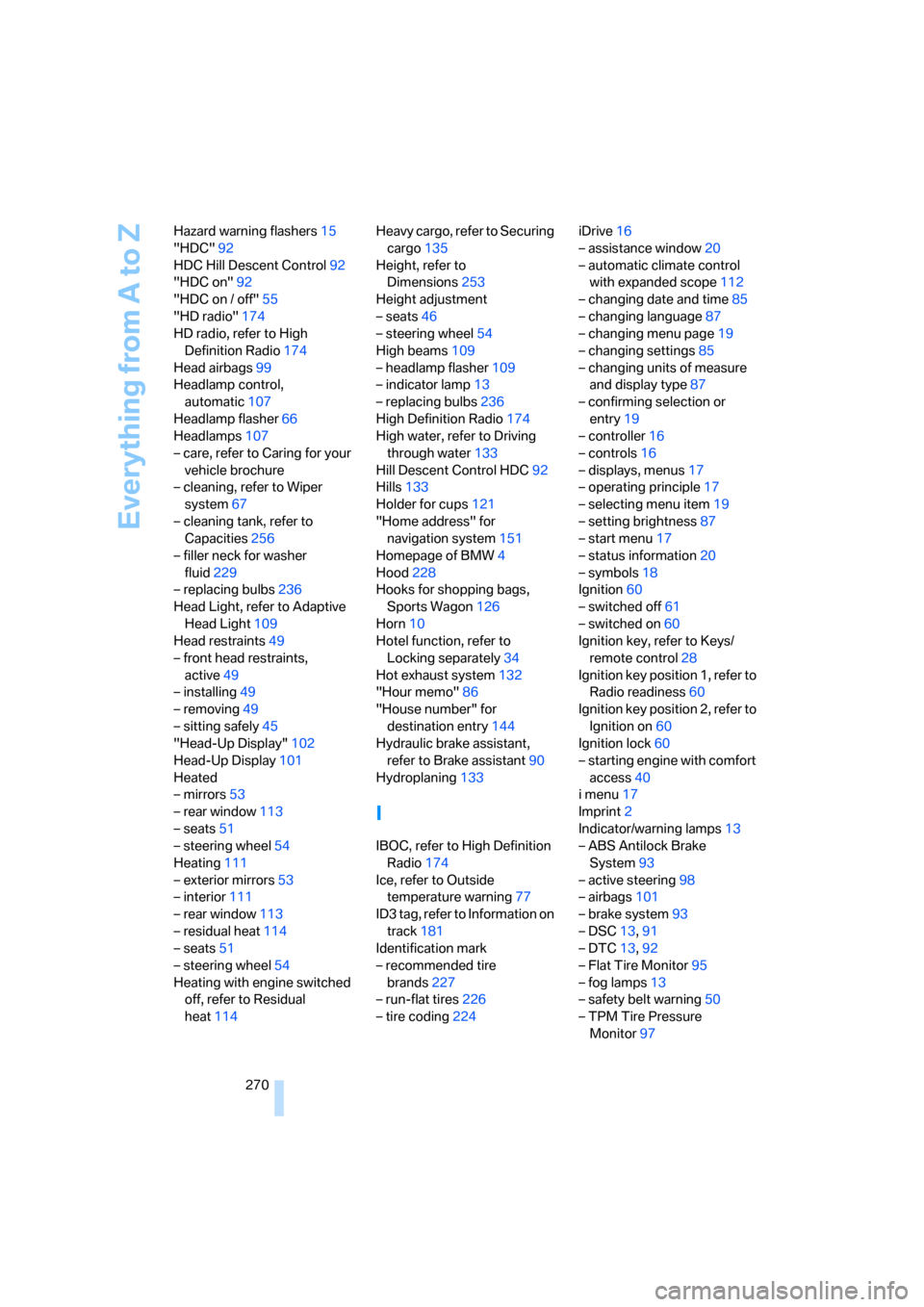

Everything from A to Z
270 Hazard warning flashers15
"HDC"92
HDC Hill Descent Control92
"HDC on"92
"HDC on / off"55
"HD radio"174
HD radio, refer to High
Definition Radio174
Head airbags99
Headlamp control,
automatic107
Headlamp flasher66
Headlamps107
– care, refer to Caring for your
vehicle brochure
– cleaning, refer to Wiper
system67
– cleaning tank, refer to
Capacities256
– filler neck for washer
fluid229
– replacing bulbs236
Head Light, refer to Adaptive
Head Light109
Head restraints49
– front head restraints,
active49
– installing49
– removing49
– sitting safely45
"Head-Up Display"102
Head-Up Display101
Heated
– mirrors53
– rear window113
– seats51
– steering wheel54
Heating111
– exterior mirrors53
– interior111
– rear window113
– residual heat114
– seats51
– steering wheel54
Heating with engine switched
off, refer to Residual
heat114Heavy cargo, refer to Securing
cargo135
Height, refer to
Dimensions253
Height adjustment
– seats46
– steering wheel54
High beams109
– headlamp flasher109
– indicator lamp13
– replacing bulbs236
High Definition Radio174
High water, refer to Driving
through water133
Hill Descent Control HDC92
Hills133
Holder for cups121
"Home address" for
navigation system151
Homepage of BMW4
Hood228
Hooks for shopping bags,
Sports Wagon126
Horn10
Hotel function, refer to
Locking separately34
Hot exhaust system132
"Hour memo"86
"House number" for
destination entry144
Hydraulic brake assistant,
refer to Brake assistant90
Hydroplaning133
I
IBOC, refer to High Definition
Radio174
Ice, refer to Outside
temperature warning77
ID3 tag, refer to Information on
track181
Identification mark
– recommended tire
brands227
– run-flat tires226
– tire coding224iDrive16
– assistance window20
– automatic climate control
with expanded scope112
– changing date and time85
– changing language87
– changing menu page19
– changing settings85
– changing units of measure
and display type87
– confirming selection or
entry19
– controller16
– controls16
– displays, menus17
– operating principle17
– selecting menu item19
– setting brightness87
– start menu17
– status information20
– symbols18
Ignition60
– switched off61
– switched on60
Ignition key, refer to Keys/
remote control28
Ignition key position 1, refer to
Radio readiness60
Ignition key position 2, refer to
Ignition on60
Ignition lock60
– starting engine with comfort
access40
i menu17
Imprint2
Indicator/warning lamps13
– ABS Antilock Brake
System93
– active steering98
– airbags101
– brake system93
– DSC13,91
– DTC13,92
– Flat Tire Monitor95
– fog lamps13
– safety belt warning50
– TPM Tire Pressure
Monitor97

Everything from A to Z
278 "Store in address book" for
navigation system150
"Store" on the radio172,178
Storing current position150
Storing radio stations172
Storing sitting position, refer
to Seat, mirror and steering
wheel memory47
Storing tires227
"Street" for destination
entry144
Summer tires, refer to Wheels
and tires218
Sun blinds119
"Surround Settings", refer to
Tone control168,169
SW, waveband170
Swinging up floor panel,
Sports Wagon126
Switches, refer to Cockpit10
Switching off engine61
Switching on
– audio166
– CD changer166
– CD player166
– radio166
Switching on hour signal86
Swiveling headlamps, refer to
Adaptive Head Light109
Symbols4
– indicator/warning lamps13
– navigation system161
– status information20
– traffic information with
navigation system158
T
Tachometer77
"Tailgate"36
Tailgate34
– automatic operation36
– emergency operation, refer
to Opening manually36
– locking and unlocking from
inside33
– opening from inside35Tail lamps237
– replacing bulbs237
Tank contents, refer to
Capacities256
Target cursor for
navigation147
Technical alterations, refer to
For your own safety5
Technical data252
– capacities256
– dimensions253
Telematics, refer to
BMW Assist207
Telephone
– installation location, refer to
Center armrest120
– refer to Mobile phone192
"Telephone list"55
TeleService209
Temperature
– adjusting in upper body
region112
– adjusting with automatic
climate control112
– changing units of
measure87
– refer to Coolant
temperature77
Temperature display
– changing units of
measure87
– outside temperature77
– outside temperature
warning77
Tempomat, refer to Cruise
control68
"Terminate services"212
"Text language"87
"Theater", refer to Tone
control169
The individual vehicle5
Third brake lamp, refer to
Center brake lamp238
Through-loading system123
Tightening torque of the lug
bolts, refer to After
mounting241Tilt alarm sensor38
– switching off38
Tilting down passenger-side
exterior mirror53
"Time"86
"Time format"86
Timer, refer to Preselecting
activation times
116
"Timer 1" for parked-car
ventilation116
"Timer 2" for parked-car
ventilation116
Tire inflation pressures218
Tire pressure loss95,96
Tire Pressure Monitor
TPM95
Tire Quality Grading224
Tire replacement, new wheels
and tires226
Tires
– age224
– air loss95,97
– breaking-in132
– changing226
– condition225
– damage225
– flat tire, refer to Changing
wheels239
– inflation pressure218
– new wheels and tires226
– pressure monitoring, refer to
Flat Tire Monitor94
– pressure monitoring, refer to
TPM Tire Pressure
Monitor95
– replacing239
– retreaded tires226
– run-flat tires226
– size224
– tread225
– wear indicators225
– wheel/tire combination226
– winter tires227
Tire trouble
– changing wheels239
– compact wheel241
TMC station, refer to Traffic
information158
