Page 54 of 271

GETTING TO KNOW YOUR CAR
52
fig. 67
A0A0748b
DASHBOARD
(For right-hand drive versions see dashboard and instruments in the dedicated paragraph at the end of the manual)
1. Adjustable side air vents - 2. Fixed side window air vents - 3. External lights control lever - 4. Instrument panel - 5. Tailgate release button - 6. Cards holder
(for versions/markets where applicable) - 7. Sound system (for versions/markets where applicable) - 8. Adjustable central air vents - 9. Upper fixed vent - 10.
Glass/can holder (for versions/markets where applicable) - 11. Front fog light button - 12. Hazard light switch - 13. Rear fog light button - 14. front passen-
ger’s air bag - 15. Glovebox - 16. Door locking button - 17. Heating/ventilation/climate controls - 18. Cigar lighter/ashtray housing lid - 19. Temperature sen-
sor - 20. Windscreen wiper stalk - 21. Ignition key and ignition switch - 22. Horn - 23. Steering wheel locking/release lever - 24. Driver’s air bag - 25. Set of
controls - 26. Bonnet opening lever.
Page 101 of 271

GETTING TO KNOW YOUR CAR
99

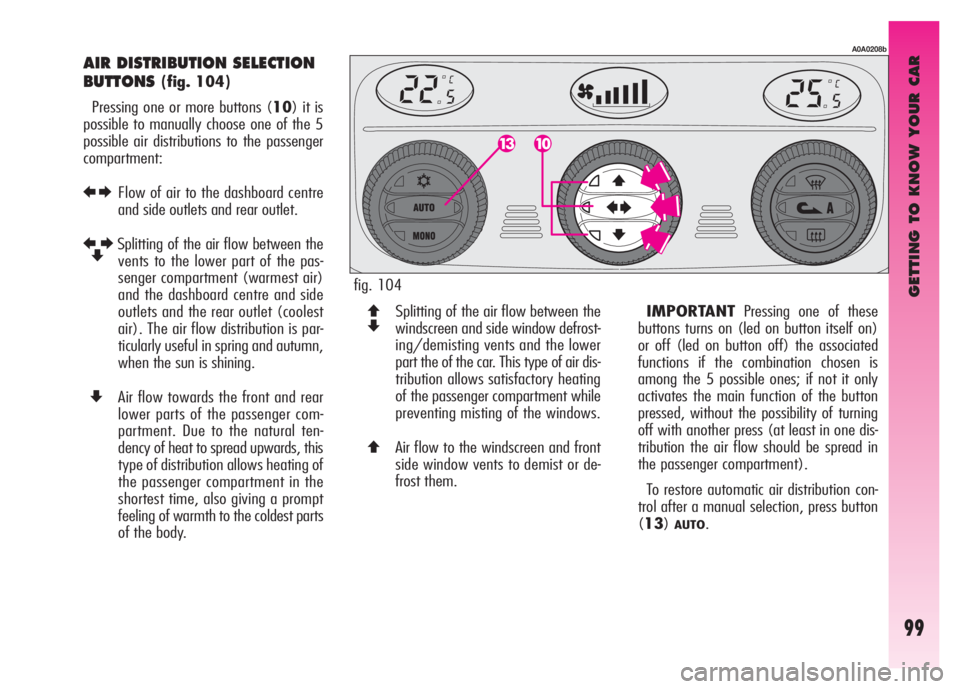

AIR DISTRIBUTION SELECTION
BUTTONS
(fig. 104)
Pressing one or more buttons (10) it is
possible to manually choose one of the 5
possible air distributions to the passenger
compartment:
REFlow of air to the dashboard centre
and side outlets and rear outlet.
R
ZESplitting of the air flow between the
vents to the lower part of the pas-
senger compartment (warmest air)
and the dashboard centre and side
outlets and the rear outlet (coolest
air). The air flow distribution is par-
ticularly useful in spring and autumn,
when the sun is shining.
ZAir flow towards the front and rear
lower parts of the passenger com-
partment. Due to the natural ten-
dency of heat to spread upwards, this
type of distribution allows heating of
the passenger compartment in the
shortest time, also giving a prompt
feeling of warmth to the coldest parts
of the body.
A0A0208b
Q
ZSplitting of the air flow between the
windscreen and side window defrost-
ing/demisting vents and the lower
part the of the car. This type of air dis-
tribution allows satisfactory heating
of the passenger compartment while
preventing misting of the windows.
QAir flow to the windscreen and front
side window vents to demist or de-
frost them. IMPORTANTPressing one of these
buttons turns on (led on button itself on)
or off (led on button off) the associated
functions if the combination chosen is
among the 5 possible ones; if not it only
activates the main function of the button
pressed, without the possibility of turning
off with another press (at least in one dis-
tribution the air flow should be spread in
the passenger compartment).
To restore automatic air distribution con-
trol after a manual selection, press button
(13)
AUTO. fig. 104
Page 123 of 271

GETTING TO KNOW YOUR CAR
121
INTERIOR FITTINGS
GLOVEBOX
On the dashboard there is a glovebox with
lid and light.
To open use handle (A-fig. 128).
When the glovebox is opened with the key
atMARan inside courtesy light turns on
(A-fig. 129).
FRONT ROOF LIGHT
(fig. 130)
The roof light comprises two courtesy lights
with corresponding control switch.
IMPORTANTWhen a door is opened,
the roof light turns on and timing of about
3 minutes is activated automatically, after
which it goes off; closing the doors (within
the 3 minutes) a second timing of about 7
seconds is activated to allow car starting.
fig. 128
A0A0108b
fig. 129
A0A0109b
Never travel with the
glovebox open: the lid
might harm the passenger
in the event of an accident.
The fitting is completed by device (B), on
the lid, for inserting a pen or pencil.
IMPORTANTTurning the ignition key to
STOP, opening the glovebox, the light in-
side can only be turned on for 15 minutes;
after which the system turns it off to avoid
draining the battery.
fig. 130
A0A0111b
Page 133 of 271

GETTING TO KNOW YOUR CAR
131fig. 147
A0A0707b
Carry out this operation
only with the car station-
ary.
DANGER-SERIOUS IN-
JURY. When carrying out
checks or maintenance op-
erations in the engine compart-
ment, take special care not to bump
the head on the raised bonnet.
If checks need to be car-
ried out in the engine com-
partment when the engine
is still warm, keep away from the
fan as it could start up even when
the key is removed from the igni-
tion. Wait until the engine cools
down.
BONNET
The bonnet opening lever is under the left
end of the dashboard.
To open:
– pull the lever (A-fig. 146) until the
bonnet clicks open.
– press the safety lever (A-fig. 147)
upwards.
– raise the bonnet.
IMPORTANTBonnet raising is aided by
two gas springs. Do not tamper with these
springs and accompany the bonnet while
raising it.
fig. 146
A0A0135b
Scarves, ties and loose
clothing may be caught in
the moving parts.
For safety reasons the
bonnet must be closed
properly to avoid its open-
ing while the car is travelling.
Therefore, always check it is prop-
erly closed and the catch engaged.
Should you notice that the catch is
not perfectly engaged when trav-
elling, stop the car immediately and
close the bonnet.
To close:
– lower the bonnet until approx. 20 cm
from the engine compartment and then let
it drop, ensuring it is fully closed and not just
held in position by the safety catch.
If the bonnet does not close properly do
not push it down but open it again and re-
peat the above procedure.
Page 143 of 271

GETTING TO KNOW YOUR CAR
141
The radio is installed in a user-friendly po-
sition for the driver and passenger and the
graphics on the front panel make location
of the controls quick, facilitating use.
The CD Changer is available at Lineacces-
sori Alfa Romeo.
In the following pages you will find the
instructions for use, which you are advised
to read through carefully. The instructions al-
so contain the procedure for controlling the
CD Changer (if provided) through the radio.
For the instructions for use of the CD Chang-
er refer to the specific manual. ADVICE
Road safety
You are advised to learn how to use the
various radio functions (e.g.: storing sta-
tions) before starting to drive.
Reception conditions
Reception conditions change constantly
when driving. Reception may be disturbed
by the presence of mountains, buildings or
bridges particularly when far away from the
station being listened to.
IMPORTANTWhen receiving traffic in-
formation, the volume may be higher than
normal.
SOUND SYSTEM
The car sound system, fitted with CD play-
er (radio with Compact Disc player) or MP3
CD player (radio with MP3 CD player) has
been designed in accordance with the spe-
cial features of the passenger compartment,
with a personalised design that blends with
the style of the dashboard. The sound sys-
tem cannot be adapted to other vehicles and
for this reason it cannot be removed.
Page 208 of 271
IN AN EMERGENCY
206
To locate the protection fuses, consulting
the summary table on the following pages,
refer to the following illustrations fig. 52,
fig. 53and54.Alfa GTfuses are located in three fuse
boxes set on the dashboard, on battery pos-
itive terminal and near the battery.
To gain access to the fuses in the fuse box
on the dashboard, loosen the two retain-
ers (A-fig. 50) and remove the protective
cover (B).
To gain access to the fuses in the fusebox
on the battery post, remove the protective
cover pressing the opening catches (front).
Access is gained to the control box next to
the battery releasing the perimetral catches
(A-fig. 51) and removing the protective
cover (B).
fig. 50
A0A0186b
fig. 51
A0A0187b
fig. 52 - Fuse box on the dashboard
A0A0134b
Page 212 of 271
Volumetric sensors
ESP system sensor
Steering angle sensor
EOBD system diagnosis socket
Cell phone provision
Driver’s door control unit supply
Passenger’s door control unit supply
Control lighting
Climate control system control lighting
Instrument cluster
Instrument cluster
Driver’s door control unit
ABS control unit
ABS control unit
Dashboard control unit
Air - bag control unit
Electronic injection control unit +30
Engine compartment control box (petrol versions)
Dashboard control unit
Trailer control unit15
7.5
7.5
15
15
20
20
7.5
7.5
10
10
15
7.5
50
50
7.5
7.5
125
70
10 F39
F42
F42
F39
F39
F47
F48
F49
F35
F37
F53
F39
F42
F04 (MAXI-FUSE)
F02 (MAXI-FUSE)
F50
F18
F70 (MEGA-FUSE)
F71 (MAXI-FUSE)
F36 52
52
52
52
52
52
52
52
52
52
52
52
52
53
53
52
53
54
54
52
SERVICES FIGURE FUSE AMPERES
IN AN EMERGENCY
210
Page 213 of 271
IN AN EMERGENCY
211
40
30
50
15
15
15
15
25
7.5
15
15
30
30
50
20
150
40
60
20 F05 (MAXI-FUSE)
F06 (MAXI-FUSE)
F07 (MAXI-FUSE)
F10
F21
F22
F21
F60 (*)
F16
F61 (*)
F62 (*)
F08
F72 (MAXI-FUSE)
F01 (MAXI-FUSE)
F20
F70 (MEGA-FUSE)
F06 (MAXI-FUSE)
F07 (MAXI-FUSE)
F22 53
53
53
53
53
53
53
52
53
52
52
53
54
53
53
54
53
53
53
SERVICES FIGURE FUSE AMPERES
(*) Fuse behind dashboard control box on an auxiliary bracket.
Climate control fan
Radiator fan (first speed - petrol versions)
Radiator fan (second speed - petrol versions)
Horn
Fuel pump
Injectors (petrol versions)
Ignition coils
Tailgate electric unlocking
Electronic injection system
Bose system
Bose system
Additional heater
Ignition switch
Glow plug warming (JTD versions)
Heated fuel oil filter (JTD versions)
Engine compartment control box (JTD versions)
Radiator fan (first speed – JTD versions)
Radiator fan (second speed – JTD versions)
Injectors (JTD versions)
