2007 Alfa Romeo Brera/Spider handbrake

MUST BE READ!
REFUELLING
Petrol engines:only refuel with unleaded petrol with octane rating (RON) not less than 95.
Diesel engines: only refuel with diesel fuel conforming to the European specification EN590. The use of
other products or mixtures may irreparably damage the engine with invalidation of the warranty due to the
damage caused.
K
ENGINE STARTING
Petrol engines: make sure that the handbrake is engaged; set the gearshift lever to neutral; fit the electronic key in-
to the ignition switch to the stop limit; fully depress the clutch or the brake pedal without pressing the accelerator; press
button START/STOPand release it as soon as the engine has started.
Diesel engines:make sure that the handbrake is engaged; set the gearshift lever to neutral; fit the electronic key in-
to the ignition switch to the stop limit; wait for the
mwarning light to go off; fully depress the clutch or the brake ped-
al without pressing the accelerator; press buttonSTART/STOPand release it as soon as the engine has started.
PARKING ON FLAMMABLE MATERIAL
While working, the catalyst develops a very high temperature. Do not park the car over grass, dry leaves, pine
needles or any other inflammable materials: risk of fire.

RESPECTING THE ENVIRONMENT
A system for continuously monitoring emission system components to ensure greater environmental protec-
tion is fitted in your car.

19
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
IGNITION
DEVICE
The ignition device is located on the
dashboard and it consists of the fol-
lowing:
❒electronic key reading device A-
fig. 13(set near the steering
wheel);
❒button START/STOP(set under
the electronic key reading device).
IMPORTANTTo prevent running
down the battery do not leave the elec-
tronic key into the ignition device when
the engine is off.
HOW TO CUT OFF THE
ALARM SYSTEM
To deactivate the alarm system com-
pletely (for instance during prolonged
inactivity of the car) simply lock the car
by rotating the metal insert (provided
inside the electronic key) into the dri-
ver’s door lock.
MINISTERIAL
HOMOLOGATION
In keeping with the laws in force in each
country on the subject of radio fre-
quency, for markets in which the trans-
mitter needs to be marked the certifi-
cation number is given on the compo-
nent. For certain versions/markets, the
code may also be marked on the trans-
mitter and/or on the receiver.
A0F0219mfig. 13
If the ignition device is
tampered with (for ex-
ample during an attempted
break-in) have it checked over
by Alfa Romeo Authorized
Services before travelling
again.
WARNING
When leaving the car
always remove the
electronic key from the ignition
device to prevent any passen-
ger in the car from inadver-
tently activating the controls.
Remember to engage the
handbrake and if the car is fac-
ing uphill, first gear and if the
car is facing downhill, reverse.
Never leave children unat-
tended in the car.
WARNING

139
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
STARTING PROCEDURE FOR
PETROL VERSIONS
Proceed as follows:
❒pull up the handbrake;
❒put the gear lever neutral;
❒fit the electronic key into the ignition
device to stop limit;
❒press the clutch (or brake) pedal
down to the floor without pressing the
accelerator;
❒press button START/STOP and re-
lease it as soon as the engine starts.
STARTING PROCEDURE FOR
DIESEL VERSIONS
Proceed as follows:
❒pull up the handbrake;
❒put the gear lever neutral;
❒fit the electronic key into the ignition
device to stop limit. The warning
light
mon the instrument panel
will turn on;
❒wait for the warning light mto turn
off. The hotter the engine is, the quick-
er this will happen;
❒press the clutch (or brake) down to
the floor without pressing the accel-
erator;
❒press button START/STOPas soon
as warning light
mgoes out. If you
wait too long you will lose the bene-
fit of the work done by the glow plugs.
Release the button as soon as the en-
gine starts.WARNINGS
If at start-up the engine turns off, restart
it by pressing the clutch or brake pedal
and then press button START/STOP.
If after a few attempts the engine does
not start, do not insist but contact Alfa
Romeo Authorized Services.
With car started the electronic key is
locked into the ignition device and it can
be removed only after switching the en-
gine off. With car running and key locked
into the ignition device, forced key re-
moval could damage the ignition device.

143
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
To release the handbrake proceed as fol-
lows:
❒Slightly lift the handbrake Aand
press release button B;
❒Keep button Bpressed and lower
the lever. Warning light
xon the
instrument panel will turn off.
Press the brake pedal when carrying out
this operation to prevent the car from
moving accidentally.
HANDBRAKE
The handbrake lever A-fig. 2 is locat-
ed between the two front seats. Pull the
handbrake lever Aupwards, until the
car cannot be moved.
With electronic key fitted into the igni-
tion device, the instrument panel warn-
ing light
xwill come on.
IMPORTANT The car shall stop after
a few clicks of the handbrake lever. If
this is not the case, contact Alfa Romeo
Authorized Services to have the hand-
brake adjusted.
A0F0030mfig. 2
PARKING THE CAR
Proceed as follows:
❒Stop the engine and engage the
handbrake;
❒Engage a gear (on a slope, engage
first gear if the car is faced uphill or
reverse if it is faced downhill) and
leave the wheels steered.
Block the wheels with a wedge or a stone
if the car is parked on a steep slope. Do
not leave the electronic key in the igni-
tion switch to prevent draining the bat-
tery.
Never leave children un-
attended in the car. Al-
ways remove the electronic key
when leaving the car and take
it out with you.
WARNING

152
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
CAR INACTIVITY
If the car is to be left inactive for longer
than a month, the following precautions
should be noted:
❒park the car in covered, dry and if
possible well-ventilated premises;
❒engage a gear;
❒check that the handbrake is not en-
gaged;
❒disconnect battery negative terminal
and check the battery charge. This
check is to be repeated every three
months when the car is left inactive.
Recharge if the optical indicator
(where provided) shows a dark
colour without the central green area
(see paragraph “Battery” in section
“Car maintenance”);
❒clean and protect the painted parts
using protective wax;
❒clean and protect the shiny metal
parts using special compounds read-
ily available;
❒sprinkle talcum powder on the rub-
ber windscreen and rear window
wiper blades and lift them off the
glass;
❒slightly open the windows;
❒cover the car with a cloth or perfo-
rated plastic sheet. Do not use sheets
of non-perforated plastic as they do
not allow moisture on the car body
to evaporate;
❒inflate tyres to +0.5 bar above the
normal specified pressure and check
it at intervals;
❒if you don’t disconnect the battery
from the electric system, check its
charge every month and recharge it
if the optical indicator shows a dark
colour without the central green
area;
❒do not drain the engine cooling sys-
tem.
IMPORTANTIf the car is fitted with
alarm system, switch off the alarm with
the remote control.

153
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
W W W W
A A A A
R R R R
N N N N
I I I I
N N N N
G G G G

L L L L
I I I I
G G G G
H H H H
T T T T
S S S S

A A A A
N N N N
D D D D

M M M M
E E E E
S S S S
S S S S
A A A A
G G G G
E E E E
S S S S
LOW BRAKE FLUID/
HANDBRAKE ON ................................................. 155
BRAKE PAD WEAR ............................................. 155
SEAT BELTS NOT FASTENED ................................. 155
AIR BAG FAILURE................................................ 156
FRONT AIR BAGS DEACTIVATED ............................ 156
ENGINE COOLANT HIGH TEMPERATURE.................. 157
ENGINE OIL HIGH TEMPERATURE .......................... 158
LOW ENGINE OIL PRESSURE/ EXHAUST OIL .......... 158
LOW BATTERY CHARGE ....................................... 158
INCOMPLETE DOOR LOCKING ............................... 159
BONNET OPEN ................................................... 159
BOOT OPEN....................................................... 159
INJECTION SYSTEM FAILURE/
EOBD SYSTEM FAILURE....................................... 159
CAR PROTECTION SYSTEM FAILURE/
STEERING LOCK INHIBITION................................. 160
ALARM FAILURE/BREAK-IN ATTEMPT/
ELECTRONIC KEY NOT RECOGNIZED ...................... 160
POSSIBLE PRESENCE OF ICE ON THE ROAD............ 161
PRE-HEATING GLOW PLUGS/
PRE-HEATING GLOW PLUG FAILURE ....................... 161
WATER IN DIESEL FUEL FILTER ............................. 162INERTIAL FUEL CUT-OFF SWITCHED ON ................. 162
ABS SYSTEM FAILURE......................................... 163
EBD SYSTEM FAILURE......................................... 163
VDC SYSTEM .................................................... 163
HILL HOLDER FAILURE ........................................ 164
ASR SYSTEM (WHEEL ANTISKID SYSTEM) ............. 164
EXTERNAL LIGHTS FAILURE .................................. 164
BRAKE LIGHTS FAILURE ....................................... 165
REAR FOGLIGHTS ............................................... 165
FRONT FOG LIGHTS ............................................ 165
SIDE/TAILLIGHTS/FOLLOW ME HOME .................. 165
DIPPED BEAM HEADLIGHTS.................................. 165
MAIN BEAM HEADLIGHTS .................................... 165
LEFT-HAND DIRECTION INDICATOR ........................ 166
RIGHT-HAND DIRECTION INDICATOR ...................... 166
LIGHT SENSOR FAILURE........................................ 166
RAIN SENSOR FAILURE......................................... 166
PARKING SENSORS FAILURE ................................ 166
FUEL RESERVE - LIMITED CRUISING RANGE ............ 167
CRUISE CONTROL .............................................. 167
DIESEL PARTICULATE FILTER CLOGGED .................. 167
ANTIPINCH SYSTEM FAILURE ............................... 167
WINDSCREEN WASHER FLUID LOW LEVEL ............. 168
SPEED LIMIT EXCEEDED ...................................... 168

155
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
SEAT BELTS NOT
FASTENED (red)
With car stationary, the warn-
ing light turns on glowing steadily in the

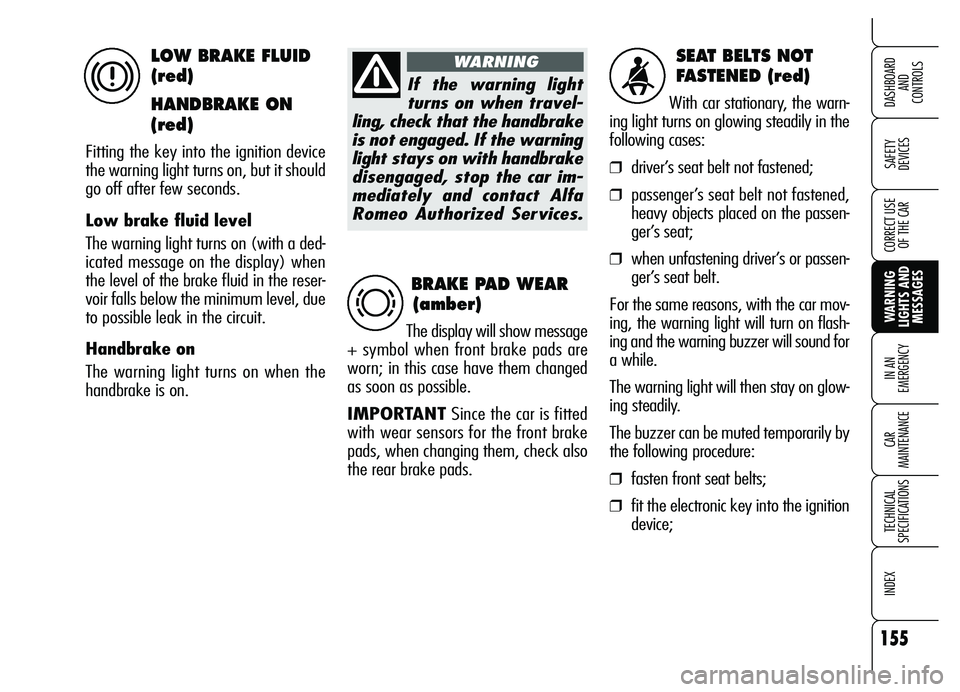

following cases:
❒driver’s seat belt not fastened;
❒passenger’s seat belt not fastened,
heavy objects placed on the passen-
ger’s seat;
❒when unfastening driver’s or passen-
ger’s seat belt.
For the same reasons, with the car mov-
ing, the warning light will turn on flash-
ing and the warning buzzer will sound for
a while.
The warning light will then stay on glow-
ing steadily.
The buzzer can be muted temporarily by
the following procedure:
❒fasten front seat belts;
❒fit the electronic key into the ignition
device;
BRAKE PAD WEAR
(amber)
The display will show message
+ symbol when front brake pads are
worn; in this case have them changed
as soon as possible.
IMPORTANTSince the car is fitted
with wear sensors for the front brake
pads, when changing them, check also
the rear brake pads.
d
turns on when travel-
ling, check that the handbrake
is not engaged. If the warning
light stays on with handbrake
disengaged, stop the car im-
mediately and contact Alfa
Romeo Authorized Services.
WARNINGLOW BRAKE FLUID
(red)
HANDBRAKE ON
(red)
Fitting the key into the ignition device
the warning light turns on, but it should
go off after few seconds.
Low brake fluid level
The warning light turns on (with a ded-
icated message on the display) when
the level of the brake fluid in the reser-
voir falls below the minimum level, due
to possible leak in the circuit.
Handbrake on
The warning light turns on when the
handbrake is on.
x

178
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
The cylinder contains
ethylene glycol. The
cylinder contains latex: it can
cause allergic reactions. It is
harmful if ingested or inhaled
and irritant for the eyes and in
case of contact. In case of con-
tact rinse immediately with
water and take off contami-
nated clothes. If swallowed,
do not induce vomit, rinse out
the mouth, drink a lot of wa-
ter and call the doctor imme-
diately. Keep away from chil-
dren. This product must not be
used by asthmatics. Do not in-
hale vapours. Call the doctor
immediately in case of aller-
gic reactions. Keep the cylin-
der in the space provided for
the purpose and far from heat.
The sealing fluid has limited
life.
WARNING
Proceed as follows:
❒set the wheel to be repaired with
valve A-fig. 13in the position
shown in the figure, then pull up
the handbrake, take the quick
tyre repair kit and put it on the
ground near the wheel to be re-
paired;
INFLATING PROCEDURE
A0F0212mfig. 13
Put on the protection
gloves provided to-
gether with quick tyre repair
kit.
WARNING
The compressor shall
not be operated for
more than 20 minutes. Risk of
overheating!. Tyres repaired
with the quick tyre repair kit
shall be used temporarily on-
ly.
WARNING
Replace the cylinder if
sealer has run out. Do
not throw away the
cylinder and the sealing fluid.
Have the sealing fluid and the
cylinder disposed of in compli-
ance with national and local reg-
ulations.
