225
– Application of enamels with greater
resistance to atmospheric pollutants.
– Adoption of “open” boxed parts to
prevent condensation from triggering cor-
rosion from the inside.
The underbody is treated with the appli-
cation of a special protective material.
If this protective layer requires restora-
tion the exhaust system, lambda probe
and catalytic converter must be left free
of any wax, oil, plastic and/or inflamma-
ble product.
This should therefore be carried out by
Alfa Romeo Authorized Services.SPRAY JETS
Make sure that the windscreen and
headlight washer jets deliver a jet of fluid
which is adequate and correctly directed.
If the spray devices are not working
check that the supply circuit is not
blocked. If necessary unclog the nozzles
using a needle.
BODYWORK
PROTECTION FROM
ATMOSPHERIC AGENTS
Alfa Romeo employs manufacturing
technologies which are designed to pro-
tect the bodywork against chemical corro-
sion caused by various factors, for exam-
ple:
– atmospheric pollution.
– Salty air and humidity (coastal areas,
hot-humid climates).
– Road surfaces covered with salt and
de-icing products during the winter.
To further increase resistance against
corrosion the following procedures have
been adopted:
– painting system and paint products
which render the vehicle particularly resis-
tant to corrosion and abrasion.
– Wide use of sheet metal which is ex-
tremely resistant to corrosion.
– Spraying of the underbody, engine
bay, wheel arches and boxed parts with
suitable products which adhere strongly
to the metal parts and have a high pro-
tection capability.

257
A -Speedometer
B -Mileage recorder with double meter
display (total and trip)
C -Check panel
D -Rev. counter
E -Fuel gauge and reserve warning light
F -Engine coolant temperature gauge
and maximum temperature warning
light
G -Warning lights
H -Electronic automatic gearbox display
IMPORTANT Depending on the trim
levels, the dial of the instruments may be
either light grey or black, with green or
red light.CONTROLS
LIGHTS SWITCH (fig. 3)
The device and services controlled by
the levers on the steering wheel can only
be activated when the ignition key is in
theMARposition (except the parking
lights which can always be switched on).Lights switched off
When the pointer on the knurled ring
(A) is opposite the symbol O, the exter-
nal lights are switched off.
Sidelights
The sidelights are switched on by turn-
ing the knurled ring (A) from Oto
6.
The
3warning light on the instru-
ment panel will come on at the same
time.
Dipped-beam headlights
These are switched on by turning the
knurled ring (A) from
6to2.
Parking lights
When the pointer of the switch (A) cor-
responds with the
Fsymbol, the side
lights stay on regardless of the position of
the ignition key.
fig. 3
A0D0148m

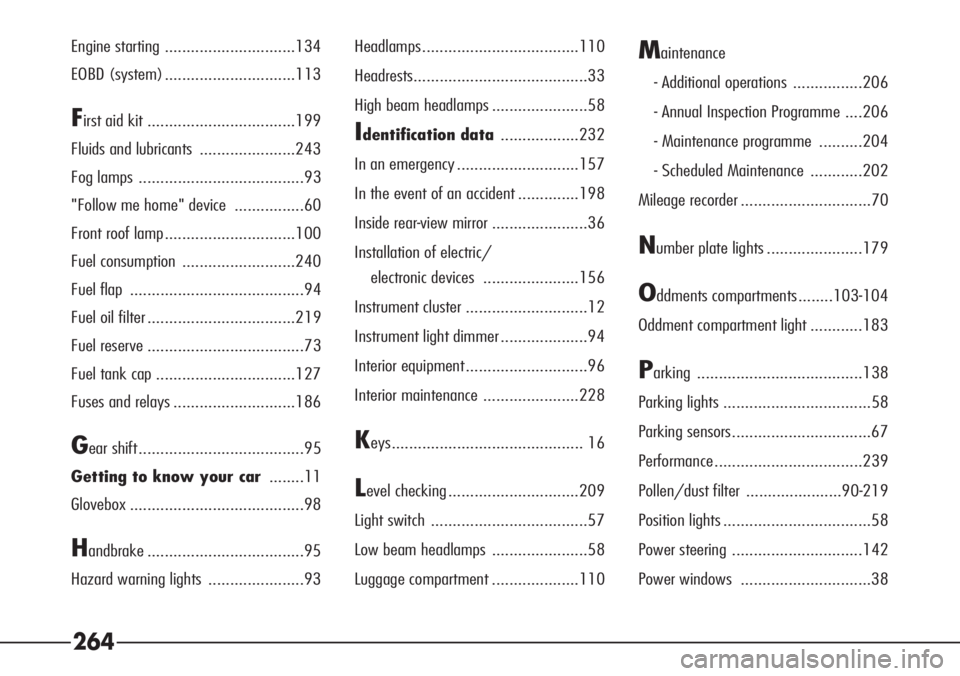

264
Engine starting ..............................134
EOBD (system) ..............................113
First aid kit ..................................199
Fluids and lubricants ......................243
Fog lamps ......................................93
"Follow me home" device ................60
Front roof lamp..............................100
Fuel consumption ..........................240
Fuel flap ........................................94
Fuel oil filter ..................................219
Fuel reserve ....................................73
Fuel tank cap ................................127
Fuses and relays ............................186
Gear shift ......................................95
Getting to know your car........11
Glovebox ........................................98
Handbrake ....................................95
Hazard warning lights ......................93Headlamps ....................................110
Headrests........................................33
High beam headlamps ......................58
Identification data..................232
In an emergency ............................157
In the event of an accident ..............198
Inside rear-view mirror ......................36
Installation of electric/
electronic devices ......................156
Instrument cluster ............................12
Instrument light dimmer ....................94
Interior equipment ............................96
Interior maintenance ......................228
Keys............................................ 16
Level checking ..............................209
Light switch ....................................57
Low beam headlamps ......................58
Luggage compartment ....................110
Maintenance
- Additional operations ................206
- Annual Inspection Programme ....206
- Maintenance programme ..........204
- Scheduled Maintenance ............202
Mileage recorder ..............................70
Number plate lights ......................179
Oddments compartments........103-104
Oddment compartment light ............183
Parking ......................................138
Parking lights ..................................58
Parking sensors................................67
Performance ..................................239
Pollen/dust filter ......................90-219
Position lights ..................................58
Power steering ..............................142
Power windows ..............................38
