IN AN EMERGENCY
212
The quick repairing kit is placed in the boot
inside the appropriate container A-fig. 10.
The quick repairing kit includesfig. 11:•a tool Ato remove the valve body;•a compressor Bwith pressure gauge and
fittings;
FIX&GO KIT
FOR QUICK TYRE
REPAIRING(for versions/markets where
applicable)
The car can be equipped (for versions/
markets where applicable) with a tyre quick
repairing kit called FIX&GO, replacing the
tools and the compact spare wheel usually
provided with the car.fig. 10
A0B0390m
fig. 11
A0B0332m
•a small cylinder Ccontaining sealer and
fitted with a filling pipe, and a sticker bear-
ing the notice “max 80 km/h”, to be
placed in a position visible to the driver (on
the instrument panel) after fixing the tyre;•a “spout” Dto be connected to the fill-
ing pipe.

IN AN EMERGENCY
219
BULBS High beamLow beamFront sidelightFoglight (where required)Front direction indicatorSide direction indicatorRear direction indicatorStop/side lightAdditional stop lightReversing lightRear fog guardNumber plate lightFront roof lightBoot lightRear roof lightCourtesy light (where required)Glovebox light
FIGURE 20
D
D
B
D
B
A
B
B
B
A
B
B
A
C
C
C
CPOWER
55W
55W
6W
55W
21W
5W
21W
21W/5W
3.2
21W
21W
5W
10W
10W
5W
5W
5W
TYPEH1
H7
H6W
H1
PY21W
W5W
P21W
P21/5W
3.2W
P21W
P21W
W5W
C10W
C10W
C5W
C5W
C5W

IN AN EMERGENCY
227
REAR LIGHT UNITSRear light units contain the reversing lights,
rear fog guards, direction indicators, num-
ber plate lights, stop/side lights and the ad-
ditional stop light (3rd stop).REVERSING LIGHTS AND REAR
FOG GUARDS To replace the bulbs proceed as follows:
– Open the boot.
– Slacken the screws (Aor B-fig. 40)
fastening the boot trim in correspondence
with the light concerned.fig. 40
A0B0211m
SIDE DIRECTION INDICATORSTo replace the bulb proceed as follows:
– Push the transparent cover towards the
rear of the car to compress the tab (A-
fig. 38). Release the front part and re-
move the unit.
– Turn the bulb holder counter-clockwise
(B-fig. 39) and remove it from the trans-
parent cover (D-fig. 39).
Take care not to damage
the bodywork or the trans-
parent cover when remov-
ing the side direction indicator unit.fig. 38
A0B0219m
fig. 39
A0B0220m
– Withdraw the bulb (C-fig. 39) which
is of the pressure-fitted type and replace it.
– Insert the bulb holder (B-fig. 39) in
the transparent cover (D-fig. 39) and po-
sition the unit ensuring that the clip clicks in-
to place (A-fig. 38).

IN AN EMERGENCY
228
DIRECTION INDICATORS/
SIDELIGHTS AND STOP LIGHTS To replace the bulbs proceed as follows:
– Open the boot.
– Slacken the two fastening screws
(A-fig. 43) and remove the protective cov-
er (B-fig. 43).
– Withdraw the bulb holder unit (A-
fig. 44) releasing the retainer tabs (B-
fig. 44). – Refit the bulb holder unit fastening it cor-
rectly in place with the retainer tabs (B-
fig. 41).
– Refit the boot trim fastening it with the
screws removed previously.
fig. 41
A0B0212m
fig. 42
A0B0213m
fig. 43
A0B0214m
– Lower the boot lid trim in the corre-
sponding area and remove the bulb holder
unit (C-fig. 41) releasing the retainer tab
(B-fig. 41).
– Remove and replace the spherical type
bulb with bayonet attachment pushing
it gently and turning counter-clockwise
(fig. 42):
(D) reversing light bulb
(E) rear fog guard bulb.

IN AN EMERGENCY
230
ADDITIONAL STOP LIGHT
(3
rdSTOP)
To replace the bulbs proceed as follows:
– Open the boot.
– Turn the fastening buttons (A-fig. 48)
until they release and lower the trim.
– Slacken the knob (B-fig. 49)and with-
draw the complete unit.
– Slacken the screws (C-fig. 50).
– Remove the transparent cover (D-
fig. 51) and replace the bulb concerned.– Refit the transparent cover and install the
unit locking it with the knob (B-fig. 49).
– Re-position the trim correctly and fasten
with its buttons (A-fig. 48).
IF ONE OF THE
INTERNAL LIGHTS
GOES OUTFRONT ROOF LIGHTTo replace the bulbs proceed as follows:
– Remove the roof light (A-fig. 52) lev-
ering in the points shown by the arrows.
– Open the cover (B-fig. 53).
– Replace the bulb concerned (C-
fig. 53) by pulling it outwards and freeing
it from the lateral contacts ensuring that the
new bulb is correctly fitted between the con-
tacts.
fig. 48
A0B0192m
fig. 50
A0B0205m
fig. 49
A0B0204m
fig. 51
A0B0206m

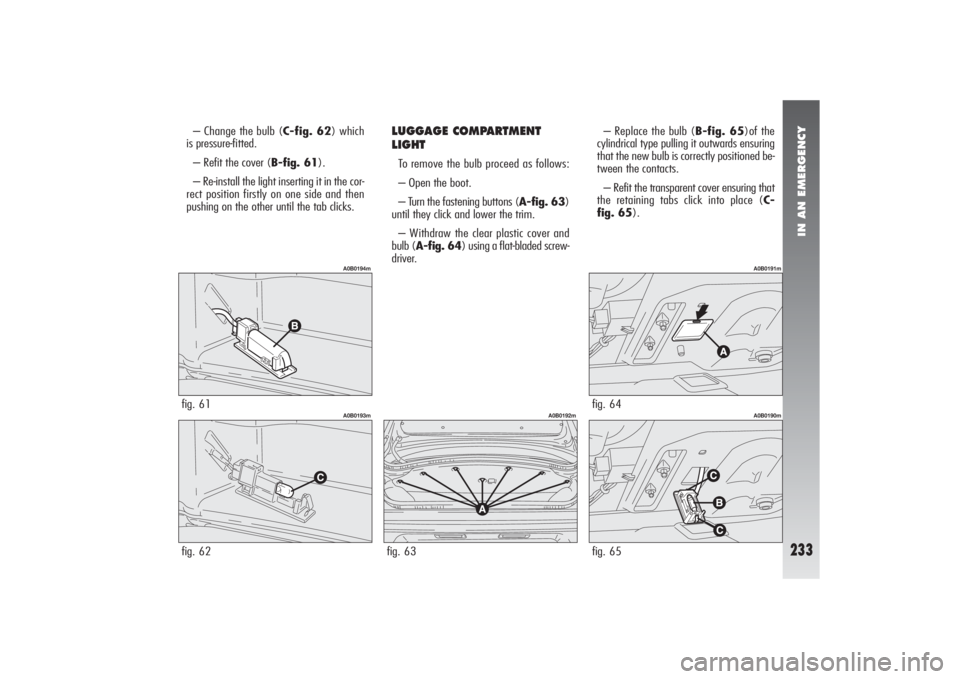

IN AN EMERGENCY
233
– Change the bulb (C-fig. 62) which
is pressure-fitted.
– Refit the cover (B-fig. 61).
– Re-install the light inserting it in the cor-
rect position firstly on one side and then
pushing on the other until the tab clicks.
LUGGAGE COMPARTMENT
LIGHTTo remove the bulb proceed as follows:
– Open the boot.
– Turn the fastening buttons (A-fig. 63)
until they click and lower the trim.
– Withdraw the clear plastic cover and
bulb (A-fig. 64) using a flat-bladed screw-
driver.– Replace the bulb (B-fig. 65)of the
cylindrical type pulling it outwards ensuring
that the new bulb is correctly positioned be-
tween the contacts.
– Refit the transparent cover ensuring that
the retaining tabs click into place (C-
fig. 65).
fig. 61
A0B0194m
fig. 62
A0B0193m
fig. 65
A0B0190m
fig. 64
A0B0191m
fig. 63
A0B0192m

IN AN EMERGENCY
239
69
69
69
69
71
71
69
71
69
69
69
69
72
69
69
69
69
69
69
71 10
11
13
5
4
5
3
7
15
13
15
9
1
4
12
2
15
12
12
10
SERVICES FUSE AMPERES FIGUREWindscreen wiper, windscreen washer/Rearscreen wiper/Rain sensor (optional)HornsGSM Box for Connect/Navigator-electronic warning systemFront power windowsLeft rear power windowRight rear power windowDoor locking system - Boot lightBoot electric openingRearscreen heatingWing mirror adjustmentWing mirror defrostingCigar lighter/Odour sensorHeadlamp washerHeadlamp aiming deviceInstrument clusterMain-beam headlamp warning lightRearscreen heating warning lightSound system/Diagnosis socketElectronic alarm system Supplementary electrical socket in the boot (Sportwagon versions)20A
20A
10A
30A
20A
20A
20A
30A
30A
10A
30A
15A
20A
10A
10A
10A
30A
10A
10A
20A

IN AN EMERGENCY
243
IF THE VEHICLE IS TO BE TOWEDThe tow ring supplied with the vehicle is
housed in the tool box under the boot mat.
To install the tow ring, proceed as follows:
– Take the tow ring from the tool box.
– Remove the cover (A) snap-fitted on the
front (fig. 77) or rear bumper (fig. 78).
If the supplied flat screwdriver is used to car-
ry out this operation, protect the tip with a
soft cloth to prevent damaging the car.– Firmly screw the ring in its housing.fig. 77
A0B0593m
fig. 78
A0B0594m
Carefully clean the thread-
ed housing before tighten-
ing the ring. Before beginning to
tow the car make sure that the
tow ring is firmly tightened in its
threaded housing.
WARNING
Before beginning to tow
the car, turn the ignition
key to MAR and then to STOP, do
not remove it. Removing the key
automatically engages the steering
lock resulting in the impossibility
to steer the wheels. When towing
remember that without the help of
the servo-brake and power steer-
ing, it is necessary to exert more
effort on the brake pedal and for
steering. Do not use flexible cables
for towing and avoid jerks. Dur-
ing towing operations make sure
that fastening the joint to the car
does not damage the components
in contact with it. When towing the
car it is compulsory to comply with
the specific traffic regulations con-
cerning both the towing device and
behaviour on the road.
