2007 Acura RL navigation system

Most AcuraLink f unctions are
controlled by the interf ace dial. The
interface dial has two parts, a knob
and a selector.
The knob turns lef t and right. Use it
to make selections or adjustments to
a list or menu on the screen.The selector can be pushed lef t,
right, up, down, and in. Use the
selector to scroll through lists, to
select menus, and to highlight menu
items. When you make a selection,
push the center of the selector
(ENTER)togotothatselection.
AcuraLink enhances your ownership
experience by providing a direct
communication link between your
vehicleandtheAcuraServer.
Working through the XM radio
satellite, AcuraLink works in
conjunction with the navigation
system, HandsFreeLink (HFL), and
audio system in your vehicle. It
displays and receives several kinds
of messages, including:
Operating tips and inf ormation on
your vehicle’s f eatures.
Important recall and safety
inf ormation.
Maintenance inf ormation to keep
your vehicle in top condition.
Diagnostic inf ormation to provide
inf ormation about any problems
with your vehicle.
RL Technology Package and RL CMBS/PAX modelsInterf ace Dial
AcuraLink
Features
297
ENTER
SELECTOR
KNOB
——
y
y
(yy

If you have new messages, an
envelope icon appears in the top
right corner of the navigation screen.
To open a message:
Press ENTER on the interface
selector, then select New Message
from the navigation system map
menu. If there is more than one
message, stored in the system,
you will see a list of message titles. Unread
messages have a closed
en velope icon next to them. The icon
disappears when it has already been
read.
Only diagnostic info
messa ges overlay the screen while
driving. They indicate if your vehicle
has a problem that may need
immediate attention (see page ).
Afterpurchasingyourvehicle,
messages may not appear
immediately.
Your dealer has to register the
vehicle identif ication bef ore you can
receive messages. This can take
several days to process.
Scroll up or down, and select the
message you want to read by
pressing ENTER on the interf ace
selector.
To view previously read messages,
press the INFO button, select
MESSAGES, then select the
category you want to review. 304
Reading Messages
AcuraLink
298
NOTE:
——
y
y
(yy

µ
µ
µ
µ µ
µ To
set your AcuraLink preferences
(thetypesofmessagesyouwantto
receive, if any), visit the Owner Link
website at
www.owners.acura.com,
and choose what you would like to
receive. If you do not have internet
access, call Acura Client Services at
(800) 382-2238; they can set your
message preferences for you.
Select
this button to
delete the current message.
Select this button to hear a
voice read the entire message. This
gives you more information than the
screen can display at one time. When
you select the Voice button, it
changes to a Stop Reading button.
Select the button again to stop the
voice.
Select this button to call a
phone number embedded in the
message. When you select , the
HandsFreeLink (HFL) dials the
number for you.
To make a call, your Bluetooth
compatible phone must be pai red to
your vehicle’s HandsFreeLink
system, have its power on, and be
inside the vehicle (see page ).
Select this button to f ind the nearest
Acura dealer using the navigation system.
Select
this button to call the Acura dealer
you purchased your vehicle f rom.
AcuraLink also directs you to this
dealer so you can schedule a
maintenance appointment or receive
inf ormation about a message. If your
assigned servicing dealer changes,
AcuraLink will be updated to call
that dealer.
Select this button to
get more inf ormation about the
current diagnostic message. To use
this option, your cell phone must be
paired to the HFL. In addition, the
paired phone must have a compatible
data service and be set up with the
AcuraLink system to make a data
connection. Access the
handsf reelink.com website to f ind
out which data services are currently
compatible with AcuraLink.
306 Message Pref erences
Delete
Voice
Call
Call
Find Nearest Acura Dealer Call Your A cura Dealer
More Inf o
AcuraLink
300
——
y

y
(yy

µµ µ
µ
To access the f ollowing f unctions,
press the SETUP button, push the
interf ace selector to the right to
select MORE, then rotate the
interf ace knob to select AcuraLink/
Messages.
Select this
button to delete all stored messages
within a category, except f or
diagnostic info and recall campaign
messages. These messages can only
be deleted by a certif ied technician
af ter the recall is done or the
problem is corrected, or through a
broadcast message f rom Acura.
Select ON if you want to be notif ied
of new messages (envelope icon
appears on the navigation screen).
Select OFF if you do not want to be
notif ied of new messages (envelope
icon does not appear on the
navigation screen). Messages can still be accessed using
the INFO menu. If you would like to
stop receiving messages, visit the
OwnerLink website at
to change your messaging
pref erences.
Select ON to have
the system automatically read each
message to you. Select OFF to
manually select the Voice button
when you want a message read to
you.
Select
this button to begin the process
required to connect to Acura. This is
used to access the most recent
diagnostic inf ormation when a
problem occurs.
www.owners.
acura.com
CONT INUED
AcuraL ink/Message Screen
Delete Messages
New Message Notif icationAuto Reading
Phone-Data Connection
AcuraLink
Features
301
——
y
y
(yy

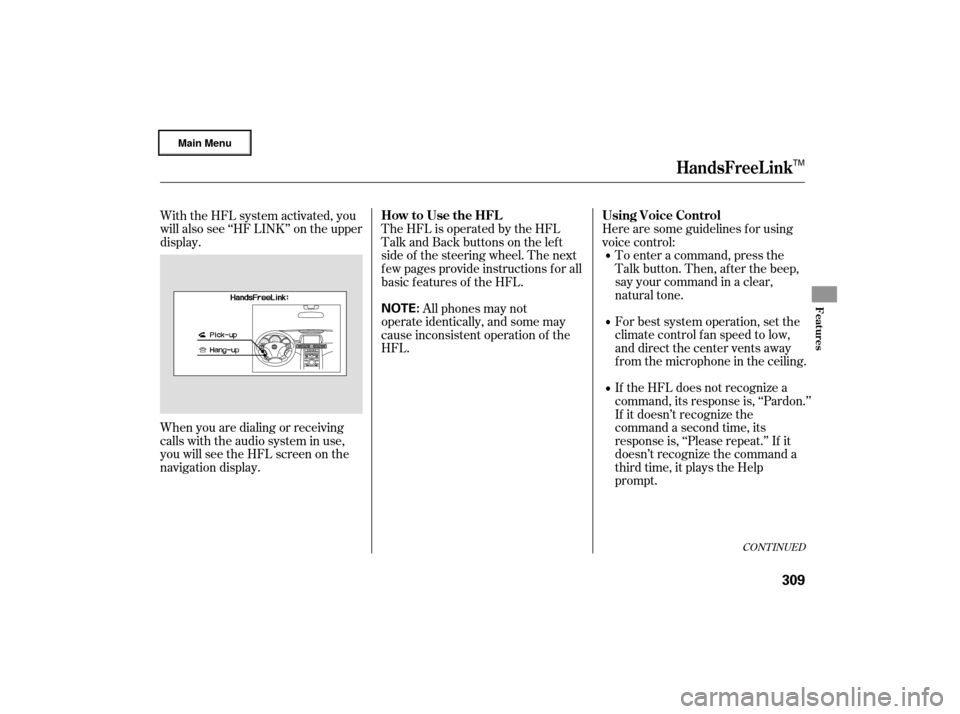

To operate the HFL, use the HFL
Talk and Back buttons on the left
side of the steering wheel. Below the
HFL buttons is another set of voice
control buttons f or the navigation,
climate control, and audio systems.
When the HFL is in use, the sound
comes through the vehicle’s f ront
audio system speakers. If the audio
system is in use while operating
either of the HFL buttons or making
a call, the HFL over-rides the audio
system. To change the volume level,
use the audio system volume knob.
With a linked phone, the HFL allows
you to send and receive calls in your
vehicle without holding the phone.
The HFL can store up to 50 names
and phone numbers in its phonebook.
Withalinkedphone,youcanthen
automatically dial any name or
number in the phonebook.
Here are the main components of
the HFL system:
The HFL microphone is on the
ceiling console. The microphone is
shared with the navigation system (if
equipped).
CONT INUED
HandsFreeL ink
HFL Buttons
Audio System
Incoming/Outgoing Calls
Phonebook
Microphone
Features
307
HFL TALK
BUTTON
HFL BACK
BUTTON
VOICE CONTROL
BUTTONS
TM
——
y

y
(y
y

CONT INUED
Herearesomeguidelinesforusing
voice control:To enter a command, press the
Talk button. Then, af ter the beep,
say your command in a clear,
natural tone.
For best system operation, set the
climate control f an speed to low,
and direct the center vents away
f rom the microphone in the ceiling.
If the HFL does not recognize a
command, its response is, ‘‘Pardon.’’
If it doesn’t recognize the
command a second time, its
response is, ‘‘Please repeat.’’ If it
doesn’t recognize the command a
third time, it plays the Help
prompt.
TheHFLisoperatedbytheHFL
Talk and Back buttons on the left
side of the steering wheel. The next
f ew pages provide instructions f or all
basic f eatures of the HFL.
All phones may not
operate identically, and some may
cause inconsistent operation of the
HFL.
With the HFL system activated, you
will also see ‘‘HF LINK’’ on the upper
display.
When you are dialing or receiving
calls with the audio system in use,
you will see the HFL screen on the
navigation display.
HandsFreeL ink
Using Voice Control
How to Use the HFL
Features
309
NOTE:
TM
——
y
y
(y
y

Press and release the Talk button.
After the beep, say the name you
want to use. For example, say
‘‘Eric’s phone.’’ The HFL response
is ‘‘Eric’s phone has been
successf ully paired. Returning to
the main menu.’’
If you want to pair another phone,
repeat steps 1 through 7.
Press and release the Talk button.
Af ter the beep, say the f our-digit
code you want to use. For example,
say‘‘1,2,3,4.’’TheHFLresponse
is,‘‘1,2,3,4.Isthiscorrect?’’
Press and release the Talk button.
Af ter the beep, say ‘‘Yes.’’ The
HFL system response is
‘‘Searching f or a Bluetooth phone.
Make sure the phone you are
trying to pair is in discovery mode.’’ Steps 5 and 6 show a
common way to get your phone into
its Discovery mode. If these steps do
not work on your phone, ref er to the
phone’s operating manual.
Follow the prompts on your phone
togetitintoitsDiscoverymode.
The phone will search f or the HFL.
When it comes up, select
HandsFreeLink f rom the list of
options displayed on your phone.
When asked by the phone, enter
the four-digit code from step 3 into
your phone. The HFL response is
‘‘A new phone has been f ound.
What would you like to name this
phone?’’ Once the pairing process is
completed, AcuraLink may display a
connection conf irmation screen. This
screen is used to create a data
connection between your cellphone
and the AcuraLink system. You can
choose to set up the data connection
now, or do it later. If you want to do
it now, exit the HFL menu by
pressing the HFL Back button one
or more times.
4.
5.
6.7.
3.
8.
On vehicles with navigation system
HandsFreeL ink
314
NOTE:
TM
——
y

y
(y
y

On models with navigation system
Whenever you shif t to reverse (R)
with the ignition switch in the ON
(II) position, the rear view is shown
on the navigation system screen.
For the best picture, always keep the
rearview camera clean, and do not
cover the camera lens. To avoid
scratching the lens when you clean it,
use a moist, sof t cloth.Since the rearview camera display
area is limited, you should always
back up slowly and caref ully, and
look behind you f or obstacles.
Rearview Camera and Monitor
324
REAR VIEW CAMERA
——
y

y
