2007.5 Citroen C5 buttons

I
10
IN BRIEF
D A S H B O A R D
Audio
Instrument panel menuMultifunction display menu
Telephone
Cruise control and Speed limiter
44
The “SET +, PAUSE, VOL+, MUTEThe “The “” buttons are located so that you can use them without needing to take your eyes off the road.

99
III8285838184
7896
A
A
A U T O M A T I C A I R C O N D I T I O N I N G
M O N O Z O N E
The monozone system regulates the temperature, air distribution and air fl ow for the whole of the passenger com-partment.
2. Temperature adjustment
Turn control 2 to change the temperature:Clockwise to increase the temperature.
Anti-clockwise to reduce the temperature.
The chosen temperature is displayed.
An adjustment around 21 will give you the optimum comfort level. However, depending on your preferences anywhere between 18 and 24 is quite usual.
Operating the air conditioning system on “AUTO” guar-antees good ventilation inside the cabin.Note: The value indicated on the display corresponds to a comfort level and not to a temperature in Celsius or Fahrenheit.
Manual mode
One or more functions can be adjusted manually, while still retaining the other functions in automatic mode.
Press one of the buttons, except the temperature adjustment 2. The light A goes out.
Changing to manual mode may result in a decrease in comfort level (temperature, humidity, smell, misting) and is not advised for optimum comfort.
To return to “AUTO” mode, press button 1. Light Acomes on.

100
III
B
A U T O M A T I C A I R C O N D I T I O N I N G
M O N O Z O N E
3. Adjusting the air distribution
Press on buttons 3 to change the air fl ow dis-tribution.
The symbol (arrows) corresponding to the chosen dis-tribution lights up:Windscreen and front windows.Front air vents (central, side and soft diffusion grille if open) and rear air vents.
Front and rear footwells.Note: You cannot select distribution to the windscreen/front windows and to the front/rear air vents at the same time.

102
III81a2a3a848581b1b3b3b2b2b
867
A
A
A U T O M A T I C A I R C O N D I T I O N I N G
D U A L - Z O N E
This is the normal operating mode for the system. Depending on the level of comfort chosen, a press on this button, confi rmed by light A coming on, allows all of the following functions to be automatically and simulta-neously controlled:Air fl ow.
Cabin temperature.Air distribution.
Air conditioning.
Automatic air recirculation.
It is recommended to keep all the air vents open. Just by pressing any of the buttons, except for tempera-ture 1a and 1b, you can change to manual mode. The light A goes out.

104
III
A U T O M A T I C A I R C O N D I T I O N I N G
D U A L - Z O N E
Switching off the entry of air
Press button 6 to switch off the entry of air from outside.
Whilst retaining the other settings, this posi-tion allows the driver at any moment to exclude unpleasant smells or smoke/emissions coming from outside.
This mode should be cancelled as soon as possible to allow the redistribution of air in the passenger compartment.
Entry of air from outside
Press once on button 6 to return to the origi-nal status (Entry of air from outside).
7. Rear demisting - deicing
Press button 7, with the engine running, to start a rapid deicing or demisting of the rear screen and rear view mirrors. The warning lamp comes on.
This mode automatically stops depending on the out-side temperature. It can be interrupted by a further press on button 7 or by stopping the engine.
In the latter case, demisting will resume when the engine is switched on again.Note: The heated rear screen operates independently of the automatic air conditioning.
8. Front demisting - deicing
In some cases, “AUTO” mode may not be suffi cient to demist or defrost the windows (e.g. humidity, several passengers, frost).
Press button 8 for rapid clear windows. The warning lamp comes on. This system controls air conditioning, temperature and air fl ow/entry. It distributes ventilation towards the windscreen and the front windows.
You can manually exit “Demisting” mode. This mode should be cancelled as soon as possible to allow the redistribution of air in the passenger compartment.
A press on either of the buttons 1a or 1b allows you to return to “AUTO” mode.
Remarks:When starting from cold, in order to prevent unwanted cold air, the air fl ow will increase only gradually to its optimum level.If you enter the vehicle after a fairly prolonged stop and the temperature inside the vehicle is far from comf ort-able, it serves no purpose to modify the temperatur e that is displayed as an attempt to go immediately t o the desired comfort level. The system automatically uses all of its power to compensate the temperature gap as quickly as possible.
Water arising from the condensation in the air con-ditioning drains out through a hole provided for this purpose ; a pool of water may thus form underneath the vehicle when stationary.
Whatever the time of year, even in cool weather the air conditioning is useful in removing humidity and misting. Avoid driving for too long with air condition-ing deactivated.

125
IV

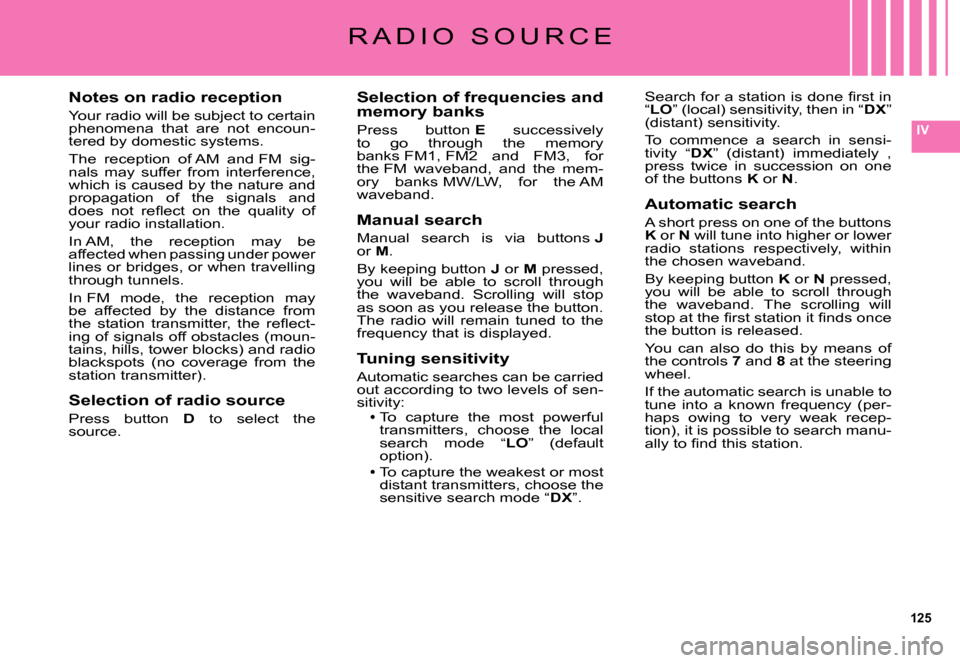

Notes on radio reception
Your radio will be subject to certain phenomena that are not encoun-tered by domestic systems.
The reception of AM and FM sig-nals may suffer from interference, which is caused by the nature and propagation of the signals and does not refl ect on the quality of your radio installation.
In AM, the reception may be affected when passing under power lines or bridges, or when travelling through tunnels.
In FM mode, the reception may be affected by the distance from the station transmitter, the refl ect-ing of signals off obstacles (moun-tains, hills, tower blocks) and radio blackspots (no coverage from the station transmitter).
Selection of radio source
Press button D to select the source.
R A D I O S O U R C E
Selection of frequencies and memory banks
Press button E successively to go through the memory banks FM1, FM2 and FM3, for the FM waveband, and the mem-ory banks MW/LW, for the AM waveband.
Manual search
Manual search is via buttons Jor M.
By keeping button J or M pressed, you will be able to scroll through the waveband. Scrolling will stop as soon as you release the button. The radio will remain tuned to the frequency that is displayed.
Tuning sensitivity
Automatic searches can be carried out according to two levels of sen-sitivity:To capture the most powerful transmitters, choose the local search mode “LO” (default option).To capture the weakest or most distant transmitters, choose the sensitive search mode “DX”.

126
IV
Display and selection of a station available in the area in which you are travelling
Briefl y press on button G or but-ton 9 at the steering wheel to dis-play the list of stations. This list is updated every 10 minutes.
You can also update this list at any time by making a long press on button G or button 9 at the steer-ing wheel.
To listen to one of these stations, select by pressing buttons J or Mand validate using button L.
Manual pre-setting
Select the waveband and memory bank required using button E.
Select a station using either auto-matic or manual search.
Keep pressing for more than two seconds on one of the pre-selection buttons 1 to 6 on the keypad P.
The sound momentarily cuts off, then returns to its previous level to confi rm that it has memorised the station.
R A D I O S O U R C E
Automatic memorisation of transmitters (Autostore function)
In FM, if you hold down button Efor more than two seconds, your radio will automatically memorise the 6 strongest stations on the FM3 memory bank.
The display shows “FM AST”.
The radio memorises the 6 strong-est transmitters, deleting the 6 pre-viously memorised.
After the memorisation, the radio goes directly to memory 1 of mem-ory bank FM3.Note:If the traffi c information func-tion has been activated (see RDS SYSTEM), the stations offering this facility will be mem-orised as priority.
If it is unable to memorise any new stations, the system will retain the previously memo-rised stations.If the system is unable to fi nd 6 stations, the unfi lled memory slots will remain free.

127
IV
Using the RDS (radio data system) function on FM
The majority of FM radio stations use the RDS system. The radio in your vehicle has this system,.
The RDS system enables these stations to transmit non-audible data in addition to the broadcasting of their programmes. The data pro-vides access to various functions described in this chapter, such as: display of the station name, inter-mittent traffi c information fl ashes or automatic scanning of stations. This enables you to continue lis-tening to your chosen radio station, regardless of the different frequen-cies it uses in the regions through which you are travelling.
Scanning of RDS stations
Your radio keeps the best possible reception by continuously looks for any other frequencies on which the selected radio station is broadcast, automatically choosing the fre-quency offering the best reception (if the station broadcasts on more than one transmitter or frequency.
R D S S Y S T E M
Activation/deactivation of the RDS functions
The RDS functions can be accessed via the following two menus:Main menu (press button O).
AUDIO menu (press button L).
To activate/deactivate the functions RDS1. Press on button O.2. Select the AUDIO icon using buttons J or M.3. Confi rm your choice with a press on button L.4. Select the sub-menu for the FM waveband, via but-tons J or M. Confi rm your choice with a press on button L.5. Select scanning for RDS sta-tions, via buttons J or M.6. Validate your choice with a press on button L.7. Using control L, select/deselect to activate/deactivate the func-tion.8. Validate your choice by select-ing “OK” on the display.
