III
6 8
V E N T I L A T I O N - H E A T I N G
Air inlet
Check that the exterior grille for the air inlet, at the bot-tom of the windscreen, is clean and free of dead leaves, snow, etc.
If washing the vehicle with a high pressure jet, avoid targeting the air inlet zone.
Air vents
The air vents to the face (except the central air vent) have g r i l l e s f o r o r i e n t i n g t h e fl o w o f a i r ( u p - d o w n , r i g h t - l e f t ) .
Air circulation
For your comfort we advise you to maintain a proper distribution of air within the cabin, both at the front and at the rear.
Air outlets are also located on the central console close to the gear lever, to enhance comfort for the rear pas-sengers.
P o l l e n fi l t e r – O d o u r fi l t e r
Y o u r a i r c o n d i t i o n i n g i n s t a l l a t i o n i s p r o v i d e d w i t h a fi l t e r for protection against dust and odours.
T h i s fi l t e r h a s t o b e c h a n g e d a c c o r d i n g t o t h e v e h i c l e maintenance schedule. See “Maintenance Guide”.
Air conditioning
Whatever the time of year, even in cool weather the air conditioning is useful in removing humidity and mist-ing.
To keep the air conditioning compressor well sealed, it is essential to operate the air conditioning at least once in every month.
To be effective, the air conditioning should only be used with the windows closed.
If you are towing a heavy trailer and outside tempera-tures are high, the air conditioning may be temporarily paused if the engine cooling requires this.
Water arising from condensation in the air conditioning system is evacuated through a hole provided for this purpose ; a pool of water may thus form underneath the vehicle when stationary.
You are advised to have the air conditioning system checked on a regular basis. See “Maintenance Guide”.
The air conditioning operates by using power from the engine. This results in a slight increase in fuel con-sumption.
Demisting - deicing of the wind-screen and front side windowsPlace the controls for temperature and a i r fl o w o n m a x i m u m .
Close the central air vents.
Operate the air conditioning.Note: You should not be in air recirculation.
Page 69 of 144
1
2
3
4
56
1
1
1
2
2
2
3
3
3
4
4
4
56
6
6
III
6 9
V E N T I L A T I O N - H E A T I N G -
M A N U A L A I R C O N D I T I O N I N G
A i r fl o w t o t h e f a c e l e v e l v e n t s
(Air vents open)
1. Air distribution
A i r fl o w t o t h e f r o n t a n d r e a r f o o t w e l l s
(Air vents closed)
A i r fl o w t o t h e f o o t w e l l s a n d w i n d s c r e e n a n d s i d e windows
A i r fl o w t o t h e w i n d s c r e e n a n d s i d e w i n d o w s
Demisting - Defrosting
Distribution from the air blower can be altered at will by plac-ing the distributor 1 in an intermediate position.
Air recirculation
This position is useful for excluding undesirable odours or fumes coming from outside. It should be cancelled as soon as possible in order to permit renewal of air in the cabin and to prevent misting.
2. Cabin air
3. Heater blower control
The air blower operates only when the engine is running. F or optimum comfort in the passenger compartment, the control should not remain in position 0 (position 1 minimum).
4. Temperature control
5. Air conditioning
6. Demisting - deicing of the rear screen.
MANUAL AIR CONDITIONING
VENTILATION - HEATING
Page 70 of 144
53
4
B
A5
3
4III
7 0
Air conditioning
The air conditioning only operates when the engine is running.
Press the control located on the control panel.
Warning lamp on = in operation
Air conditioning is obtained by the mixing of hot air and cold air. Control 4 allows you to adjust the air conditioning while control 5 is in operation.
To obtain refrigerated air, you should check that the air blower control 3 is not on position “0”.
Air recirculation
This function isolates the passen-ger compartment from disagree-able odours or smoke coming f r o m o u t s i d e a n d i n c r e a s e s t h e e f fi c i e n c y a n d rapidity of the air conditioning.
According to version, press on control A (warn-ing lamp comes on), or move control B.
The entry of air from outside is blocked.
This function should be cancelled when no longer needed in order to permit a renewal of cabin air and to prevent misting.Note: To obtain a rapid rise in cabin tempera-ture, place control A or B in the air recircula-tion position and control 4 on maximum in the 4red zone.
If after a prolonged stop in bright sunlight, the cabin temperature is very high:Open the windows for a few moments to let in air, then cl ose the windows again.
Adjust the temperature on control 4 to the maximum cold posi-tion.
Open the air vents.Use the recycled cabin air position.
Place the air blower control 3 to the position close to maxi-mum.
With comfort restored, action the air blower 3 and the tempera-ture control 4 to adjust comfort.
M A N U A L A I R C O N D I T I O N I N G
Page 88 of 144
IV
8 9
PAY ESPECIAL ATTENTION TO WHERE CHILDREN ARE WHEN OPERATING THE SUN ROOF
Always remove the ignition key when leaving the vehicle, even if for a short time.
In the event of anything being caught by the sun ro of closing, you must reverse the roof movement.
To do that, reverse the position of the control concerned.
When the driver is operating the sun roof, he or she must always make sure that the passengers are not preventing it from closing properly.
The driver must ensure that passengers use the sun roof control correctly.
If making repeated movements, you are advised to have the engine running in order to avoid discharging the battery.
Safety devices for prevention of damage to the soft roof:It is impossible to slide the soft roof when the rear screen is open or not properly closed.
The rear screen opening control is inoperational while the so ft roof is sliding.It is impossible to slide the soft roof when the vehicle is travelling at high speed.
Stowing of the rear cassette is possible only if the roof is fully slid onto the rear screen.
Sliding of the roof is possible only if the cassette is correctly secured in the high position on the arches, and down a g a i n s t t h e C I T R O Ë N l e t t e r i n g . S e e t h e c h a n g e f r o m C a b r i o l e t t o S a l o o n c o n fi g u r a t i o n .Sliding of the roof is possible only if the cassette is correctly secured in the high position on roof is possible
I f a c o m m a n d o n y o u r p a r t i s n o t o b e y e d , y o u h e a r 3 b e e p s .
Maintenance of the sliding soft roof: I f w a s h i n g t h e r o o f w i t h a h i g h p r e s s u r e j e t ( 9 0 b a r s ) , k e e p t h e j e t n o z z l e a t l e a s t 4 0 c m a w a y f r o m t h e v e h i c l e .If washing by hand, use a sponge or soft brush wth soapy wate r.
Never use detergents or products that are corrosive, or acetone or alcohol based products.
See USER PRECAUTIONS.
Never open the rear screen if the roof is partially slid onto the rear screen. To prevent any damage to the soft roof slide rails, make sure that they remain clean and free of sand, dust, etc.
S L I D I N G S O F T R O O F
Page 102 of 144
A
B
1 0 3
L E V E L S
A i r fi l t e r
Follow the requirements set out in the Maintenance Guide.
REFER TO THE CHAPTER: USER PRECAUTIONS.
Screen wash and head- l a m p w a s h fl u i d
Use CITROËN-approved products wherever possible.
Capacity: See “Capacities”.
Engine coolant
T h e fl u i d l e v e l s h o u l d b e between the marks MIN. and MAX. on the header tank.
E n g i n e h o t , w a i t a t l e a s t 1 5 m i n u t e s .
Quality: See “Maintenance Guide”.
Never do anything relating to the cooling system of an engine that is hot.
12V battery
See “Starting with a slave battery”.
Engine oil
Check the engine oil level on horizontal ground with the engine having been s w i t c h e d o f f f o r a t l e a s t 1 0 m i n -utes.
Quality: See “Maintenance Guide”.
Pull out the manual dip-stick.
The level should be between the marks MIN. and MAX.on the gauge.
It must never exceed the maximum.
MAX.
MIN.
B r a k e fl u i d
T h e l e v e l o f fl u i d s h o u l d b e between the marks MIN.and MAX. on the reservoir.
Quality: See “Maintenance Guide”.
If the warning lamp comes on while you are driving, stop imme-diately and contact a CITROËN while you are driving, stop imme-stop imme-
dealer.
C a b i n p a r t i c l e fi l t e r / O d o u r fi l t e r
See “Maintenance Guide”.
If opening the bonnet when the engine is hot, even if it is stopped and the ignition is switched off, remember that the cooling fan may operate at any moment.
Consult “User Precautions” at the end of this handbook.
Page 103 of 144
V
1 0 7
L E V E L S
Engine oil
Check the engine oil level on horizontal ground with the engine having been s w i t c h e d o f f f o r a t l e a s t 1 0 m i n u t e s .
Pull out the manual dipstick.
The level should be between the marks MIN. and MAX. on the gauge.
Topping up engine oil
B e f o r e fi l l i n g , p u l l o u t t h e d i p s t i c k .
C h e c k t h e d i p s t i c k a f t e r fi l l i n g .
It must never exceed the maximum.
Screw the cap back on and close the bonnet.
Quality: See “Maintenance Guide”.
If opening the bonnet when the engine is hot, even if it is stopped and the ignition is switched off, remember that the cooling fan may operate at any moment.
Page 104 of 144
V
1 0 8
Topping up the coolant
T h e fl u i d l e v e l s h o u l d b e b e t w e e n t h e m a r k s MIN. and MAX.on the header tank.
Top up the level. If you have to put in more than 1 litre, have the cooling system checked by a CITROËN dealer.Top up the level. If you have to put in more than 1 litre, in more than
Make sure that the cap is back on properly.Note: I f y o u n e e d t o t o p u p t h e fl u i d f r e q u e n t l y , t h i s i n d i c a t e s a malfunction which you should get checked at the earliest opportunity.
Quality: See “Maintenance Guide”.
Remark: T h e c o o l i n g f a n m a y o p e r a t e f o r a r o u n d 1 0 m i n u t e s a f t e r t h e engine has stopped.
If opening the bonnet when the engine is hot, even if it is stopped and the ignition is switched off, remember that the cooling fan may operate at any moment.
L E V E L S
R a d i a t o r – c o o l a n t fl u i d
Checking the level and topping up w i t h fl u i d m u s t a l w a y s b e d o n e w i t h the engine cold.
Engine hot
Release the protection cover.
W a i t 1 5 m i n u t e s o r f o r t h e t e m p e r - a t u r e t o b e l o w e r t h a n 1 0 0 ° C a n d then carefully unscrew the cap so as to allow the pressure to drop, protecting yourself with, say, a cloth.
Page 107 of 144
V
1 0 6

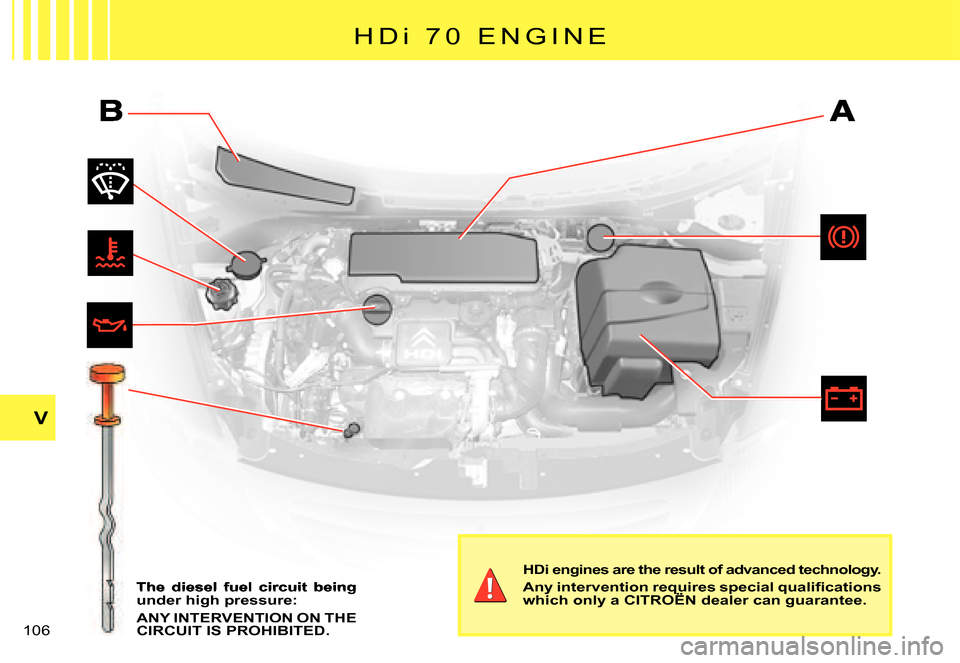

H Di 7 0 E N G I N E
The diesel fuel circuit being under high pressure:
ANY INTERVENTION ON THE CIRCUIT IS PROHIBITED.
HDi engines are the result of advanced technology.
A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s which only a CITROËN dealer can guarantee. A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s
