2007.5 Citroen C3 PLURIEL display
[x] Cancel search: displayPage 33 of 144
21
II
3 4
D I S P L A Y S
Digital clock
To adjust the display, press on but-ton 1 to alter the hours and on but-ton 2 to alter the minutes.
Display A
Display C
Page 34 of 144
D
23
A
C
B
E
EDCB
AE
1
II
3 5
M U L T I F U N C T I O N D I S P L A Y
D I S P L A Y A
The driver is recommended not to concern himself with the display controls while driving.1. Time.2. Date - Display zone.3. Outside temperature.
When the outside temperature i s b e t w e e n + 3 ° C a n d – 3 ° C , t h e t e m p e r a t u r e d i s p l a y fl a s h e s ( r i s k of ice).Note: The outside temperature displayed may be higher than the actual temperature if the vehicle is stationary in bright sunlight.
Remark: The display of certain types of information is sometimes scrolled and sometimes alter-nated.
ControlsA. Access to the “Main menu” of the display.B. Scroll through display menus.C. V a l i d a t i o n a n d S e l e c t i o n i n t h e menus, of the function chosen o r v a l u e m o d i fi e d .D. Cancellation of the operation or return to the previous display.E. Selection of the type of infor-mation displayed in zone 2(date, radio/CD and trip com-puter).E. In the Menus, choice of acti-vation/deactivation of your functions and choice of your adjustments.
Main Menu
By pressing control A then B, you have access to the following func-tions:
Radio-CD (See radio-CD hand-book).
V e h i c l e c o n fi g u r a t i o n, to acti-vate/deactivate:The automatic guide-me-home lighting.Automatic lighting of head-lamps.Options, to display the alerts.
Display adjustments, to adjust the date and time on the dis-play.
Languages, to select the dis-play language.Units, to access the choices of units of Temperature and Fuel Consumption.
-
-
Page 35 of 144
D
A
C
B
E
EDCB
AE
II
3 6
M U L T I F U N C T I O N D I S P L A Y
D I S P L A Y A
P e r s o n a l i s a t i o n / C o n fi g u r a t i o n
To activate/deactivate the auto-matic guide-me-home lighting:Press button A.
Select, using B, the sub-menu t o p e r s o n a l i s e - c o n fi g u r e y o u r v e h i c l e , t h e n c o n fi r m y o u r choice with a press on C.Select guide-me-home lighting, using B.
The system tells you the status (active or inactive) of the func-tion. Modify this status with a press on E.
Then please wait for the display to disappear.
To activate/deactivate the auto-matic lighting of headlamps:Press button A.Select, using B, the sub-menu t o p e r s o n a l i s e - c o n fi g u r e y o u r v e h i c l e , t h e n c o n fi r m y o u r choice with a press on C.
Select automatic lighting of headlamps using B.
The system tells you the status (active or inactive) of the func-tion. Modify this status with a press on E.Then please wait for the display to disappear.
Note: Activation of this function is immediate while deactivation requires the ignition to be switched off.
Page 36 of 144
D
A
C
B
E
EDCB
AE
II

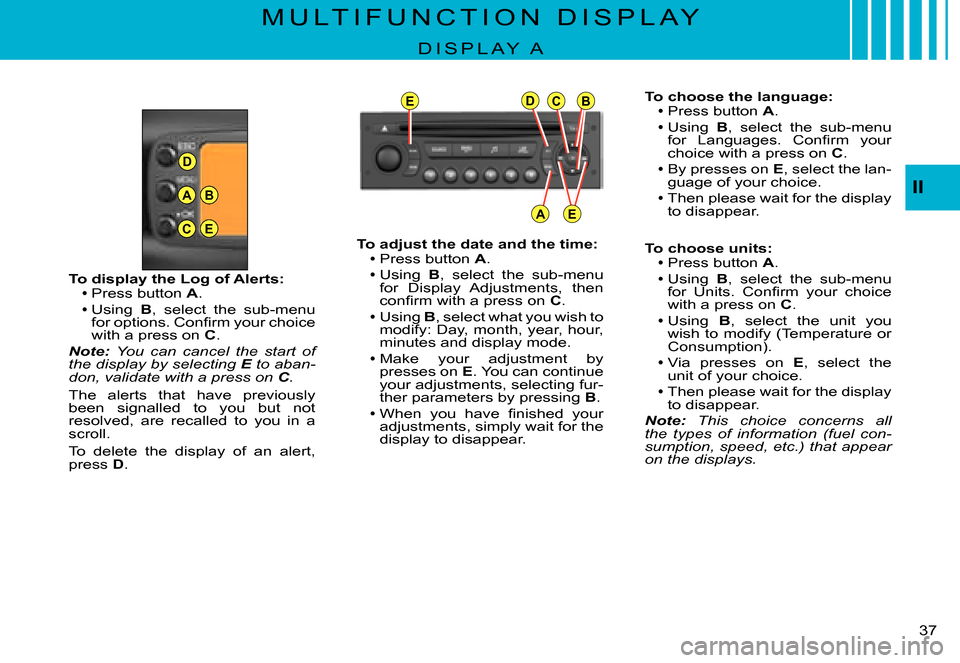

3 7
M U L T I F U N C T I O N D I S P L A Y
D I S P L A Y A
To choose the language:Press button A.
Using B, select the sub-menu f o r L a n g u a g e s . C o n fi r m y o u r choice with a press on C.By presses on E, select the lan-guage of your choice.
Then please wait for the display to disappear.
To choose units:Press button A.Using B, select the sub-menu f o r U n i t s . C o n fi r m y o u r c h o i c e with a press on C.
Using B, select the unit you wish to modify (Temperature or Consumption).
V i a p r e s s e s o n E, select the unit of your choice.Then please wait for the display to disappear.Note: This choice concerns all the types of information (fuel con-sumption, speed, etc.) that appear on the displays.
To display the Log of Alerts:Press button A.
Using B, select the sub-menu f o r o p t i o n s . C o n fi r m y o u r c h o i c e with a press on C.Note: You can cancel the start of the display by selecting E to aban-Edon, validate with a press on C.
The alerts that have previously been signalled to you but not resolved, are recalled to you in a scroll.
To delete the display of an alert, press D.
To adjust the date and the time:Press button A.Using B, select the sub-menu for Display Adjustments, then c o n fi r m w i t h a p r e s s o n C.
Using B, select what you wish to modify: Day, month, year, hour, minutes and display mode.
Make your adjustment by presses on E. You can continue your adjustments, selecting fur-ther parameters by pressing B. W h e n y o u h a v e fi n i s h e d y o u r adjustments, simply wait for the display to disappear.
Page 37 of 144
EDCB
AE
231
II
3 8
M U L T I F U N C T I O N D I S P L A Y
D I S P L A Y C
The driver is recommended not to concern himself with the display controls while driving.1. Time.2. Outside temperature.3. Date - Display zone.
When the outside temperature i s b e t w e e n + 3 ° C a n d – 3 ° C , t h e t e m p e r a t u r e d i s p l a y fl a s h e s ( r i s k of ice).
ControlsA. Access to the “Main menu” of the display.B. Scroll through display menus.C. V a l i d a t i o n a n d S e l e c t i o n i n t h e menus, of the function chosen o r v a l u e m o d i fi e d .D. Cancellation of the operation or return to the previous display.E. Selection of the type of infor-mation you wish to see perma-nently displayed (date, radio-CD, trip computer) on the right of the screen.
Main Menu
Press on button A to bring up the “Main menu” of the multifunc-tion display. This menu gives you access to the following functions:
Radio-CD
(See radio-CD handbook).
Trip computer, giving you:Entering the distance to the destination
Access to the log of alerts (recall of the alerts sig-nalled previously.
Access to status of functions, for example activation/deacti-vation of automatic lighting of headlamps, ESP, windscreen wipers.
P e r s o n a l i s a t i o n - C o n fi g -uration, allowing you to activate or deactivate:The automatic guide-me-home lighting.Automatic lighting of headlamps.
And choosing:The brightness, the time, the date and the display units.
The display language.
Bluetooth® hands-free kit®
(See radio-CD handbook).
Note: The outside tem-perature displayed may be higher than the actual temperature if the vehicle is stationary in bright sun-light.
Page 38 of 144
EDCB
AE
II
3 9
M U L T I F U N C T I O N D I S P L A Y
D I S P L A Y C
Trip computer
To enter the distance to be trav-elled on the trip computer:Press button A.Use B to select the icon “Trip c o m p u t e r ” , t h e n c o n fi r m w i t h a press on C.
Select entry of distance using B. C o n fi r m y o u r c h o i c e w i t h a press on C.
To choose the distance, select t h e fi g u r e y o u w i s h t o m o d i f y by using B , t h e n c o n fi r m w i t h a press on C.Use B to adjust the value, then validate by pressing C.
V a l i d a t e “OK” on the screen.
To access the trip computer's log of alerts:Press button A.Use B to select the icon “Trip c o m p u t e r ” , t h e n c o n fi r m w i t h a press on C.
Select the log of alerts.
When the list displays, use B to scroll through it.Press D to return to the perma-nent display.
To access the status of functions: proceed in a similar manner.
P e r s o n a l i s a t i o n / C o n fi g u r a t i o n
To activate/deactivate the auto-matic guide-me-home lighting:Press button A.Use B to select the icon “Per-s o n a l i s a t i o n - C o n f i g u r a t i o n ” t h e n c o n fi r m y o u r c h o i c e b y pressing C.
Then select the sub-menu for the vehicle parameters. Con- fi r m y o u r c h o i c e w i t h a p r e s s on C.
Using B, select lighting and s i g n a l l i n g . C o n fi r m y o u r c h o i c e with a press on C.
Then press C to select/deselect the guide-me-home lighting, to activate/ deactivate it. After activation, choose the duration: press C then use B to select the duration, then press C.
V a l i d a t e “OK” on the screen.
To activate/deactivate the auto-matic lighting of headlamps:Press button A.
Use B to select the icon “Per-s o n a l i s a t i o n - C o n f i g u r a t i o n ” t h e n c o n fi r m y o u r c h o i c e b y pressing C.Then select the sub-menu for the vehicle parameters. Con- fi r m y o u r c h o i c e w i t h a p r e s s on C.
Using B, select lighting and s i g n a l l i n g . C o n fi r m y o u r c h o i c e with a press on C.
Next press on C to activate/deactivate automatic lighting of headlamps.Press button C.Note: Activation of this function is immediate while deactivation requires the ignition to be switched off.
Page 39 of 144
EDCB
AE
II
4 0
To adjust the display brightness:Press button A.
Use B to select the icon “Per-s o n a l i s a t i o n - C o n f i g u r a t i o n ” t h e n c o n fi r m y o u r c h o i c e b y pressing C. S e l e c t t h e d i s p l a y c o n fi g u r a t i o n with a press on B . C o n fi r m y o u r choice with a press on C.
Select the brightness adjust- m e n t . C o n fi r m y o u r c h o i c e w i t h a press on C.
Select with a press on B, then validate by pressing C, the nor-mal or alternative display mode. To adjust the brightness, select the symbols “+” or “–” and con- fi r m y o u r a d j u s t m e n t b y p r e s s -ing C.
V a l i d a t e “OK” on the screen.
To adjust the date and the time:Press button A.
Use B to select the icon “Per-s o n a l i s a t i o n - C o n f i g u r a t i o n ” t h e n c o n fi r m y o u r c h o i c e b y pressing C. S e l e c t t h e d i s p l a y c o n fi g u r a t i o n with a press on B . C o n fi r m y o u r choice with a press on C.
Select the adustment for the date and the time, by press-ing B , t h e n c o n fi r m w i t h a p r e s s on C.
Press B to select the values y o u w i s h t o m o d i f y . C o n fi r m your choice with a press on C.Do your adjustments with B, then validate each adjustment choice with a press on C.
V a l i d a t e “OK” on the screen.
To choose the language:Press button A.
Use B to select the icon “Per-s o n a l i s a t i o n - C o n f i g u r a t i o n ” t h e n c o n fi r m y o u r c h o i c e b y pressing C.
Use B to select the desired lan-guage and validate your choice by pressing C.
V a l i d a t e “OK” on the screen.
To choose units:Press button A.
Use B to select the icon “Per-s o n a l i s a t i o n - C o n f i g u r a t i o n ” t h e n c o n fi r m y o u r c h o i c e b y pressing C. S e l e c t t h e d i s p l a y c o n fi g u r a t i o n with a press on B . C o n fi r m y o u r choice with a press on C.
Then select the sub-menu for U n i t s . C o n fi r m y o u r c h o i c e w i t h a press on C.
Using B, select the unit to be m o d i fi e d ( T e m p e r a t u r e o r C o n -sumption) then validate with a press on C. V a l i d a t e “OK” on the screen.Note: This choice concerns all the types of information (fuel con-sumption, speed, etc.) that appear on the displays.
M U L T I F U N C T I O N D I S P L A Y
D I S P L A Y C
Page 40 of 144
II
4 1
T R I P C O M P U T E R
For selection and display of the various types of information, give short presses on the end of the windcsreen wiper stalk.
Instrument panel (For a ver-sion with digital clock)
T h e t r i p c o m p u t e r p r o v i d e s 4 t y p e s of information on the instrument panel, following the display of trip mileage:Range.
Instantaneous consumption.
Average consumption.Average speed.
Remark: If the cruise control / speed limiter is in operation, the display of trip computer information disappears after a few seconds.
Display A
T h e t r i p c o m p u t e r p r o v i d e s 5 t y p e s of information:Range.
Average consumption.
Instantaneous consumption.Distance travelled.
Average speed.
To cancel the display of the trip computer information, press a sixth time.
With screen C, a press on the “Mode” button brings up permanent display of the trip computer infor-mation.
To reset the trip computer infor-mation to zero, keep the end of the control stalk pressed for a few seconds when you see the relevant information displayed.
