I A u t o m a t i c a i r c o n d i t i o n i n g
The automatic air conditioning system ensures your comfort and optimum cir-culation of air in the passenger com-partment.
C r u i s e c o n t r o l
This system allows you to automati-cally maintain the speed of the vehicle at the value programmed by the driver, without the need to press on the accel-erator.
SensoDrive gearbox
The automated 5-speed manual gear-box gives you the choice of the com-fort of automatic mode or the driving pleasure of a manual gearbox.
I N T E R I O R
62
71
53
Page 11 of 144
IN
BRIEF
14
I
V E N T I L A T I O N
M a n u a l a i r c o n d i t i o n i n g
Automatic air conditioning : you are advised to use the fully automatic setting, by press-ing on the AUTO button. 67
Page 32 of 144
D
AB
C
II
3 3
I N S T R U M E N T P A N E L L I G H T I N G –
B L A C K P A N E L
Lighting rheostat
The dimmer is active when the lamps are on and affects:The instrument panel: Rev counter, fuel level display.
The display screen.The air conditioning control panel.
Selection of mode and brightness is done by pressing the dimmer button A on the instrument panel.
Night driving (headlamps on)
4 l e v e l s o f b r i g h t n e s s + 1 l e v e l f o r Black panel.
Adjustment is by successive presses on button A in the follow-ing cycle:
l e v e l 4 W l e v e l 3 W l e v e l 2 W level 1 W Black panel.
This function is to give you the best possible visual conditions for driv-ing at night.
In black panel mode, the following information only will be displayed temporarily, should you request it or in the event of an alert:The warning lamps in zone C(bottom area of the instrument panel) will come on in the event of an alert: e.g. fuel low, coolant temperature.
The direction indicator warning lamps.The speed indicator.
The gear engaged.The mileage recorder each time you press button B.
The automatic air conditioning display each time you press one of the buttons.
The trip computer information.
Night driving T h e fi r s t p r e s s on button D“DARK” places the display on standby. Only the time and the temperature remain visible at the top of the screen.
A second press on D switches the screen and the instrument panel off (black panel) with the exception of information con-cerning for example:The speed indicator.The gearbox.Cruise control / Speed limiter if this has been activated.Note: Timed lighting of func-tions if you:
Press any of the display con-trols.Select Radio-CD.Operate any of the air condi-tioning controls.Note: All the displays come on if there is an alert.A third press on D returns you to normal lighting.
---
-
--
Page 59 of 144
A
II
6 0
Operational anomaly
If the system is malfunctioning, the warning lamp ESP lights up in the instrument panel.
Contact a CITROËN dealer to have the system checked.
The ESP system offers increased driving safety but is not in place to encourage the driver to take additional risks or to drive at excessive speeds.
The functioning of this system is subject to compliance with the manufacturer’s recommendations on wheels (tyres and rims), brake parts and electronic components, as well as with the assembly and repair procedures approved by CITROËN.on wheels (tyres and rims), brake parts and electronic parts and electronic
After any collision, have this system checked by a CITROËN dealer.
E L E C T R O N I C S T A B I L I T Y
P R O G R A M M E ( E S P )
Deactivation
In exceptional conditions (vehicle stuck in snow, soft ground, etc.) it may prove useful to deactivate the ESP systems to allow the wheels to spin and thus regain traction.Press button A.
The warning lamp associated with control A (AESP Off) lights up, as does the ESP warning lamp on the instrument panel.
The ESP system is no longer active.
The ESP system reactivates:Automatically after the ignition has been switched off.ally
Automatically w h e n y o u d r i v e a t a b o v e a p p r o x . 5 0 k m / h ( a p p r o x . 3 0 m p h ) .ally
Manually with another press on button allyA.
This system is associated with the ABS and in addition to the ABS. In the event of a loss of control of the vehicle by the driver, the ESP system acts automati-cally on one or more wheels and also on the engine to bring the vehicle back on trajectory.
Operation
T h e E S P w a r n i n g l a m p fl a s h e s i n t h e i n s t r u m e n t p a n e l i f t h e E S P s y s t e m i s c o r -recting the vehicle's trajectory.
Page 66 of 144
A
III
6 7
Warning: The automatic air conditioning system uses a temperature sensor located on the dashboard (see reference A), this sensor should not be obstructed.
V E N T I L A T I O N - H E A T I N G
Page 67 of 144
1
2
3
4
56
1
1
1
2
2
2
3
3
3
4
4
4
56
6
6
III
6 9
V E N T I L A T I O N - H E A T I N G -
M A N U A L A I R C O N D I T I O N I N G
A i r fl o w t o t h e f a c e l e v e l v e n t s
(Air vents open)

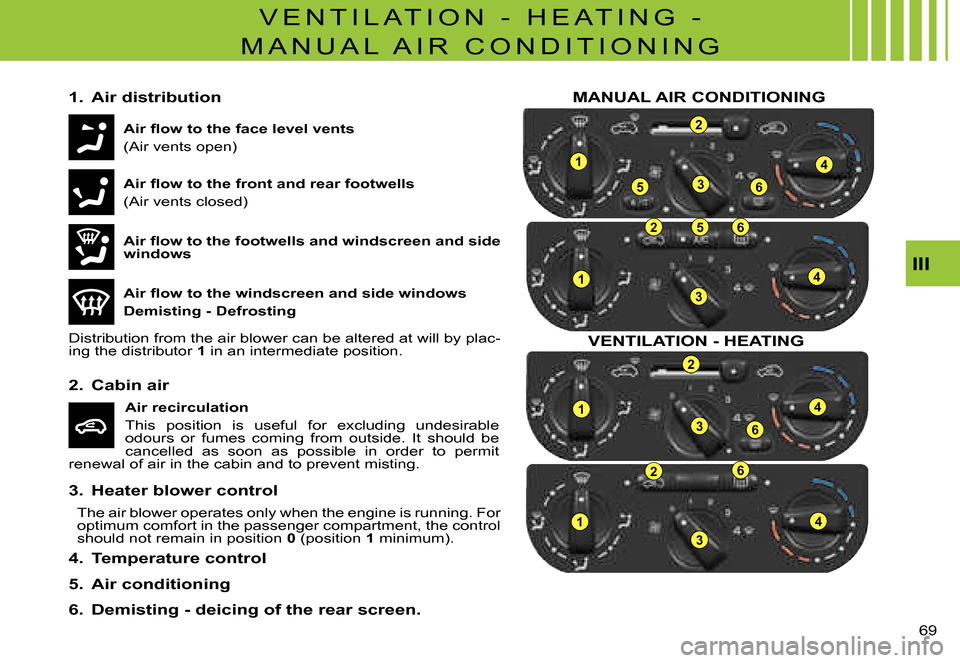

1. Air distribution
A i r fl o w t o t h e f r o n t a n d r e a r f o o t w e l l s
(Air vents closed)
A i r fl o w t o t h e f o o t w e l l s a n d w i n d s c r e e n a n d s i d e windows
A i r fl o w t o t h e w i n d s c r e e n a n d s i d e w i n d o w s
Demisting - Defrosting
Distribution from the air blower can be altered at will by plac-ing the distributor 1 in an intermediate position.
Air recirculation
This position is useful for excluding undesirable odours or fumes coming from outside. It should be cancelled as soon as possible in order to permit renewal of air in the cabin and to prevent misting.
2. Cabin air
3. Heater blower control
The air blower operates only when the engine is running. F or optimum comfort in the passenger compartment, the control should not remain in position 0 (position 1 minimum).
4. Temperature control
5. Air conditioning
6. Demisting - deicing of the rear screen.
MANUAL AIR CONDITIONING
VENTILATION - HEATING
Page 68 of 144
III
6 8
V E N T I L A T I O N - A I R C O N D I T I O N I N G
Air inlet
Check that the exterior grille for the air inlet, at the bot-tom of the windscreen, is clean and free of dead leaves, snow, etc.
If washing the vehicle with a high pressure jet, avoid targeting the air inlet zone.
Air vents
The air vents to the face (except the central air vent) h a v e g r i l l e s f o r o r i e n t i n g t h e fl o w o f a i r ( u p - d o w n , r i g h t -left).
Air circulation
For your comfort we advise you to maintain a proper distribution of air within the cabin, both at the front and at the rear.
Air outlets are also located on the central console close to the gear lever, to enhance comfort for the rear pas-sengers.
P o l l e n fi l t e r – O d o u r fi l t e r
Y o u r i n s t a l l a t i o n h a s a fi l t e r f o r k e e p i n g o u t d u s t .
T h i s fi l t e r h a s t o b e c h a n g e d a c c o r d i n g t o t h e v e h i c l e maintenance schedule. See “Maintenance Guide”.
Air conditioning
Whatever the time of year, even in cool weather the air conditioning is useful in removing humidity and mist-ing.
To keep the air conditioning compressor well sealed, it is essential to operate the air conditioning at least once in every month.
To be effective, the air conditioning should only be used with the windows closed.
If you are towing a heavy trailer and outside tempera-tures are high, the air conditioning may be temporarily paused if the engine cooling requires this.
Water arising from condensation in the air conditioning system is evacuated through a hole provided for this purpose ; a pool of water may thus form underneath the vehicle when stationary.
You are advised to have the air conditioning system checked on a regular basis. See “Maintenance Guide”.
The air conditioning operates by using power from the engine. This results in a slight increase in fuel con-sumption.
Demisting - deicing of the wind-screen and front side windowsPlace the controls for temperature and a i r fl o w o n m a x i m u m .
Close the central air vents.
Operate the air conditioning.Note: You should not be in air recirculation.
