15L I S T A N D S T R U C T U R E O F V O I C E
C O M M A N D S
Message
DisplayDisplays the list of SMS messagesReadReads the last SMS message received or the SMS selected in the list of messagesCancel R e t u r n s t o t h e fi r s t l e v e l o f t h e v o i c e c o m m a n d s s t r u c t u r eHelpDisplays the voice commands possible at this levelWhat can I sayDisplays the voice commands possible at this level
Navigation
StopStops the current guidanceDirector y“Pre-recorded label”Star ts guidance towards the address contained in the r ecord associated with the voice label pronouncedRestar tResumes guidance towards the last destination selecte d
See
DestinationCentres the map on the current or previous destinationVehicleCentres the map around the vehicleCancel R e t u r n s t o t h e fi r s t l e v e l o f t h e v o i c e c o m m a n d s s t r u c t u r eHelpDisplays the voice commands possible at this levelWhat can I sayDisplays the voice commands possible at this levelZoom inEnlarges the zone represented on the mapZoom outReduces the zone represented on the mapCancel R e t u r n s t o t h e fi r s t l e v e l o f t h e v o i c e c o m m a n d s s t r u c t u r eHelpDisplays the voice commands possible at this levelWhat can I sayDisplays the voice commands possible at this level
NoCancels a request to delete an SMS message
Yes C o n fi r m s a r e q u e s t t o d e l e t e a n S M S m e s s a g e
PreviousChanges to the previous radio station, or previous CD/C DC track. If an SMS is being read, reads the previous SMS messageRadioChanges to Radio audio source
Radio
AutostoreMemorises the 6 strongest FM stations that can be rece ived where the vehicle isListDisplays a list of the stations that can be received where the vehicle is
Memor y
1- 6Selects the station corresponding to the memor y bank n umber givenCancel R e t u r n s t o t h e fi r s t l e v e l o f t h e v o i c e c o m m a n d s s t r u c t u r eHelpHelpDisplays the voice commands possible at this levelWhat can I sayWhat can I sayDisplays the voice commands possible at this levelPreviousStar ts an automatic search for the previous radio stati onNextStar ts an automatic search for the next radio stationCancel R e t u r n s t o t h e fi r s t l e v e l o f t h e v o i c e c o m m a n d s s t r u c t u r eHelpHelpDisplays the voice commands possible at this levelWhat can I sayWhat can I sayDisplays the voice commands possible at this level
Page 172 of 201

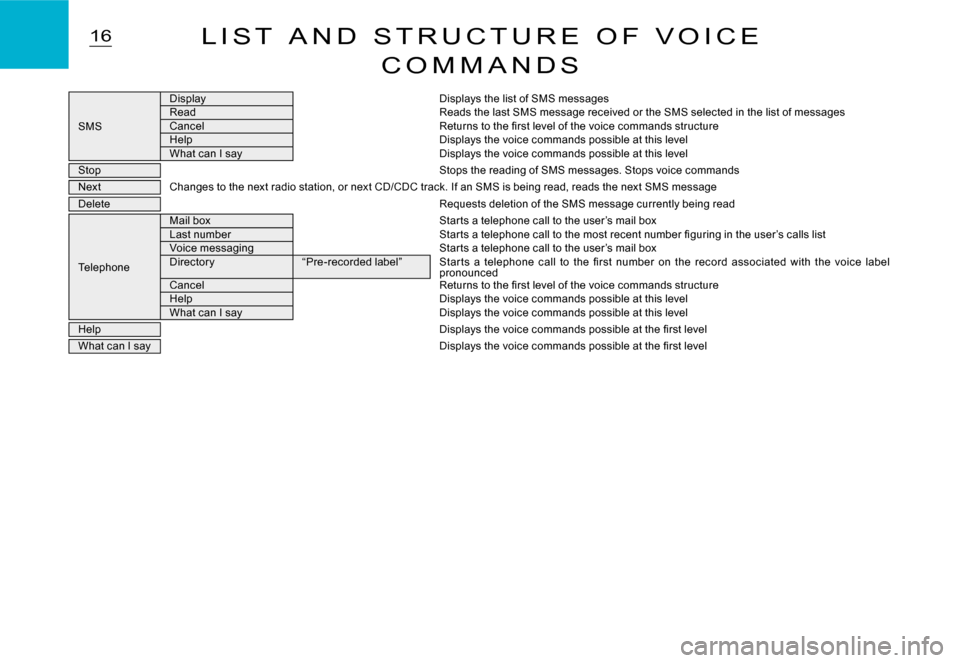

16L I S T A N D S T R U C T U R E O F V O I C E
C O M M A N D S
SMS
DisplayDisplays the list of SMS messagesReadReads the last SMS message received or the SMS selected in the list of messagesCancel R e t u r n s t o t h e fi r s t l e v e l o f t h e v o i c e c o m m a n d s s t r u c t u r eHelpDisplays the voice commands possible at this levelWhat can I sayDisplays the voice commands possible at this level
StopStops the reading of SMS messages. Stops voice command s
NextChanges to the next radio station, or next CD/CDC track. If an SMS is being read, reads the next SMS message
DeleteRequests deletion of the SMS message currently being r ead
Telephone
Mail boxStar ts a telephone call to the user’s mail boxLast number S t a r t s a t e l e p h o n e c a l l t o t h e m o s t r e c e n t n u m b e r fi g u r i n g i n t h e u s e r ’ s c a l l s l i s tVoice messagingStar ts a telephone call to the user’s mail boxDirector y“Pre-recorded label” S t a r t s a t e l e p h o n e c a l l t o t h e fi r s t n u m b e r o n t h e r e c o r d a s s o c i a t e d w i t h t h e v o i c e l a b e l pronouncedCancel R e t u r n s t o t h e fi r s t l e v e l o f t h e v o i c e c o m m a n d s s t r u c t u r eHelpDisplays the voice commands possible at this levelWhat can I sayDisplays the voice commands possible at this level
Help D i s p l a y s t h e v o i c e c o m m a n d s p o s s i b l e a t t h e fi r s t l e v e l
What can I say D i s p l a y s t h e v o i c e c o m m a n d s p o s s i b l e a t t h e fi r s t l e v e l
Page 173 of 201
NAV
17N A V I G A T I O N – T R A F F I C I N F O R M A T I O N
When navigation is to be used for the fi r s t t i m e , o r w h e n t h e b a t t e r y h a s b e e n disconnected for any reason, the naviga-tion system has to be initialised. For this operation the vehicle must be parked outdoors so that it can pick up satellite signals. Turn the ignition to position M (see vehicle Handbook) and leave for at l e a s t fi f t e e n m i n u t e s .
INTRODUCTIONThe on-board navigation system uses audible and visual instructions to guide you towards the destination of your choice.The system uses a cartographic database stored on a CD-ROM, and a GPS system.The G PS system enables your position to be plotted via contact with a number of satellites.The navigation system is composed of the following elements :A CD-ROM reader.A button for recall of the last voice mes-sage - during navigation, a long press on the end of the lighting control stalk 7repeats the latest voice information.Cartographic data in the form of a CDROM that has to be inserted, printed side up, in the aperture X.A synthesised voice for enunciating the guidance instructions during navigation.A display screen.A GPS aerial.Control on the dashboard and controls at the steering wheel.
Page 174 of 201
8
123
7658
123
7
5
64
18
During navigation, provided the navigation CD - ROM is present, the display indicates the manoeuvres to be made :
1 In navigation : manoeuvre to be made or, momentarily, direction to follow. Except during guidance : Display of a compass.2 Next manoeuvre to be made.3 Next road to be taken and name of town.4 S y m b o l c o n c e r n i n g T r a f fi c I n f o r m a t i o n o r s e r v i c e s i n p r o x i m i t y ( c o l o u r d i s p l a y ) .5 Road currently being taken and name of town.6 E s t i m a t e d t i m e o f a r r i v a l a t d e s t i n a t i o n ( b a s e d o n fl o w i n g t r a f fi c ) .7 D i s t a n c e t o fi n a l d e s t i n a t i o n .8 Distance to the next manoeuvre.Remark :Depending on the situation of the vehicle and the r eception of the GPS information, this infor-mation may temporarily be absent from the screen.
Tip :When Navigation is being displayed, a long press on the “Menu” button activates a demonstra-tion of the Navigation function of your NaviDrive.Next select a destination by using the Navigation Me nu. After entering this, start Navigation and see a simulation of the movements of your vehicle . The point of departure will be either the place where the vehicle is now, or the last known location. It is possible to enter a different point of departure via the demonstration menu. This demonstration can let you see a route that you wish to take in the future.
N A V I G A T I O N – T R A F F I C I N F O R M A T I O NN A V I G A T I O N – T R A F F I C I N F O R M A T I O N
CONTEXTUAL MENU FOR NAVIGATION – TRAFFIC INFORMATIONA press on W during navigation brings up a display on the right of the screen, permit-ting you to :Modify the display of the map. Display full screen or on the right hand side (colour screen only).Alter the route. During guidance this function lets you modif y your or iginal route. Enter the distance of the desired diversion then select the “OK” function and validate.Memorise the position of the vehicle. The vehic le position will be saved in the current director y, under a label for name of town and street (if available on the Navigation CDROM). Other wise the label corresponds to GPS coordinates for the location.Modify the guidance criteria for your itinerar y.Stop/resume guidance.
Page 175 of 201
NAV 1NAV 1. a
19N A V I G A T I O N – T R A F F I C I N F O R M A T I O N
If the list contains less than 6 names, these last will display automatically.Select a town, then validate.When the complete name of the town is displayed, select it then validate “OK”.
2 Enter the name of the streetEnter the street name in the same way as you entered the town name.
Note : Do not enter the type of road (street, avenue ,etc.).
3 ValidationWhen the complete name of the street is displayed, select it then validate “OK”.
Tips :If you enter only the name of the town and then validate immediately “OK”, you will go directly to the town centre.T he f unc t i o n “S t o r e” m e m o r i s e s t he a d d r e s s d i s p l a y e d i n t o a fi l e o f t h e c u r -rent directory.The selection “Present location” displays the current address.The selection “GPS” brings up the GPS coordinates.
Page 178 of 201
22R D S - T M C T R A F F I C I N F O R M A T I O N
A s o p p o s e d t o t h e r o a d i n f o r m a t i o n fl a s h e s broadcast by an FM station during its nor-mal programming (see the TA function in R D S ) , t h e T M C ( T r a f fi c M e s s a g e C h a n n e l ) messages are coded and not audible. TMC fi l t e r s t h e i n f o r m a t i o n t h a t i s o f i n t e r e s t t o y o u and broadcasts it in the language selected in your NaviDrive, even in a foreign country where the language of the local radio is not your own.The availability of such information depends on the country and on the region where you are travelling.This information is displayed in a superim-posed window and by symbols on the map (colour display). It be read out by the voice synthesiser.
Remark :The volume of the voice synthesiser can be adjusted in the menu “TMC T r a f fi c I n f o r m a -tion” and by moving control C while the TMC t r a f fi c i n f o r m a t i o n i s b e i n g h e a r d .The messages contain for example : A date and time of transmission, the nature of the t r a f fi c i n c i d e n t , i t s l o c a t i o n , p l u s t h e n a m e a n d d i r e c t i o n o f t h e t r a f fi c a r t e r y c o n c e r n e d .The messages are classed according to the distance of the incident from your vehicle. This list is updated approximately every 15 minutes.
T o r e c e i v e a n d v i e w t h i s t r a f fi c i n f o r m a t i o n , it is necessary to insert the navigation CD- R O M , t o a c t i v a t e T M C t r a f fi c i n f o r m a t i o n , to select a type of incident and a type of g e o g r a p h i c a l fi l t e r i n g .Selection of an FM radio station broad- c a s t i n g R D S - T M C t r a f fi c i n f o r m a t i o n i s automatic. If you want to select a different station, you must use the menu “Filter-ing of TMC information” then “Choice of TMC station”.
Remarks :The multifunction screen displays the “T M C” sy m b o l a s s o o n a s a s t a t i o n broadcasting TMC information is being received.When the FM station selected cannot broadcast the TMC information, the “TMC” symbol will be barred on a monochrome screen and shaded on a colour screen.Depending on the station selected, the t r a f fi c i n f o r m a t i o n m a y b e m o r e o r l e s s complete and precise, or cover a larger or smaller area. Each radio station is individually responsible for the quality of the information that it broadcasts.
Page 180 of 201
AUD
24A U D I O
TEMPORARY SOUND PAUSEPress simultaneously on buttons 4 and 6at the steering wheel to activate this func-tion.The sound will be paused, regardless of the source selected. The permanent audio s o ur c e s (r a di o, C D, C D c han g e r, M P 3) remain cut off, but not the others (guidance instructions for example).To restore sound, press any of the buttons on the control panel.
S OUND ADJUSTMENTSEach press on button U brings up the param- e t e r t o b e a d j u s t e d : c h o i c e o f p r e d e fi n e d sound ambiances, bass, treble, loudness, fade (front/rear sound distribution), balance (lef t /right sound distribution) and volume adjusted to vehicle speed.Control G allows you to modify the value of the parameter displayed.
Note :T h e v a l u e c h o s e n i s a u t o m a t i c a l l y accepted, without any need for valida-tion.The selection of a particular sound ambi-ence automatically adjusts the bass and treble.Adjustment of bass and treble is avail-able only if you have selected the sound ambiance “None”.Adjustments of bass, treble and loud- n e s s , w h e n a v a i l a b l e , a r e s p e c i fi c t o e a c h sound source.
Page 181 of 201
25R A D I O S O U R C E
NOTES ON RADIO RECEPTIONYour Navidrive system will be subject to phenomena not encountered by your equip-ment you have at home. The reception of AM and FM signals may suffer from interference, which is caused by the nature and propaga- t i o n o f t h e s i g n a l s a n d d o e s n o t r e fl e c t o n t h e quality of your radio installation.In AM, the reception may be affected when passing under power lines or bridges, or when travelling through tunnels.In FM mode, the reception may be affected by the distance from the station transmitter, the r e fl e c t i n g o f s i g n a l s o f f o b s t a c l e s ( m o u n t a i n s , hills, tower blocks) and radio blackspots (no coverage from the station transmitter).
S E L EC T I O N O F FR EQ U E N C I E S A N D MEMORY BANKSB y r e p e a t e d p r e s s e s o n b u t t o n R, t h e NaviDrive changes successively between the memor y banks FM1, FM2 and FMast, corresponding to FM frequencies, and to the memor y bank MW/LW, corresponding to AM frequencies.
M ANUAL SEARCHA short press on one of the buttons H or I, will respectively increase or decrease the displayed frequency.By keeping button H or I pressed, you will be able to scroll through the waveband. Scrolling stops as soon as a station is found. NaviDrive remains tuned to the frequency displayed.
M ANUAL PRE -SETTINGSelect the waveband and memor y bank required using button R.Select a station using either automatic or manual search.Keep pressing for more than two seconds on one of the pre-selection buttons 1 to 6on the keypad W.A window opens on the screen, the station is memorised as it is displayed on the memory number you have given it.
C O N T E X T U A L M E N U F O R RA D I O SOURCEA press on G while listening to the radio permits you to :Enter the desired frequency.Ac tivate/deac tivate the RDS search function in FM.Activate/deactivate the regional search mode in FM.Ac t i va t e /d e a c t i va t e t h e d i s p l ay o f Radio Text, broadcast by the radio station if available (“RT” displays at the bottom of the screen).
