2006 YAMAHA YZ450F engine

4 - 68
ENGOIL PUMP
INSPECTION
Oil pump
1. Inspect:
Oil pump drive gear
Oil pump driven gear
Rotor housing
Oil pump cover
Cracks/wear/damage → Replace.
2. Measure:
Tip clearance a
Between the inner rotor 1 and the outer
rotor 2.
Tip clearance b
Between the outer rotor 2 and the rotor
housing 3.
Out of specification → Replace the oil
pump.
Tip clearance
a:
0.12 mm or less
(0.0047 in or less)
: 0.20 mm (0.008 in)
Tip clearance
b:
0.09 ~ 0.17 mm (0.0035 ~ 0.0067 in)
: 0.24 mm (0.009 in)
Side clearance
c:
0.03 ~ 0.10 mm (0.0012 ~ 0.0039 in)
: 0.17 mm (0.007 in)
3. Check:
Unsmooth → Repeat steps #1 and #2 or
replace the defective parts.
ASSEMBLY AND INSTALLATION
Oil pump
1. Install:
Oil pump drive shaft 1
Washer 2
Pin 3
Inner rotor 1 4
NOTE:
Apply the engine oil on the oil pump drive
shaft and inner rotor 1.
Fit the pin into the groove in the inner rotor 1.

4 - 69
ENGOIL PUMP
2. Install:
Outer rotor 1 1
NOTE:
Apply the engine oil on the outer rotor 1.
3. Install:
Oil pump cover 1
Screw (oil pump cover) 2
Pin 3
Inner rotor 2 4
Circlip 5
NOTE:
Apply the engine oil on the oil pump drive
shaft end and inner rotor 2.
Fit the pin into the groove in the inner rotor 2.
T R..2 Nm (0.2 m · kg, 1.4 ft · lb)
New
4. Install:
Outer rotor 2 1
Dowel pin 2
Oil pump assembly 3
Bolt (oil pump assembly) 4
NOTE:
Apply the engine oil on the outer rotor 2.
T R..10 Nm (1.0 m · kg, 7.2 ft · lb)
5. Install:
Oil pump drive gear 1
Plate washer 2
Circlip 3
NOTE:
Apply the engine oil on the oil pump drive gear
inner circumference.
New

4 - 74
ENGKICK AXLE AND SHIFT SHAFT
EC4C5000
ASSEMBLY AND INSTALLATION
Segment
1. Install:
Segment 1
Bolt (segment)
NOTE:
Align the notch a on the segment with the pin
b on the shift cam.
CAUTION:
If the segment gets an impact, it may be
damaged. Take care not to give an impact
to the segment when tightening the bolt.
T R..30 Nm (3.0 m · kg, 22 ft · lb)
EC4B5111
Stopper lever
1. Install:
Torsion spring 1
Plain washer 2
Stopper lever 3
Bolt (stopper lever) 4
NOTE:
Align the stopper lever roller with the slot on
segment.
Shift guide and shift lever assembly
1. Install:
Spring 1
Pawl pin 2
Pawl 3
To shift lever 4.
1
2
4
3
T R..10 Nm (1.0 m · kg, 7.2 ft · lb)
NOTE:
Apply the engine oil on the springs, pawl pins
and pawls.
2. Install:
Shift lever assembly 1
To shift guide 2.
1
2

4 - 75
ENGKICK AXLE AND SHIFT SHAFT
3. Install:
Shift lever assembly 1
Shift guide 2
NOTE:
The shift lever assembly is installed at the
same time as the shift guide.
Apply the engine oil on the bolt (segment)
shaft.
4. Install:
Bolt (shift guide) 1
T R..10 Nm (1.0 m · kg, 7.2 ft · lb)
EC4C5301
Shift shaft
1. Install:
Roller 1
Collar 2
Torsion spring 3
Plain washer 4
Shift shaft 5
NOTE:
Apply the engine oil on the roller and shift
shaft.
2. Install:
Shift pedal 1
Bolt (shift pedal)
NOTE:
When installing the shift pedal onto the shift shaft,
be sure that the center of the shift pedal is about
4.4 mm (0.17 in) a above the top of the footrest.
T R..12 Nm (1.2 m · kg, 8.7 ft · lb)

4 - 76

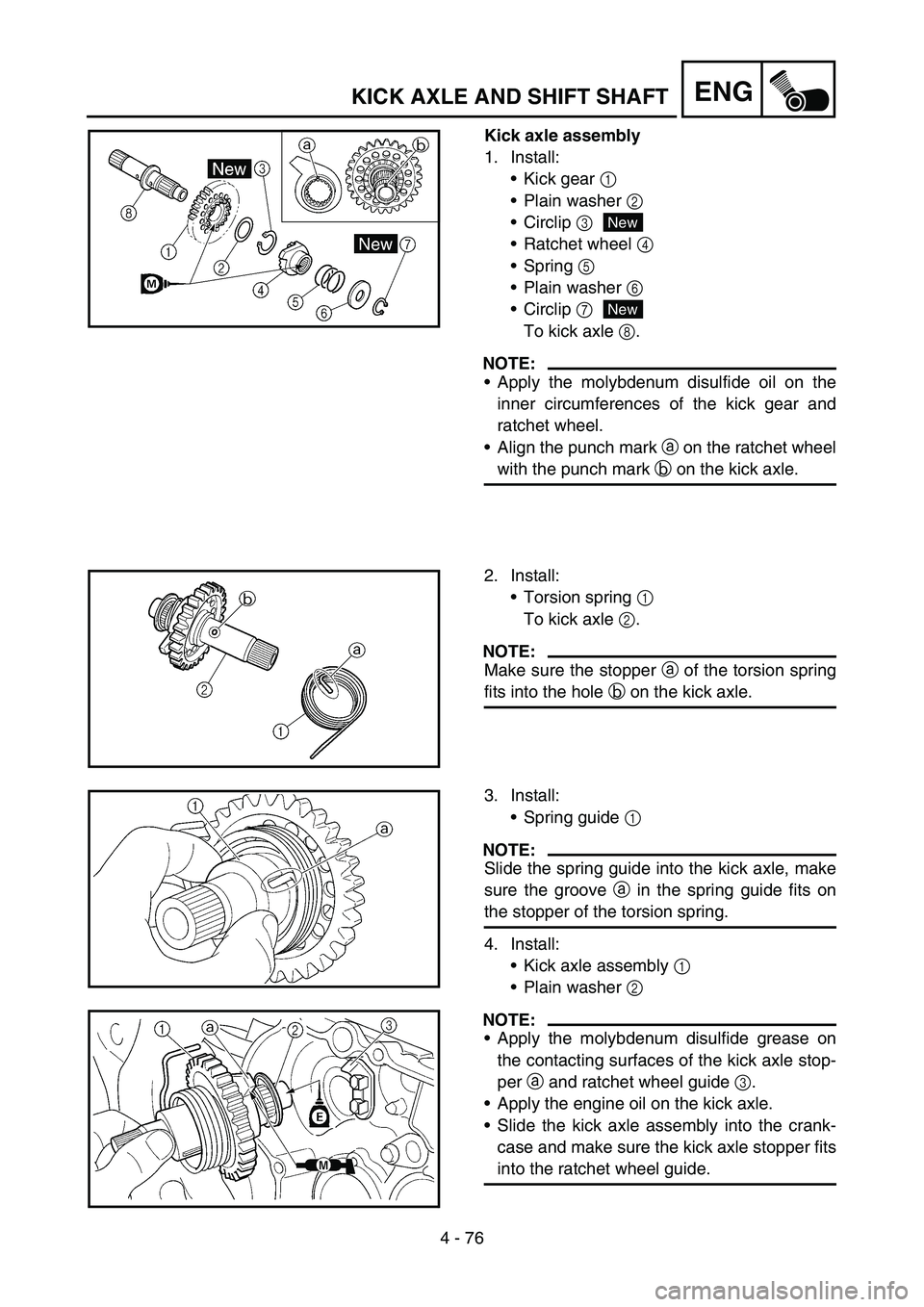

ENGKICK AXLE AND SHIFT SHAFT
Kick axle assembly
1. Install:
Kick gear 1
Plain washer 2
Circlip 3
Ratchet wheel 4
Spring 5
Plain washer 6
Circlip 7
To kick axle 8.
NOTE:
Apply the molybdenum disulfide oil on the
inner circumferences of the kick gear and
ratchet wheel.
Align the punch mark a on the ratchet wheel
with the punch mark b on the kick axle.
New
New
2. Install:
Torsion spring 1
To kick axle 2.
NOTE:
Make sure the stopper a of the torsion spring
fits into the hole b on the kick axle.
3. Install:
Spring guide 1
NOTE:
Slide the spring guide into the kick axle, make
sure the groove a in the spring guide fits on
the stopper of the torsion spring.
4. Install:
Kick axle assembly 1
Plain washer 2
NOTE:
Apply the molybdenum disulfide grease on
the contacting surfaces of the kick axle stop-
per a and ratchet wheel guide 3.
Apply the engine oil on the kick axle.
Slide the kick axle assembly into the crank-
case and make sure the kick axle stopper fits
into the ratchet wheel guide.

4 - 77
ENG
5. Hook:
Torsion spring 1
NOTE:
Turn the torsion spring clockwise and hook
into the proper hole a in the crankcase.
Kick idle gear
1. Install:
Kick idle gear 1
Plain washer 2
Circlip 3
NOTE:
Install the kick idle gear with its depressed
side a toward you.
Apply the engine oil on the kick idle gear
inner circumference.
New
KICK AXLE AND SHIFT SHAFT

4 - 81
