8-113
EBU07390
Wheel installation
When installing the wheel, reverse the removal
procedure.
NOTE:
The arrow mark on the tire must point
toward the rotating direction of the wheel.
Tighten the wheel nuts to the specified torque.
1
1. Arrow mark1. Flèche1. Flecha
1. Arrow mark
1. Flèche1. Flecha
Wheel nut torque:
Front: 45 Nm (4.5 m0kgf)
Rear: 45 Nm (4.5 m0kgf)
FrontAvantDelantera
RearArrièreTrasera
1S3-9-60 9-11 4/27/05 2:13 PM Page 8-113
9-3
cC

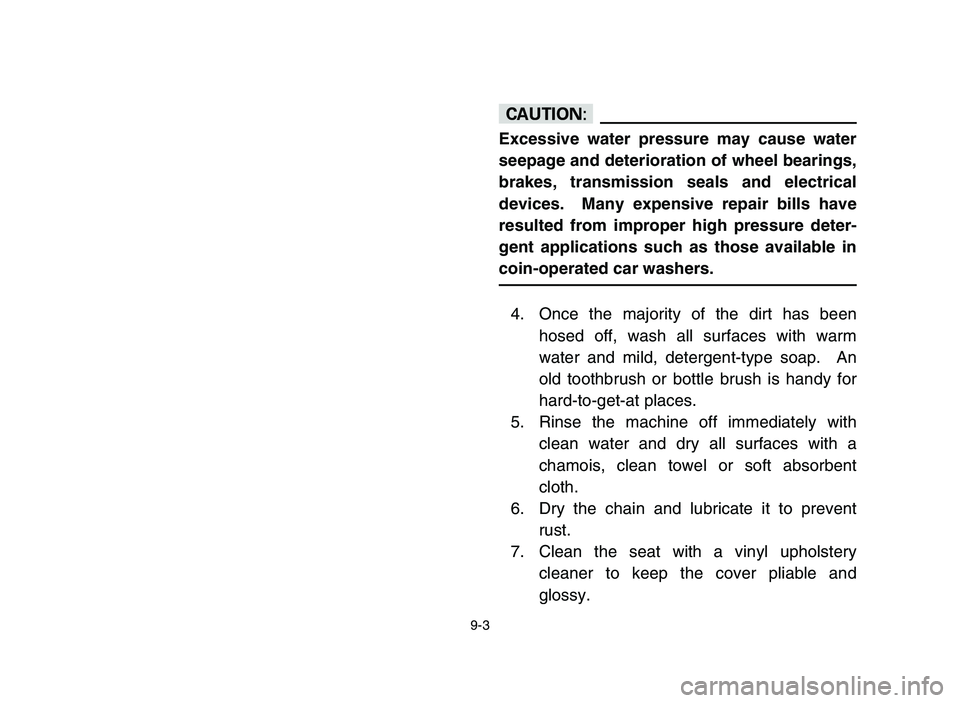

Excessive water pressure may cause water
seepage and deterioration of wheel bearings,
brakes, transmission seals and electrical
devices. Many expensive repair bills have
resulted from improper high pressure deter-
gent applications such as those available in
coin-operated car washers.
4. Once the majority of the dirt has been
hosed off, wash all surfaces with warm
water and mild, detergent-type soap. An
old toothbrush or bottle brush is handy for
hard-to-get-at places.
5. Rinse the machine off immediately with
clean water and dry all surfaces with a
chamois, clean towel or soft absorbent
cloth.
6. Dry the chain and lubricate it to prevent
rust.
7. Clean the seat with a vinyl upholstery
cleaner to keep the cover pliable and
glossy.
1S3-9-60 9-11 4/27/05 2:13 PM Page 9-3
