SAFETY INFORMATION
1-3
1Loading
The total weight of the operator, pas-
senger, accessories and cargo must
not exceed the maximum load limit.
When loading within this weight limit,
keep the following in mind:

Cargo and accessory weight
should be kept as low and close to
the motorcycle as possible. Make
sure to distribute the weight as
evenly as possible on both sides of
the motorcycle to minimize imbal-
ance or instability.


Shifting weights can create a sud-
den imbalance. Make sure that ac-
cessories and cargo are securely
attached to the motorcycle before
riding. Check accessory mounts
and cargo restraints frequently.


Never attach any large or heavy
items to the handlebar, front fork,
or front fender. These items, in-
cluding such cargo as sleepingbags, duffel bags, or tents, can
create unstable handling or slow
steering response.
Accessories
Genuine Yamaha accessories have
been specifically designed for use on
this motorcycle. Since Yamaha cannot
test all other accessories that may be
available, you must personally be re-
sponsible for the proper selection, in-
stallation and use of non-Yamaha
accessories. Use extreme caution
when selecting and installing any ac-
cessories.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.

Never install accessories or carry
cargo that would impair the perfor-
mance of your motorcycle. Care-
fully inspect the accessory before
using it to make sure that it does
not in any way reduce ground
clearance or cornering clearance,limit suspension travel, steering
travel or control operation, or ob-
scure lights or reflectors.
 Accessories fitted to the handle-
bar or the front fork area can
create instability due to improper
weight distribution or aerody-
namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.
 Bulky or large accessories may
seriously affect the stability of
the motorcycle due to aerody-
namic effects. Wind may at-
tempt to lift the motorcycle, or
the motorcycle may become un-
stable in cross winds. These ac-
cessories may also cause
instability when passing or being
passed by large vehicles.
 Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the free-
dom of movement of the opera-
Maximum load:
200 kg (441 lb)
chapter1 Page 3 Friday, January 7, 2005 4:04 PM

DESCRIPTION
2-3
2
EAU10430

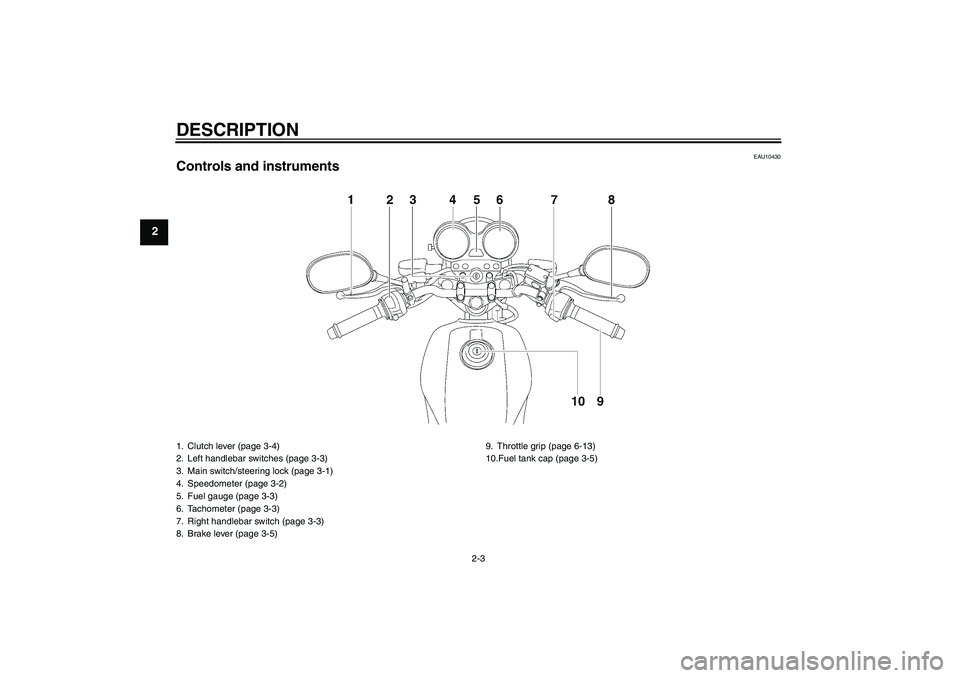

Controls and instruments1. Clutch lever (page 3-4)
2. Left handlebar switches (page 3-3)
3. Main switch/steering lock (page 3-1)
4. Speedometer (page 3-2)
5. Fuel gauge (page 3-3)
6. Tachometer (page 3-3)
7. Right handlebar switch (page 3-3)
8. Brake lever (page 3-5)9. Throttle grip (page 6-13)
10.Fuel tank cap (page 3-5)U3D9E0E0.book Page 3 Saturday, December 25, 2004 11:35 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU10460
Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU33590
ON
All electrical circuits are supplied with
power; the meter lighting, taillight and
auxiliary light come on, and the engine
can be started. The key cannot be re-
moved.NOTE:The headlight comes on automatically
when the engine is started and stays on
until the key is turned to “OFF”, even ifthe engine stalls.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU10680
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.To unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.
WARNING
EWA10060
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the vehicle is stopped be-
fore turning the key to “OFF” or“LOCK”.
1. Push.
2. Turn.
1. Push.
2. Turn.
U3D9E0E0.book Page 1 Saturday, December 25, 2004 11:35 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
9*Rear brakeCheck operation and adjust brake pedal free play.√√√√√ √
Replace brake shoes. Whenever worn to the limit
10*Brake hoseCheck for cracks or damage.√√√√ √
Replace. Every 4 years
11*WheelsCheck runout and for damage.√√√√
12*TiresCheck tread depth and for damage.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√ √
13*Wheel bearingsCheck bearing for looseness or damage.√√√√
14*SwingarmCheck operation and for excessive play.√√√√
Lubricate with lithium-soap-based grease. Every 24000 km
15 Drive chainCheck chain slack, alignment and condition.
Adjust and lubricate chain with a special O-ring chain lu-
bricant thoroughly.Every 1000 km and after washing the motorcycle or
riding in the rain
16*Steering bearingsCheck bearing play and steering for roughness.√√√√√
Lubricate with lithium-soap-based grease. Every 24000 km
17*Chassis fastenersMake sure that all nuts, bolts and screws are properly
tightened.√√√√ √
18 CenterstandCheck operation.
Lubricate.√√√√ √
19*Front forkCheck operation and for oil leakage.√√√√
20*Shock absorber assem-
bliesCheck operation and shock absorbers for oil leakage.√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 6 12 18 24
U3D9E0E0.book Page 3 Saturday, December 25, 2004 11:35 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
6
CAUTION:
ECA10590
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-pair it.
EAU23280
Checking the steering Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
ground.
WARNING
EWA10750
Securely support the vehicle so thatthere is no danger of it falling over.
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.
U3D9E0E0.book Page 27 Saturday, December 25, 2004 11:35 AM

CONSUMER INFORMATION
9-1
9
EAU26351
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in yourarea.
1. Key identification number
1. Vehicle identification number
U3D9E0E0.book Page 1 Saturday, December 25, 2004 11:35 AM

INDEXAAir filter element, cleaning..................... 6-11
Auxiliary light bulb, replacing ................ 6-33BBattery................................................... 6-28
Brake and clutch levers, checking and
lubricating ........................................... 6-25
Brake and shift pedals, checking and
lubricating ........................................... 6-24
Brake fluid, changing ............................ 6-21
Brake fluid level, checking .................... 6-20
Brake lever .............................................. 3-5
Brake pads and shoes, checking .......... 6-20
Brake pedal ............................................. 3-5
Brake pedal free play, adjusting............ 6-18CCables, checking and lubricating .......... 6-24
Carburetor, adjusting ............................ 6-12
Care ........................................................ 7-1
Carrier ................................................... 3-10
Catalytic converter .................................. 3-7
Centerstand, checking and
lubricating ........................................... 6-26
Clutch lever ............................................. 3-4
Clutch lever free play, adjusting ............ 6-17
Cowling and panels, removing and
installing................................................ 6-5DDimmer switch ........................................ 3-4
Drive chain, cleaning and lubricating .... 6-23
Drive chain slack ................................... 6-22EEngine break-in ....................................... 5-3
Engine idling speed............................... 6-13Engine oil ................................................ 6-9
Engine, starting a warm .......................... 5-2
FFront brake lever free play,
checking ............................................. 6-18
Front fork, checking .............................. 6-26
Fuel......................................................... 3-6
Fuel cock ................................................ 3-7
Fuel consumption, tips for reducing........ 5-3
Fuel gauge.............................................. 3-3
Fuel tank cap .......................................... 3-5
Fuse, replacing ..................................... 6-30HHandlebar switches ................................ 3-3
Headlight bulb, replacing ...................... 6-31
High beam indicator light ........................ 3-2
Horn switch ............................................. 3-4IIdentification numbers ............................ 9-1
Indicator lights ........................................ 3-2KKey identification number ....................... 9-1
Kickstarter............................................... 3-9LLuggage strap holders .......................... 3-10MMain switch/steering lock........................ 3-1
Model label ............................................. 9-2NNeutral indicator light .............................. 3-2PParking ................................................... 5-4
Part locations .......................................... 2-1Periodic maintenance and lubrication
chart ...................................................... 6-2
Pre-operation check list........................... 4-2
RRear brake light switch, adjusting ......... 6-19SSafety information ................................... 1-1
Shifting .................................................... 5-2
Shift pedal ............................................... 3-4
Shock absorber assemblies, adjusting.... 3-9
Spark plug, checking ............................... 6-8
Specifications .......................................... 8-1
Speedometer unit .................................... 3-2
Starter (choke) lever................................ 3-8
Starting a cold engine ............................. 5-1
Starting circuit cut-off system ................ 3-10
Start switch.............................................. 3-4
Steering, checking................................. 6-27
Storage.................................................... 7-3
Swingarm pivots, lubricating ................. 6-26TTachometer ............................................. 3-3
Tail/brake light bulb, replacing .............. 6-32
Throttle cable free play, adjusting ......... 6-13
Throttle grip and cable, checking and
lubricating ........................................... 6-24
Tires ...................................................... 6-14
Tool kit..................................................... 6-1
Troubleshooting .................................... 6-37
Troubleshooting chart ........................... 6-38
Turn signal indicator lights ...................... 3-2
Turn signal light bulb, replacing ............ 6-33
Turn signal switch ................................... 3-4
U3D9E0E0.book Page 1 Saturday, December 25, 2004 11:35 AM
