2006 YAMAHA YBR125 odometer

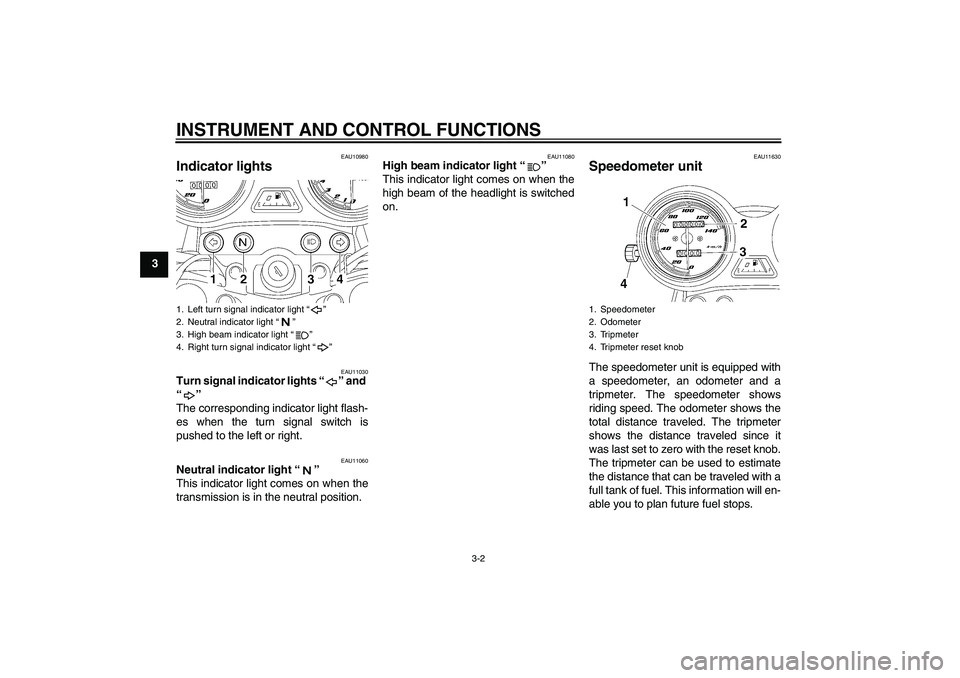

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU10980
Indicator lights
EAU11030
Turn signal indicator lights “” and
“”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU11060
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11630
Speedometer unit The speedometer unit is equipped with
a speedometer, an odometer and a
tripmeter. The speedometer shows
riding speed. The odometer shows the
total distance traveled. The tripmeter
shows the distance traveled since it
was last set to zero with the reset knob.
The tripmeter can be used to estimate
the distance that can be traveled with a
full tank of fuel. This information will en-
able you to plan future fuel stops.
1. Left turn signal indicator light “”
2. Neutral indicator light “”
3. High beam indicator light “”
4. Right turn signal indicator light “”
1. Speedometer
2. Odometer
3. Tripmeter
4. Tripmeter reset knob
U3D9E0E0.book Page 2 Saturday, December 25, 2004 11:35 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
6
EAU17710
Periodic maintenance and lubrication chart NOTE:

The annual checks must be performed every year, except if a kilometer-based maintenance is performed in-
stead.


From 30000 km, repeat the maintenance intervals starting from 6000 km.


Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technicalskills.
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 6 12 18 24
1*Fuel lineCheck fuel hoses for cracks or damage.√√√√ √
2*Fuel cock filterCheck condition.√√
3 Spark plugCheck condition.
Clean and regap.√√
Replace.√√
4*ValvesCheck valve clearance.
Adjust.√√√√
5 Air filter elementClean.√√
Replace.√√
6*BatteryCheck electrolyte level and specific gravity.
Make sure that the breather hose is properly routed.√√√√ √
7ClutchCheck operation.
Adjust.√√√√√
8*Front brakeCheck operation, fluid level and vehicle for fluid leakage.√√√√√ √
Replace brake pads. Whenever worn to the limit

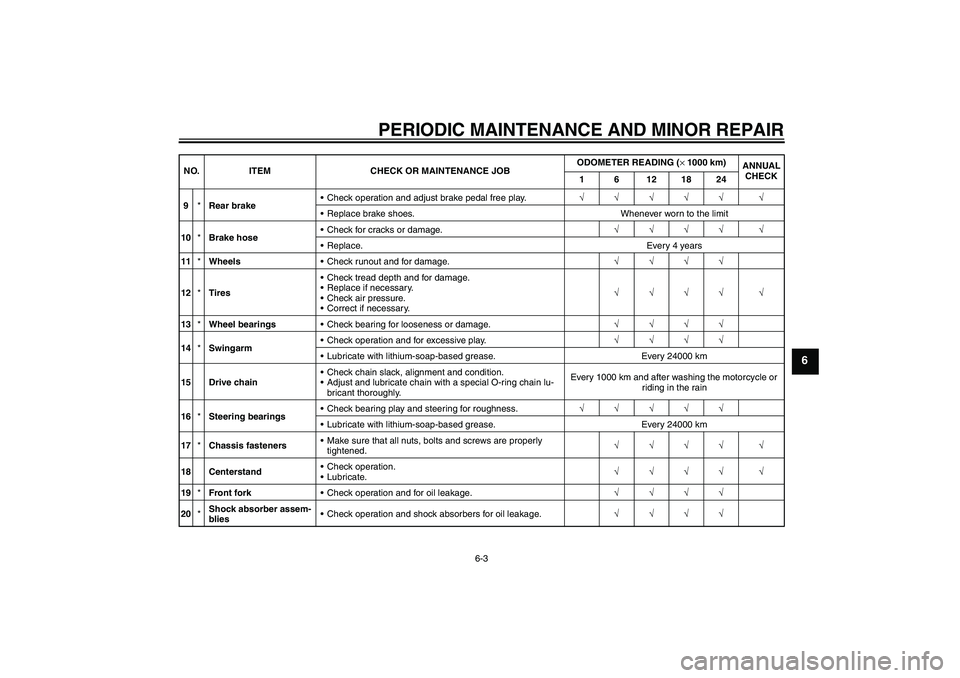

U3D9E0E0.book Page 2 Saturday, December 25, 2004 11:35 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
9*Rear brakeCheck operation and adjust brake pedal free play.√√√√√ √
Replace brake shoes. Whenever worn to the limit
10*Brake hoseCheck for cracks or damage.√√√√ √
Replace. Every 4 years
11*WheelsCheck runout and for damage.√√√√
12*TiresCheck tread depth and for damage.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√ √
13*Wheel bearingsCheck bearing for looseness or damage.√√√√
14*SwingarmCheck operation and for excessive play.√√√√
Lubricate with lithium-soap-based grease. Every 24000 km
15 Drive chainCheck chain slack, alignment and condition.
Adjust and lubricate chain with a special O-ring chain lu-
bricant thoroughly.Every 1000 km and after washing the motorcycle or
riding in the rain
16*Steering bearingsCheck bearing play and steering for roughness.√√√√√
Lubricate with lithium-soap-based grease. Every 24000 km
17*Chassis fastenersMake sure that all nuts, bolts and screws are properly
tightened.√√√√ √
18 CenterstandCheck operation.
Lubricate.√√√√ √
19*Front forkCheck operation and for oil leakage.√√√√
20*Shock absorber assem-
bliesCheck operation and shock absorbers for oil leakage.√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 6 12 18 24
U3D9E0E0.book Page 3 Saturday, December 25, 2004 11:35 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
EAU18660
NOTE:

The air filter needs more frequent service if you are riding in unusually wet or dusty areas.


Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years replace the internal components of the brake master cylinder and caliper, and change the brake fluid.Replace the brake hoses every four years and if cracked or damaged.
21*CarburetorCheck starter (choke) operation.
Adjust engine idling speed.√√√√√ √
22 Engine oilChange.
Check oil level and vehicle for oil leakage.√√√√√ √
23*Front and rear brake
switchesCheck operation.√√√√√ √
24Moving parts and ca-
blesLubricate.√√√√ √
25*Throttle grip housing
and cableCheck operation and free play.
Adjust the throttle cable free play if necessary.
Lubricate the throttle grip housing and cable.√√√√ √
26*Air induction systemCheck the air cut-off valve, reed valve, and hose for dam-
age.
Replace any damaged parts if necessary.√√√√ √
27*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√ √ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 6 12 18 24U3D9E0E0.book Page 4 Saturday, December 25, 2004 11:35 AM
