2006 YAMAHA XV1900A clock

PERIODIC MAINTENANCE AND MINOR REPAIR
6-25
6 To replace the high beam headlight
bulb1. Remove the headlight bulb holder
cover by turning it counterclock-
wise.2. Disconnect the headlight coupler,
and then unhook the headlight
bulb holder.
3. Remove the defective bulb.
WARNING
EWA10790
Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooleddown.
4. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.
CAUTION:
ECA10650
Take care not to damage the follow-
ing parts:

Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.


Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of awattage higher than specified.
1. Screw
1. Headlight bulb holder cover
1. Headlight coupler
2. Headlight bulb holder
U5C4E0E0.book Page 25 Monday, March 13, 2006 10:29 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-26
65. Connect the coupler, and then in-
stall the headlight bulb holder cov-
er by turning it clockwise.
To replace the low beam headlight bulb
1. Disconnect the headlight coupler,
and then remove the defective
bulb by turning it counterclock-
wise.
WARNING
EWA10790
Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooleddown.
2. Install the bulb by turning it clock-
wise.CAUTION:
ECA10650
Take care not to damage the follow-
ing parts:


Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.


Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of awattage higher than specified.
1. Do not touch the glass part of the bulb.
1. Headlight coupler
2. Headlight bulb
1. Do not touch the glass part of the bulb.
U5C4E0E0.book Page 26 Monday, March 13, 2006 10:29 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
6 3. Connect the headlight coupler.
Installing the headlight unit
1. Install the headlight unit by install-
ing the screws.
2. Connect the coupler to the head-
light cover.
3. Install the headlight cover by in-
stalling the bolts.
4. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU24180
Tail/brake light This model is equipped with an LED
type of tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.
EAU38380
Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw, and then
turning the lens counterclockwise.
2. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by turning it clock-
wise, and then installing the screw.CAUTION:
ECA11190
Do not overtighten the screw, other-wise the lens may break.1. Screw
U5C4E0E0.book Page 27 Monday, March 13, 2006 10:29 AM

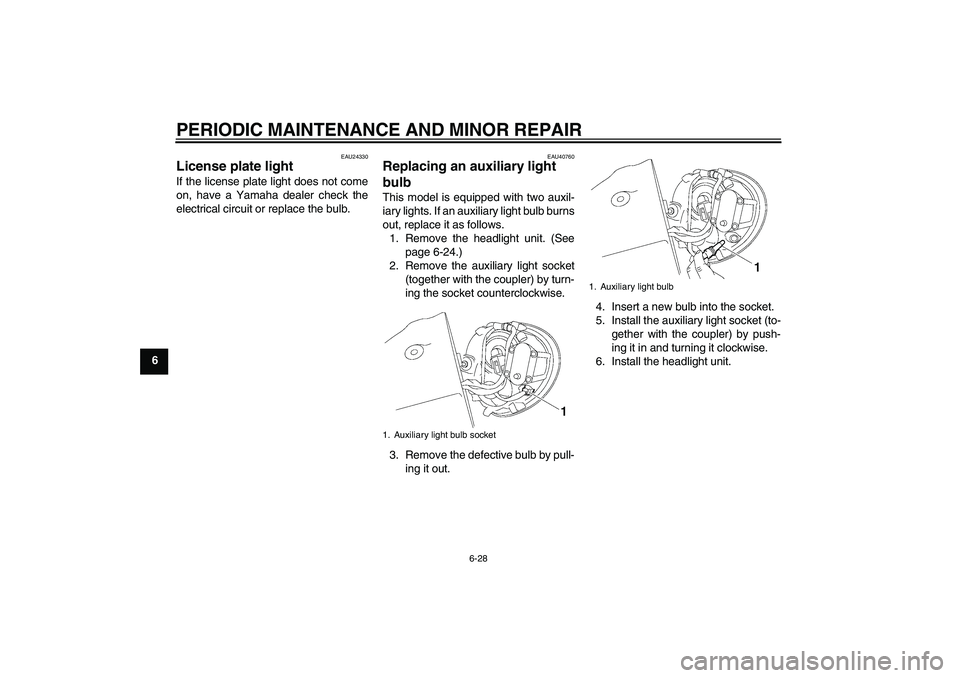

PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
6
EAU24330
License plate light If the license plate light does not come
on, have a Yamaha dealer check the
electrical circuit or replace the bulb.
EAU40760
Replacing an auxiliary light
bulb This model is equipped with two auxil-
iary lights. If an auxiliary light bulb burns
out, replace it as follows.
1. Remove the headlight unit. (See
page 6-24.)
2. Remove the auxiliary light socket
(together with the coupler) by turn-
ing the socket counterclockwise.
3. Remove the defective bulb by pull-
ing it out.4. Insert a new bulb into the socket.
5. Install the auxiliary light socket (to-
gether with the coupler) by push-
ing it in and turning it clockwise.
6. Install the headlight unit.1. Auxiliary light bulb socket
1. Auxiliary light bulb
U5C4E0E0.book Page 28 Monday, March 13, 2006 10:29 AM
