INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
EAU12830

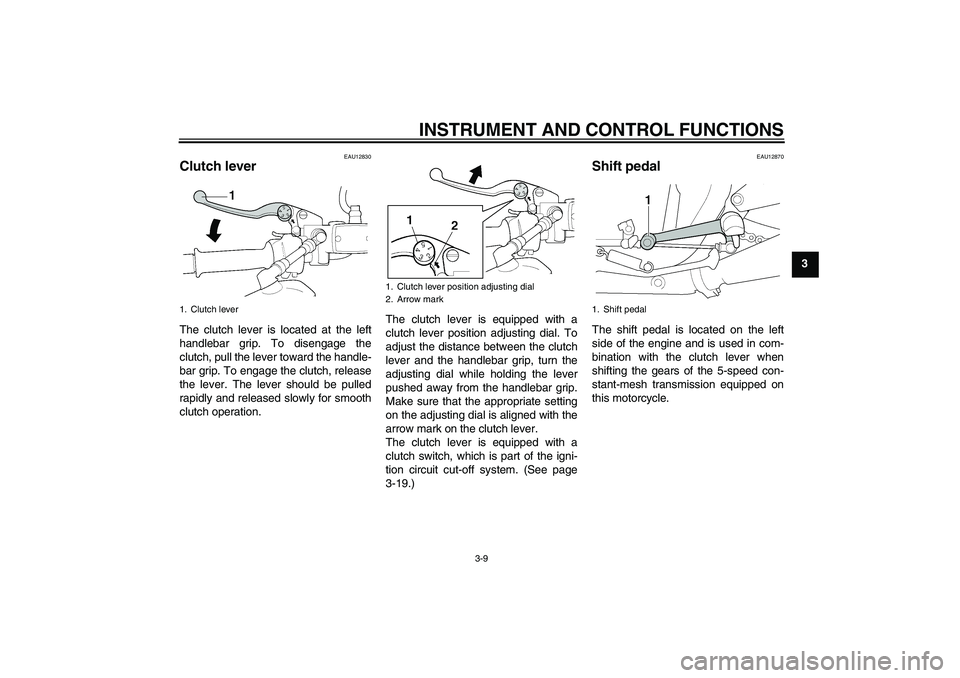

Clutch lever The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.The clutch lever is equipped with a
clutch lever position adjusting dial. To
adjust the distance between the clutch
lever and the handlebar grip, turn the
adjusting dial while holding the lever
pushed away from the handlebar grip.
Make sure that the appropriate setting
on the adjusting dial is aligned with the
arrow mark on the clutch lever.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See page
3-19.)
EAU12870
Shift pedal The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 5-speed con-
stant-mesh transmission equipped on
this motorcycle.
1. Clutch lever
1. Clutch lever position adjusting dial
2. Arrow mark
1. Shift pedal
U5WME3E0.book Page 9 Thursday, August 4, 2005 8:48 AM
Page 24 of 90
INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
EAU26822

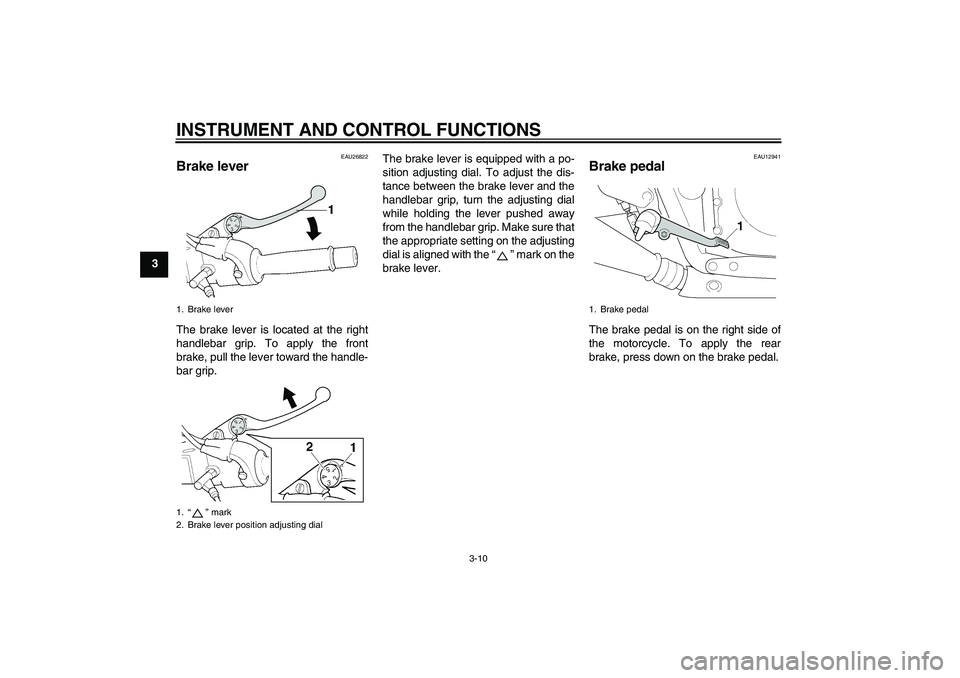

Brake lever The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.The brake lever is equipped with a po-
sition adjusting dial. To adjust the dis-
tance between the brake lever and the
handlebar grip, turn the adjusting dial
while holding the lever pushed away
from the handlebar grip. Make sure that
the appropriate setting on the adjusting
dial is aligned with the “” mark on the
brake lever.
EAU12941
Brake pedal The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
1. Brake lever
1.“” mark
2. Brake lever position adjusting dial
1. Brake pedal
U5WME3E0.book Page 10 Thursday, August 4, 2005 8:48 AM
Page 40 of 90
OPERATION AND IMPORTANT RIDING POINTS
5-3
5
EAU16671

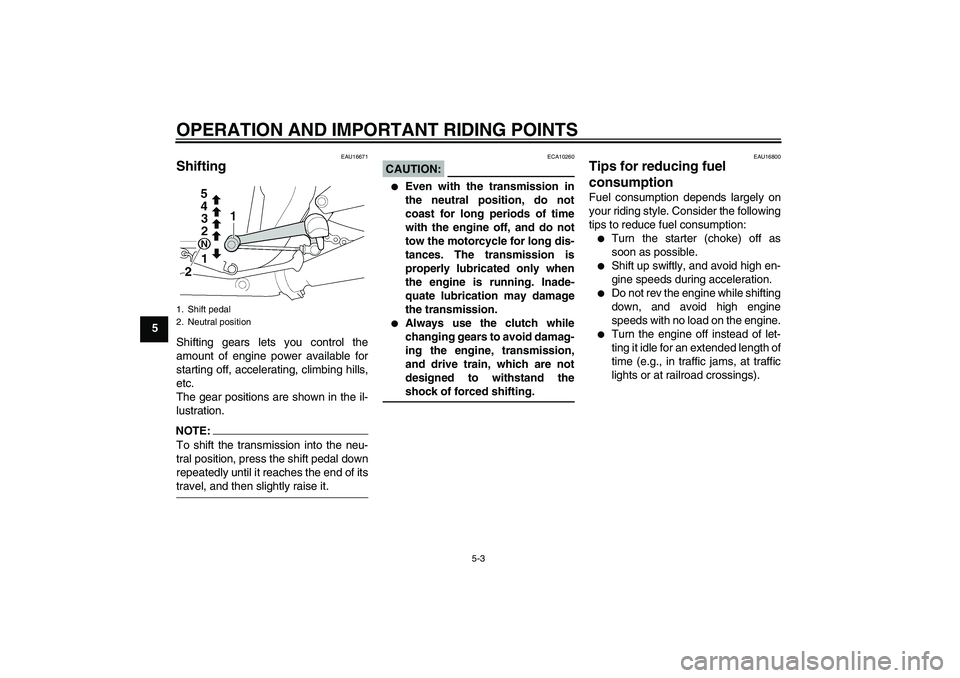

Shifting Shifting gears lets you control the
