TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-2
Indicator and warning lights ............3-3
Speedometer ..................................3-5
Tachometer ....................................3-5
Self-diagnosis device ......................3-5
Multi-function display ......................3-6
Anti-theft alarm (optional) ...............3-7
Handlebar switches ........................3-7
Clutch lever .....................................3-9
Shift pedal .......................................3-9
Brake lever ...................................3-10
Brake pedal ..................................3-10
Fuel tank cap ................................3-11
Fuel ...............................................3-11
Fuel tank breather hose ................3-12
Catalytic converter ........................3-13
Fuel cock ......................................3-13
Starter (choke) lever .....................3-14
Seat ..............................................3-14
Helmet holder ...............................3-15
Storage compartment ...................3-15Adjusting the front fork ................. 3-16
Adjusting the shock absorber
assemblies ................................ 3-17
Luggage strap holders ................. 3-18
Sidestand ..................................... 3-18
Ignition circuit cut-off system ........ 3-19
PRE-OPERATION CHECKS............. 4-1
Pre-operation check list .................. 4-2
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting a cold engine .................... 5-1
Starting a warm engine .................. 5-2
Shifting ........................................... 5-3
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-4
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Removing and installing panels ..... 6-5
Checking the spark plugs ............... 6-7
Engine oil and oil filter element ...... 6-8
Cleaning the air filter element ...... 6-10
Adjusting the carburetors ............. 6-11Adjusting the engine idling
speed ........................................ 6-12
Checking the throttle cable
free play .................................... 6-12
Valve clearance ........................... 6-13
Tires ............................................. 6-13
Cast wheels ................................. 6-16
Clutch lever .................................. 6-16
Adjusting the rear brake light
switch ....................................... 6-16
Checking the front and rear
brake pads ................................ 6-17
Checking the brake and clutch
fluid levels ................................. 6-18
Changing the brake and
clutch fluids ............................... 6-19
Drive chain slack .......................... 6-19
Cleaning and lubricating the
drive chain ................................ 6-21
Checking and lubricating the
cables ....................................... 6-21
Checking and lubricating the
throttle grip and cable ............... 6-22
Checking and lubricating the
brake and shift pedals .............. 6-22
Checking and lubricating the
brake and clutch levers ............ 6-23
Checking and lubricating the
centerstand and sidestand ....... 6-23
Lubricating the swingarm
pivots ........................................ 6-24U5WME3E0.book Page 1 Thursday, August 4, 2005 8:48 AM

TABLE OF CONTENTS
Checking the front fork ................. 6-24
Checking the steering ................... 6-25
Checking the wheel bearings ....... 6-26
Battery .......................................... 6-26
Replacing the fuses ...................... 6-27
Replacing the headlight bulb ........ 6-28
Replacing a tail/brake light
bulb ........................................... 6-30
Replacing a turn signal light
bulb ........................................... 6-30
Replacing the auxiliary light
bulb ........................................... 6-31
Front wheel ................................... 6-31
Rear wheel ................................... 6-33
Troubleshooting ............................ 6-34
Troubleshooting chart ................... 6-35
MOTORCYCLE CARE AND
STORAGE.......................................... 7-1
Care ................................................ 7-1
Storage ...........................................7-3
SPECIFICATIONS ............................. 8-1
CONSUMER INFORMATION............. 9-1
Identification numbers .................... 9-1
U5WME3E0.book Page 2 Thursday, August 4, 2005 8:48 AM

DESCRIPTION
2-2
2
EAU10420
Right view1. Tail/brake light (page 6-30)
2. Luggage strap holder (page 3-18)
3. Shock absorber assembly spring preload adjusting ring (page 3-17)
4. Owner’s tool kit (page 6-1)
5. Rear brake fluid reservoir (page 6-18)
6. Fuses (page 6-27)
7. Battery (page 6-26)
8. Air filter element (page 6-10)
9. Fuel tank (page 3-11)
10.Front brake fluid reservoir (page 6-18)
11.Front fork spring preload adjusting bolt (page 3-16)12.Headlight (page 6-28)
13.Engine oil filler cap (page 6-8)
14.Engine oil level check window (page 6-8)
15.Brake pedal (page 3-10)
U5WME3E0.book Page 2 Thursday, August 4, 2005 8:48 AM

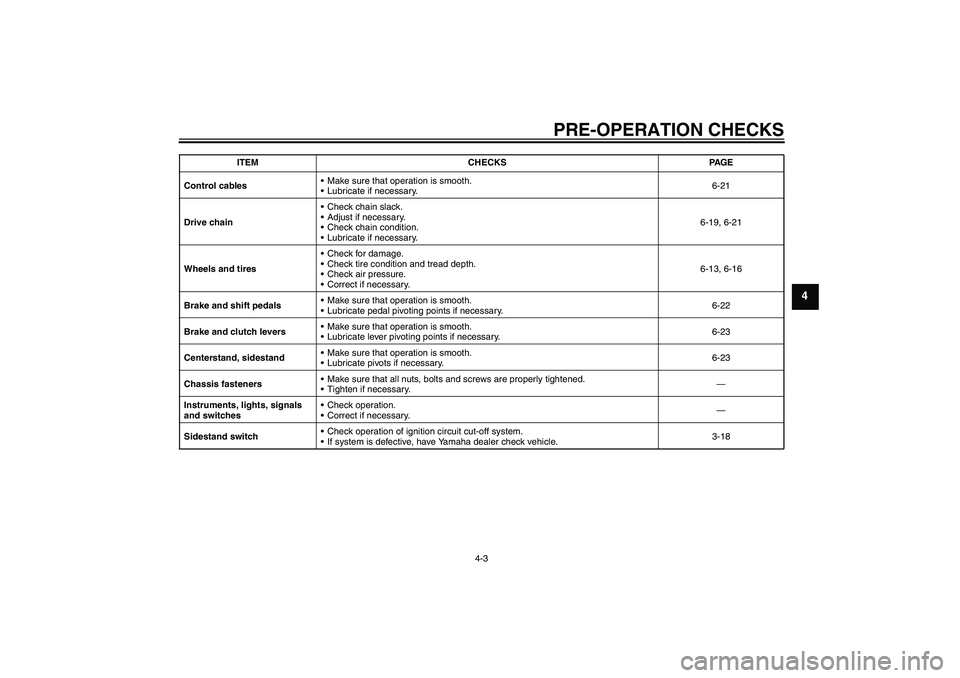

PRE-OPERATION CHECKS
4-3
4
Control cablesMake sure that operation is smooth.
Lubricate if necessary.6-21
Drive chainCheck chain slack.
Adjust if necessary.
Check chain condition.
Lubricate if necessary.6-19, 6-21
Wheels and tiresCheck for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary.6-13, 6-16
Brake and shift pedalsMake sure that operation is smooth.
Lubricate pedal pivoting points if necessary.6-22
Brake and clutch leversMake sure that operation is smooth.
Lubricate lever pivoting points if necessary.6-23
Centerstand, sidestandMake sure that operation is smooth.
Lubricate pivots if necessary.6-23
Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened.
Tighten if necessary.—
Instruments, lights, signals
and switchesCheck operation.
Correct if necessary.—
Sidestand switchCheck operation of ignition circuit cut-off system.
If system is defective, have Yamaha dealer check vehicle.3-18 ITEM CHECKS PAGE
U5WME3E0.book Page 3 Thursday, August 4, 2005 8:48 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
EAU17670
NOTE:

The air filter needs more frequent service if you are riding in unusually wet or dusty areas.


Hydraulic brake and clutch service
Regularly check and, if necessary, correct the brake and clutch fluid levels.
Every two years replace the internal components of the brake master cylinders and calipers as well as clutch master
and release cylinders, and change the brake and clutch fluids.Replace the brake and clutch hoses every four years and if cracked or damaged.
22 Engine oilChange.
Check oil level and vehicle for oil leakage.√√√√√ √
23 Engine oil filter elementReplace.√√√
24*Front and rear brake
switchesCheck operation.√√√√√ √
25Moving parts and ca-
blesLubricate.√√√√ √
26*Throttle grip housing
and cableCheck operation and free play.
Adjust the throttle cable free play if necessary.
Lubricate the throttle grip housing and cable.√√√√ √
27*Muffler and exhaust
pipeCheck the screw clamp for looseness.√√√√√
28*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√ √ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 10203040
U5WME3E0.book Page 4 Thursday, August 4, 2005 8:48 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
6
EAU21960

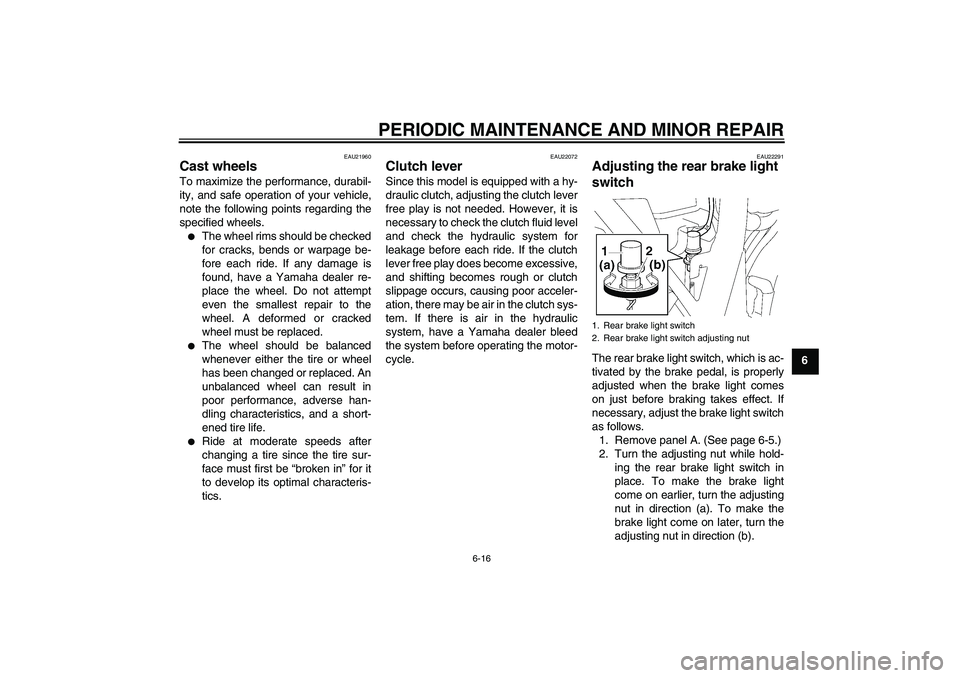

Cast wheels To maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified wheels.

The wheel rims should be checked
for cracks, bends or warpage be-
fore each ride. If any damage is
found, have a Yamaha dealer re-
place the wheel. Do not attempt
even the smallest repair to the
wheel. A deformed or cracked
wheel must be replaced.


The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.


Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for it
to develop its optimal characteris-
tics.
EAU22072
Clutch lever Since this model is equipped with a hy-
draulic clutch, adjusting the clutch lever
free play is not needed. However, it is
necessary to check the clutch fluid level
and check the hydraulic system for
leakage before each ride. If the clutch
lever free play does become excessive,
and shifting becomes rough or clutch
slippage occurs, causing poor acceler-
ation, there may be air in the clutch sys-
tem. If there is air in the hydraulic
system, have a Yamaha dealer bleed
the system before operating the motor-
cycle.
EAU22291
Adjusting the rear brake light
switch The rear brake light switch, which is ac-
tivated by the brake pedal, is properly
adjusted when the brake light comes
on just before braking takes effect. If
necessary, adjust the brake light switch
as follows.
1. Remove panel A. (See page 6-5.)
2. Turn the adjusting nut while hold-
ing the rear brake light switch in
place. To make the brake light
come on earlier, turn the adjusting
nut in direction (a). To make the
brake light come on later, turn the
adjusting nut in direction (b).1. Rear brake light switch
2. Rear brake light switch adjusting nut
U5WME3E0.book Page 16 Thursday, August 4, 2005 8:48 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
6
EAU24170
Replacing a tail/brake light
bulb 1. Remove the seat. (See page
3-14.)
2. Remove the socket (together with
the bulb) by turning it counter-
clockwise.
3. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
4. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
5. Install the socket (together with the
bulb) by turning it clockwise.
6. Install the seat.
EAU24202
Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw.
2. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw.
CAUTION:
ECA11190
Do not overtighten the screw, other-wise the lens may break.
1. Tail/brake light bulb socket
1. Screw
1. Turn signal light bulb
U5WME3E0.book Page 30 Thursday, August 4, 2005 8:48 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-31
6
EAU33541
Replacing the auxiliary light
bulb If the auxiliary light bulb burns out, re-
place it as follows.
1. Remove the headlight unit by re-
moving the screws.
2. Remove the socket (together with
the bulb) by pulling it out.3. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
4. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
5. Install the socket (together with the
bulb) by pushing it in.
6. Install the headlight unit by install-
ing the screws.
EAU24360
Front wheel
EAU38890
To remove the front wheel
WARNING
EWA10820


It is advisable to have a Yamaha
dealer service the wheel.


Securely support the motor-
cycle so that there is no dangerof it falling over.
1. Place the motorcycle on the cen-
terstand.
2. Loosen the front wheel axle pinch
bolt, then the wheel axle and the
brake caliper bolts.
1. Screw
1. Auxiliary light bulb socket
1. Wheel axle
2. Front wheel axle pinch bolt
U5WME3E0.book Page 31 Thursday, August 4, 2005 8:48 AM
