4-24
E
EJU13590

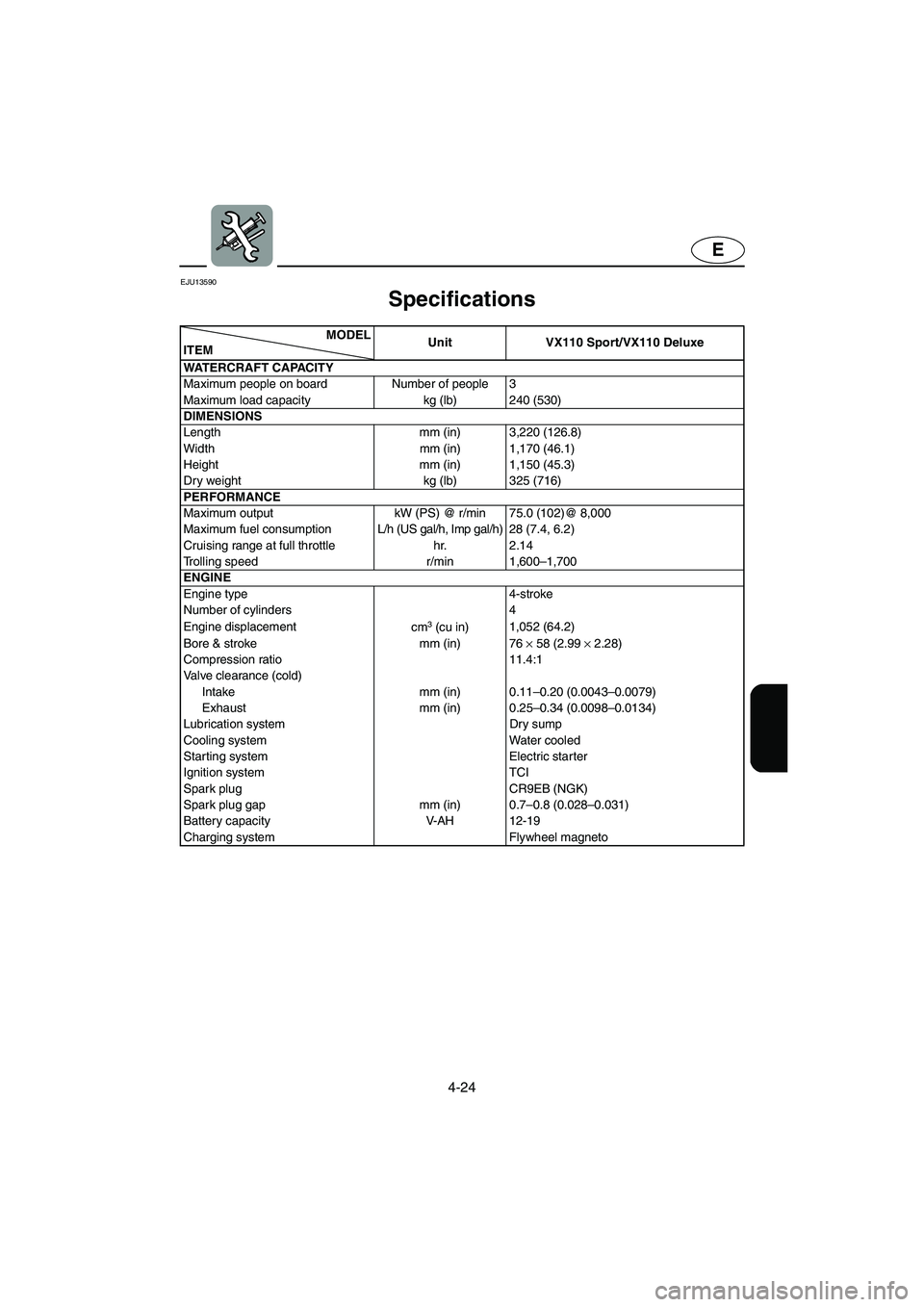

Specifications
MODEL
ITEMUnit VX110 Sport/VX110 Deluxe
WATERCRAFT CAPACITY
Maximum people on board Number of people 3
Maximum load capacity kg (lb) 240 (530)
DIMENSIONS
Length mm (in) 3,220 (126.8)
Width mm (in) 1,170 (46.1)
Height mm (in) 1,150 (45.3)
Dry weight kg (lb) 325 (716)
PERFORMANCE
Maximum output kW (PS) @ r/min 75.0 (102)@ 8,000
Maximum fuel consumption L/h (US gal/h, Imp gal/h) 28 (7.4, 6.2)
Cruising range at full throttle hr. 2.14
Trolling speed r/min 1,600–1,700
ENGINE
Engine type 4-stroke
Number of cylinders 4
Engine displacement
cm
3 (cu in)1,052 (64.2)
Bore & stroke mm (in) 76 ×
58 (2.99 ×
2.28)
Compression ratio 11.4:1
Valve clearance (cold)
Intake mm (in) 0.11–0.20 (0.0043–0.0079)
Exhaust mm (in) 0.25–0.34 (0.0098–0.0134)
Lubrication system Dry sump
Cooling system Water cooled
Starting system Electric starter
Ignition system TCI
Spark plug CR9EB (NGK)
Spark plug gap mm (in) 0.7–0.8 (0.028–0.031)
Battery capacity V-AH 12-19
Charging system Flywheel magneto
