DESCRIPTION
2-2
2
EAU10420

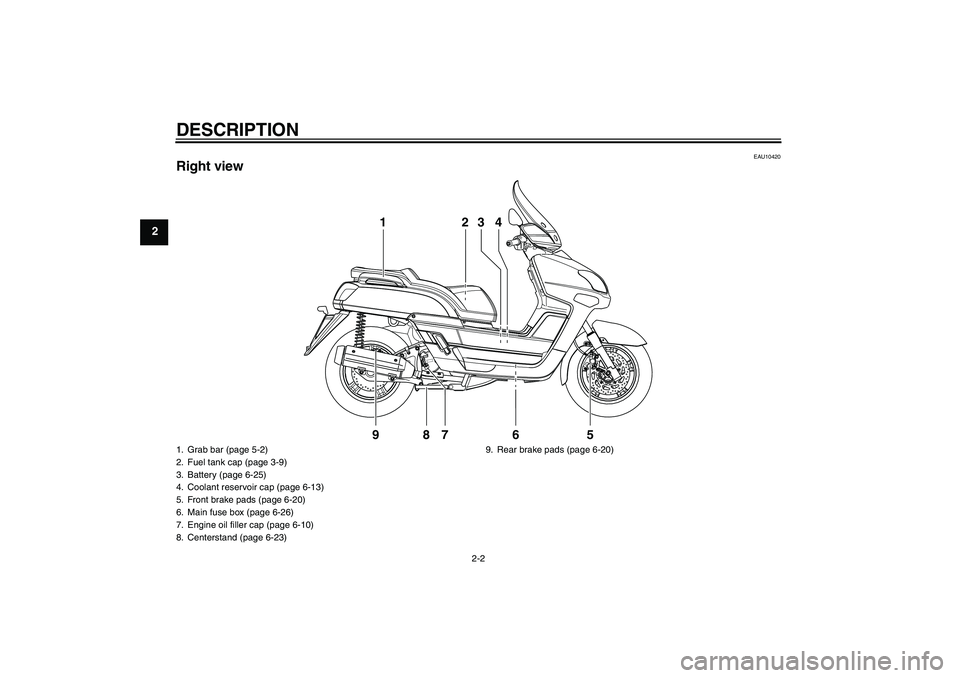

Right view
1
987 6 523 4
1. Grab bar (page 5-2)
2. Fuel tank cap (page 3-9)
3. Battery (page 6-25)
4. Coolant reservoir cap (page 6-13)
5. Front brake pads (page 6-20)
6. Main fuse box (page 6-26)
7. Engine oil filler cap (page 6-10)
8. Centerstand (page 6-23)9. Rear brake pads (page 6-20)
DESCRIPTION
2-3
2
EAU10430
Controls and instruments
PUSHOPEN
11 10 123456789
1. Rear brake lever (page 3-9)
2. Left handlebar switches (page 3-7)
3. Front storage compartment B (page 3-12)
4. Speedometer/Multi-function display (page 3-2/3-4)
5. Luggage hook (page 3-14)
6. Main switch/steering lock (page 3-1)
7. Right handlebar switches (page 3-7)
8. Throttle grip (page 6-16)9. Front brake lever (page 3-8)
10.Front storage compartment A (page 3-12)
11.Fuse box (page 6-26)
PERIODIC MAINTENANCE AND MINOR REPAIR
6-26
6
KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OFCHILDREN.
To store the battery
1. If the model will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
2. If the battery will be stored for more
than two months, check it at least
once a month and fully charge it if
necessary.
3. Fully charge the battery before in-
stallation.
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
CAUTION:
ECA10630
Always keep the battery
charged. Storing a discharged
battery can cause permanent
battery damage.
To charge a sealed-type (MF)
battery, a special (constant-volt-
age) battery charger is required.
Using a conventional batterycharger will damage the battery.
If you do not have access to a
sealed-type (MF) battery charg-
er, have a Yamaha dealer
charge your battery.
EAUM1561
Replacing the fuses The main fuse box is located behind
panel C. (See page 6-8.)1. Main fuse
2. Spare fuse
M
1
2
ZAUM0459
