2006 YAMAHA VERSITY 300 display

TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
Further safe-riding points ................1-4
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Main switch/steering lock ................3-1
Indicator lights ................................3-2
Speedometer ..................................3-2
Fuel gauge ......................................3-3
Battery voltage/coolant temperature
gauge ..........................................3-3
Multi-function display ......................3-4
Anti-theft alarm (optional) ...............3-7
Handlebar switches ........................3-7
Front brake lever ............................3-8
Rear brake lever .............................3-9
Fuel tank cap ..................................3-9
Fuel ...............................................3-10
Catalytic converter ........................3-11
Seat ..............................................3-11
Storage compartment ...................3-12
Storage compartment ...................3-12
Storage compartment ...................3-13
Anti-theft device housing ..............3-13
Adjusting the shock absorber
assemblies ................................3-14Luggage hook .............................. 3-14
Sidestand ..................................... 3-15
Ignition circuit cut-off system ........ 3-15
Auxiliary DC jack .......................... 3-17
PRE-OPERATION CHECKS............. 4-1
Pre-operation check list .................. 4-2
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Starting off ...................................... 5-2
Acceleration and deceleration ........ 5-2
Braking ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Removing and installing cowlings
and panels .................................. 6-5
Checking the spark plug ................. 6-9
Engine oil ..................................... 6-10
Final transmission oil .................... 6-12
Coolant ......................................... 6-13Air filter and V-belt case air filter
elements ................................... 6-14
Adjusting the carburetor ............... 6-16
Checking the throttle cable free
play ........................................... 6-16
Valve clearance ........................... 6-17
Tires ............................................. 6-17
Cast wheels ................................. 6-19
Checking the front and rear brake
lever free play ........................... 6-19
Checking the front and rear brake
pads .......................................... 6-20
Checking the brake fluid level ...... 6-20
Changing the brake fluid .............. 6-21
Checking and lubricating the
cables ....................................... 6-22
Checking and lubricating the throttle
grip and cable ........................... 6-22
Lubricating the front and rear brake
levers ........................................ 6-22
Checking and lubricating the
centerstand and sidestand ....... 6-23
Checking the front fork ................. 6-23
Checking the steering .................. 6-24
Checking the wheel bearings ....... 6-25
Battery ......................................... 6-25
Replacing the fuses ..................... 6-26
Replacing the headlight bulb ....... 6-27
Replacing a front turn signal light
bulb ........................................... 6-28

DESCRIPTION
2-3
2
EAU10430

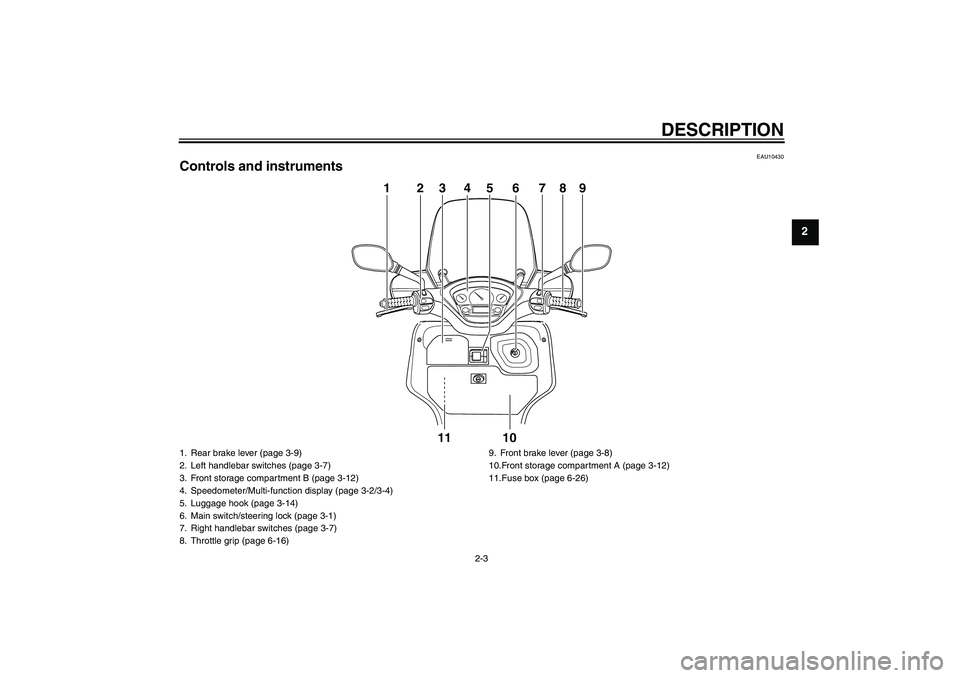

Controls and instruments
PUSHOPEN
11 10 123456789
1. Rear brake lever (page 3-9)
2. Left handlebar switches (page 3-7)
3. Front storage compartment B (page 3-12)
4. Speedometer/Multi-function display (page 3-2/3-4)
5. Luggage hook (page 3-14)
6. Main switch/steering lock (page 3-1)
7. Right handlebar switches (page 3-7)
8. Throttle grip (page 6-16)9. Front brake lever (page 3-8)
10.Front storage compartment A (page 3-12)
11.Fuse box (page 6-26)

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAUM1470
Fuel gauge The fuel gauge indicates the amount of
fuel in the fuel tank. The needle moves
towards “E” (Empty) as the fuel level
decreases. When the remaining fuel in
the tank reaches approximately 1.9 L
(0.50 US gal) (0.42 Imp.gal), the fuel
level warning light will come on and the
multi-function display will automatically
change to the “Trip/fuel” mode. (See
page 3-4.) If this occurs, refuel as soon
as possible.NOTE:Do not allow the fuel tank to empty itselfcompletely.
EAUM1101
Battery voltage/coolant
temperature gauge When the key is turned to “”, this
gauge indicates the battery voltage lev-
el before the engine was stopped.NOTE:If the needle drops to the “9V” (low)
mark, have a Yamaha dealer check thebattery.
When the key is turned to “”, this
gauge indicates the coolant tempera-
ture. If the needle reaches the red
zone, stop the scooter and allow the
engine to cool. (See page 6-31.)
CAUTION:
ECA10020
Do not operate the engine if it isoverheated.
1. Fuel gauge
2. Fuel level warning light
1
2
ZAUM0403
1. High level
2. Low level
1
2
ZAUM0579
1. Red zone
1
ZAUM0580

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAUM2050
Multi-function display The multi-function display is equipped
with the following:

an odometer (which shows the to-
tal distance traveled)


two tripmeters (which show the
distance traveled since they were
last set to zero, the time passed
since the tripmeters were set to ze-
ro, and the average speed traveled
during this time)


a fuel reserve tripmeter (which
shows the distance traveled since
the fuel level warning light came
on)


a clock


an ambient temperature display


an oil change indicator (which
comes on when the engine oil
should be changed)
NOTE:

For the UK, the distance traveled
is displayed in miles and the tem-
perature reading is displayed in °F.


For other countries, the distance
traveled is displayed in kilometers
and the temperature reading is dis-played in °C.
Odometer and tripmeter modes
Pushing the “MODE” button switches
the display between the odometer
mode “Total” and the tripmeter modes
“Trip” in the following order:
Total → Trip 1 → Trip 2 → Trip/fuel →
Total
NOTE:

The Trip/fuel odometer is only acti-
vated if the fuel level warning light
comes on.


The Trip 2 odometer is automati-
cally reset after turning the key to“” and two hours have passed.
Pushing the “SET” button when in the
tripmeter mode switches the display
between the different tripmeter func-
tions in the following order:
Trip 1 or Trip 2 → Time 1 or 2 → Aver-
age speed 1 or 2 → Trip 1 or Trip 2
1.“MODE” button
2. Multi-function display
3.“SET” button
1
23
ZAUM0581
1. Total
2. Trip 1
3. Trip 2
4. Trip/Fuel
"Mode"
"Mode"
"Mode"
"Mode"1
2
3
4
ZAUM0391

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
If the fuel level warning light comes on
(See page 3-3.), the display will auto-
matically change to the fuel reserve
tripmeter mode “Trip/fuel” and start
counting the distance traveled from that
point. In that case, pushing the “MODE”
button switches the display between
the various tripmeter and odometer
modes in the following order:
Trip/Fuel → Trip 1 → Trip 2 → Total →
Trip/fuelTo reset a tripmeter, select it by push-
ing the “MODE” button, and then push
the “SET” button for at least one sec-
ond. If you do not reset the fuel reserve
tripmeter manually, it will reset itself au-
tomatically and the display will return to
the prior mode after refueling and trav-
eling 5 km (3 mi).
Clock mode
To set the clock:
1. When the display is in the “Total”
mode, push the “SET” button for at
least two seconds.
2. When the hour digits start flashing,
push the “SET” button to set the
hours.3. Push the “MODE” button, and the
minute digits will start flashing.
4. Push the “SET” button to set the
minutes.
5. Push the “MODE” button and then
release it to start the clock. The
display will return to the “Total”
mode.
1. Distance
2. Time
3. Average speed
"Set"
"Set""Set"
12
3
ZAUM0392
ZAUM0393
ZAUM0394ZAUM0395

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3 Ambient temperature display
This display shows the ambient tem-
perature from –30 °C (–86 °F) to 50 °C
(122 °F).
The frost warning indicator “” auto-
matically comes on if the temperature is
lower than 3 °C (37.4 °F).Oil change indicator “OIL”
The engine oil should be changed
when this indicator comes on. The indi-
cator stays on until it is reset. After
changing the engine oil, reset the indi-
cator as follows.
1. While holding the “MODE” and
“SET” buttons pushed, turn the key
to “”.
2. Continue holding the “MODE” and
“SET” buttons pushed for two to
five seconds.
3. Release the buttons and the oil
change indicator will go off.
NOTE:

The oil change indicator will come
on at the initial 1000 km (600 mi)
and every 3000 km (4800 mi)
thereafter.


If the engine oil is changed before
the oil change indicator comes on
(i.e. before the periodic oil change
interval has been reached), the in-
dicator must be reset after the oil
change for the next periodic oil
change to be indicated at the cor-
rect time. After resetting, the indi-
cator will come on for two seconds.
If the indicator does not come on,repeat the procedure.
1. Frost warning indicator “”
2. Minus item
3. Temperature1
2
3ZAUM0396
1. Oil change indicator “OIL”
1
ZAUM0582

INDEX
AAcceleration and deceleration ................ 5-2
Air filter and V-belt case air filter
elements, cleaning ............................. 6-14
Anti-theft alarm (optional) ....................... 3-7
Anti-theft device housing ...................... 3-13
Auxiliary DC jack .................................. 3-17BBattery .................................................. 6-25
Battery voltage/coolant temperature
gauge ................................................... 3-3
Brake fluid, changing ............................ 6-21
Brake fluid level, checking .................... 6-20
Brake lever, front .................................... 3-8
Brake lever, rear ..................................... 3-9
Brake levers, lubricating ....................... 6-22
Braking ................................................... 5-2CCables, checking and lubricating .......... 6-22
Carburetor,adjusting ............................. 6-16
Care ........................................................ 7-1
Catalytic converter ................................ 3-11
Centerstand and sidestand, checking
and lubricating .................................... 6-23
Coolant ................................................. 6-13
Cowlings and panels, removing and
installing ............................................... 6-5DDimmer switch ........................................ 3-7
Display, multi-function ............................ 3-4EEngine break-in ...................................... 5-3
Engine oil .............................................. 6-10
Engine stop switch.................................. 3-8
FFinal transmission oil.............................6-12
Front and rear brake lever free play,
checking .............................................. 6-19
Front and rear brake pads, checking .... 6-20
Front fork, checking...............................6-23
Fuel ....................................................... 3-10
Fuel consumption, tips for reducing ........ 5-3
Fuel gauge .............................................. 3-3
Fuel tank cap........................................... 3-9
Fuses, replacing .................................... 6-26HHandlebar switches ................................. 3-7
Hazard switch.......................................... 3-8
Headlight bulb, replacing....................... 6-27
High beam indicator light......................... 3-2
Horn switch ............................................. 3-8IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-15
Indicator lights .........................................3-2KKey identification number ........................ 9-1LLicense plate light bulb, replacing ......... 6-30
Low beam indicator light ......................... 3-2
Luggage hook ....................................... 3-14MMain switch/steering lock ........................ 3-1
Model label .............................................. 9-2PParking ....................................................5-4
Part locations .......................................... 2-1
Pass switch ............................................. 3-7Periodic maintenance and lubrication
chart...................................................... 6-2
Pre-operation check list .......................... 4-2
SSafe-riding points .................................... 1-4
Safety information ................................... 1-1
Seat ...................................................... 3-11
Shock absorber assemblies,
adjusting ............................................. 3-14
Sidestand .............................................. 3-15
Spark plug, checking .............................. 6-9
Specifications.......................................... 8-1
Speedometer .......................................... 3-2
Starting off .............................................. 5-2
Starting the engine.................................. 5-1
Start switch ............................................. 3-8
Steering, checking ................................ 6-24
Storage ................................................... 7-3
Storage compartment .................. 3-12, 3-13TTail/brake light bulb or rear turn signal
light bulb, replacing............................. 6-29
Throttle cable free play, checking ......... 6-16
Throttle grip and cable, checking and
lubricating ........................................... 6-22
Tires ...................................................... 6-17
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-30
Troubleshooting charts ......................... 6-31
Turn signal indicator lights ...................... 3-2
Turn signal light bulb (front),
replacing ............................................. 6-28
Turn signal switch ................................... 3-7
