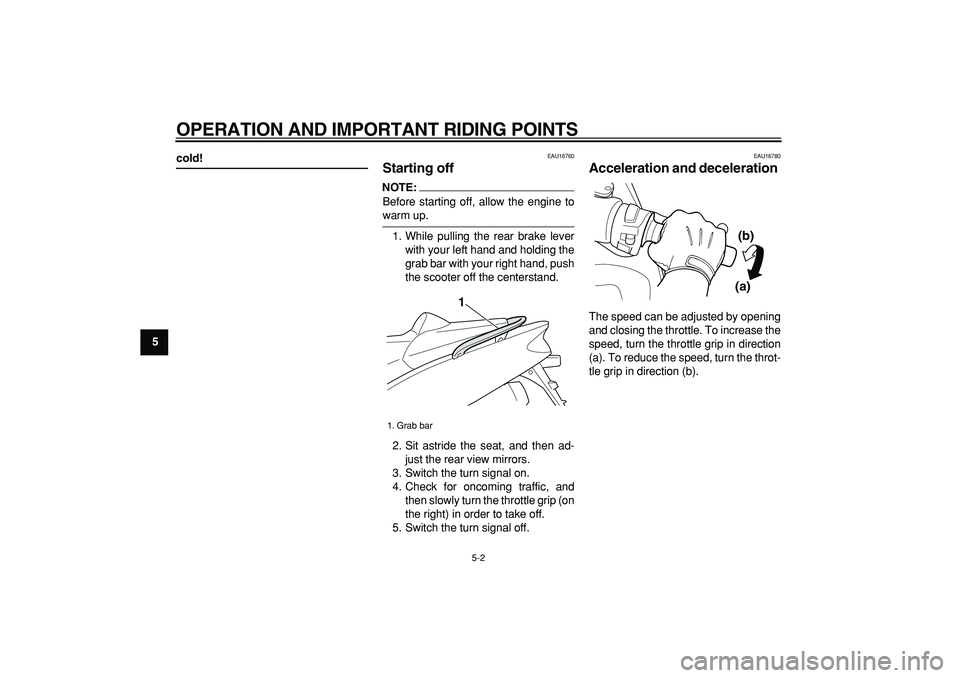

OPERATION AND IMPORTANT RIDING POINTS
5-2
1
2
3
4
5
6
7
8
9
cold!
EAU16760
Starting off
NOTE:
Before starting off, allow the engine to
warm up.
1. While pulling the rear brake lever
with your left hand and holding the
grab bar with your right hand, push
the scooter off the centerstand.
2. Sit astride the seat, and then ad-
just the rear view mirrors.
3. Switch the turn signal on.
4. Check for oncoming traffic, and
then slowly turn the throttle grip (on
the right) in order to take off.
5. Switch the turn signal off.
EAU16780
Acceleration and deceleration
The speed can be adjusted by opening
and closing the throttle. To increase the
speed, turn the throttle grip in direction
(a). To reduce the speed, turn the throt-
tle grip in direction (b).
1. Grab bar1
(a)(b)
PERIODIC MAINTENANCE AND MINOR REPAIR
6-6
2
3
4
5
67
8
9
EAU18712
Removing and installing
cowlings and panels
The cowlings and panels shown need
to be removed to perform some of the
maintenance jobs described in this
chapter. Refer to this section each time
a cowling or panel needs to be re-
moved and installed.
EAU33422
Cowling A
To remove the cowling
1. Remove the rear view mirrors by
removing the nuts.2. Remove the cowling screws.
To install the cowling
1. Place the cowling in the original
position, and then install the
screws.
2. Install the rear view mirrors by in-
stalling the nuts.
Cowling B
To remove the cowling1. Remove panels C and E. (See
page 6-7.)
1. Panel A
2. Panel B
3. Panel C
4. Cowling A
1
23
4
5
1. Panel D
2. Cowling B
3. Panel E
4. Cowling C
5. Panel F
4
3
1 2
1. Screw
2. Nut
2(×4)
1
2
