2006 YAMAHA MT-03 check engine light

TABLE OF CONTENTS
SAFETY INFORMATION.....................1-1
Safe riding .........................................1-1
Protective apparel .............................1-2
Modifications .....................................1-2
Loading and accessories ..................1-2
Gasoline and exhaust gas ................1-4
DESCRIPTION.....................................2-1
Left view ............................................2-1
Right view .........................................2-2
Controls and instruments ..................2-3
INSTRUMENT AND CONTROL
FUNCTIONS........................................3-1
Immobilizer system ...........................3-1
Main switch/steering lock ..................3-2
Indicator and warning lights ..............3-3
Multi-function meter unit ...................3-5
Tachometer .......................................3-6
Odometer, tripmeter modes ..............3-6
Clock mode .......................................3-7
Self-diagnosis devices ......................3-7
Indicator lights brightness
control mode ..............................3-8
Anti-theft alarm (optional) .................3-8
Handlebar switches...........................3-9
Clutch lever .....................................3-10
Shift pedal .......................................3-10
Brake lever ......................................3-11Brake pedal .....................................3-11
Fuel tank cap...................................3-11
Fuel .................................................3-12
Fuel tank breather/overflow hose ...3-13
Catalytic converter ..........................3-13
Seats ...............................................3-14
Adjusting the shock absorber
assembly ..................................3-16
Sidestand ........................................3-18
Ignition circuit cut-off system ..........3-19
PRE-OPERATION CHECKS...............4-1
Pre-operation check list ....................4-2
OPERATION AND IMPORTANT
RIDING POINTS..................................5-1
Starting the engine ............................5-1
Shifting ..............................................5-2
Tips for reducing fuel consumption ...5-3
Engine break-in .................................5-3
Parking ..............................................5-4
PERIODIC MAINTENANCE
AND MINOR REPAIR.........................6-1
Owner’s tool kit .................................6-1
Periodic maintenance and
lubrication chart ..........................6-2
Removing and installing panels ........6-6
Checking the spark plug ...................6-6Engine oil and oil filter element.........6-8
Coolant ............................................6-12
Replacing the air filter element
and cleaning the check hoses ...6-13
Adjusting the engine idling speed ...6-14
Checking the throttle cable
free play ...................................6-15
Valve clearance...............................6-15
Tires ................................................6-16
Cast wheels ....................................6-19
Adjusting the clutch lever
free play ...................................6-19
Checking the front and rear
brake pads ...............................6-20
Checking the brake fluid level .........6-21
Changing the brake fluid .................6-22
Drive chain slack .............................6-23
Cleaning and lubricating the
drive chain ................................6-24
Checking and lubricating the
cables .......................................6-25
Checking and lubricating the
throttle grip and cable ..............6-25
Checking and lubricating the
brake and clutch levers ............6-26
Lubricating the brake pedal ............6-26
Checking and lubricating the
sidestand ..................................6-27
Lubricating the side suspension .....6-27
MY03 01-03 ING 6-10-2005 13:52 Pagina 6

1
2
3
4
5
6
7
8
9
10

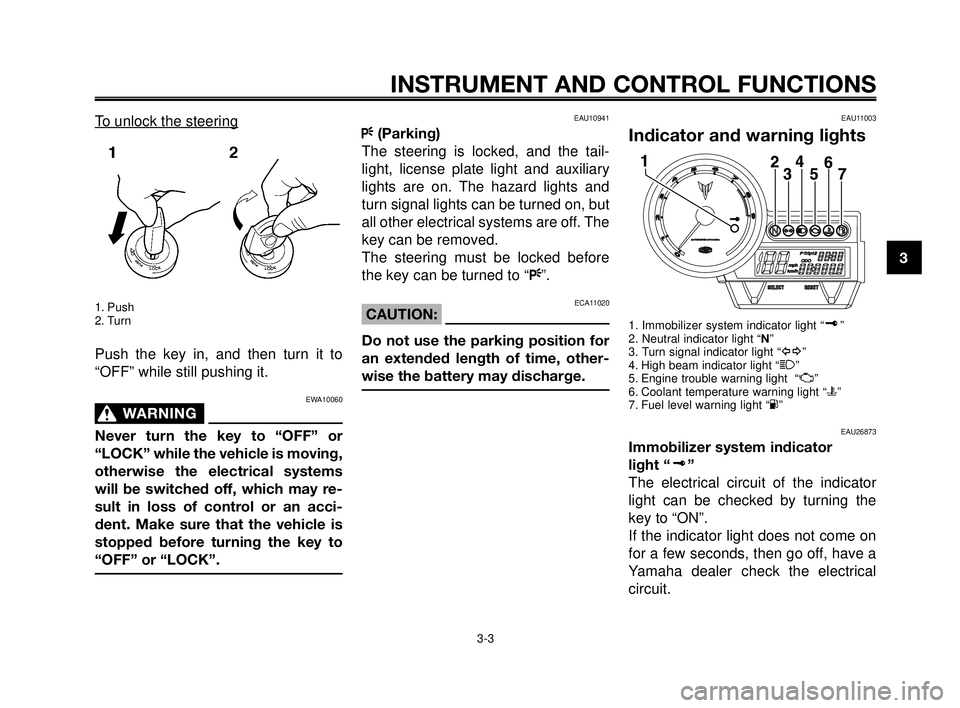

INSTRUMENT AND CONTROL FUNCTIONS
3-3
To unlock the steering
1. Push
2. Turn
Push the key in, and then turn it to
“OFF” while still pushing it.
EWA10060
WARNING0
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems
will be switched off, which may re-
sult in loss of control or an acci-
dent. Make sure that the vehicle is
stopped before turning the key to
“OFF” or “LOCK”.
EAU10941
F(Parking)
The steering is locked, and the tail-
light, license plate light and auxiliary
lights are on. The hazard lights and
turn signal lights can be turned on, but
all other electrical systems are off. The
key can be removed.
The steering must be locked before
the key can be turned to “F”.
ECA11020CAUTION:
Do not use the parking position for
an extended length of time, other-
wise the battery may discharge.
EAU11003
Indicator and warning lights
1. Immobilizer system indicator light “ ”
2. Neutral indicator light “N”
3. Turn signal indicator light “y”
4. High beam indicator light “1”
5. Engine trouble warning light “U”
6. Coolant temperature warning light “u”
7. Fuel level warning light “K”
EAU26873
Immobilizer system indicator
light “ ”
The electrical circuit of the indicator
light can be checked by turning the
key to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical
circuit.
MY03 01-03 ING 6-10-2005 13:52 Pagina 3-3

INSTRUMENT AND CONTROL FUNCTIONS
3-4
1
2
3
4
5
6
7
8
9
10
When the key is turned to “OFF” and
30 seconds have passed, the indicator
light will start flashing indicating the
immobilizer system is enabled. After
24 hours have passed, the indicator
light will stop flashing, however the im-
mobilizer system is still enabled.
This model is also equipped with a
self-diagnosis device for the immobi-
lizer system. (See page 3-7 for an ex-
planation of the self-diagnosis device.)
EAU11060
Neutral indicator light “N”
This indicator light comes on when the
transmission is in the neutral position.
EAU11020
Turn signal indicator light “y”
This indicator light flashes when the
turn signal switch is pushed to the left
or right.
EAU11080
High beam indicator light “1”
This indicator light comes on when the
high beam of the headlight is switched
on.
EWA10060
WARNING0
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems
will be switched off, which may re-
sult in loss of control or an acci-
dent. Make sure that the vehicle is
stopped before turning the key to
“OFF” or “LOCK”.
EAU11530
Engine trouble warning light “U”
This warning light comes on or flashes
when an electrical circuit monitoring
the engine is defective. When this oc-
curs, have a Yamaha dealer check the
self-diagnosis system. (See page 3-7
for an explanation of the self-diagno-
sis device.)
The electrical circuit of the warning
light can be checked by turning the
key to “ON”. If the warning light does
not come on for a few seconds, then
go off, have a Yamaha dealer check
the electrical circuit.
EAU11440
Coolant temperature warning
light “u”
This warning light comes on when the
engine overheats. When this occurs,
stop the engine immediately and allow
the engine to cool.
The electrical circuit of the warning
light can be checked by turning the
key to “ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical
circuit.
ECA10020
CAUTION:
Do not operate the engine if it is
overheated.
EAU11361
Fuel level warning light “K”
This warning light comes on when the
fuel level drops below approximately
4.25 L (1.12 US gal) (0.93 Imp.gal).
When this occurs, refuel as soon as
possible.
MY03 01-03 ING 6-10-2005 13:52 Pagina 3-4

1
2
3
4
5
6
7
8
9
10
INSTRUMENT AND CONTROL FUNCTIONS
3-7
Clock mode
1. Clock
2. “SELECT” button
3. “RESET” button
Turn the key to “ON”.
T
o set the clock
1. Push the “SELECT” button for at
least two seconds.
2. When the hour digits start flash-
ing, push the “RESET” button to
set the hours.
3. Push the “SELECT” button, and
the minute digits will start flash-
ing.
4. Push the “RESET” button to set
the minutes.
5. Push the “SELECT” button, and
then release it to start the clock.
Self-diagnosis devices
1. Engine trouble warning light “U”
2. Immobilizer system indicator light “ ”
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits. If any of those circuits are defec-
tive, the engine trouble warning light
will start flashing. If this occurs, have a
Yamaha dealer check the vehicle.
This model is also equipped with a
self-diagnosis device for the immobi-
lizer system.
Turn the key to "ON". If any of the im-
mobilizer system circuits are defec-
tive, the immobilizer system indicator
light will flash, and it will indicate an er-
ror code.
If this occurs, have a Yamaha dealer
check the vehicle. However, if the indi-
cator light slowly flashes five times,
and then quickly flashes two times re-
peatedly, this error could be caused by
signal interference. If this occurs, try
the following.
1. Use the code re-registering key to
start the engine.
NOTE:
Make sure there are no other immobi-
lizer keys close to the main switch,
and do not keep more than one immo-
bilizer key on the same key ring! Im-
mobilizer system keys may cause sig-
nal interference, which may prevent
the engine from starting.
2. If the engine starts, turn it off and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the
standard keys re-registered.
MY03 01-03 ING 6-10-2005 13:52 Pagina 3-7

INSTRUMENT AND CONTROL FUNCTIONS
3-8
1
2
3
4
5
6
7
8
9
10
If the immobilizer system indicator
light flashes any error codes, have a
Yamaha dealer check the vehicle.
ECA11590CAUTION:
If the display indicates an error
code, the vehicle should be
checked as soon as possible in or-
der to avoid engine damage.Indicator lights brightness
control mode
Indicator lights brightness:
This function allows you to adjust
the brightness of the indicator
lights to suit the outside lighting
conditions.
T
o adjust the brightness of the
indicator lights
1. Turn the key to “ON”.
2. Push the “SELECT” button to se-
lect ODO meter mode, and then
push the “RESET” button for at
least five seconds.
3. Release the “RESET” button, and
then select the desired lighting
brightness level by pushing the
“RESET” button.
EAU12331
Anti-theft alarm (optional)
This motorcycle can be equipped with
an optional anti-theft alarm by a Yama-
ha dealer. Contact a Yamaha dealer
for more information.
MY03 01-03 ING 6-10-2005 13:52 Pagina 3-8

1
2
3
4
5
6
7
8
9
10
OPERATION AND IMPORTANT RIDING POINTS
EAU15950
EWA10270
WARNING0
Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer re-
garding any control or function
that you do not thoroughly un-
derstand.
Never start the engine or oper-
ate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of con-
sciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.
Before starting out, make sure
that the sidestand is up. If the
sidestand is not raised com-
pletely, it could contact the
ground and distract the opera-
tor, resulting in a possible loss
of control.
EAUB1340
Starting the engine
In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:
The transmission is in the neutral
position.
The transmission is in gear with
the clutch lever pulled and the
sidestand up.
EWA10290
WARNING0
Before starting the engine,
check the function of the igni-
tion circuit cut-off system ac-
cording to the procedure de-
scribed on page 3-20.
Never ride with the sidestand
down.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to “
I”.
ECAB0040CAUTION:
The following warning lights and in-
dicator lights should come on for a
few seconds, then go off.
Neutral indicator light
Turn signal indicator light
High beam indicator light
Engine trouble warning light
Coolant temperature warning
light
Fuel level warning light
Immobilizer system indicator
light
If a warning or indicator light does
not go off, see page 3-3 for the cor-
responding warning and indicator
light circuit check.
2. Shift the transmission into the
neutral position.
5-1
MY03 04-06 ING 6-10-2005 9:24 Pagina 5-1

OPERATION AND IMPORTANT RIDING POINTS
NOTE:
When the transmission is in the neu-
tral position, the neutral indicator light
should be on, otherwise have a Yama-
ha dealer check the electrical circuit.
3. Start the engine by pushing the
start switch.
NOTE:
If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
serve the battery. Do not crank the en-
gine more than 10 seconds on any one
attempt.
ECA11040CAUTION:
For maximum engine life, never ac-
celerate hard when the engine is
cold!
NOTE:
The engine is warm when it quickly re-
sponds to the throttle.
EAU16671
Shifting
1. Shift pedal
N. Neutral position
Shifting gears lets you control the
amount of engine power available for
starting off, accelerating, climbing
hills, etc.
The gear positions are shown in the il-
lustration.
NOTE:
To shift the transmission into the neu-
tral position, press the shift pedal down
repeatedly until it reaches the end of its
travel, and then slightly raise it.
5-2
1
2
3
4
5
6
7
8
9
10
MY03 04-06 ING 6-10-2005 9:24 Pagina 5-2

1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND MINOR REPAIR
2. Remove the spark plug as shown,
with the spark plug wrench includ-
ed in the owner’s tool kit.
To check the spark plug
1. Check that the porcelain insulator
around the center electrode of the
spark plug is a medium-to-light
tan (the ideal color when the vehi-
cle is ridden normally).
NOTE:
If the spark plug shows a distinctly dif-
ferent color, the engine could be defec-
tive. Do not attempt to diagnose such
problems yourself. Instead, have a
Yamaha dealer check the vehicle.
2. Check the spark plug for elec-
trode erosion and excessive car-
bon or other deposits, and re-
place it if necessary.
6-7
Specified spark plug:
CR7E (NGK)
Spark plug gap:
0.7-0.8 mm (0.028-0.032 in)
Tightening torque:
Spark plug:
12.5 Nm (1.25 m·kgf, 9.0 ft·lbf)
To install the spark plug
1. Measure the spark plug gap with
a wire thickness gauge and, if
necessary, adjust the gap to
specification.
1. Spark plug gap


2. Clean the surface of the spark
plug gasket and its mating sur-
face, and then wipe off any grime
from the spark plug threads.
3. Install the spark plug with the
spark plug wrench, and then tight-
en it to the specified torque.
NOTE:
If a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is 1/4-
1/2 turn past finger tight. However, the
spark plug should be tightened to the
specified torque as soon as possible.
4. Install the spark plug cap.
MY03 04-06 ING 6-10-2005 9:24 Pagina 6-7
