SAFETY INFORMATION
1-4
1

Take care not to spill any gaso-
line on the engine or exhaust
system when refueling.

Never refuel while smoking or in
the vicinity of an open flame.

Never start the engine or let it run
for any length of time in a closed
area. The exhaust fumes are poi-
sonous and may cause loss of
consciousness and death within a
short time. Always operate your
scooter in an area that has ade-
quate ventilation.

Always turn the engine off before
leaving the scooter unattended
and remove the key from the main
switch. When parking the scooter,
note the following:

The engine and exhaust system
may be hot, therefore, park the
scooter in a place where pedes-
trians or children are not likely to
touch these hot areas.

Do not park the scooter on a
slope or soft ground, otherwise it
may fall over.

Do not park the scooter near a
flammable source (e.g., a kero-sene heater, or near an open
flame), otherwise it could catch
fire.

If you should swallow any gaso-
line, inhale a lot of gasoline vapor,
or allow gasoline to get into your
eyes, see your doctor immediate-
ly. If any gasoline spills on your
skin or clothing, immediately wash
the affected area with soap and
water and change your clothes.
EAU10371
Further safe-riding points

Be sure to signal clearly when
making turns.

Braking can be extremely difficult
on a wet road. Avoid hard braking,
because the scooter could slide.
Apply the brakes slowly when
stopping on a wet surface.

Slow down as you approach a cor-
ner or turn. Once you have com-
pleted a turn, accelerate slowly.

Be careful when passing parked
cars. A driver might not see you
and open a door in your path.

Railroad crossings, streetcar rails,
iron plates on road construction
sites, and manhole covers be-
come extremely slippery when
wet. Slow down and cross them
with caution. Keep the scooter up-
right, otherwise it could slide out
from under you.

The brake pads could get wet
when you wash the scooter. After
washing the scooter, check the
brakes before riding.

Always wear a helmet, gloves,
trousers (tapered around the cuff

PRE-OPERATION CHECKS
4-2
1
2
3
4
5
6
7
8
9

EAU15603
Pre-operation check list
ITEM CHECKS PAGE
Fuel

Check fuel level in fuel tank.

Refuel if necessary.

Check fuel line for leakage.3-12
Engine oil

Check oil level in engine.

If necessary, add recommended oil to specified level.

Check vehicle for oil leakage.6-12
Final transmission oil

Check vehicle for oil leakage. 6-15
Coolant

Check coolant level in reservoir.

If necessary, add recommended coolant to specified level.

Check cooling system for leakage.6-16
Front brake

Check operation.

If soft or spongy, have Yamaha dealer bleed hydraulic system.

Check brake pads for wear.

Replace if necessary.

Check fluid level in reservoir.

If necessary, add recommended brake fluid to specified level.

Check hydraulic system for leakage.6-25
Rear brake

Check operation.

If soft or spongy, have Yamaha dealer bleed hydraulic system.

Check brake pads for wear.

Replace if necessary.

Check fluid level in reservoir.

If necessary, add recommended brake fluid to specified level.

Check hydraulic system for leakage.6-25
Throttle grip

Make sure that operation is smooth.

Check cable free play.

If necessary, have Yamaha dealer adjust cable free play and lubricate cable
and grip housing.6-20, 6-27

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
1
2
3
4
5
6
7
8
9

EAU17705
Periodic maintenance and lubrication chart
NOTE:


The annual checks must be performed every year, except if a kilometer-based maintenance is performed in-
stead.

From 50000 km, repeat the maintenance intervals starting from 10000 km.

Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical
skills.
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (
×
1000 km)
ANNUAL
CHECK
1 10203040
1*
Fuel line


Check fuel hoses for cracks or damage.
√√√√ √
2
Spark plug

Check condition.

Clean and regap.
√√

Replace.
√√
3*
Valves

Check valve clearance.

Adjust.Every 40000 km
4
Air filter elements

Replace.
√√
5
V-belt case air filter ele-
ment

Clean.
√√√√
6*
Front brake

Check operation, fluid level and vehicle for fluid leak-
age.
√√√√√ √

Replace brake pads. Whenever worn to the limit
7*
Rear brake

Check operation, fluid level and vehicle for fluid leak-
age.
√√√√√ √

Replace brake pads. Whenever worn to the limit
8
Rear brake lock

Check operation.

Adjust.
√√√√√ √
9*
Brake hoses

Check for cracks or damage.
√√√√ √

Replace. Every 4 years

PERIODIC MAINTENANCE AND MINOR REPAIR
6-25
1
2
3
4
5
6
7
8
9

EAU22390

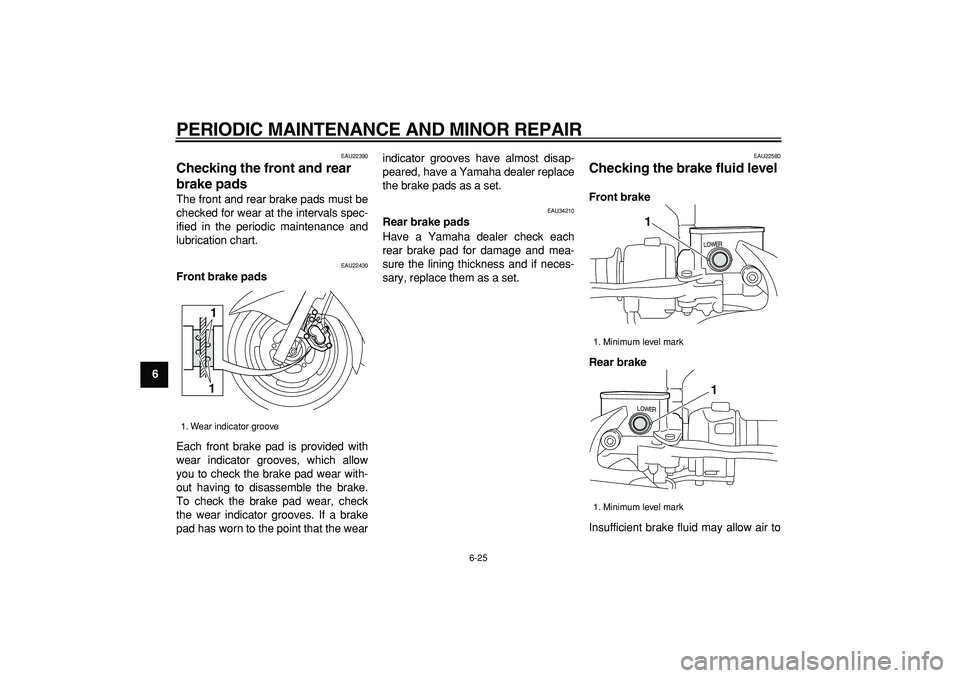

Checking the front and rear
brake pads
The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU22430
Front brake pads
Each front brake pad is provided with
wear indicator grooves, which allow
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator grooves. If a brake
pad has worn to the point that the wearindicator grooves have almost disap-
peared, have a Yamaha dealer replace
the brake pads as a set.
EAU34210
Rear brake pads
Have a Yamaha dealer check each
rear brake pad for damage and mea-
sure the lining thickness and if neces-
sary, replace them as a set.
EAU22580
Checking the brake fluid level
Front brake
Rear brake
Insufficient brake fluid may allow air to
1. Wear indicator groove
11

1. Minimum level mark
1. Minimum level mark
1
1

PERIODIC MAINTENANCE AND MINOR REPAIR
6-26
2
3
4
5
67
8
9
enter the brake system, possibly caus-
ing it to become ineffective.
Before riding, check that the brake fluid
is above the minimum level mark and
replenish if necessary. A low brake fluid
level may indicate worn brake pads
and/or brake system leakage. If the
brake fluid level is low, be sure to check
the brake pads for wear and the brake
system for leakage.

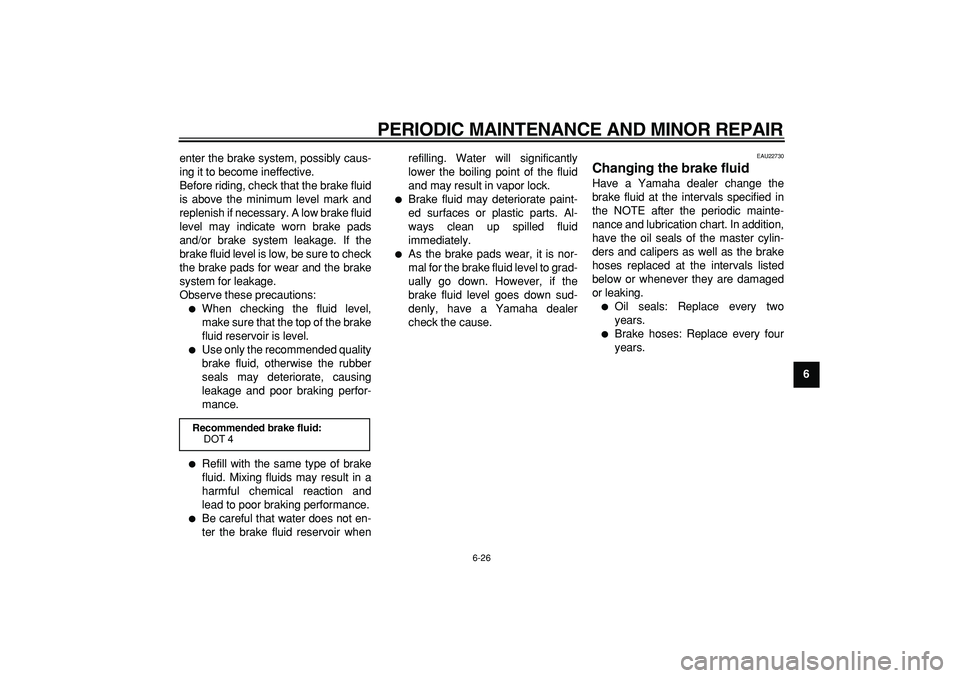

Observe these precautions:


When checking the fluid level,
make sure that the top of the brake
fluid reservoir is level.

Use only the recommended quality
brake fluid, otherwise the rubber
seals may deteriorate, causing
leakage and poor braking perfor-
mance.

Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performance.

Be careful that water does not en-
ter the brake fluid reservoir whenrefilling. Water will significantly
lower the boiling point of the fluid
and may result in vapor lock.

Brake fluid may deteriorate paint-
ed surfaces or plastic parts. Al-
ways clean up spilled fluid
immediately.

As the brake pads wear, it is nor-
mal for the brake fluid level to grad-
ually go down. However, if the
brake fluid level goes down sud-
denly, have a Yamaha dealer
check the cause.
EAU22730
Changing the brake fluid
Have a Yamaha dealer change the
brake fluid at the intervals specified in
the NOTE after the periodic mainte-
nance and lubrication chart. In addition,
have the oil seals of the master cylin-
ders and calipers as well as the brake
hoses replaced at the intervals listed
below or whenever they are damaged
or leaking.

Oil seals: Replace every two
years.

Brake hoses: Replace every four
years.
Recommended brake fluid:
DOT 4

INDEX
A
Acceleration and deceleration ...................5-2
Air filter elements and check hoses and
V-belt case air filter element ..................6-18
Anti-theft alarm (optional) ..........................3-8
B
Battery .....................................................6-30
Brake fluid, changing ...............................6-26
Brake fluid level, checking .......................6-25
Brake lever, front .....................................3-10
Brake lever, rear ......................................3-10
Brake levers, lubricating ..........................6-27
Braking ......................................................5-2
C
Cables, checking and lubricating .............6-27
Care ...........................................................7-1
Catalytic converter ...................................3-13
Centerstand and sidestand, checking
and lubricating .......................................6-28
Coolant ....................................................6-16
Cowlings and panels, removing and
installing ..................................................6-6
D
Dimmer switch ...........................................3-9
E
Engine break-in .........................................5-4
Engine oil and oil filter element ................6-12
Engine stop switch.....................................3-9
Engine trouble warning light ......................3-3
F
Final transmission oil ...............................6-15
Front and rear brake lever free play ........6-23
Front and rear brake pads, checking .......6-25
Front fork, checking .................................6-28Fuel ......................................................... 3-12
Fuel consumption, tips for reducing .......... 5-3
Fuel tank cap ........................................... 3-11
Fuses, replacing ...................................... 6-31
H
Handlebar switches ................................... 3-8
Hazard switch ............................................ 3-9
Headlight bulb, replacing ......................... 6-33
High beam indicator light ........................... 3-3
Horn switch................................................ 3-9
I
Identification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-17
Immobilizer system.................................... 3-1
Immobilizer system indicator light ............. 3-3
Indicator and warning lights....................... 3-3
K
Key identification number .......................... 9-1
L
License plate light bulb, replacing ........... 6-35
M
Main switch/steering lock .......................... 3-2
Model label ................................................ 9-2
Multi-function display ................................. 3-4
P
Parking ...................................................... 5-4
Part locations............................................. 2-1
Pass switch ............................................... 3-9
Periodic maintenance and lubrication
chart ........................................................ 6-3
Pre-operation check list ............................. 4-2
R
Rear brake lock lever .............................. 3-10
Rear brake lock lever cable, adjusting .... 6-24Rider seat, adjusting ............................... 3-14
S
Safe-riding points ...................................... 1-4
Safety information ..................................... 1-1
Seats ....................................................... 3-13
Sidestand ................................................ 3-17
Spark plug, checking ............................... 6-10
Specifications ............................................ 8-1
Speedometer............................................. 3-4
Starting off ................................................. 5-2
Starting the engine .................................... 5-1
Start switch................................................ 3-9
Steering, checking................................... 6-29
Storage...................................................... 7-3
Storage compartments ............................ 3-15
T
Tachometer ............................................... 3-4
Tail/brake light ......................................... 6-33
Throttle cable free play, checking ........... 6-20
Throttle grip and cable, checking and
lubricating ............................................. 6-27
Tires ........................................................ 6-21
Tool kit....................................................... 6-1
Troubleshooting ...................................... 6-36
Troubleshooting charts............................ 6-37
Turn signal indicator lights ........................ 3-3
Turn signal light bulb (front) or auxiliary
light bulb, replacing ............................... 6-33
Turn signal light bulb (rear), replacing..... 6-34
Turn signal switch ..................................... 3-9
V
Valve clearance....................................... 6-21
Vehicle identification number .................... 9-1
