Page 358 of 452
8-85
EBU00296

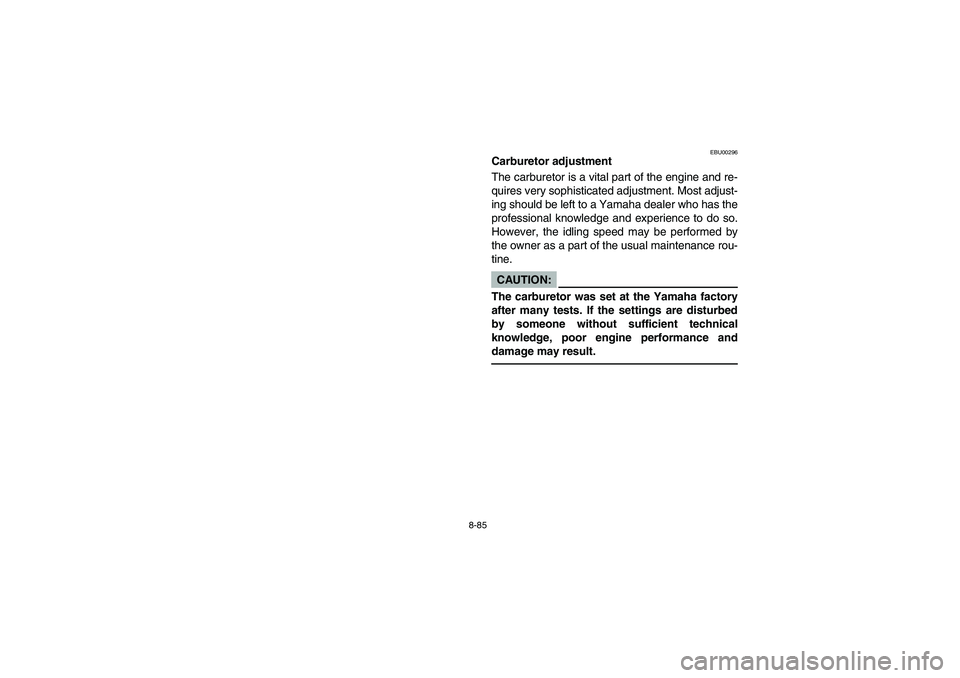

Carburetor adjustment
The carburetor is a vital part of the engine and re-
quires very sophisticated adjustment. Most adjust-
ing should be left to a Yamaha dealer who has the
professional knowledge and experience to do so.
However, the idling speed may be performed by
the owner as a part of the usual maintenance rou-
tine.CAUTION:
The carburetor was set at the Yamaha factory
after many tests. If the settings are disturbed
by someone without sufficient technical
knowledge, poor engine performance and
damage may result.
EE.book Page 85 Wednesday, May 11, 2005 1:21 PM
Page 360 of 452
8-87 1. Throttle stop screw
1. Vis d’arrêt de l’accélérateur
1. Tornillo de tope del acelerador
EBU12580
Idle speed adjustmentNOTE:_ A diagnostic tachometer must be used for this pro-
cedure. _1. Start the engine and warm it up for a few min-
utes at approximately 1,000 to 2,000 r/min.
Occasionally rev the engine to 4,000 to
5,000 r/min. The engine is warm when it
quickly responds to the throttle.
2. Remove panel D. (See pages 8-19–8-21 for
removal and installation procedures.)
3. Connect the tachometer to the spark plug
lead, and then set the idle to the specified
idling speed by adjusting the throttle stop
screw. Turn the screw in direction
a to in-
crease the engine speed, and in direction
b
to decrease the engine speed.
4. Install the panel. Specified idle speed:
1,450–1,550 r/min
EE.book Page 87 Wednesday, May 11, 2005 1:21 PM
Page 362 of 452
8-89
EBU00303
Valve clearance adjustment
The correct valve clearance changes with use, re-
sulting in improper fuel/air supply or engine noise.
To prevent this, the valve clearance must be ad-
justed regularly. This adjustment however, should
be left to a professional Yamaha service techni-
cian.
EE.book Page 89 Wednesday, May 11, 2005 1:21 PM
Page 364 of 452
8-91 1. Locknut 2. Adjusting bolt
1. Contre-écrou 2. Bolhon de réglage
1. Contratuerca 2. Perno de ajuste
a. Throttle lever free play
a. Jeu au levier d’accélération
a. Juego libre de la palanca del acelerador
EBU00307
Throttle lever adjustmentNOTE:Adjust the engine idling speed before adjusting the
throttle lever free play.1. Loosen the locknut.
2. Turn the adjusting bolt until the throttle lever
free play is 3.0–5.0 mm.
3. Tighten the locknut.
EE.book Page 91 Wednesday, May 11, 2005 1:21 PM
Page 384 of 452
8-111
EBU00570

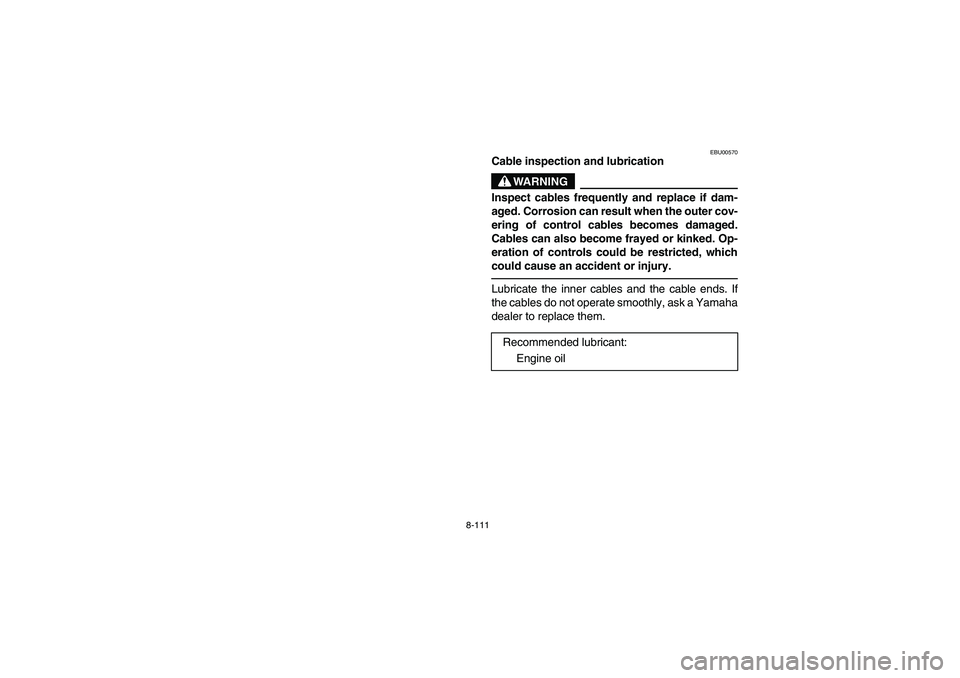

Cable inspection and lubrication
WARNING
Inspect cables frequently and replace if dam-
aged. Corrosion can result when the outer cov-
ering of control cables becomes damaged.
Cables can also become frayed or kinked. Op-
eration of controls could be restricted, which
could cause an accident or injury.Lubricate the inner cables and the cable ends. If
the cables do not operate smoothly, ask a Yamaha
dealer to replace them.
Recommended lubricant:
Engine oil
EE.book Page 111 Wednesday, May 11, 2005 1:21 PM
Page 414 of 452

8-141
EBU00724Troubleshooting chart
Starting problems or poor engine performance1. Fuel
Check if there is fuel
in the fuel tank.There is fuel.Turn the fuel cock
lever to “OFF”.No fuel.Fuel cock is
clogged.
Clean the
fuel cock. Some fuel.Turn the fuel cock
lever to “RES”.Restart the engine.
No fuel.Supply fuel.
2. Compression
Use the electric
starter to see if
there is compression.There is compression.
Compression normal.
No compression.Ask a Yamaha dealer to
inspect.
3. Ignition
Remove the
spark plug and
check the electrodes.WetWipe clean with dry cloth.
DryAttach spark plug cap and
ground to chassis.Use the
electric starter.Spark is good.Ignition system is
normal.
Spark is weak.
Adjust the spark plug gap
or replace the spark plug. No spark.
Ask a Yamaha dealer to
inspect. 4. Battery
Use the electric starter.Engine turns over
quickly.Battery is good.
Engine turns over
slowly.Check the battery lead connections,
and charge the battery if necessary.Check the
fuel flow.
Turn the fuel cock
lever to “ON”.
Remove the fuel hose
from the fuel cock.
EE.book Page 141 Wednesday, May 11, 2005 1:21 PM
Page 415 of 452
8-142
Engine overheatingNOTE:If it is difficult to get the recommended coolant, tap water can be temporarily used, provided that it is
changed to the recommended coolant as soon as possible.
WARNING
Wait for the engine and radiator to cool before removing the radiator cap. You could be burned by
hot fluid and steam blown out under pressure. Always put a thick rag over the cap when opening.
Allow any remaining pressure to escape before completely removing the cap. Wait until the
engine has cooled.
Check the coolant level in the
coolant reservoir and/or radiator.
Level is OK.Level is low, check the
cooling system for leakage.
No
leakage.Leakage.
Ask a Yamaha dealer to inspect
and repair the cooling system.Add coolant. (See NOTE.)
Restart the engine. If the engine overheats again, ask a
Yamaha dealer to inspect and/or repair the cooling system.
EE.book Page 142 Wednesday, May 11, 2005 1:21 PM
Page 420 of 452
9-1
EBU00420
CLEANING AND STORAGE
A. CLEANING
Frequent, thorough cleaning of your machine will
not only enhance its appearance but will improve
its general performance and extend the useful life
of many components.
1. Before cleaning the machine:
a. Block off the end of the exhaust pipe to pre-
vent water entry. A plastic bag and strong
rubber band may be used.
b. Make sure the spark plug and all filler caps
are properly installed.
2. If the engine case is excessively greasy, ap-
ply degreaser with a paint brush. Do not ap-
ply degreaser to the wheel axles.
3. Rinse the dirt and degreaser off with a garden
hose. Use only enough pressure to do the
job.
