2006 YAMAHA KODIAK 450 clock

4-9 1. Speedometer
2. Odometer/Tripmeter A/Tripmeter B
3. Clock/Hour meter 4. Clock/Hour button “”/“”
5.“TRIP/ODO” button 6.“H” button
7.“M” button
1. Compteur de vitesse
2. Compteur kilométrique/totalisateurs journaliers A et B
3. Montre/compteur horaire
4. Bouton de sélection montre/compteur horaire “”/“”
5. Bouton “TRIP/ODO”
6. Bouton de réglage des heures “H”
7. Bouton de réglage des minutes “M”
1. Velocímetro
2. Cuentakilómetros/Cuentakilómetros parcial A/
Cuentakilómetros parcial B
3. Reloj/Contador de horas
4. Reloj/Botón “”/“” de la hora
5. Botón “TRIP/ODO”6. Botón “H”
7. Botón “M”
EBU11322
Speedometer unit
The speedometer unit is equipped with the follow-
ing:

a speedometer (which shows the riding speed)


an odometer (which shows the total distance
traveled)


two tripmeters (which show the distance trav-
eled since they were last set to zero)


a clock


an hour meter (which shows the total time the
key has been turned to “ON”)
Odometer and tripmeter modes
Pushing the “TRIP/ODO” button switches the dis-
play between the odometer mode “ODO” and the
tripmeter modes “A” and “B” in the following order:
ODO
→TRIP A
→TRIP B
→ODO
EE.book Page 9 Wednesday, May 11, 2005 1:21 PM

4-11 1. Speedometer
2. Odometer/Tripmeter A/Tripmeter B
3. Clock/Hour meter 4. Clock/Hour button “”/“”
5.“TRIP/ODO” button 6.“H” button
7.“M” button
1. Compteur de vitesse
2. Compteur kilométrique/totalisateurs journaliers A et B
3. Montre/compteur horaire
4. Bouton de sélection montre/compteur horaire “”/“”
5. Bouton “TRIP/ODO”
6. Bouton de réglage des heures “H”
7. Bouton de réglage des minutes “M”
1. Velocímetro
2. Cuentakilómetros/Cuentakilómetros parcial A/
Cuentakilómetros parcial B
3. Reloj/Contador de horas
4. Reloj/Botón “”/“” de la hora
5. Botón “TRIP/ODO”6. Botón “H”
7. Botón “M”
To reset a tripmeter, select it by pushing the
“TRIP/ODO” button, and then push the
“TRIP/ODO” button for at least three seconds. The
tripmeters can be used to estimate the distance
that can be traveled with a full tank of fuel. This in-
formation will enable you to plan future fuel stops.NOTE:_ Holding in the “TRIP/ODO” button and then turning
the key to “ON” switches the display between
“mph” and “km/h”. _Clock mode
Pushing the “”/“” button switches the dis-
play between the clock mode “CLOCK” and the
hour meter mode “HOUR” in the following order:
CLOCK
→HOUR
→CLOCK
EE.book Page 11 Wednesday, May 11, 2005 1:21 PM

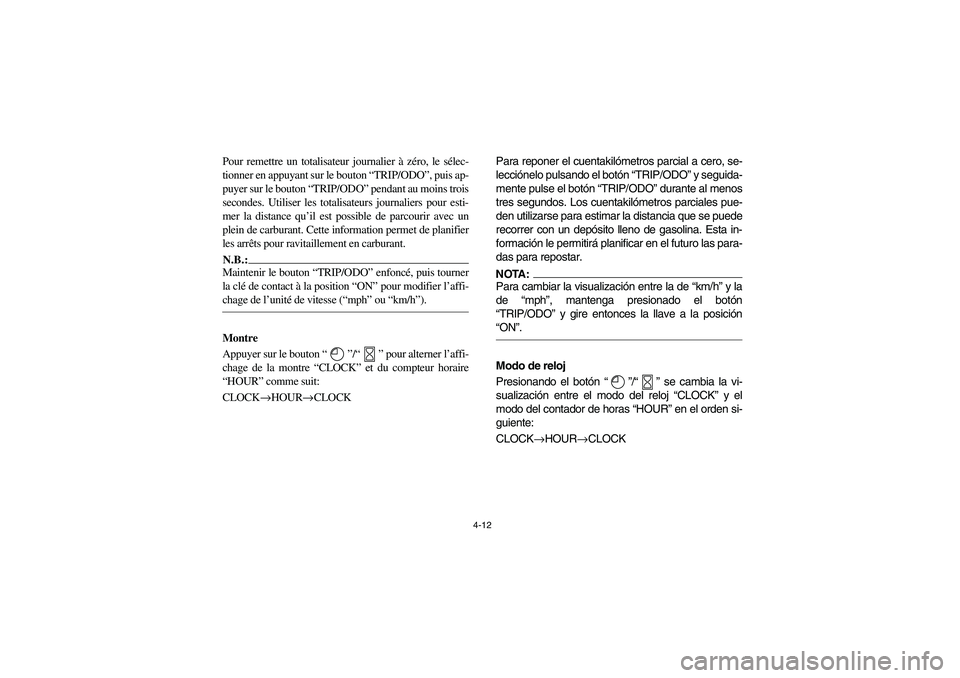

4-12
Pour remettre un totalisateur journalier à zéro, le sélec-
tionner en appuyant sur le bouton “TRIP/ODO”, puis ap-
puyer sur le bouton “TRIP/ODO” pendant au moins trois
secondes. Utiliser les totalisateurs journaliers pour esti-
mer la distance qu’il est possible de parcourir avec un
plein de carburant. Cette information permet de planifier
les arrêts pour ravitaillement en carburant.N.B.:_ Maintenir le bouton “TRIP/ODO” enfoncé, puis tourner
la clé de contact à la position “ON” pour modifier l’affi-
chage de l’unité de vitesse (“mph” ou “km/h”). _Montre
Appuyer sur le bouton “”/“” pour alterner l’affi-
chage de la montre “CLOCK” et du compteur horaire
“HOUR” comme suit:
CLOCK→HOUR→CLOCK
Para reponer el cuentakilómetros parcial a cero, se-
lecciónelo pulsando el botón “TRIP/ODO” y seguida-
mente pulse el botón “TRIP/ODO” durante al menos
tres segundos. Los cuentakilómetros parciales pue-
den utilizarse para estimar la distancia que se puede
recorrer con un depósito lleno de gasolina. Esta in-
formación le permitirá planificar en el futuro las para-
das para repostar.NOTA:_ Para cambiar la visualización entre la de “km/h” y la
de “mph”, mantenga presionado el botón
“TRIP/ODO” y gire entonces la llave a la posición
“ON”. _Modo de reloj
Presionando el botón “”/“” se cambia la vi-
sualización entre el modo del reloj “CLOCK” y el
modo del contador de horas “HOUR” en el orden si-
guiente:
CLOCK
→HOUR
→CLOCK
EE.book Page 12 Wednesday, May 11, 2005 1:21 PM

4-13
To set the clock1. Set the display to the clock mode.
2. Push the “”/“” button until the clock
starts flashing.
3. Set the hours by pushing the “H” button.
4. Set the minutes by pushing the “M” button.
5. Push the “”/“” button, and then re-
lease it to start the clock.
EE.book Page 13 Wednesday, May 11, 2005 1:21 PM

4-45 1. Fuel tank cap
1. Bouchon du réservoir de carburant
1. Tapón del depósito de combustible
EBU00092
Fuel tank cap
Remove the fuel tank cap by turning it counter-
clockwise.
EE.book Page 45 Wednesday, May 11, 2005 1:21 PM

8-127 1. Headlight fuse
2. Ignition fuse
3. Auxiliary DC jack fuse
4. Four-wheel-drive fuse
5. Signaling system fuse
6. Backup fuse (for odometer and clock)
7. Spare fuse (× 3)
1. Fusible de phare
2. Fusible d’allumage
3. Fusible de prise pour accessoires
4. Fusible du système quatre roues motrices
5. Fusible du système de signalisation
6. Fusible de sauvegarde (compteur kilométrique)
7. Fusible de rechange (× 3)
1. Fusible del faro
2. Fusible del sistema de encendido
3. Fusible de la toma de CC auxiliar
4. Fusible del sistema de tracción en las cuatro ruedas
5. Fusible del sistema de señalización
6. Fusible de reserva (para el cuentakilómetros)
7. Fusible de repuesto (× 3)
WARNING
_ Always use a fuse of the specified rating. Nev-
er use any type of material or object in place of
the proper fuse. An improper fuse can cause
damage to the electrical system which could
lead to a fire. _CAUTION:_ To prevent accidental short-circuiting, turn off
the main switch when checking or replacing a
fuse. _
EE.book Page 127 Wednesday, May 11, 2005 1:21 PM

8-131 1. Headlight bulb holder assembly
1. Ensemble fixation d’ampoule de phare
1. Conjunto del portabombillas del faro
1. Do not touch the glass part of the bulb.
1. Ne pas toucher le verre de l’ampoule.
1. No tocar la parte de cristal de la bombilla.
3. Remove the headlight bulb holder assembly
by turning it counterclockwise.NOTE:_ The headlight bulb cannot be removed from the
headlight bulb holder. To replace the headlight
bulb, replace the headlight bulb holder assembly. _
WARNING
_ A headlight bulb is hot when it is on and imme-
diately after it is turned off. Wait for the bulb to
cool before touching or removing it. You can
be burned or a fire could start if the bulb touch-
es something flammable. _4. Install a new headlight bulb holder assembly
by inserting it and turning it clockwise.CAUTION:_ Do not touch the glass part of the headlight
bulb to keep it free from oil, otherwise the
transparency of the glass, the luminosity of the
bulb, and the bulb life will be adversely affect-
ed. Thoroughly clean off any dirt and finger-
prints on the headlight bulb using a cloth
moistened with alcohol or thinner. _
EE.book Page 131 Wednesday, May 11, 2005 1:21 PM

8-137 1. Tail/brake light unit 2. Tail/brake light bulb holder
1. Bloc du feu arrière/stop
2. Fixation d’ampoule de feu arrière/stop
1. Unidad de la luz de cola/freno
2. Portalámparas de la luz de freno/piloto trasero
1. Tail/brake light bulb holder 2. Bulb
1. Fixation d’ampoule de feu arrière/stop 2. Ampoule
1. Portalámparas de la luz de freno/piloto trasero 2. Bombilla
2. Remove the bulb holder (together with the
bulb) by turning it counterclockwise.
3. Remove the defective bulb from the bulb
holder by pushing it inward and turning it
counterclockwise.
4. Install a new bulb in the bulb holder by push-
ing it inward and turning it clockwise.
5. Install the bulb holder (together with the bulb)
by turning it clockwise.
6. Install the washers, and then install the nuts.
EE.book Page 137 Wednesday, May 11, 2005 1:21 PM
