3-1
EBU00032
DESCRIPTION AND MACHINE
IDENTIFICATION1. Rear shock absorber spring
preload adjusting ring
2. Storage compartment and tool
kit
3. Air filter case
4. Front brake fluid reservoir
5. Front shock absorber spring
preload adjusting ring
6. Rear brake fluid reservoir
7. Brake pedal
8. V-belt case drain plug
9. Radiator cap
10. Drive select lever
11. Fuel tank cap
12. Fuel cock
13. Battery
14. Fuses15. Engine oil dipstick
16. Recoil starter
17. Coolant reservoir
18. Drive select lever box check
hose
19. V-belt cooling duct check hose
20. Rear brake lever
21. Left handlebar switches
22. Horn switch
23. Speedometer unit
24. Main switch
25. Right handlebar switches
26. Throttle lever
27. Front brake lever
28. Auxiliary DC jack
29. Starter (choke)NOTE:The machine you have purchased may differ
slightly from those shown in the figures of this
manual.
U2C660.book Page 1 Monday, April 11, 2005 10:29 AM

5-21
WARNING
_ Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always put a thick rag over the cap
when opening. Allow any remaining pressure
to escape before completely removing the cap. _
EBU01083
Throttle lever
Check to see that the throttle lever operates cor-
rectly. It must open smoothly and spring back to
the idle position when released. Have a Yamaha
dealer repair as necessary for proper operation.
EBU01162
Fittings and fasteners
Always check the tightness of chassis fittings and
fasteners before a ride. Take the machine to a
Yamaha dealer or refer to the Service Manual for
correct tightening torque.Coolant reservoir capacity
(up to the maximum level mark):
0.3 L
U2C660.book Page 21 Monday, April 11, 2005 10:29 AM

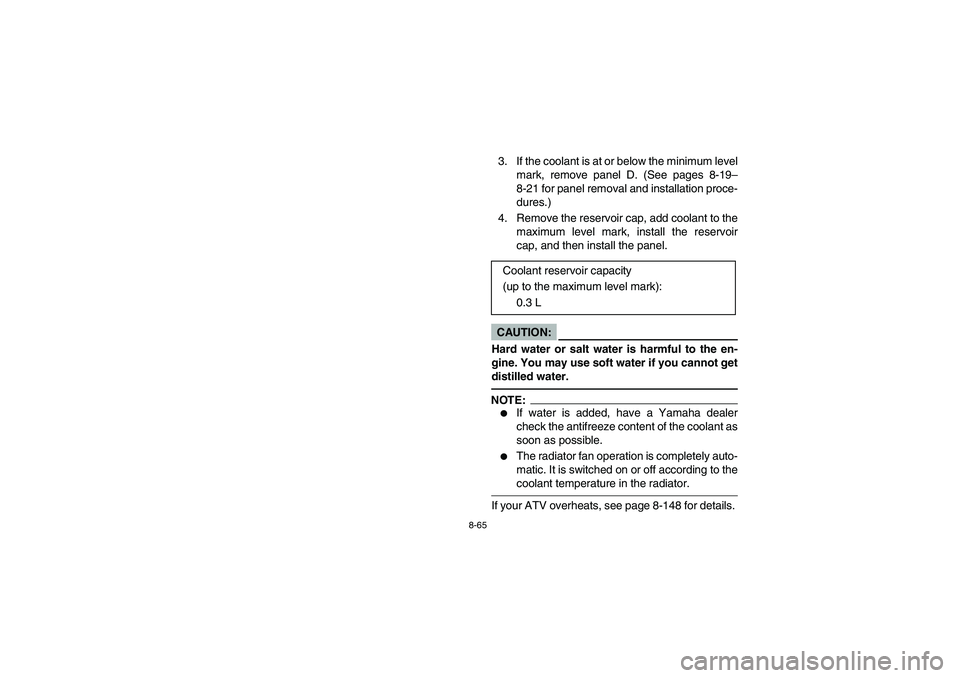

8-65
3. If the coolant is at or below the minimum level
mark, remove panel D. (See pages 8-19–
8-21 for panel removal and installation proce-
dures.)
4. Remove the reservoir cap, add coolant to the
maximum level mark, install the reservoir
cap, and then install the panel.CAUTION:_ Hard water or salt water is harmful to the en-
gine. You may use soft water if you cannot get
distilled water. _NOTE:_

If water is added, have a Yamaha dealer
check the antifreeze content of the coolant as
soon as possible.


The radiator fan operation is completely auto-
matic. It is switched on or off according to the
coolant temperature in the radiator.
_If your ATV overheats, see page 8-148 for details. Coolant reservoir capacity
(up to the maximum level mark):
0.3 L
U2C660.book Page 65 Monday, April 11, 2005 10:29 AM

8-67 1. Coolant drain bolt
1. Boulon de vidange du liquide de refroidissement
1. Perno de drenaje del refrigerante
1. Trough
1. Feuille de papier repliée en forme de conduit
1. Pasante
EBU13221
Changing the coolant
WARNING
_ Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always put a thick rag over the cap
when opening. Allow any remaining pressure
to escape before completely removing the cap. _1. Place the ATV on a level surface.
2. Remove panels E and F. (See pages 8-31–
8-33 for panel removal and installation proce-
dures.)
3. Place a container under the engine, and then
remove the coolant drain bolt. (Use a trough
or a similar object as shown to prevent cool-
ant from spilling on the footrest.)
4. Remove the front carrier and panel C. (See
pages 8-25–8-29 for panel removal and in-
stallation procedures.)
U2C660.book Page 67 Monday, April 11, 2005 10:29 AM

8-69 1. Radiator cap
1. Bouchon du radiateur
1. Tapa del radiador
1. Coolant reservoir drain hose
1. Boulon de vidange du liquide de refroidissement
1. Manguera de drenaje del depósito de refrigerante
5. Remove the radiator cap.
6. Remove panel D. (See pages 8-19–8-21 for
panel removal and installation procedures.)
7. Remove the coolant reservoir cap.
8. Disconnect the hose on the coolant reservoir
side, and then drain the coolant from the
coolant reservoir.
9. After draining the coolant, thoroughly flush
the cooling system with clean tap water.
10. Replace the coolant drain bolt washer if it is
damaged, install the coolant drain bolt, and
then tighten it to the specified torque.
Tightening torque:
Coolant drain bolt:
10 Nm (1.0 m·kgf)
U2C660.book Page 69 Monday, April 11, 2005 10:29 AM

8-71
11. Connect the coolant reservoir hose.
12. Pour the recommended coolant into the res-
ervoir to the maximum level mark, and then
install the reservoir cap and panel D.
13. Pour the recommended coolant into the radi-
ator until it is full, and then install the radiator
cap.
Recommended antifreeze:
High quality ethylene glycol antifreeze con-
taining corrosion inhibitors for aluminum en-
gines.
Antifreeze and water mixing ratio:
1:1
Total amount:
1.8 L
Coolant reservoir capacity
(up to the maximum level mark):
0.3 L
U2C660.book Page 71 Monday, April 11, 2005 10:29 AM

8-148
Engine overheatingNOTE:If it is difficult to get the recommended coolant, tap water can be temporarily used, provided that it is
changed to the recommended coolant as soon as possible.
WARNING
Wait for the engine and radiator to cool before removing the radiator cap. You could be burned by
hot fluid and steam blown out under pressure. Always put a thick rag over the cap when opening.
Allow any remaining pressure to escape before completely removing the cap. Wait until the
engine has cooled.
Check the coolant level in the
coolant reservoir and/or radiator.
Level is OK.Level is low, check the
cooling system for leakage.
No
leakage.Leakage.
Ask a Yamaha dealer to inspect
and repair the cooling system.Add coolant. (See NOTE.)
Restart the engine. If the engine overheats again, ask a
Yamaha dealer to inspect and/or repair the cooling system.
U2C660.book Page 148 Monday, April 11, 2005 10:29 AM

10-3
Engine oil:
Quantity:
Without oil filter cartridge replacement 1.9 L
With oil filter cartridge replacement 2.0 L
Final gear case oil:
Type SAE80 API GL-4 Hypoid gear oil
Quantity 0.25 L
Differential gear case oil:
Type SAE80 API GL-4 Hypoid gear oil
Quantity 0.28 L
Radiator capacity (including all routes): 1.80 L
Air filter: Wet element
Fuel:
Type Unleaded gasoline only
For Europe: Regular unleaded gasoline only with a
research octane number of 91 or higher
Fuel tank capacity 20 L
Fuel reserve amount 3.5 L
Carburetor:
Type / quantity BSR42 / 1
Manufacturer MIKUNIModel YFM66FA
