2006 YAMAHA FZ6 N turn signal bulb

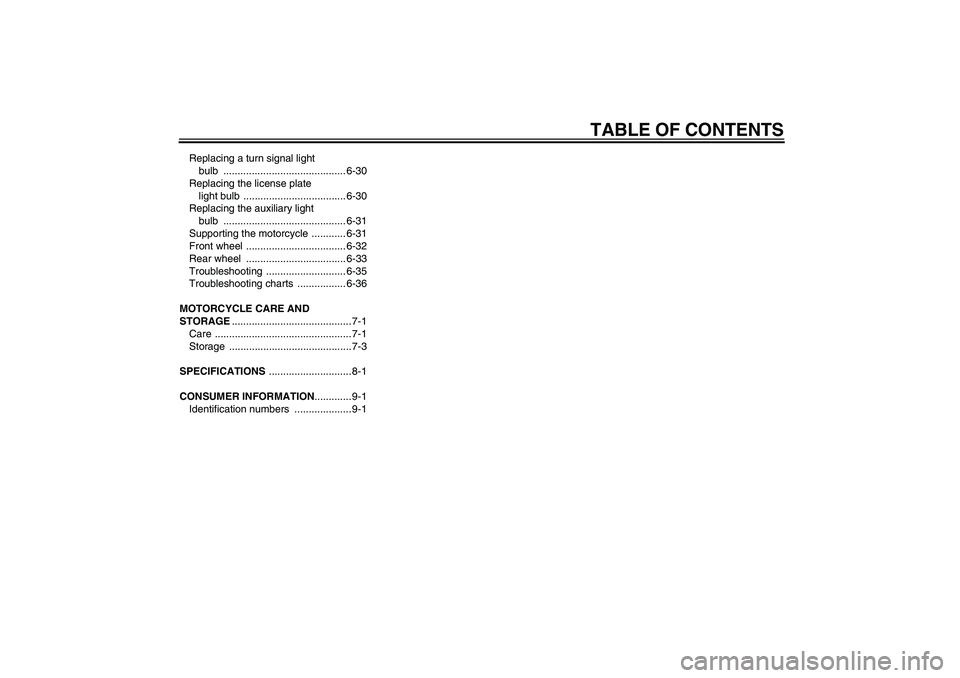

TABLE OF CONTENTS
Replacing a turn signal light
bulb ........................................... 6-30
Replacing the license plate
light bulb .................................... 6-30
Replacing the auxiliary light
bulb ........................................... 6-31
Supporting the motorcycle ............ 6-31
Front wheel ................................... 6-32
Rear wheel ................................... 6-33
Troubleshooting ............................ 6-35
Troubleshooting charts ................. 6-36
MOTORCYCLE CARE AND
STORAGE.......................................... 7-1
Care ................................................ 7-1
Storage ...........................................7-3
SPECIFICATIONS ............................. 8-1
CONSUMER INFORMATION............. 9-1
Identification numbers .................... 9-1
U1B3E2E0.book Page 2 Monday, August 1, 2005 3:07 PM

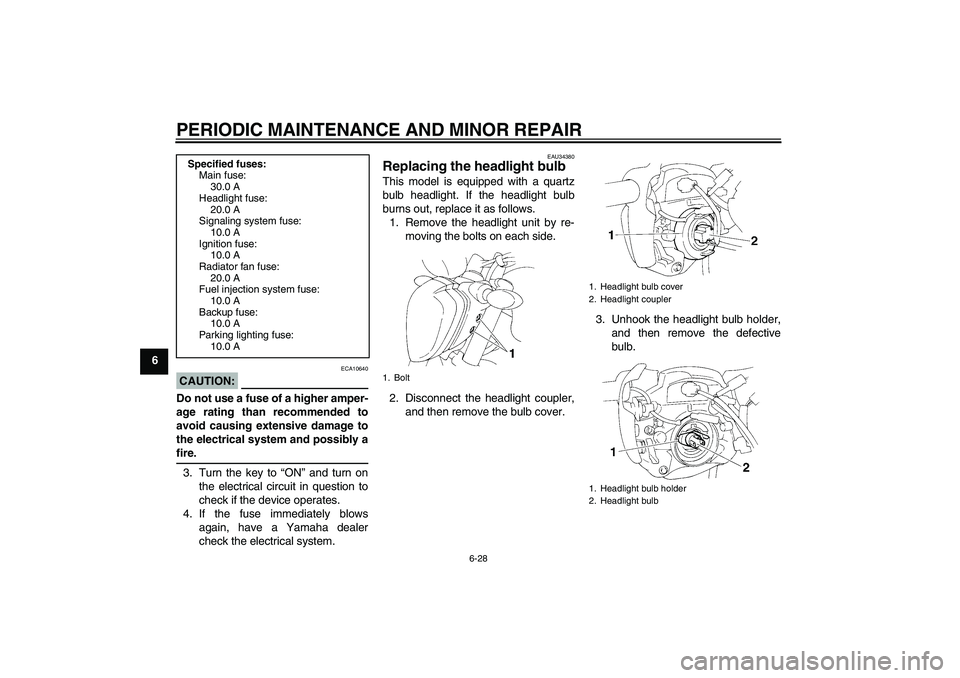

PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
6
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU34380
Replacing the headlight bulb This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.
1. Remove the headlight unit by re-
moving the bolts on each side.
2. Disconnect the headlight coupler,
and then remove the bulb cover.3. Unhook the headlight bulb holder,
and then remove the defective
bulb.
Specified fuses:
Main fuse:
30.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
20.0 A
Fuel injection system fuse:
10.0 A
Backup fuse:
10.0 A
Parking lighting fuse:
10.0 A
1. Bolt
1. Headlight bulb cover
2. Headlight coupler
1. Headlight bulb holder
2. Headlight bulb
U1B3E2E0.book Page 28 Monday, August 1, 2005 3:07 PM

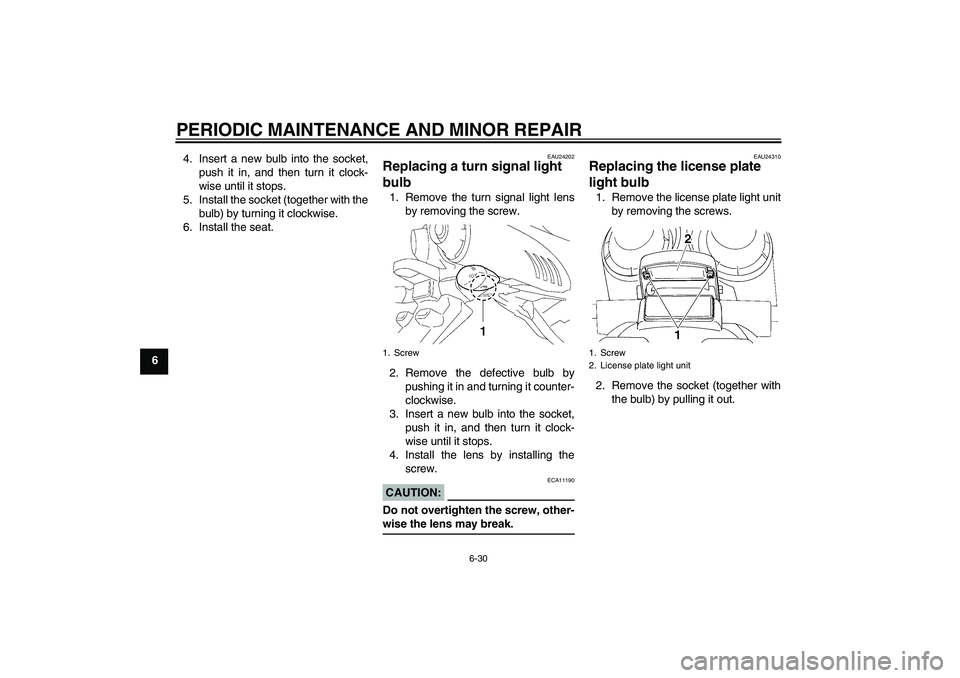

PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
64. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
5. Install the socket (together with the
bulb) by turning it clockwise.
6. Install the seat.
EAU24202
Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw.
2. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw.CAUTION:
ECA11190
Do not overtighten the screw, other-wise the lens may break.
EAU24310
Replacing the license plate
light bulb 1. Remove the license plate light unit
by removing the screws.
2. Remove the socket (together with
the bulb) by pulling it out.
1. Screw
1. Screw
2. License plate light unit
U1B3E2E0.book Page 30 Monday, August 1, 2005 3:07 PM

SPECIFICATIONS
8-3
8
Electrical system:Ignition system:
Transistorized coil ignition (digital)
Charging system:
AC magnetoBattery:Model:
GT12B-4
Voltage, capacity:
12 V, 10.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 60 W/55.0 W × 1
Tail/brake light:
12 V, 5.0 W/21.0 W × 1
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 1
License plate light:
12 V, 5.0 W × 1
Meter lighting:
EL (LCD backlight)
Neutral indicator light:
LED
High beam indicator light:
LED
Oil level warning light:
LEDTurn signal indicator light:
LED
Engine trouble warning light:
LED
Immobilizer system indicator light:
LED
Fuses:Main fuse:
30.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Parking lighting fuse:
10.0 A
Radiator fan fuse:
20.0 A
Fuel injection system fuse:
10.0 A
Backup fuse:
10.0 A
U1B3E2E0.book Page 3 Monday, August 1, 2005 3:07 PM

INDEX
AAir filter element, replacing ................... 6-11
Anti-theft alarm (optional) ....................... 3-8
Auxiliary light bulb, replacing ................ 6-31BBattery .................................................. 6-26
Brake and clutch levers,
checking and lubricating ..................... 6-23
Brake and shift pedals,
checking and lubricating ..................... 6-22
Brake fluid, changing ............................ 6-19
Brake fluid level, checking .................... 6-18
Brake lever ........................................... 3-10
Brake pedal .......................................... 3-11CCables, checking and lubricating .......... 6-21
Care ........................................................ 7-1
Catalytic converter ................................ 3-13
Clutch lever........................................... 3-10
Clutch lever free play, adjusting ........... 6-16
Coolant ................................................... 6-9DDimmer switch ........................................ 3-9
Drive chain, cleaning and lubricating .... 6-21
Drive chain slack .................................. 6-19EEngine break-in ...................................... 5-3
Engine idling speed .............................. 6-12
Engine oil and oil filter cartridge ............. 6-6
Engine stop switch.................................. 3-9
Engine trouble warning light ................... 3-4FFront and rear brake pads, checking .... 6-17
Front fork, checking .............................. 6-24Fuel ....................................................... 3-12
Fuel consumption, tips for reducing ........ 5-3
Fuel tank breather hose ........................ 3-13
Fuel tank cap......................................... 3-11
Fuses, replacing .................................... 6-27
HHandlebar switches ................................. 3-8
Hazard switch.......................................... 3-9
Headlight bulb, replacing....................... 6-28
High beam indicator light......................... 3-4
Horn switch ............................................. 3-9IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-16
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-4
Indicator and warning lights .................... 3-3KKey identification number ........................ 9-1LLCD tachometer ...................................... 3-5
License plate light bulb, replacing ......... 6-30MMain switch/steering lock ........................ 3-2
Model label .............................................. 9-2
Multi-function display...............................3-5NNeutral indicator light .............................. 3-3OOil level warning light .............................. 3-4PPanel, removing and installing ................ 6-5
Parking ....................................................5-4
Part locations .......................................... 2-1Pass switch ............................................. 3-9
Periodic maintenance and lubrication
chart...................................................... 6-2
Pre-operation check list .......................... 4-2
RRear brake light switch, adjusting ......... 6-17SSafety information ................................... 1-1
Seat ...................................................... 3-13
Shifting .................................................... 5-2
Shift pedal ............................................. 3-10
Shock absorber assembly, adjusting .... 3-15
Sidestand .............................................. 3-16
Sidestand, checking and lubricating ..... 6-23
Spark plugs, checking............................. 6-5
Specifications.......................................... 8-1
Starting the engine.................................. 5-1
Start switch ............................................. 3-9
Steering, checking ................................ 6-25
Storage ................................................... 7-3
Storage compartment ........................... 3-14
Supporting the motorcycle .................... 6-31
Swingarm pivots, lubricating ................. 6-24TTail/brake light bulb, replacing .............. 6-29
Throttle cable free play, checking ......... 6-13
Throttle grip and cable,
checking and lubricating ..................... 6-22
Tires ...................................................... 6-13
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-35
Troubleshooting charts ......................... 6-36
Turn signal indicator lights ...................... 3-3
Turn signal light bulb, replacing ............ 6-30
